Add / Remove Tags on Port Channel (Datacenter)

You can add tags to aggregated logical interfaces (port channels) and use them for configuration.

You can manage aggregated logical interfaces, also known as port channels, from various locations in the Apstra GUI.

Update from Topology Interfaces View

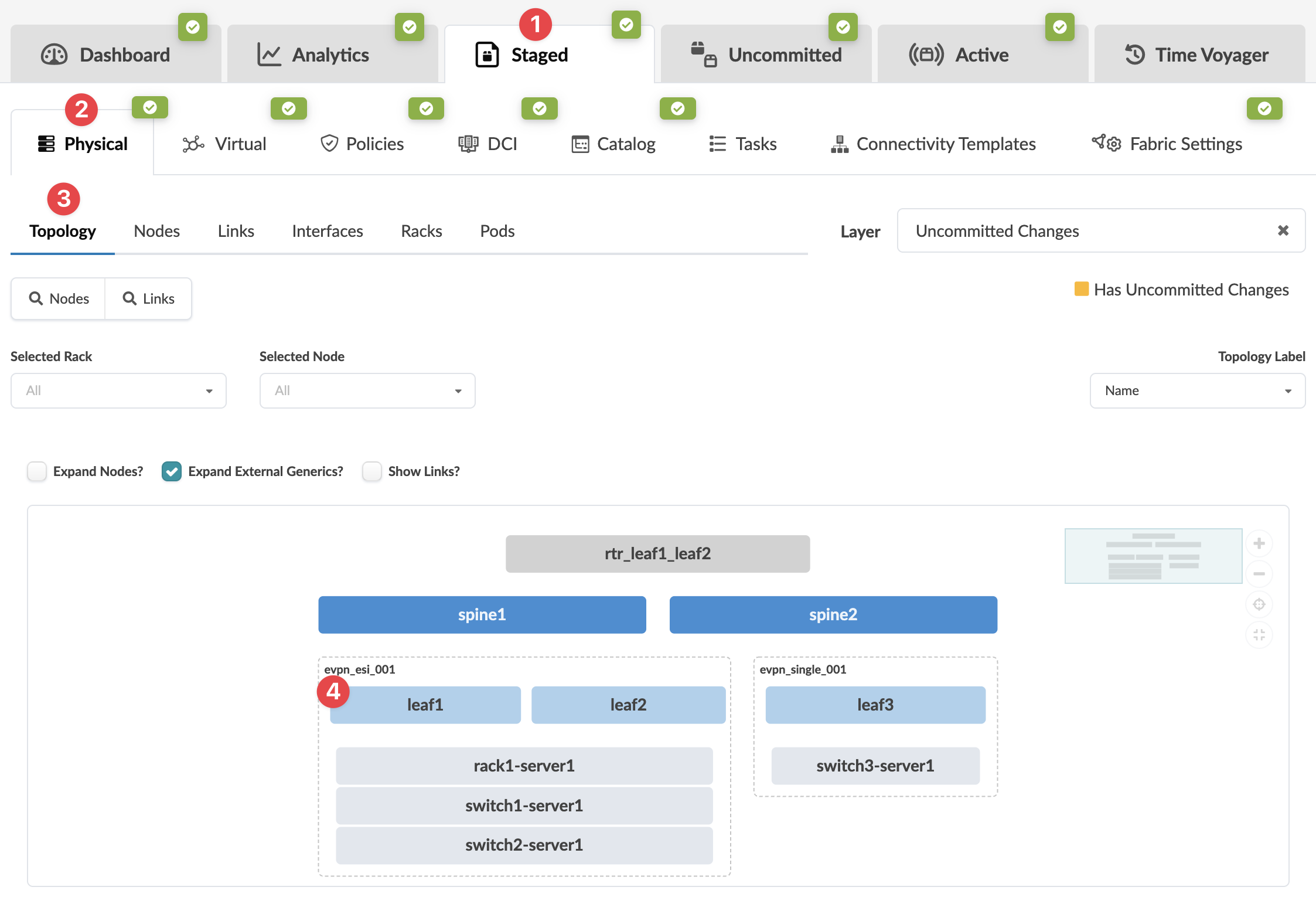

  1. From the blueprint, navigate to Staged > Physical > Topology and select the leaf with the interface to tag.

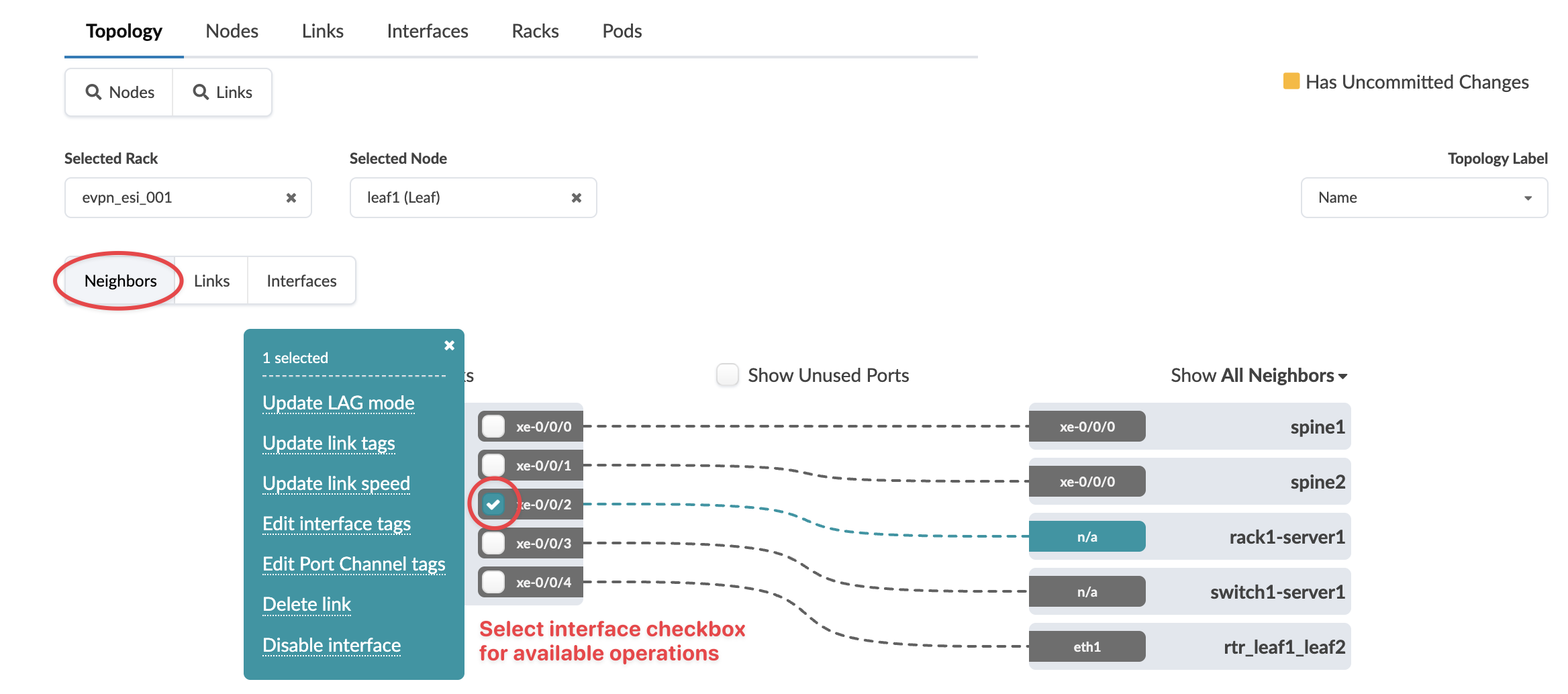

  2. Click Interfaces view, then select one or more check boxes for the interfaces to tag.

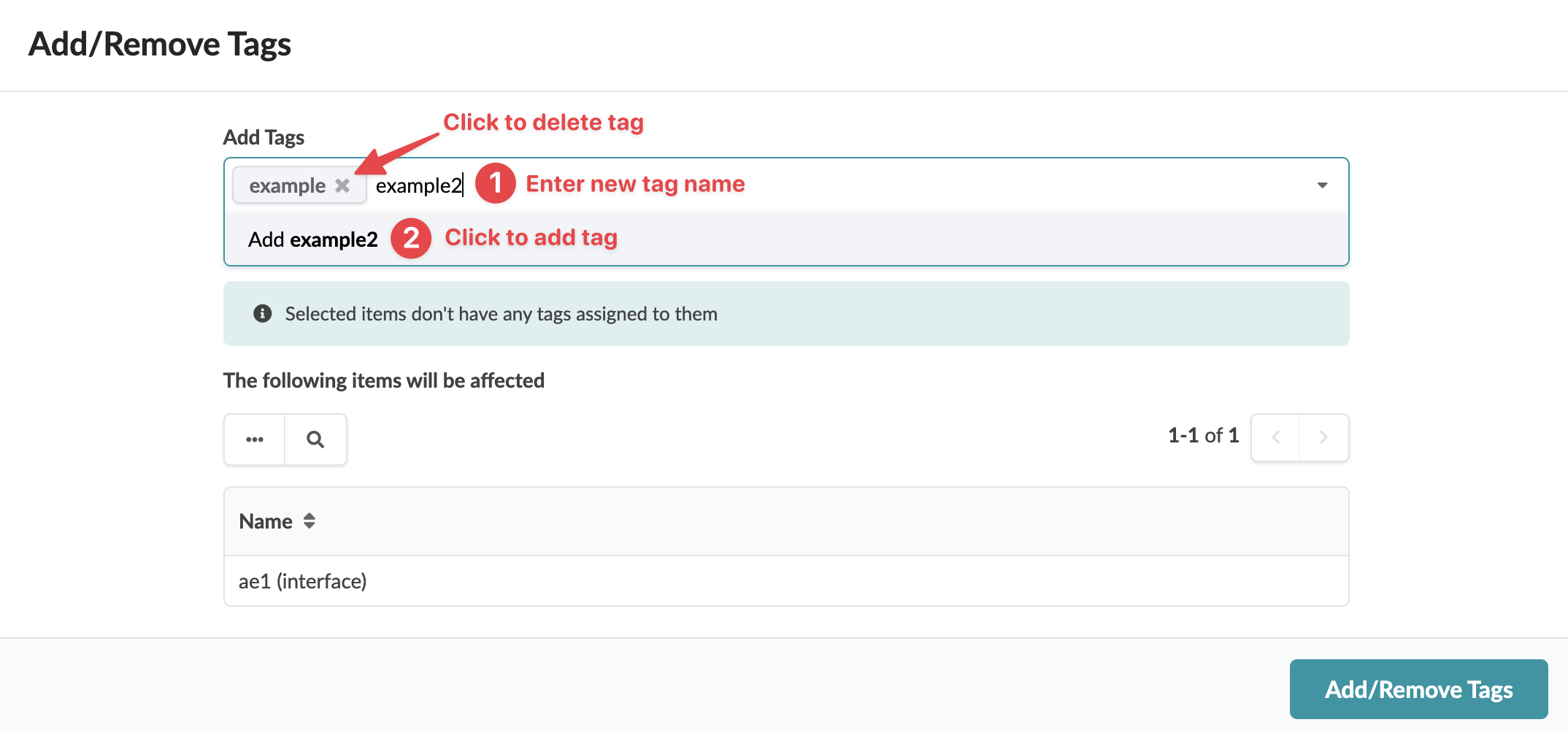

  3. Add and/or remove tags from the drop-down lists, as needed.
  4. Click Add/Remove Tags to stage the tag changes and return to the interfaces table.

Update from Interfaces Table

  1. From the blueprint, navigate to Staged > Physical > Interfaces and select one or more check boxes for the interfaces to tag.
  2. Click the Add/Remove Tags button that appears above the table.
  3. Add and/or remove tags from the drop-down lists, as needed.
  4. Click Add/Remove Tags to stage the tag changes and return to the interfaces table.
