Add/Remove Link Tags (Datacenter)

You can add tags to links in a few different ways and use them for configuration.

Update Tags on One Link (Topology Neighbors View)

  1. From the blueprint, navigate to Staged > Physical > Topology and select the node connected to the link that needs updated tags. In our example, we've selected leaf3.
    The topology selection view appears.
  2. From the Neighbors view (default view), select the interface check box to see the operations available for that link (and that you have permissions for).
  3. Click Update link tags.
    The Add/Remove Tags dialog opens.

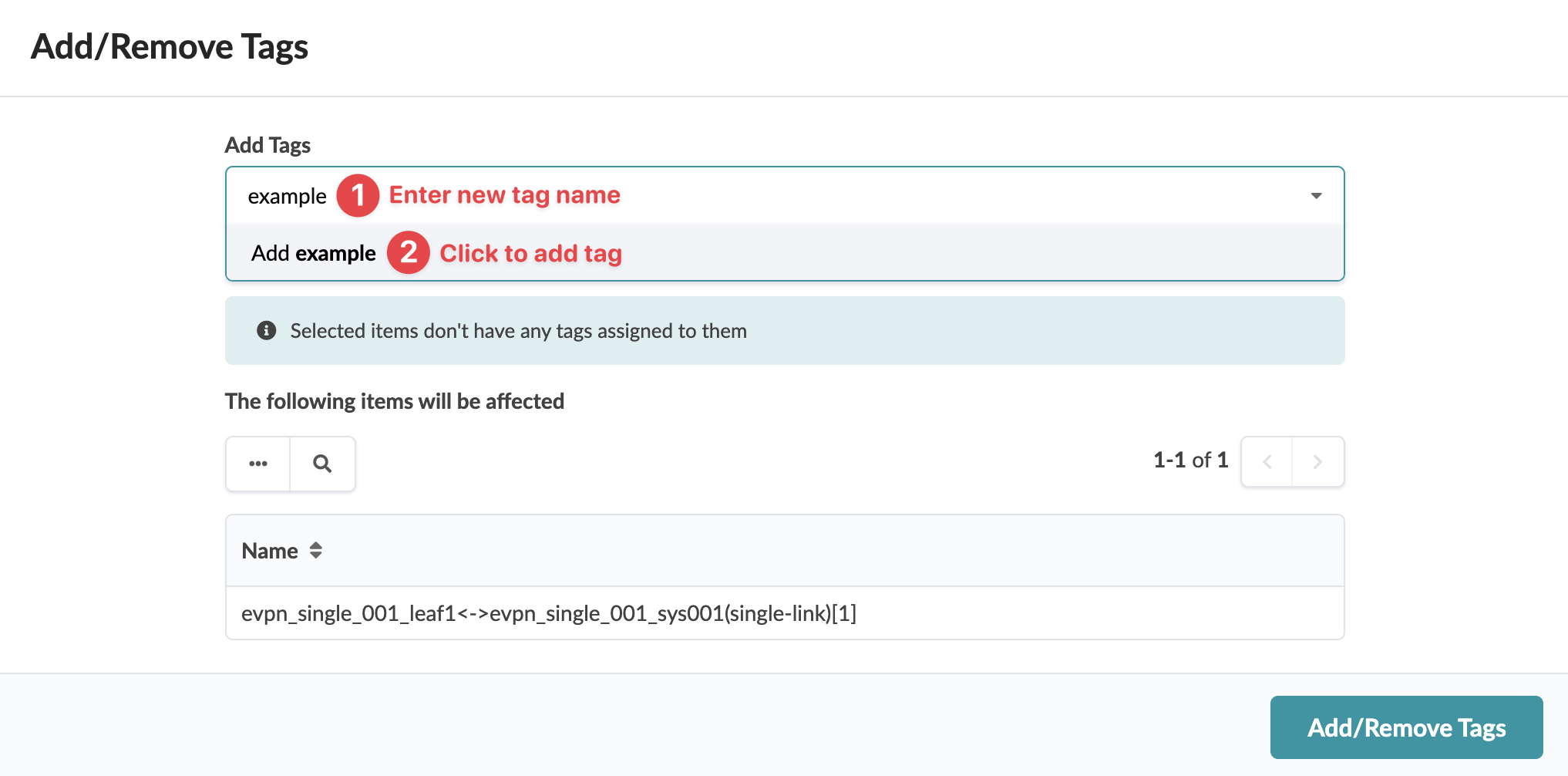

  4. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the link and added to the blueprint catalog.
  5. Click Add/Remove Tags.
    The updates are staged and you're returned to the topology selection view.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.

Update Tags on One Link (Links Table)

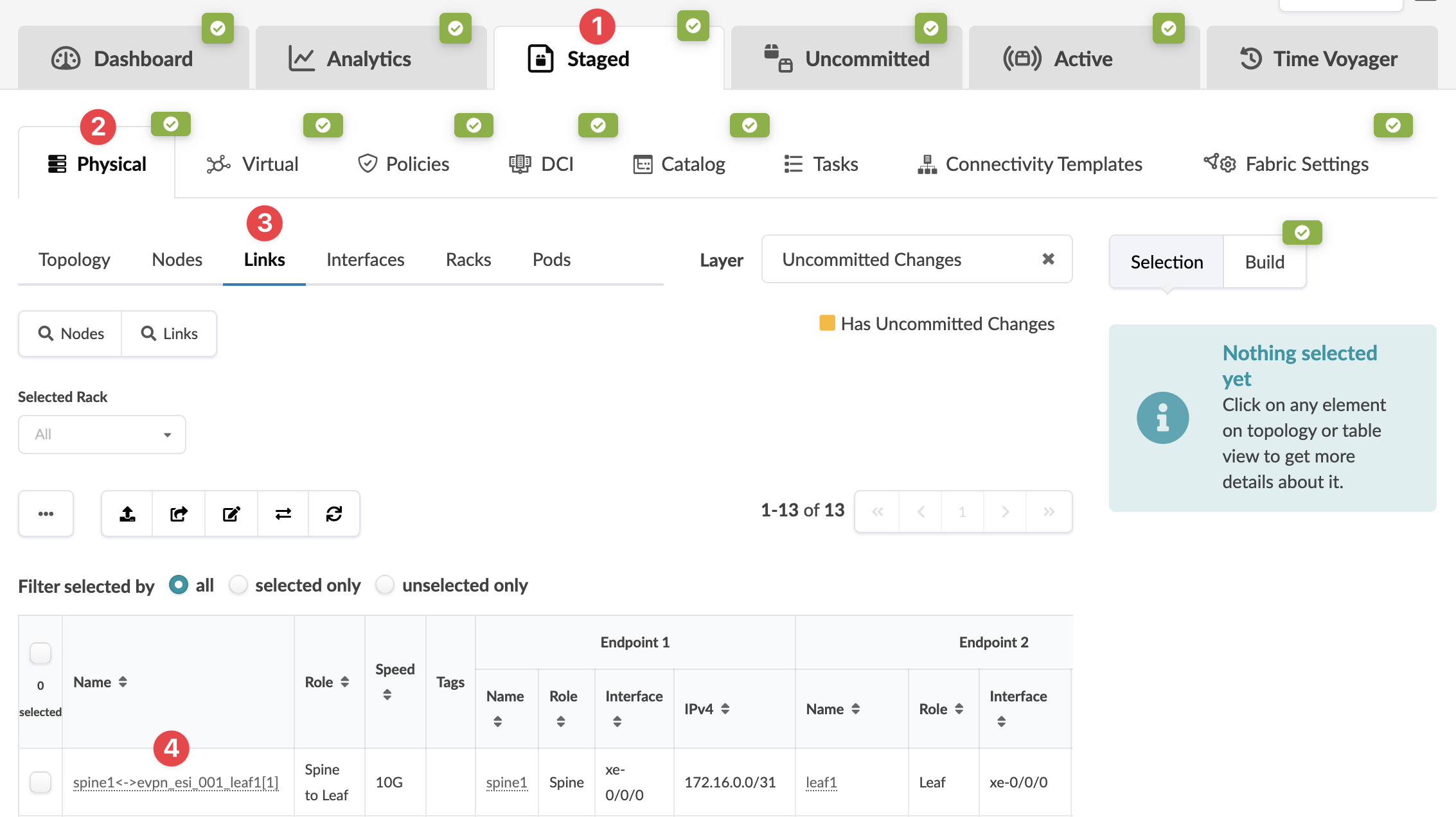

  1. From the blueprint, navigate to Staged > Physical > Links and select the link name (not the check box) for the link that needs updated tags.

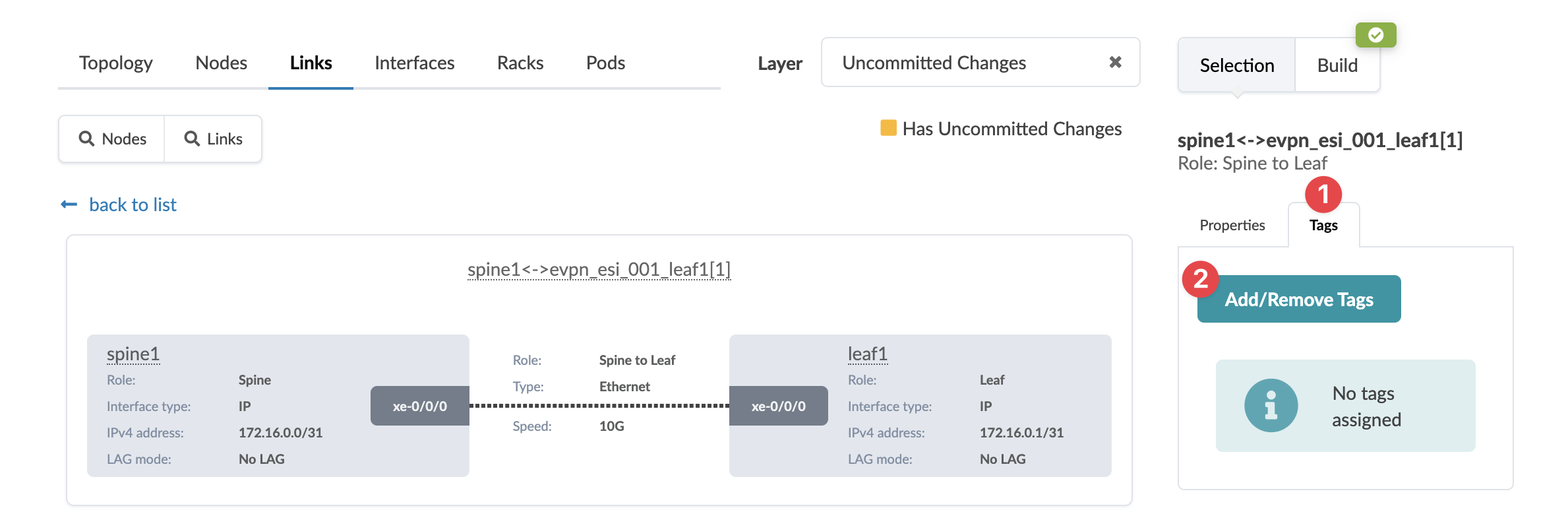

    The link selection view appears, including tag information in the right Selection panel.
  2. Click the Tags tab in the panel, then click Add / Remove Tags.
    The Update Tags dialog opens.
  3. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the link and added to the blueprint catalog.
  4. Click Update Tags.
    The updates are staged and you're returned to the link selection view.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.

Update Tags on One or More Links (Links Table)

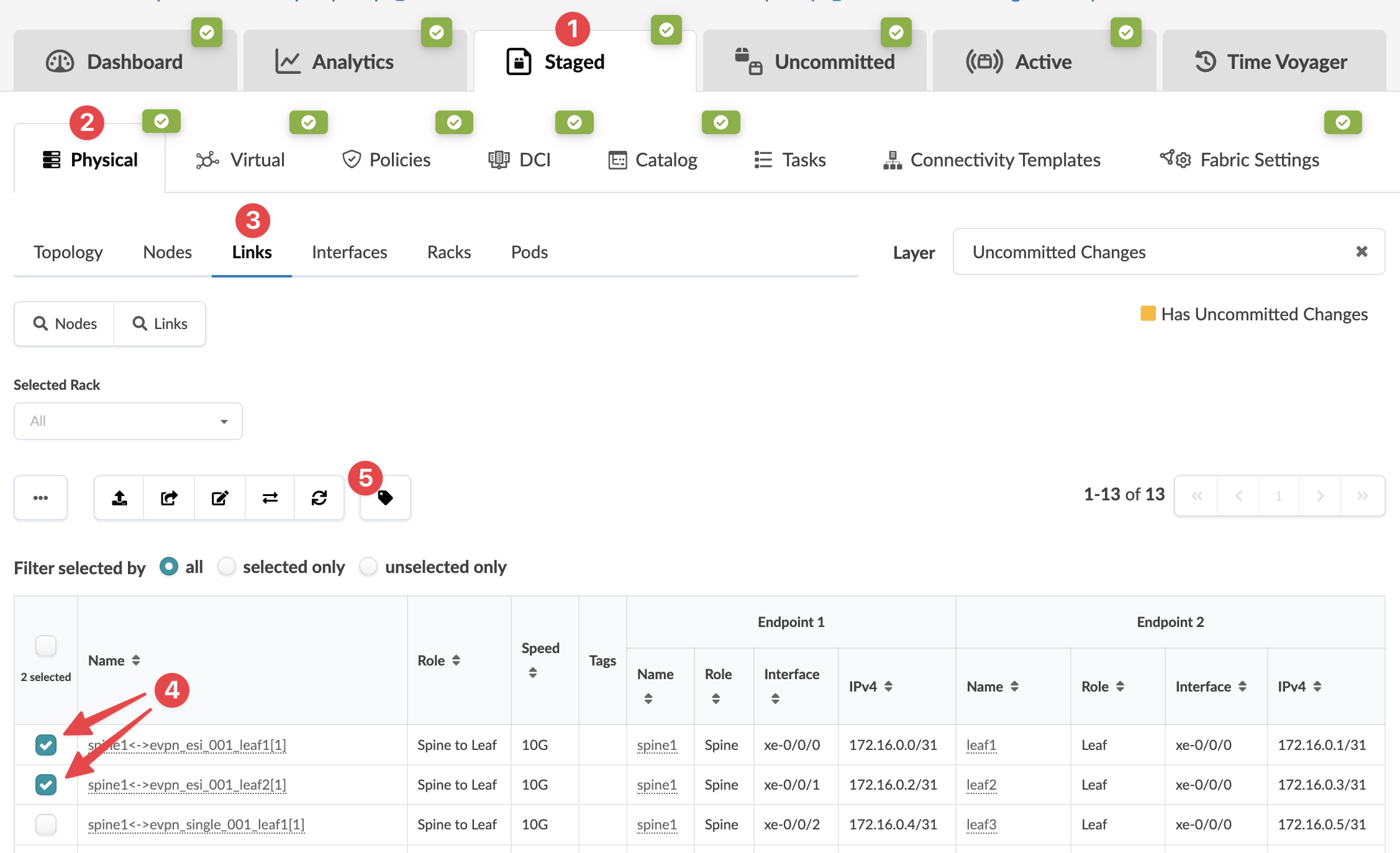

  1. From the blueprint, navigate to Staged > Physical > Links, select one or more check boxes for the link(s) that need updated tags. The Add/Remove Tags button appears above the table.
  2. Click the Add/Remove Tags button.

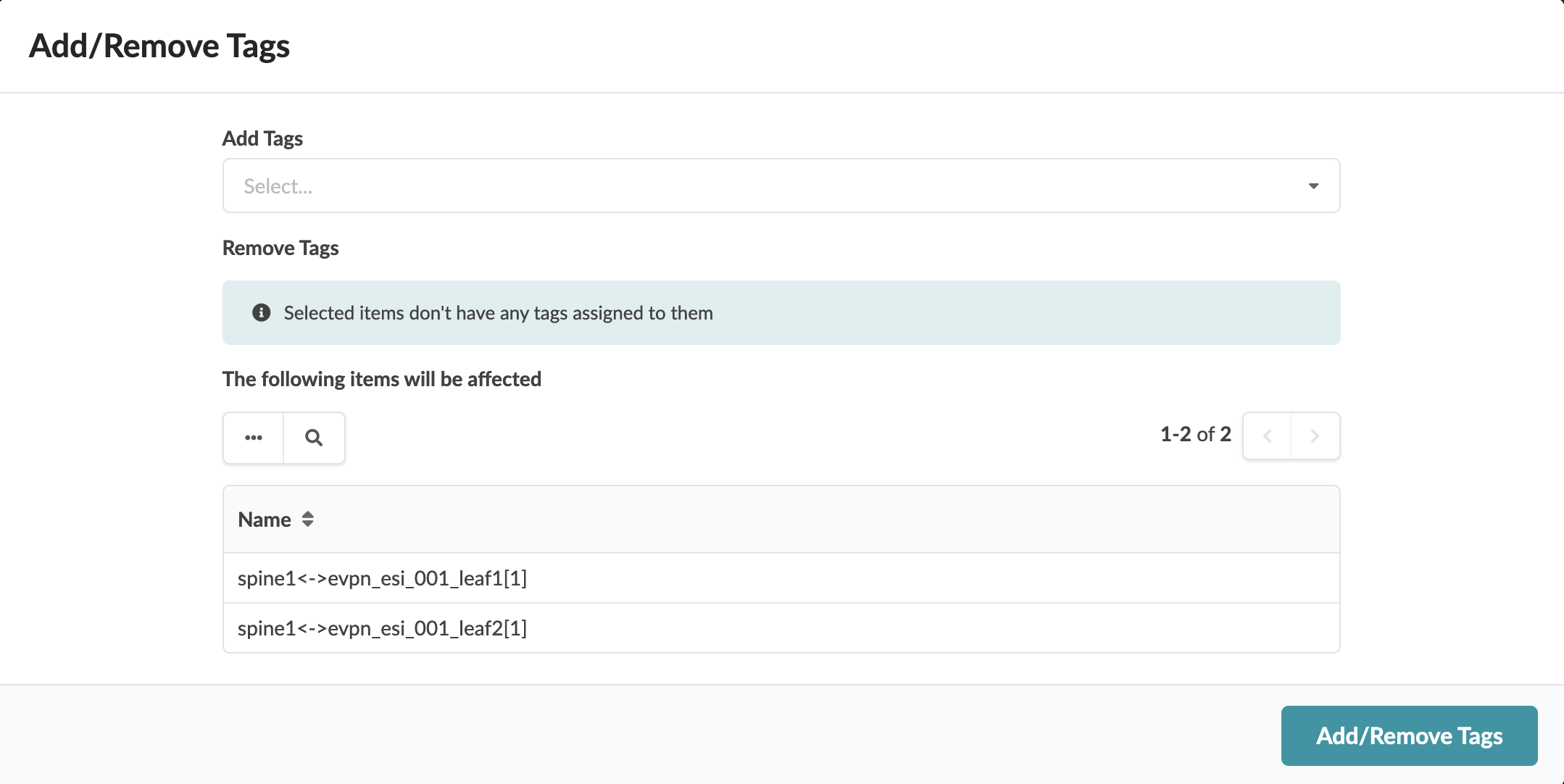

    The Add/Remove Tags dialog opens.
  3. Add and/or remove tags, as needed. You can create tags from here; they'll be tagged to the links and added to the blueprint catalog.
  4. Click Add/Remove Tags.
    The updates are staged and you're returned to the Links table.

When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
