Change Generic System Type
You can transfer generic systems from being internal (part of a rack) to being external (separate from a rack), or vice versa, with a single transaction (new in Apstra version 5.0.0). You can change one generic system at a time, or you can change multiple generic systems simultaneously. Previously, to change the generic system type, you had to delete the generic system from the blueprint and re-add it as the other type.
To transfer a generic system from external to internal, all associated external links must be located within the same rack.
Change Type on One Generic System
-

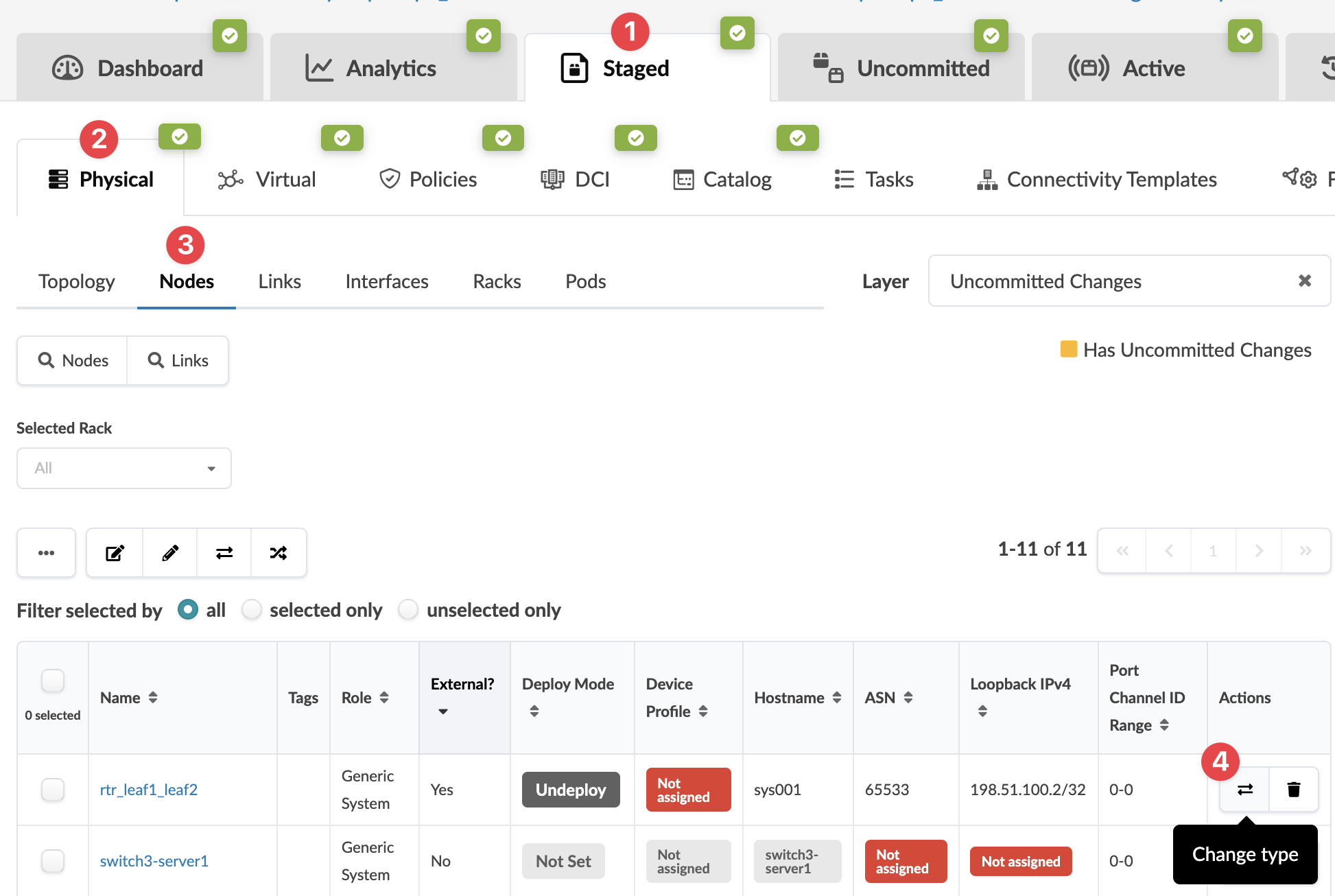

From the blueprint, navigate to Staged > Physical >
Nodes and click the Change type
button in the Actions panel, for the generic system
to change.
The Change System Type dialog opens.
When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
Change Type on Multiple Generic Systems
-
From the blueprint, navigate to Staged > Physical >
Nodes and click the Batch change generic systems
type button, above the table.

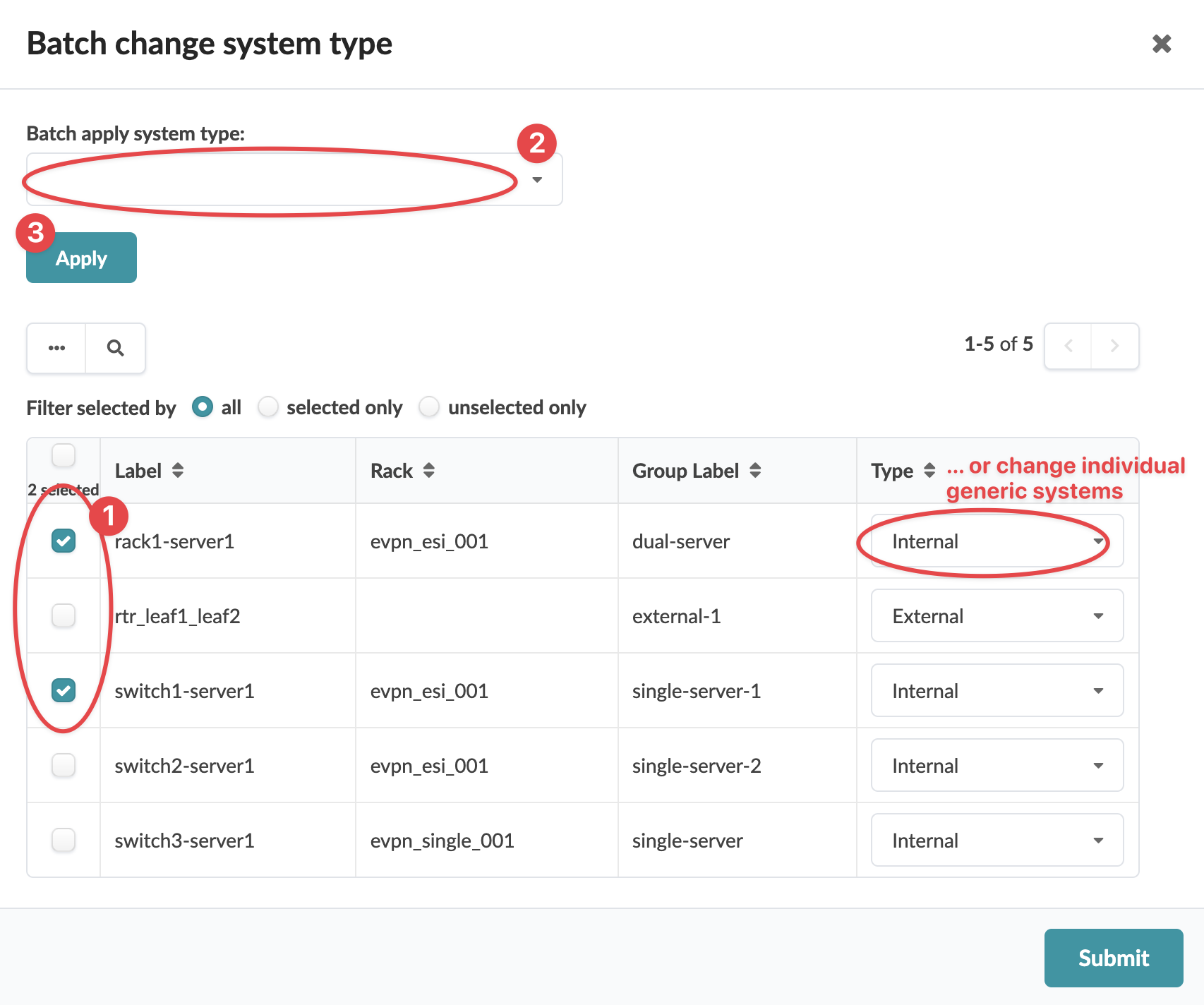

The Batch change system type dialog opens. -
You can change multiple generic systems simultaneously by selecting their
check boxes and selecting the generic system type from the Batch
apply system type drop-down list, then clicking
Apply; or you can change individual generic
system by selecting the generic system type from the
Type drop-down list for the specific generic
system.
When you're ready to activate your changes, go to the Uncommitted tab to review and commit (or discard) your changes.
