Delete Link (Freeform)

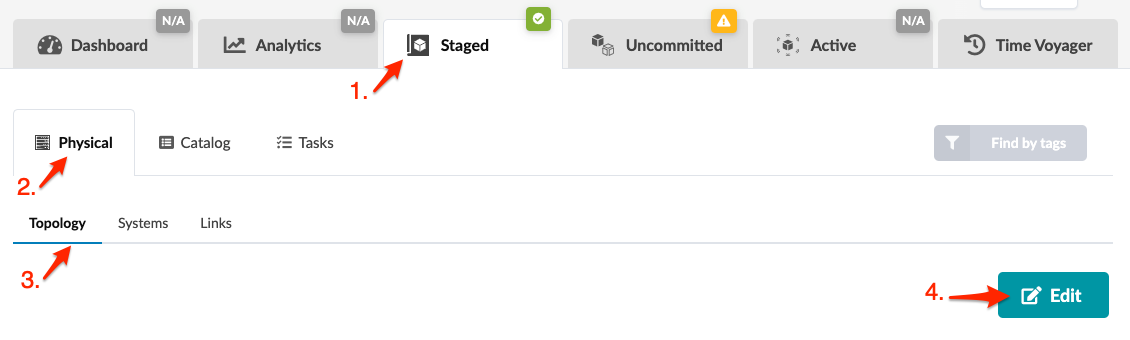

  1. From the blueprint, navigate to Staged > Physical > Topology and click Edit.

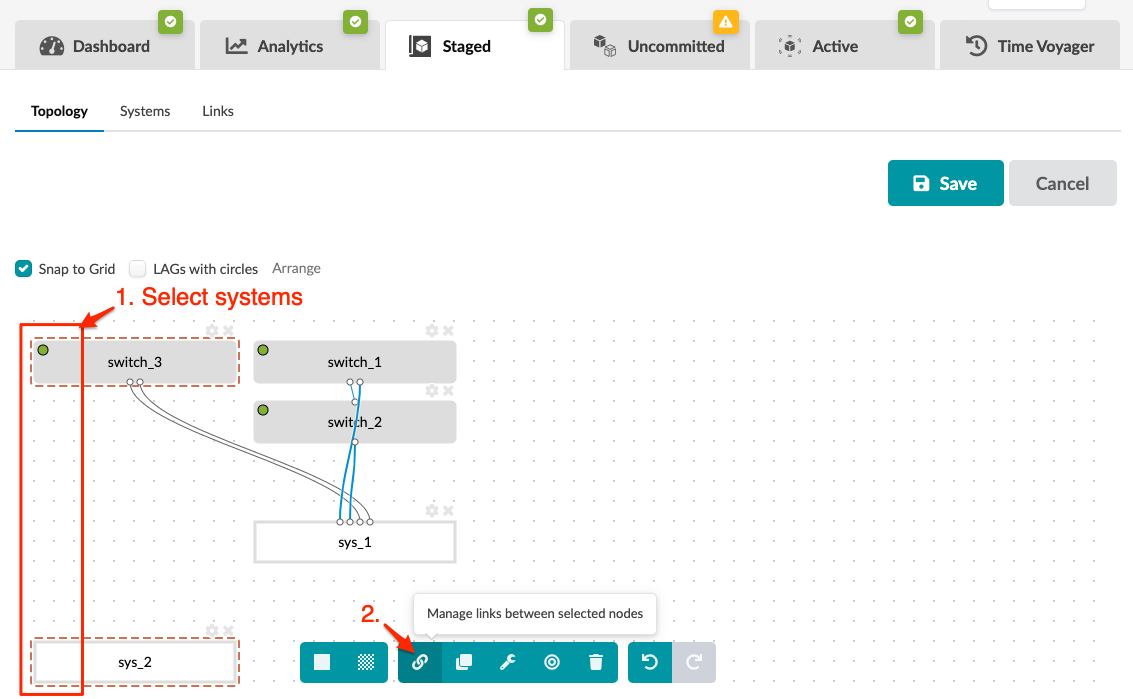

  2. In the topology editor select the two systems where the link is that you want to delete. You can select them in a couple of different ways:

    • Click and drag across the two systems.

    • Hold down the alt key (cmd key on a Mac) while clicking the two systems.

    When you select two systems additional tasks become available in the context-aware menu at the bottom.

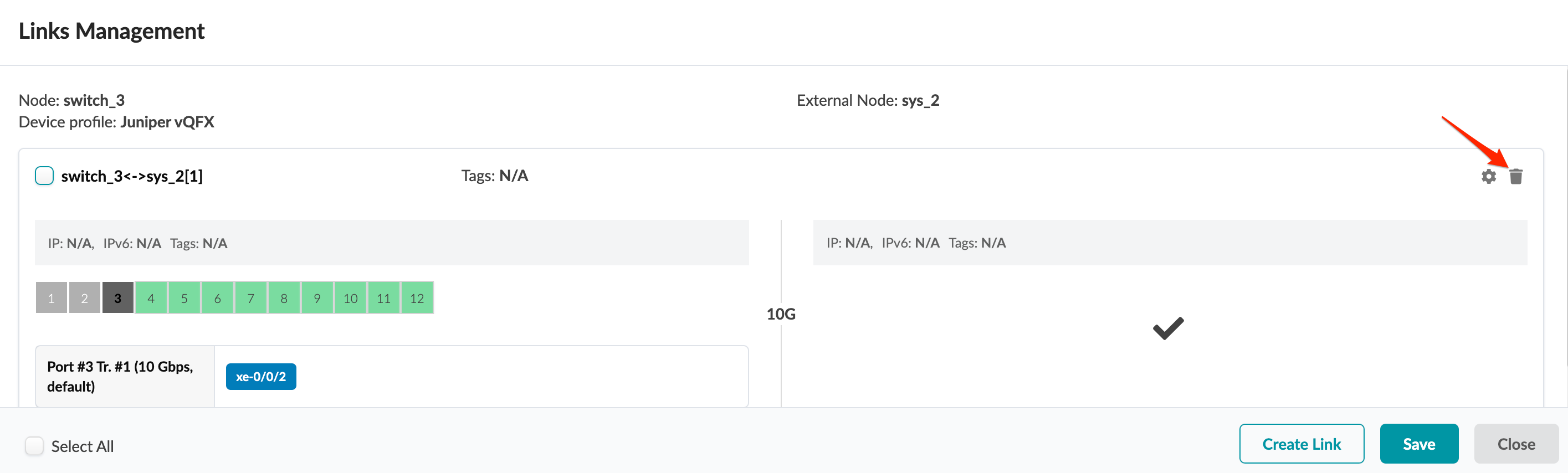

  3. Click the Manage links between selected nodes button. The Links Management dialog opens showing the two node names (and device profiles, as applicable).
  4. Click the Delete button for the link to delete, then click Save. You're still in the topology editor and if you click away without saving, your changes are discarded.
  5. Click Save (right-side) in the topology editor to stage your changes and return to the Topology view.

When you're ready to activate your changes, commit them from the Uncommitted tab.
