Update Severity Preferences

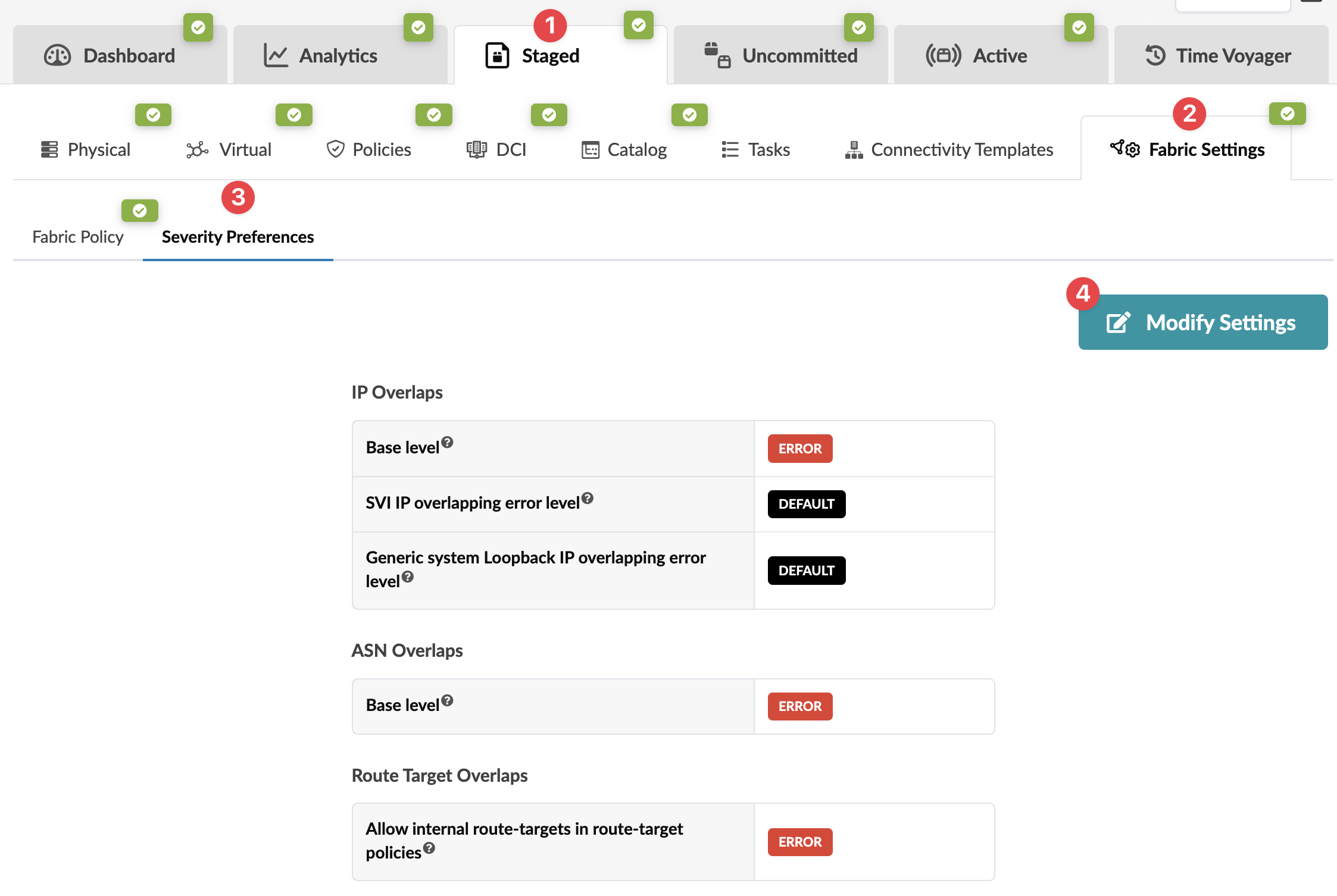

  1. From the blueprint, navigate to Staged > Fabric Settings > Severity Preferences and click Modify Settings.
    The Modify Severity Preferences Settings dialog opens.
  2. Change settings, as applicable.

    The parameters available for configuring are as follows:

    • IP Overlaps Base level - The severity level raised when detecting an overlap of IP addresses. To set a more granular severity level based on the type of IP Overlaps, use the settings below.

    • IP Overlaps SVI IP overlapping error level - The severity level raised when detecting duplicate SVI IP addresses within a single virtual network. When set to “Default“, the severity level from the IP Overlaps “Base Level“ setting is used. Note that duplicate SVI IPs can cause unexpected traffic flow for routed traffic. We recommend leaving the severity level to “Error“ or “Default“ (when the “Error“ level is configured at the “Base Level“ setting).

    • IP Overlaps Generic system Loopback IP overlapping error levels - The severity level raised when detecting a Generic System Loopback IP overlaps with another external or fabric node IP used in default or EVPN Routing Zones. This can be an IP address used for a loopback, physical link, logical link, virtual network subnet or VTEP interface. When set to “Default“, the severity level from the IP Overlaps “Base Level“ setting is used. Use this setting to relax validation errors and allows these types of overlaps.

    • ASN Overlaps Base level - The severity level raised when detecting an overlap of ASNs.

    • Route Target Overlaps Allow internal route-target policies - Severity of errors raised on overlap of a user-defined route-target which overlaps with an internal virtual network or routing zone route-target. This can be used for a form of full table inter-vrf route leaking.

    The available settings are as follows:

    • No Warning - If validation fails, no warning or error is generated.

    • Warning - If validation fails, warnings are raised; you can commit changes.

    • Error - If validation fails, errors are raised that must be resolved before you can commit changes.

    • Default - Severity level defaults to the base level severity level.

  3. Click Save Changes to stage the changes and return to the Severity Preferences page.

To deploy changes to the active blueprint, click the Uncommitted tab to review and commit (or discard) changes.
