Step 1: Begin

In this guide, we provide a simple, three-step path, to quickly get the Juniper Networks® SSR100 Series devices (SSR120 and SSR130) and SSR1000 Series devices (SSR1200, SSR1300, SSR1400, and SSR1500) up and running on Juniper Mist™ cloud. You can on-board a single SSR device using your mobile phone, or one or more devices using your computer. Once on-board, we'll walk you through the steps to create a basic configuration. You'll need your Juniper Mist WAN Assurance subscription and your login credentials for the Juniper Mist portal.

Note:

Before you begin, you must set up your organization and sites, and activate your subscriptions in Mist. For more information, see Quick Start: Mist.

Meet the Cloud-Ready SSR Series Devices

The two fixed configuration 1 U SSR100 Series devices:

SSR120—Small branch deployments

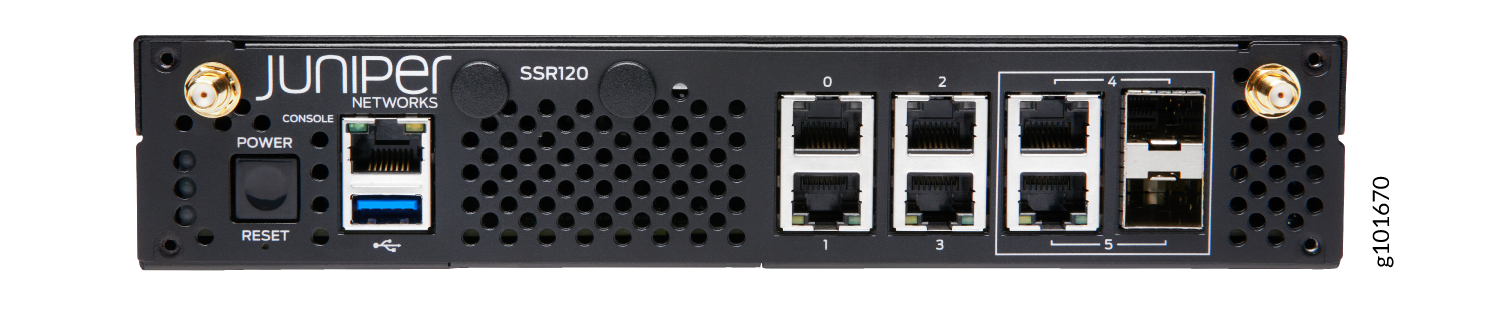

 Juniper Networks SSR120 front panel with logo, power and reset buttons, console and USB ports, six Ethernet ports, two SMA connectors, and ventilation holes.

The SSR120 features four 1-GbE ports and two 1-GbE RJ-45/SFP combo ports.

SSR130—Medium branch deployments

 Front panel of Juniper Networks SSR130 with logo, power and reset buttons, console port, USB port, Ethernet ports 0-7, and ventilation holes.

The SSR130 features six 1-GbE ports and two 1-GbE RJ-45/SFP combo ports.

The four fixed configuration 1 U SSR1000 Series devices:

SSR1200—Large branch and small data center or campus deployments

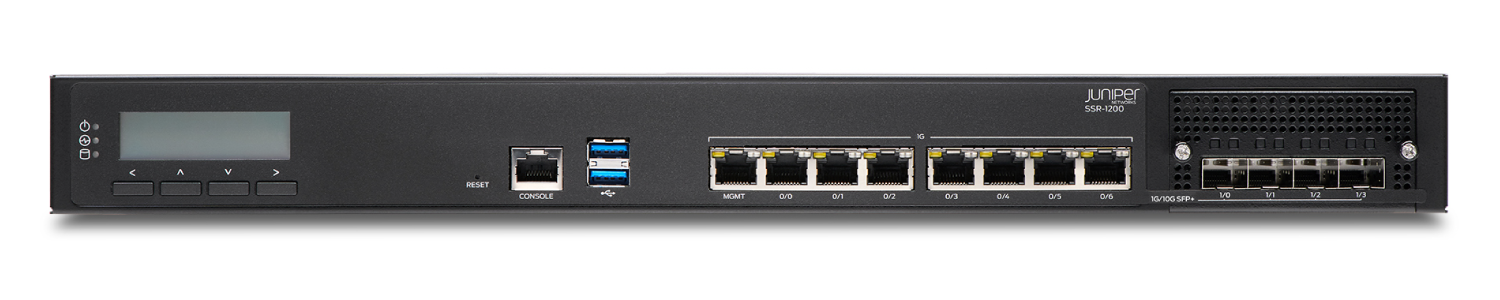

 Juniper SSR1200 Session Smart Router with LCD display, console and USB ports, multiple Ethernet and SFP ports, and ventilation for SD-WAN solutions.

The SSR1200 has seven 1-GbE ports, four 1-GbE/10-GbE SFP+ ports, a management port (for Mist operations), 64-GB of memory, and a 256-GB enterprise-grade solid-state drive (SSD) for storage.

SSR1300—Medium data center or campus deployments

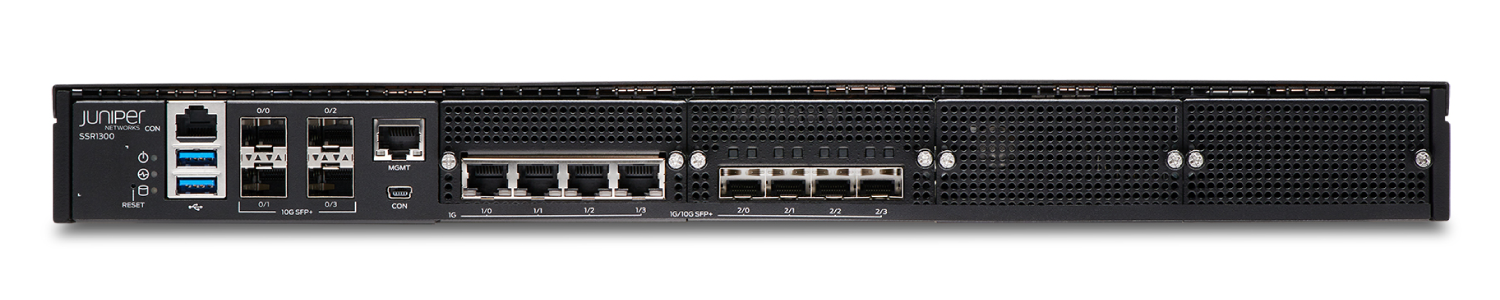

 Rear view of Juniper Networks SSR1300 showing Ethernet and USB ports, MGMT and CON ports, ventilation grills, and device label.

The SSR1300 has four 1-GbE ports, four 1-GbE/10-GbE SFP+ ports, four 10-GbE SFP+ ports, a management port (for Mist operations), 128-GB of memory, and a 256-GB enterprise-grade solid-state drive (SSD) for storage.

SSR1400—Large data center or campus deployments

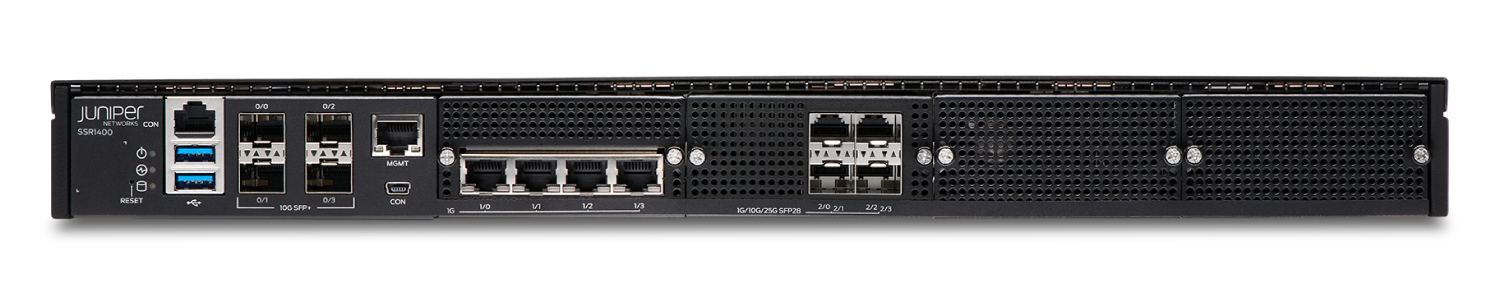

 Rear view of Juniper Networks SSR1400 device, showing USB, Ethernet, SFP/SFP+ ports, console port, airflow vents, and labeled ports for network management.

The SSR1400 has four 1-GbE ports, four 1-GbE/10-GbE/25-GbE SFP28 ports, four 10-GbE SFP+ ports, a management port (for Mist operations), 256-GB of memory, and a 512-GB enterprise-grade solid-state drive (SSD) for storage.

SSR1500—Very large data center or campus deployments

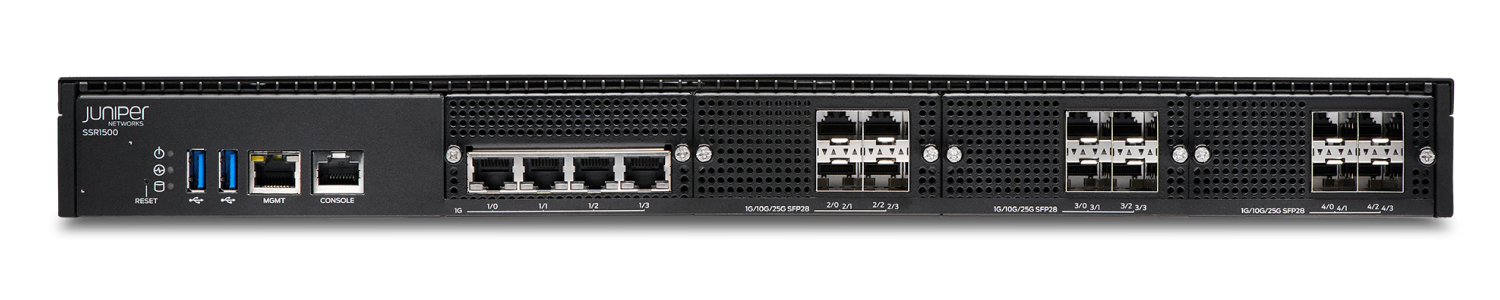

 Juniper Networks SSR1500 SD-WAN appliance front panel with USB, MGMT, Console, Ethernet, SFP ports, reset button, and status LEDs.

The SSR1500 has four 1-GbE ports, twelve 1-GbE/10-GbE/25-GbE SFP28 ports, a management port (for Mist operations), 512-GB of memory, and a 1 TB enterprise-grade solid-state drive (SSD) for storage.

Claim Your Device

SSR Series devices are cloud-ready devices; you can manage them using the Juniper Mist™ Cloud portal. To manage the SSR device using Juniper Mist cloud portal, you need to add your SSR devices to your organization’s WAN edge inventory.

To add the SSR device to the WAN edge inventory, do one of the following:

The QR code and the Claim Code are located on the rear panel of the chassis in SSR100 Series devices and on the front panel of the chassis in SSR1000 Series devices.

The claim code is the number above the QR code. For example: The claim code on the SSR1200 chassis shown in the picture below is K6TAACRTCJWQ8GQ.

SSR120

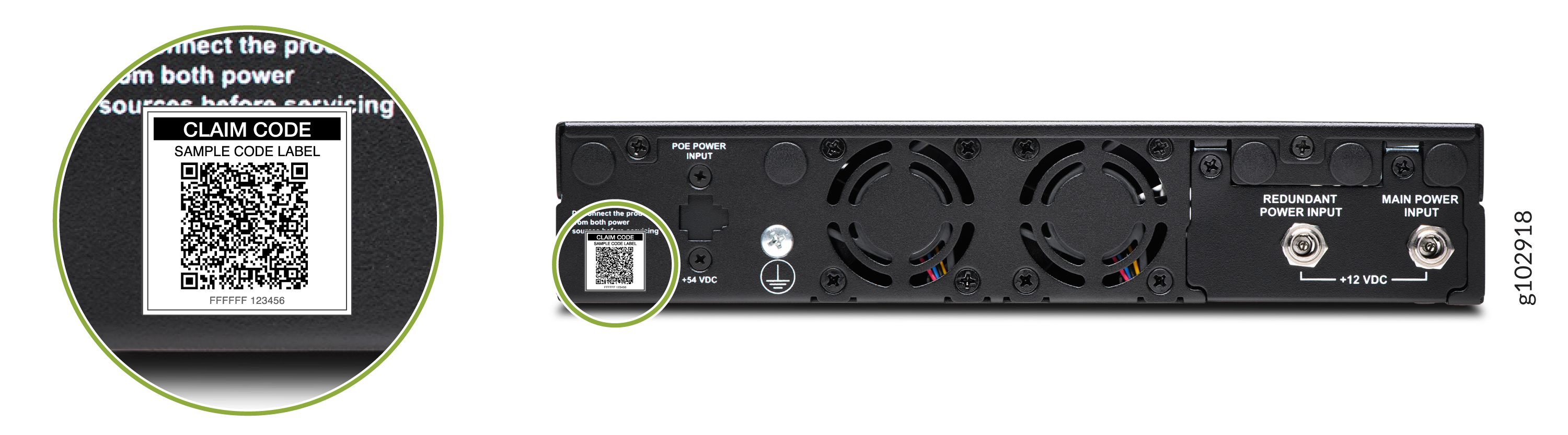

Rear panel of a device with +12 VDC main and redundant power inputs, +54 VDC PoE input, cooling fans, grounding symbol, QR code, and serial number 8102918.

SSR130

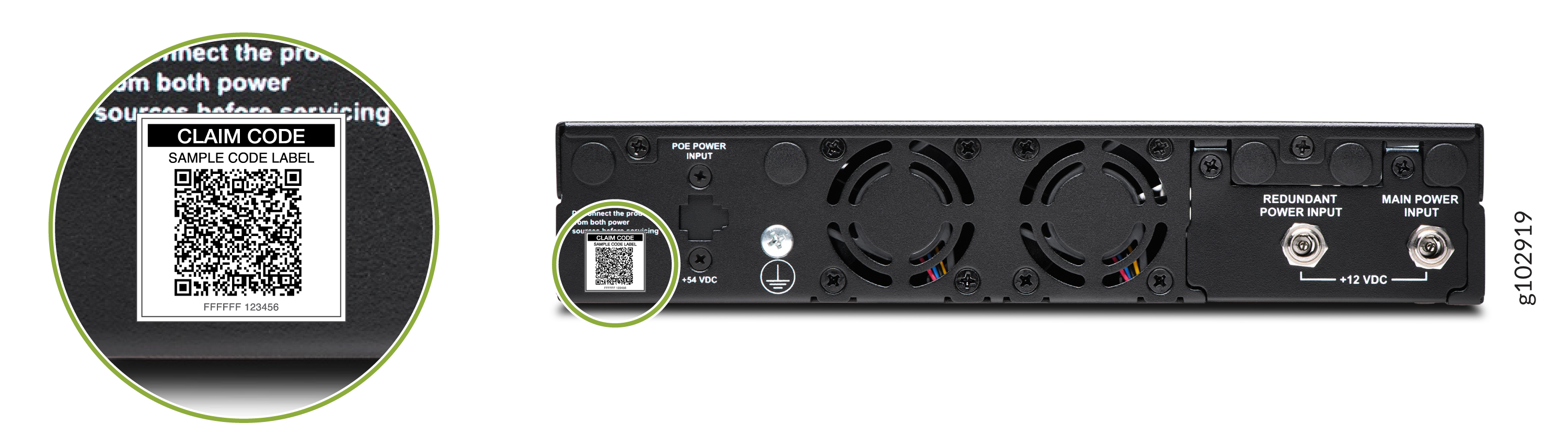

Back panel of a network device with POE, redundant, and main power inputs, cooling fans, and a highlighted QR code for registration.

SSR1200

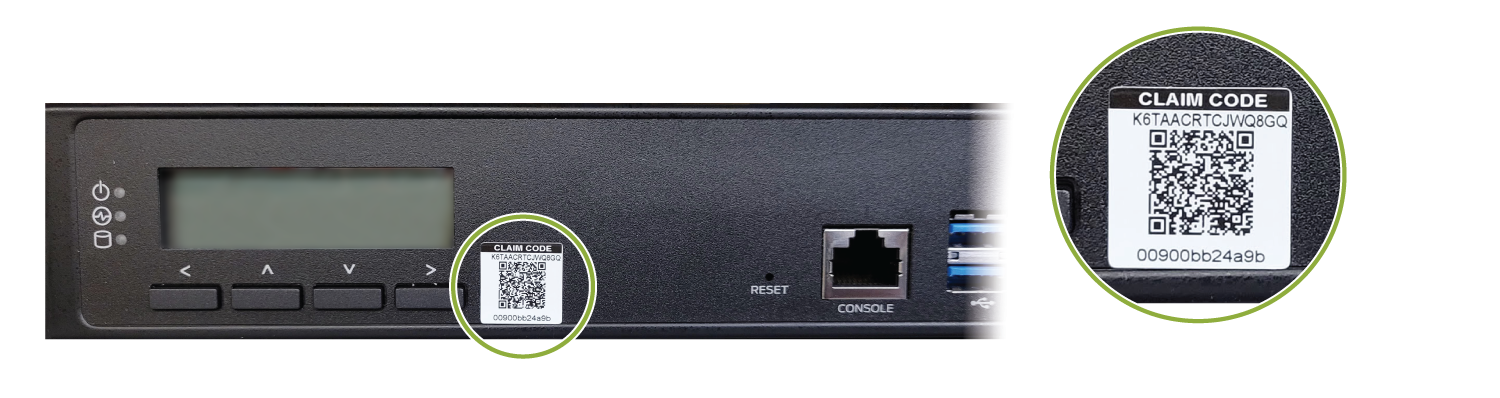

Front panel of network device with LCD display, navigation buttons, claim code label with QR code, console, USB ports, and reset button.

SSR1300

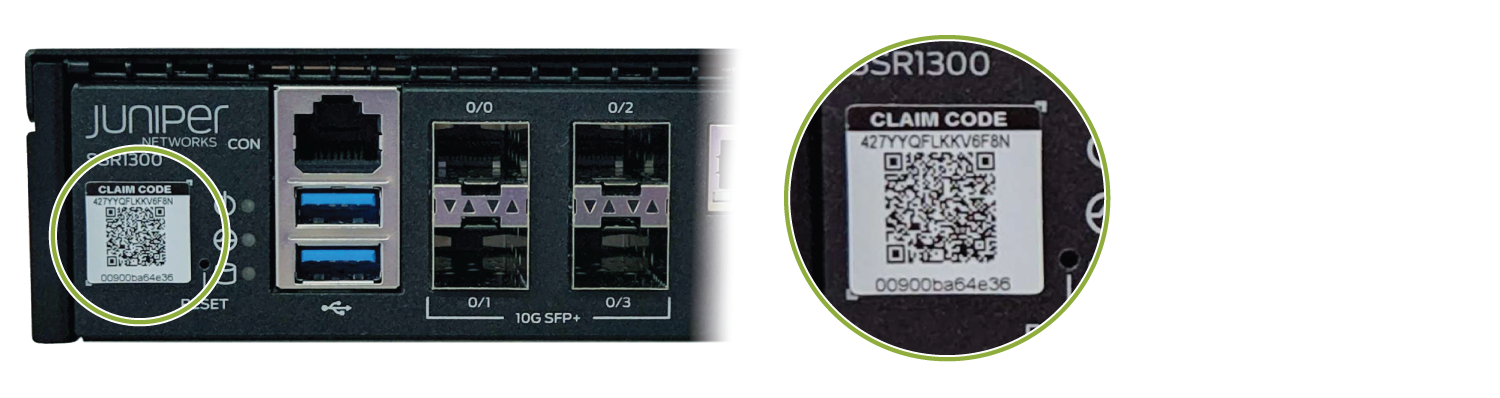

Juniper Networks SSR1300 device with Ethernet, USB ports, and 10G SFP+ slots; QR code and Claim Code label for registration.

SSR1400

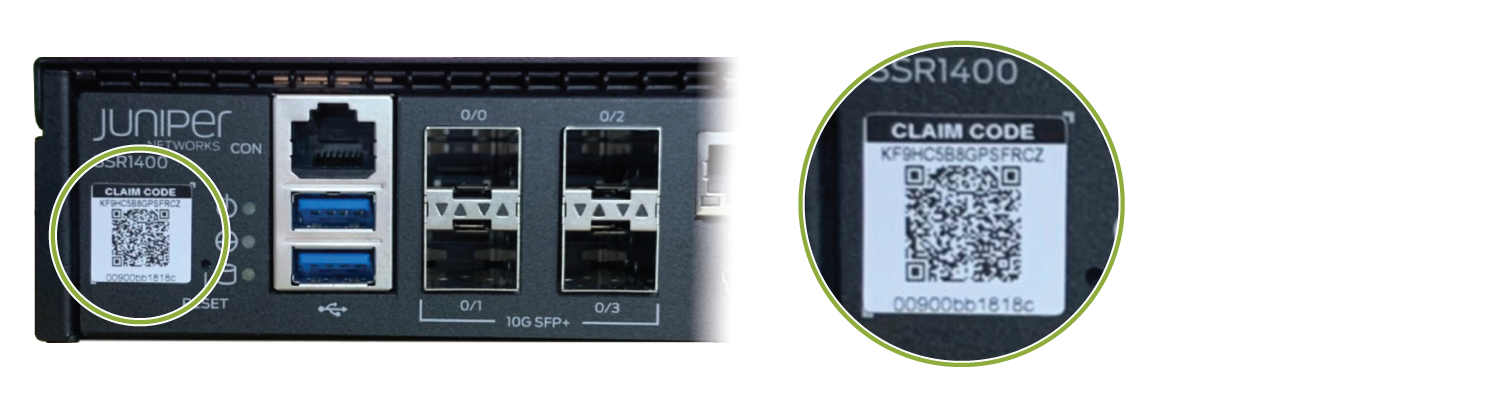

Juniper Networks SSR1400 device with claim code label including QR code and code KF9HCSB8GPSFRCZ for registration.

SSR1500

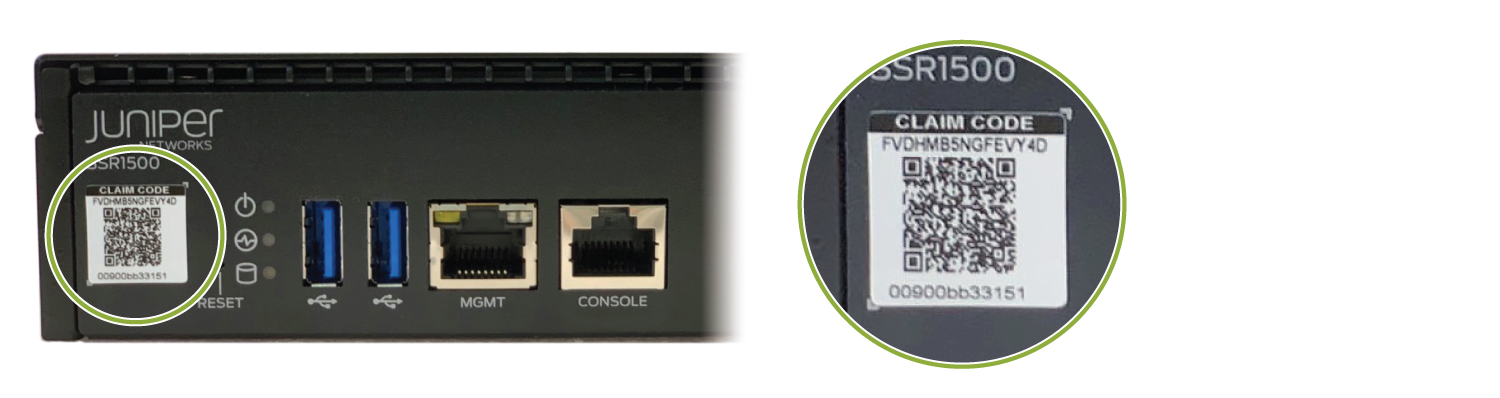

Juniper Networks SSR1500 device with management and console ports plus USB ports, featuring a QR code and claim code for network registration.

Use Mist AI App QR Scan

You can download the Mist AI App from the Mac App Store or from Google Play Store.

  1. Open the Mist AI app and log in using your account credentials. If you do not have an account, see Create a Mist Account and Organization.

  2. Select your organization.

  3. Tap Claim Devices to Org.

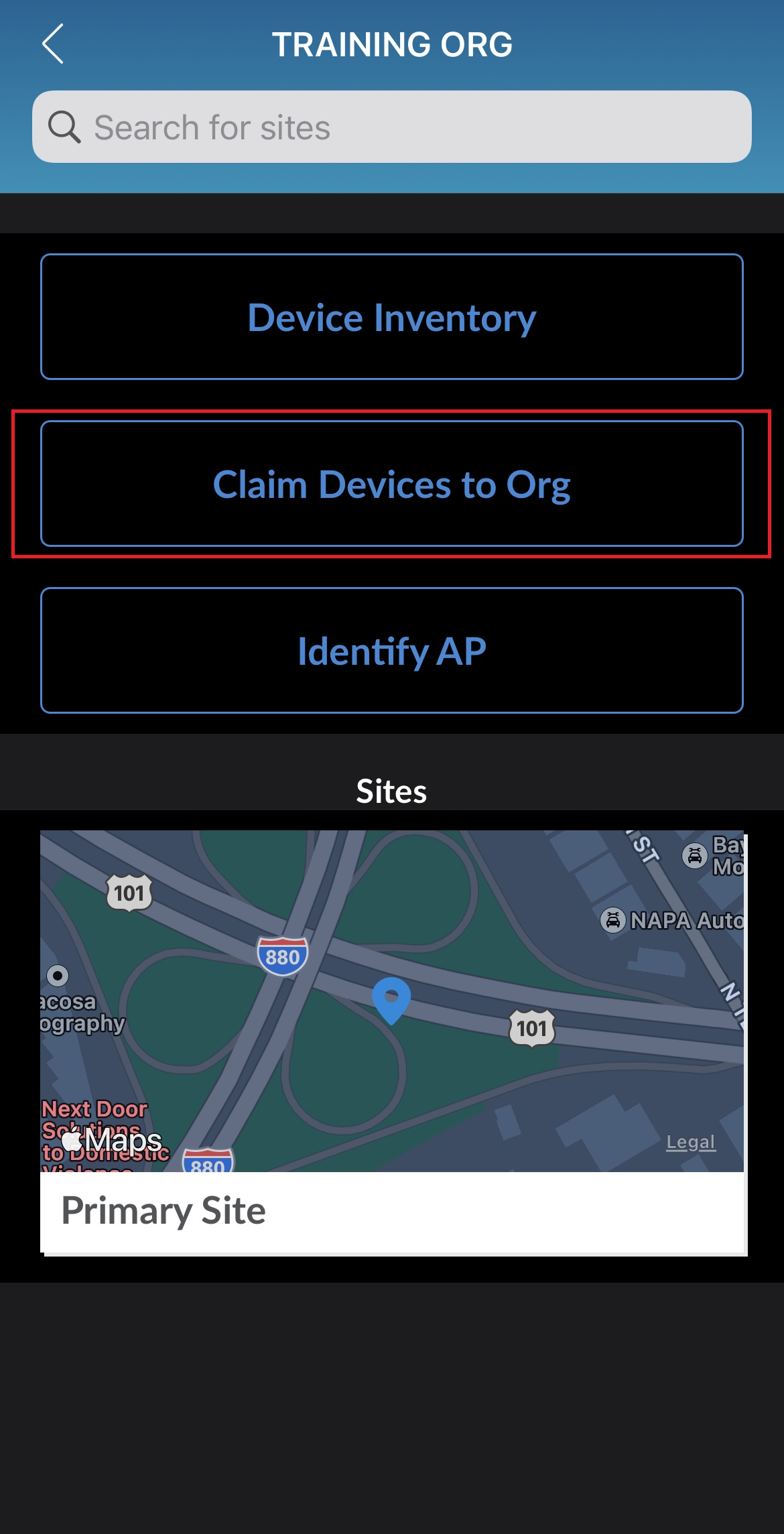

    Training Org app interface with search bar for sites, buttons for device inventory, claim devices to org, identify AP, and Apple Maps showing primary site near highways 101 and 880.

  4. Scan the QR code. The app automatically claims the device and adds it into your organization's inventory.

  5. On the Organization screen, tap Device Inventory → Routers → Unassigned.

    Review the MAC address.

Onboarding Complete!

Fantastic, the SSR device is in your inventory! To provision the SSR device, see Step 2: Up and Running.

Enter the Mist Activation Code or Claim Code

Claiming multiple devices—When you purchase multiple devices, we provide you with an activation code along with your PO information. Make a note of this code.

Claiming a single device—Locate the QR code on your device and make a note of the alphanumeric claim code directly above it.

  1. Open the Juniper Mist™ Cloud portal and log in to your account. If you do not have an account, see Create a Mist Account and Organization.

  2. Select Organization > Inventory from the menu on the left, then select the WAN Edges tab at the top.

  3. Click Claim WAN Edges in the upper right portion of the inventory screen.

  4. Enter the SSR device Activation code or claim code and click Add.

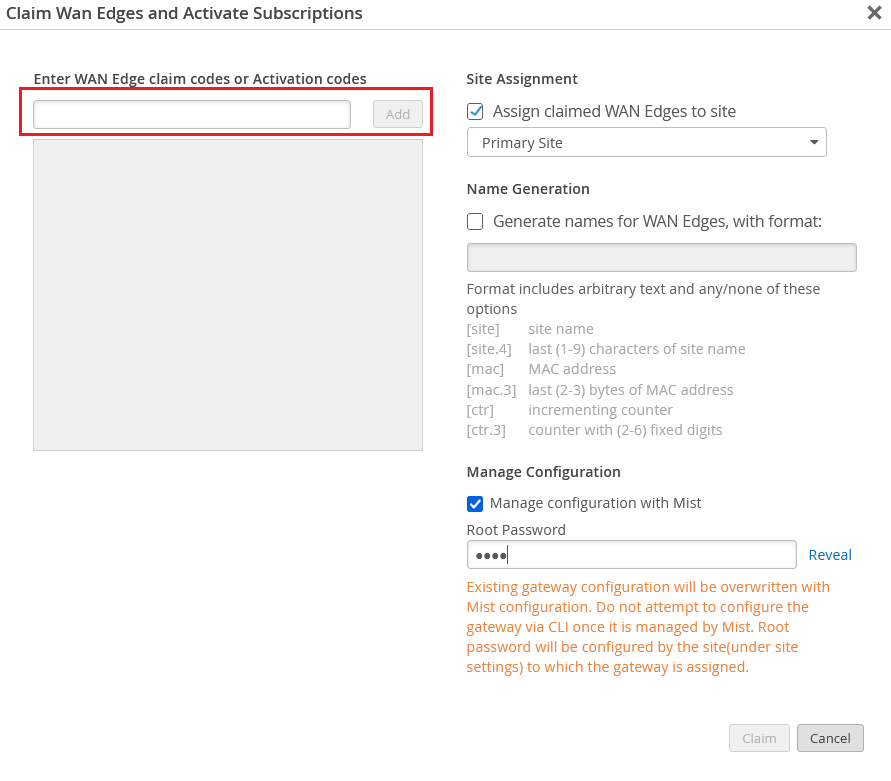

    User interface for claiming WAN Edge devices and activating subscriptions with fields for claim codes, site assignment, name generation, and Mist configuration.

  5. Clear the Assign claimed WAN Edges to site check box.

  6. Click the Claim button to claim the SSR device into your inventory.

Onboarding Complete!

Fantastic, the SSR device is in your inventory! To provision the SSR device, see Step 2: Up and Running.
