SSR440 Routers Overview

Learn about the hardware features of the SSR440 Routers.

Meet the SSR440 Routers

The SSR440 Routers are designed to cater to your current network needs and are scalable to meet future demands.

SSR440 Routers are the Juniper AI-Driven SD-WAN edge products that run the Session Smart Router (SSR) software. These routers are suitable for medium-sized branch deployments.

SSR440

 Juniper SSR440 network device with Ethernet ports including two SFP ports labeled 0 and 1, RJ45 ports labeled 2 to 9, PoE on ports 8 and 9, USB-C console port labeled CON, reset button labeled RST, and QR code for device setup. Line drawing of a Juniper Networks device with Ethernet, USB ports, and DC power input for networking connectivity.

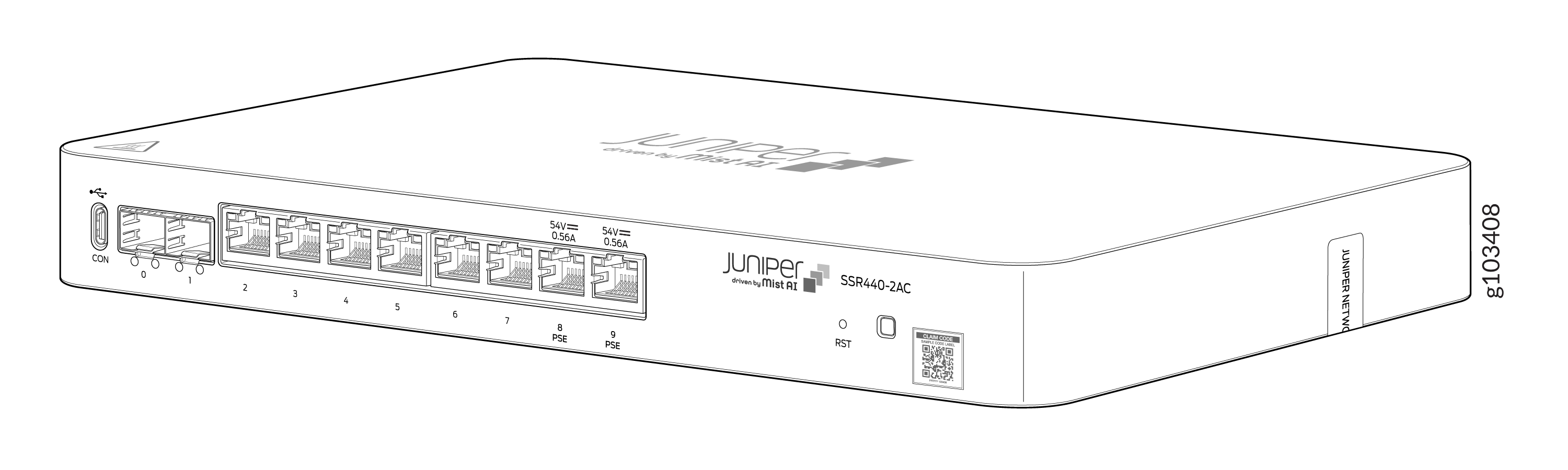

SSR440—2AC

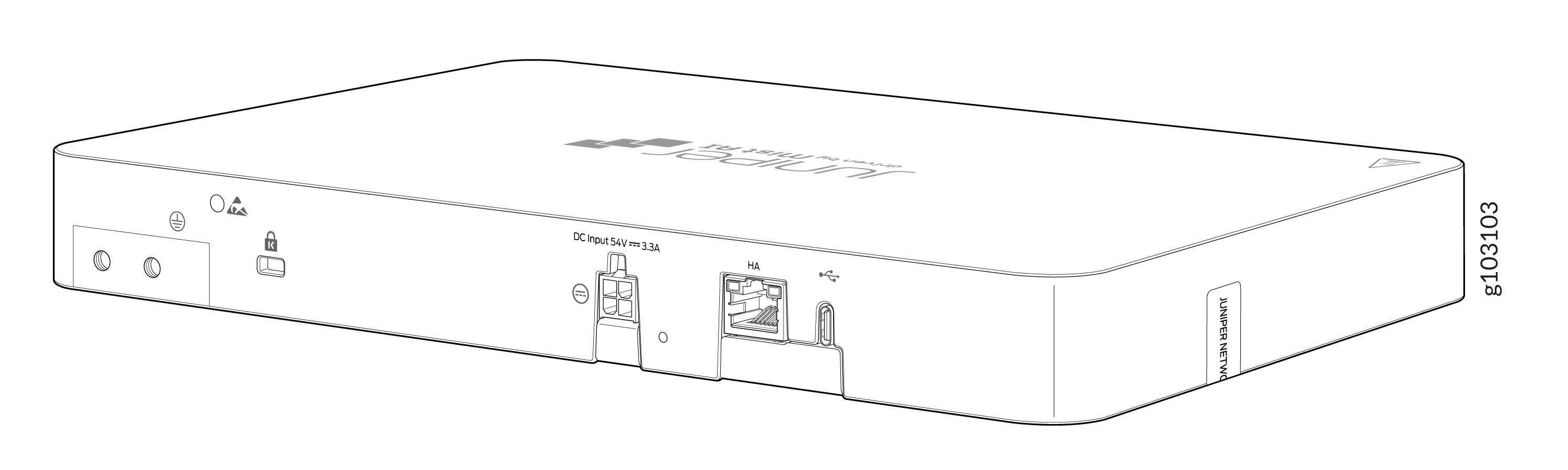

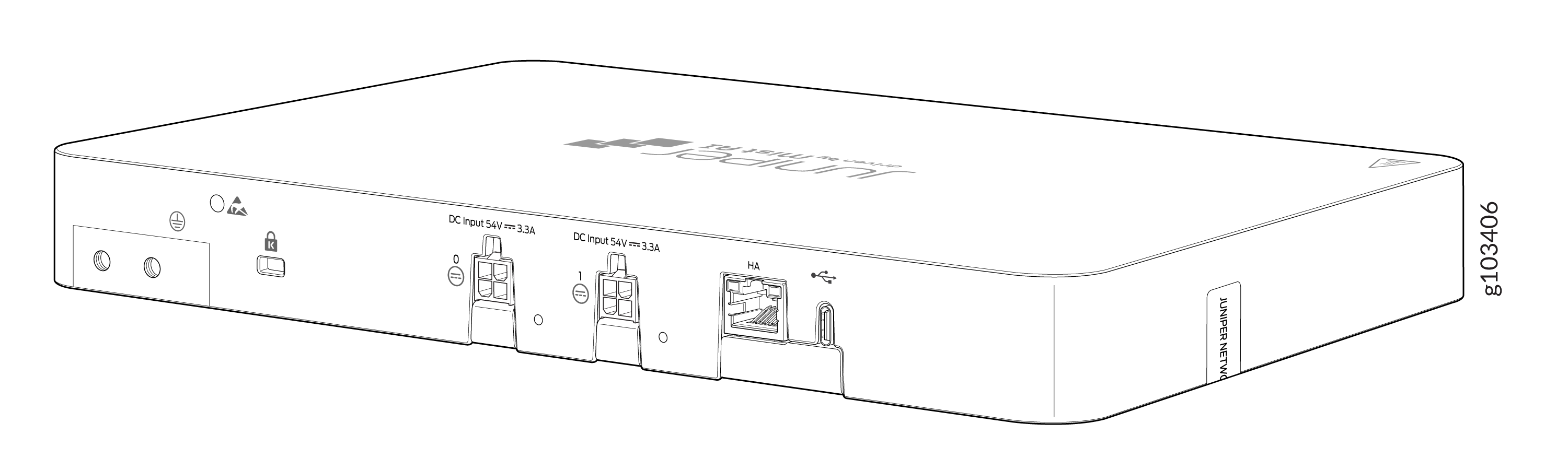

 Juniper Networks SSR440-2AC device with 10 Ethernet ports, 2 PoE ports, USB-C console port, reset button, and QR code for setup. Juniper Networks device with DC input ports labeled 54V 3.3A, Ethernet port labeled HA, USB port, grounding symbol, and lock slot.

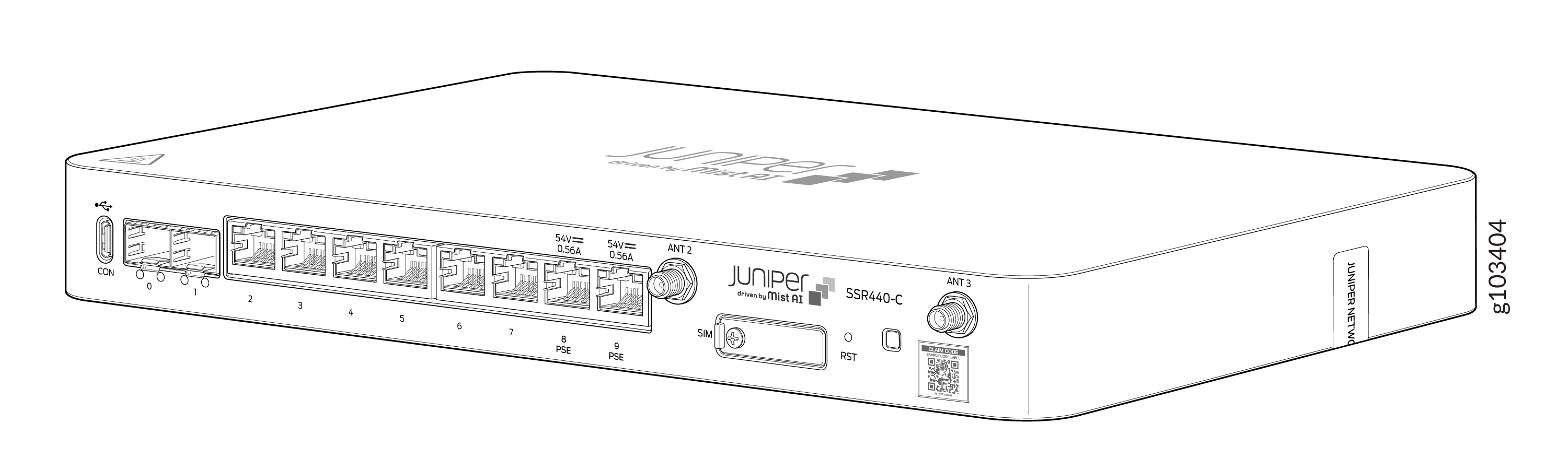

SSR440—C

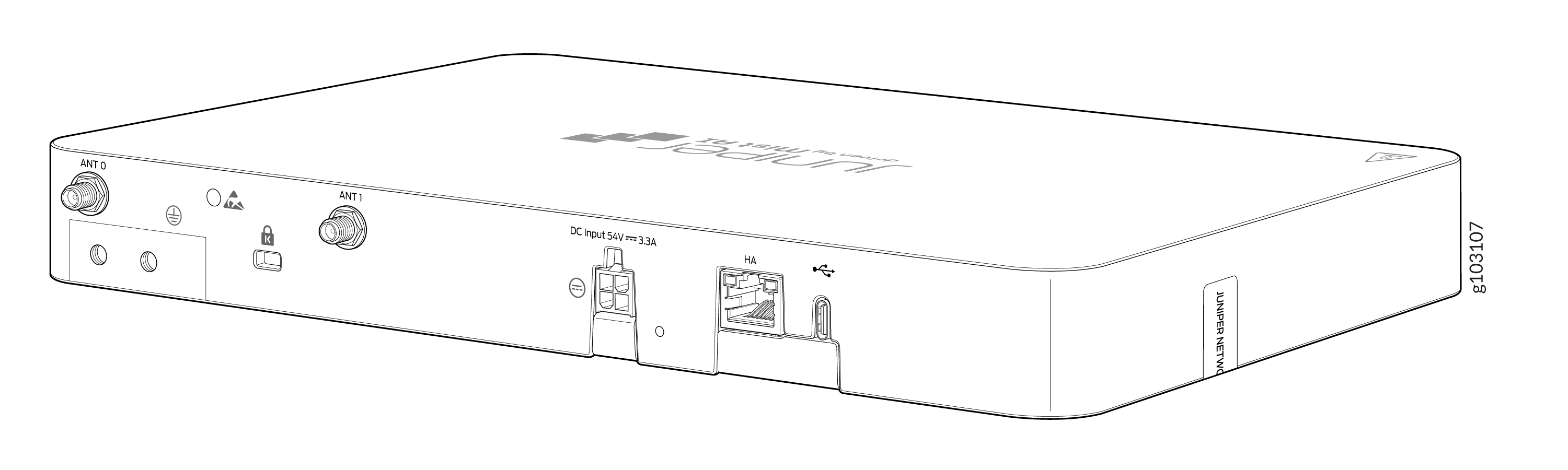

 Juniper Networks SSR440-C secure SD-WAN appliance with Ethernet ports, USB, SIM card slots, antenna connectors, reset button, and Mist AI integration. Line drawing of a Juniper Networks device with ANT 0 and ANT 1 antenna ports, DC input, USB port, and HA Ethernet port.

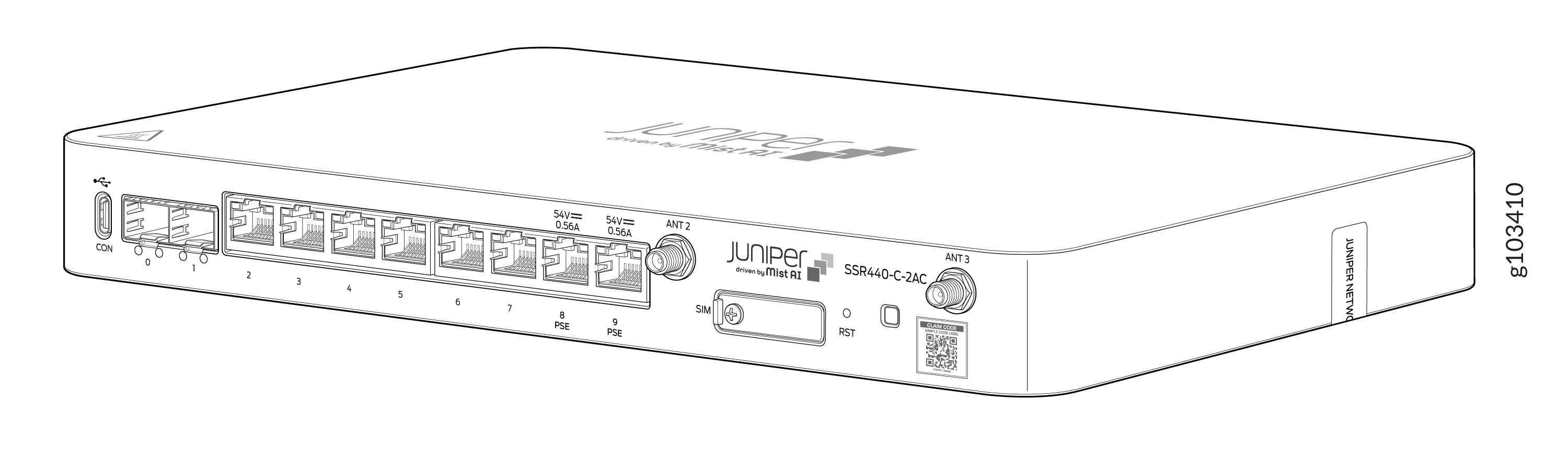

SSR440—C—2AC

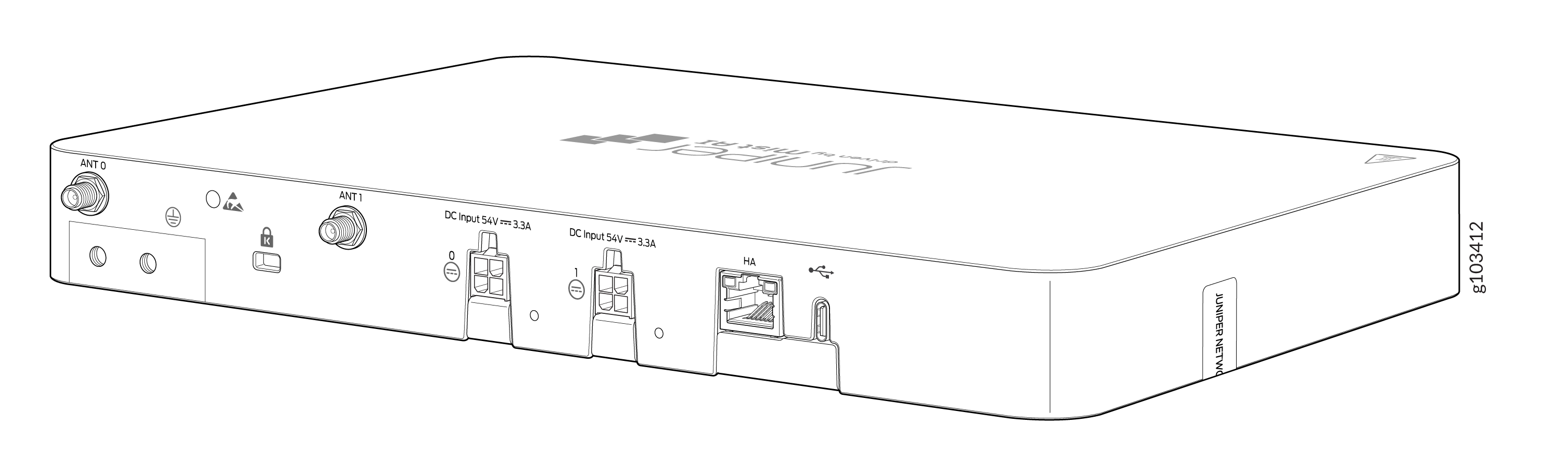

 Juniper Networks SSR440-C-2AC networking device with Ethernet ports, USB-C console port, antenna connectors, SIM card slot, and AI-driven features for network management. Line drawing of a Juniper Networks router with antenna connectors, DC power input ports, Ethernet ports including HA, USB port, grounding point, and Kensington lock slot.
Table 1: SSR440 Routers Description

Form factor

1 U

Chassis type

Fixed configuration

Operating system

Session Smart Router

Power system

AC (AC to DC, 180 W power supply adapter)

Cooling system

Fanless

Port configuration

  • Eight 10/100/1000 Gigabit Ethernet (GbE) BASE-T RJ-45 ports

    Ports (8 and 9) support PoE PSE (30W/port)

  • Two 1GbE ports that support SFP

  • One high availabilty (HA) port

  • Console port - One USB 2.0 Type C

  • One USB 2.0 Type C port that accepts a USB storage device.

Memory

8 GB DDR4

Throughput

300—500 Mbps

Cellular

SSR440-C and SSR440-C-2AC models support WCDMA/LTE/5G cellular network technologies

Managed using

  • Juniper® Mist

  • Session Smart Router CLI
