SSR400 Routers Overview

Learn about the hardware features of the SSR400 Routers.

Meet the SSR400 Routers

The SSR400 Routers are designed to cater to your current network needs and are scalable to meet future demands.

SSR400 Routers are the Juniper AI-Driven SD-WAN edge products that run the Session Smart Router (SSR) software. These routers are suitable for small retail and small branch deployments.

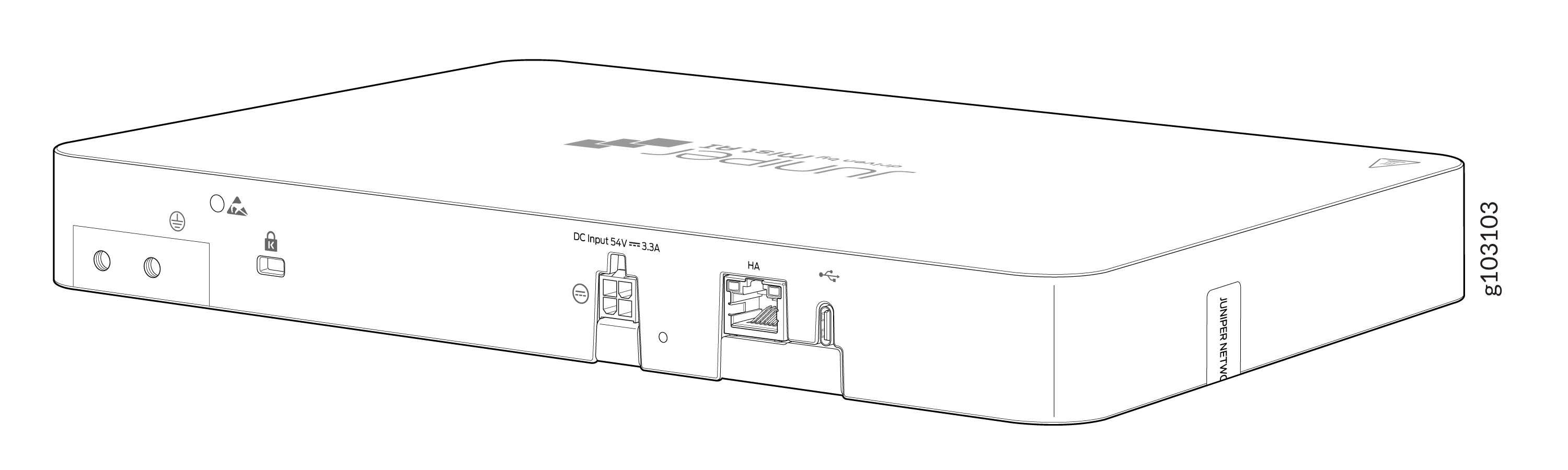

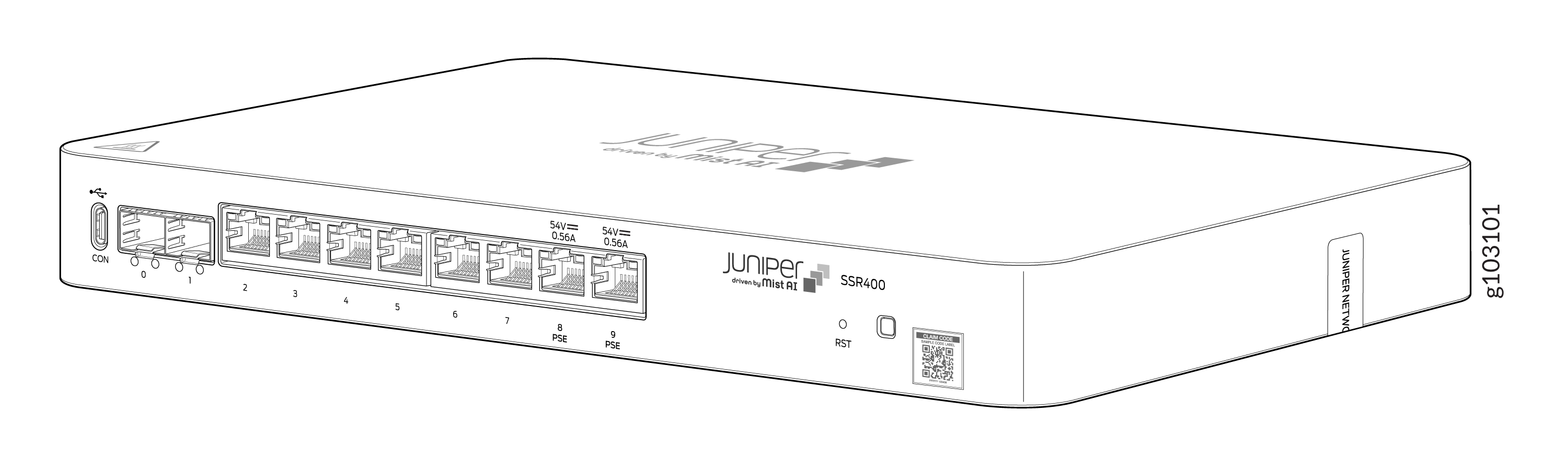

SSR400

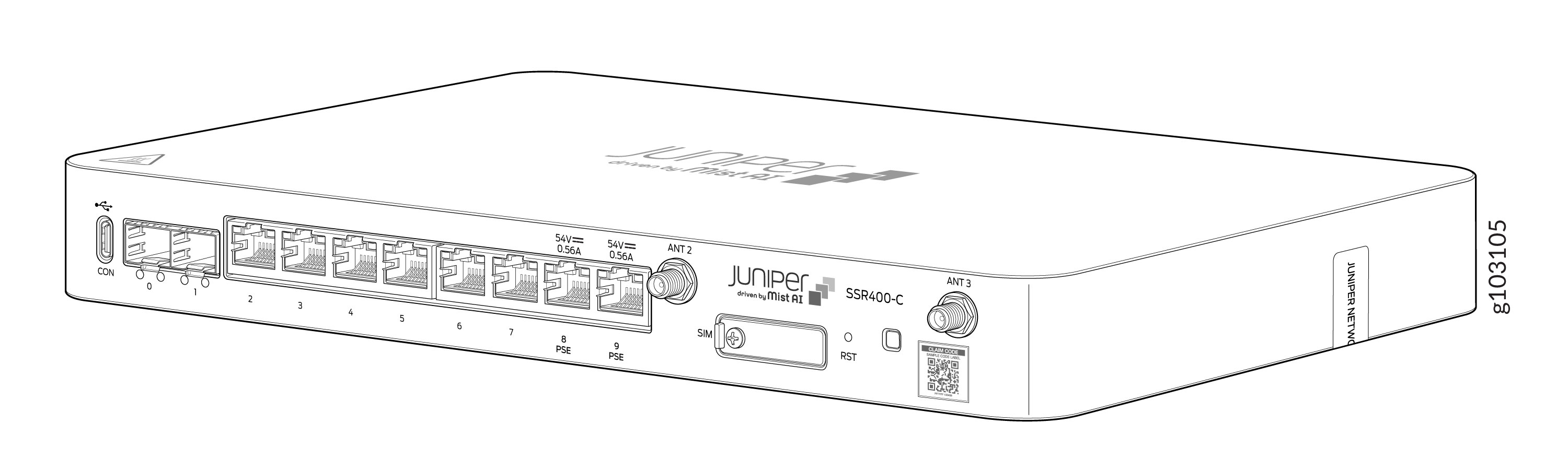

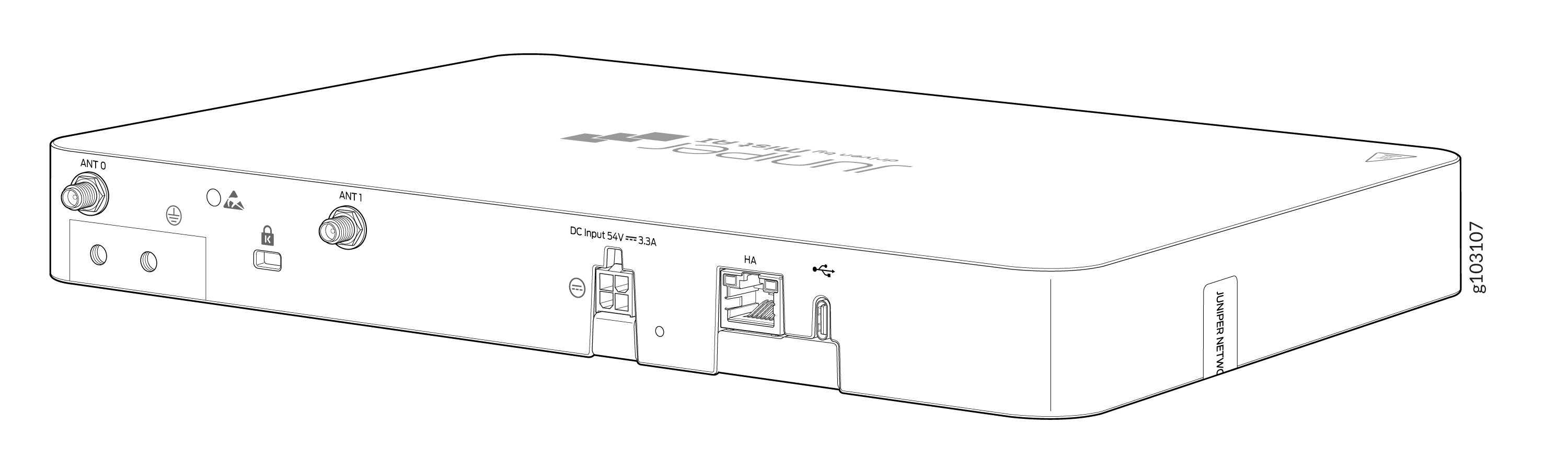

SSR400—C
Table 1: SSR400 Routers Description

Form factor

1 U

Chassis type

Fixed configuration

Operating system

Session Smart Router

Power system

AC (AC to DC, 180 W power supply adapter)

Cooling system

Fanless

Port configuration

  • Eight 10/100/1000 Gigabit Ethernet (GbE) BASE-T RJ-45 ports

    Ports 8 and 9 support PoE PSE (30W/port)

  • Two 1GbE ports that support SFP

  • One high availabilty (HA) port

  • Console port - One USB 2.0 Type C

  • One USB 2.0 Type C port that accepts a USB storage device.

Memory

8 GB DDR4

Throughput

100 Mbps

Cellular

SSR400-C Routers support WCDMA/LTE/5G cellular network technologies

Managed using

  • Juniper® Mist

  • Session Smart Router CLI
