SSR400 Chassis

Learn about the components in the SSR400 chassis.

Each SSR400 model chassis is a rigid sheet-metal structure that houses all device components.

SSR400 Specifications

Table 1: Physical Specifications
Specification SSR400 Models (SSR400 and SSR400-C)

Height

1.3 in. (3.3 cm)

Width

11.81 in. (29.9 cm)

Depth

7.52 in. (19.1 cm)

Weight

  • SSR400—3.52 lb (1.6 kg)

  • SSR400-C—4 lb (1.8 kg)
Table 2: Environmental Specifications
Specification Value

Operating altitude

6561.68 ft (2000 m)

Operating temperature

  • SSR400-C—32 °F to 104 °F (0 °C to 40 °C)

  • SSR400—32 °F to 122 °F (0 °C to 50 °C)

Storage temperature

-40 °F to 158 °F (-40 °C to 70 °C)

Relative humidity (operating) (noncondensing)

10% to 90%

Relative humidity (nonoperating) (noncondensing)

5% to 95%

Seismic tolerance

Zone 4

Security Status Information: Default Open Ports/Services on the SSR400 routers

In the factory default state, the following services are enabled on the corresponding network interfaces of the SSR400 routers:

  • Ports 0—2: WAN interfaces. You use these interfaces to run a DHCP client for IP address allocation. No other services are bound to these interfaces.

  • Ports 3—9: Bootstrap interfaces. These ports run Port 22 SSH and Port 443 HTTPS using the static IP address 192.168.128.1.

  • HA port: Located on the rear of the chassis and not defined as a public interface. This port defaults to no IP address.

SSR400 Models

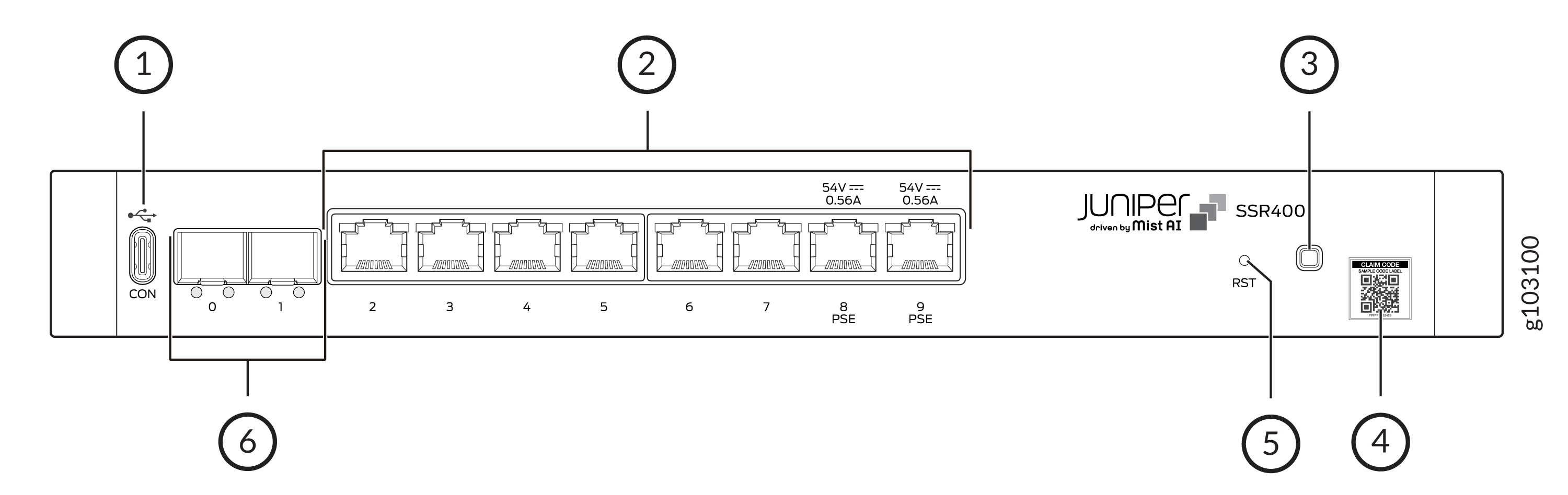

Figure 1: SSR400 Front Panel SSR400 Front Panel
Callout Item

1

Console port—USB Type C

2

Eight 10/100/1000GbE Base-T RJ-45 network ports

Ports 8 and 9 support PoE PSE (30 W each)

3

Multicolor system LED

4

QR code label

5

RESET button

6

Two 1GbE SFP ports

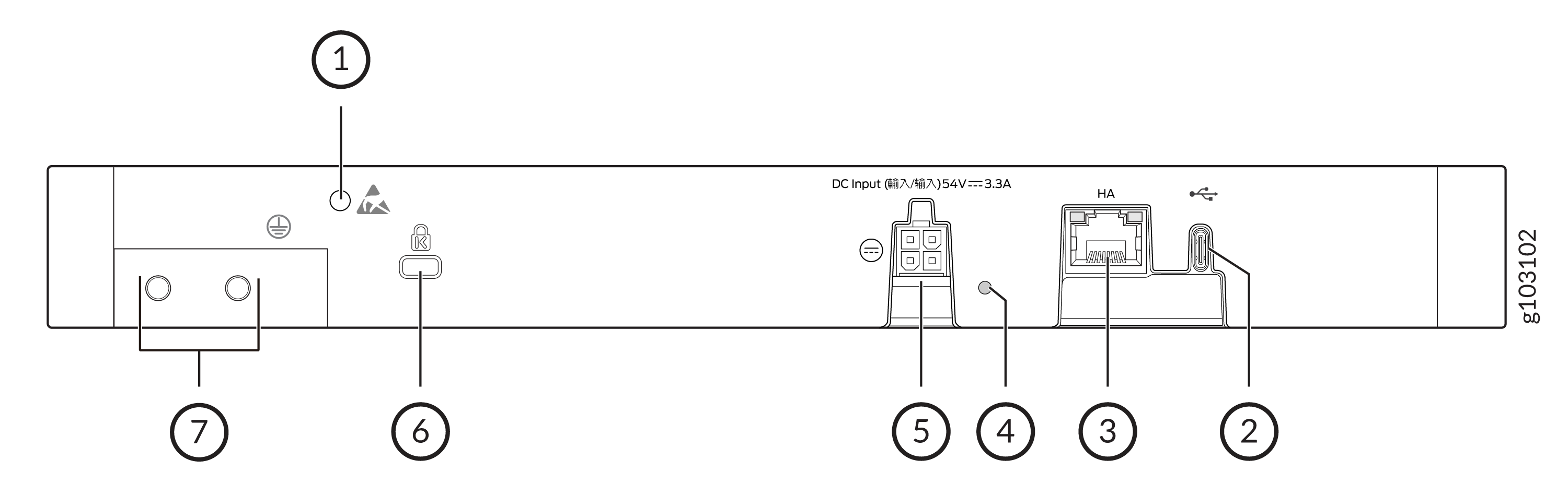

Figure 2: SSR400 Rear Panel SSR400 Rear Panel
Callout Item

1

ESD point

2

USB 2.0 Type C port that accepts a USB storage device.

3

1GbE RJ-45 HA port

4

Power supply adapter (PSA) LED

5

PSA point

6

Security slot to lock and secure the chassis

7

Ground terminal

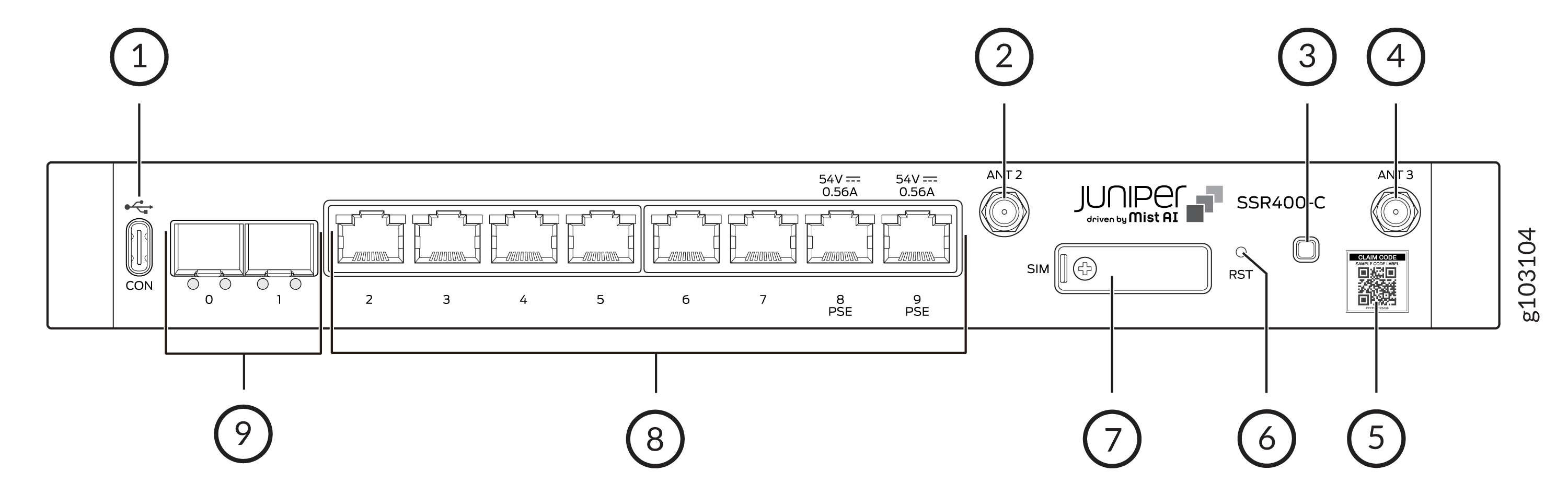

Figure 3: SSR400-C Front Panel SSR400-C Front Panel
Callout Item

1

Console port—USB Type C

2

SubMiniature version A (SMA) antenna connector

3

Multicolor system LED

4

SubMiniature version A (SMA) antenna connector

5

QR code label

6

RESET button

7

SIM slot

8

Eight 10/100/1000GbE Base-T RJ-45 network ports

Ports 8 and 9 support PoE PSE (30 W each)

9

Two 1GbE SFP ports

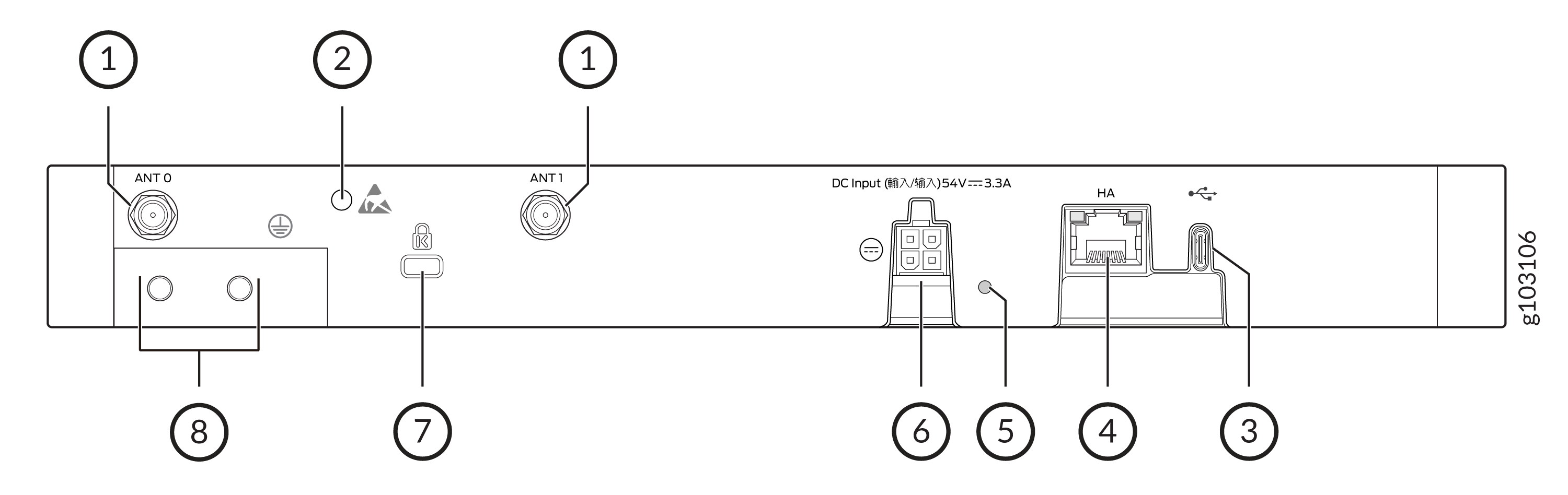

Figure 4: SSR400-C Rear Panel SSR400-C Rear Panel
Callout Item

1

SubMiniature version A (SMA) antenna connectors

2

ESD point

3

USB 2.0 Type C port that accepts a USB storage device.

4

1GbE RJ-45 HA port

5

Power supply adapter (PSA) LED

6

PSA point

7

Security slot to lock and secure the chassis

8

Ground terminal
