SSR1200 Chassis

Front Panel of an SSR1200

Figure 1 shows the front panel of an SSR1200. The SSR1200 comes with a claim code that you can use to onboard the SSR1200 to Juniper Mist.

Figure 1: Front Panel Components of SSR1200

1 — Chassis LEDs	6 — 1/10 GbE SFP+ ports (1/0 through 1/3)
2 — LCD screen	7 — 1 GbE Ethernet ports (0/0 through 0/6)
3 — RESET button	8 — Console port
4 — USB 3.0 ports	9 — Claim code
5 — 1 GbE management port (for Mist operations)	10 — Navigation buttons for LCD screen (reserved for future use)

Rear Panel of an SSR1200

Figure 2 shows the rear panel of an SSR1200.

Figure 2: Rear Panel Components of SSR1200

1 — Earth grounding	4 — Fans
2 — AC power supply units	5 — ESD point
3 — Power switch

Chassis Physical Specifications for SSR1200

Table 1 summarizes the physical specifications of SSR1200.

Table 1: Physical Specifications of SSR1200
Model	Height	Width	Depth	Weight
SSR1200	44 mm	438 mm	431 mm	16.5 kg (36.38 lbs.)

Chassis Status LEDs

Figure 3 shows the chassis status LEDs on the front panel, and Table 2 describes the LEDs.

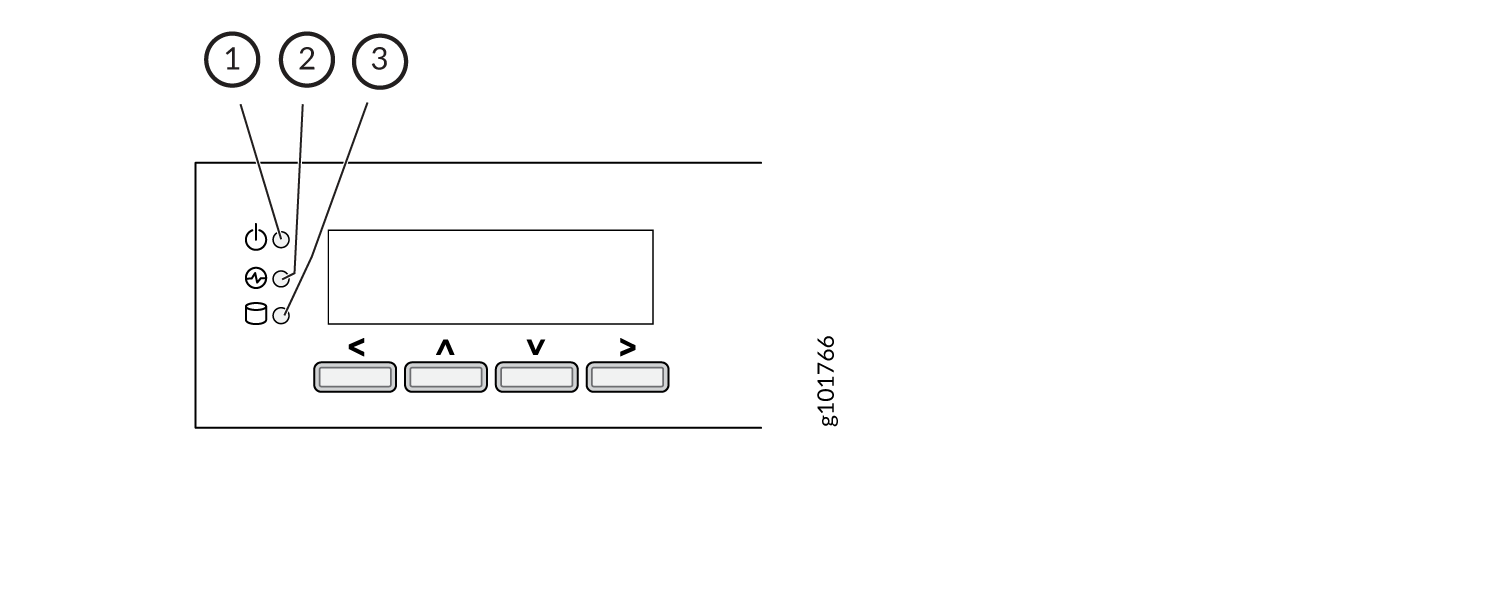

Figure 3: SSR1200 Chassis Status LEDs

Table 2: SSR1200 Chassis Status LEDs
Callout	LED	Description
1	Power	Solid green—The appliance is powered on. Off—The appliance is powered off.
2	Status	Solid green—The appliance is operating normally. Solid red—Indicates a major alarm, such as a hardware component failure. Off—The appliance is not receiving power.
3	SSD	Blinking amber—Indicates SSD activity. Off—The SSD is not being accessed.

Network Port LEDs

Each network port uses two LEDs to indicate the link activity and speed. Figure 4 shows the location of the LEDs on the SSR1200. Table 3 describes the LEDs on the Ethernet ports and Table 4 describes the LEDs on the SFP+ ports.

Figure 4: Network Port LEDs on an SSR1200

Table 3: Port LEDs on the Ethernet Ports
Callout	LED	Description
1	Link Activity (LED on the left)	Blinking amber—Link is established and there is activity on the port. Solid amber—Link is established but there is no activity on the port. Off—There is no link established.
2	Speed (LED on the right)	Solid amber—The link is operating at 1 Gbps speed. Solid green—The link is operating at 100 Mbps speed. Off—The link is operating at 10 Mbps speed.

Table 4: Port LEDs on the SFP+ Ports
Callout	LED	Description
1	Link Activity (LED on the left)	Blinking green—Link is established and there is activity on the port. Solid green—Link is established but there is no activity on the port. Off—There is no link established.
2	Speed (LED on the right)	Solid green—The link is operating at 10 Gbps speed. Off—The link is operating at 1 Gbps speed.

Cooling System

The cooling system of the SSR1200 consists of two fixed fans. The fan controller on the appliance monitors the temperature of the chassis and adjusts the fan speed according to the temperature. The SSR1200 appliances have front-to-back airflow. The air is pulled in through the front of the chassis toward the fan modules, from where it is exhausted out of the chassis. The fans are not field-replaceable.

Figure 5: Airflow Through the SSR1200 Chassis

Power System

The SSR1200 appliance ships with two AC power supply units (1+1 redundancy) preinstalled. Each power supply unit is a hot-removable and hot-insertable field-replaceable unit (FRU) when the second power supply is installed and running. You can remove and replace either one of them without powering off the appliance or disrupting the appliance functions.

Note:

If both power supply units are installed, and if only one power supply unit is connected to the power source, the appliance raises an alarm.

Each power supply has its own fan and is cooled by its own internal cooling system.

Table 5 lists the power specifications for the SSR1200 appliance.

Table 5: Power Supply Specifications for SSR1200
Model	AC Input Voltage (Operating Range)	AC Input Line Frequency	AC Input Current Rating	Maximum Power Consumption	Power Supply Type
SSR1200	100–240 VAC	50–60 Hz	3–5 A	300 W	External, hot swappable

AC Power Cord Specifications for SSR1200

We ship detachable region-specific AC power cords with the chassis. The coupler is type C15 as described by International Electrotechnical Commission (IEC) standard 60320. The plug end of the power cord fits into the power source outlet that is standard for your geographical location.

Table 6 lists the AC power cords specifications provided for the power supplies for each country or region.

Table 6: AC Power Cord Specifications for SSR1200
Country/Region	Electrical Specifications	Plug Standards	Juniper Model Number	Graphic
Argentina	250 VAC, 10 A, 50 Hz	IRAM 2073 Type RA/3	CBL-EX-PWR-C13-AR	No graphic available
Australia	250 VAC, 10 A, 50 Hz	AS/NZS 3112 Type SAA/3	CBL-EX-PWR-C13-AU
Brazil	250 VAC, 10 A, 50 Hz	NBR 14136 Type BR/3	CBL-EX-PWR-C13-BR	No graphic available
China	250 VAC, 10 A, 50 Hz	GB 1002-1996 Type PRC/3	CBL-EX-PWR-C13-CH
Europe (except Italy, Switzerland, and United Kingdom)	250 VAC, 10 A, 50 Hz	CEE (7) VII Type VIIG	CBL-EX-PWR-C13-EU
India	250 VAC, 10 A, 50 Hz	IS 1293 Type IND/3	CBL-EX-PWR-C13-IN	No graphic available
Israel	250 VAC, 10 A, 50 Hz	SI 32/1971 Type IL/3G	CBL-EX-PWR-C13-IL
Italy	250 VAC, 10 A, 50 Hz	CEI 23-16 Type I/3G	CBL-EX-PWR-C13-IT
Japan	125 VAC, 12 A, 50 Hz or 60 Hz	SS-00259 Type VCTF	CBL-EX-PWR-C13-JP
Korea	250 VAC, 10 A, 50 Hz or 60 Hz	CEE (7) VII Type VIIGK	CBL-EX-PWR-C13-KR
North America	125 VAC, 13 A, 60 Hz	NEMA 5-15 Type N5-15	CBL-EX-PWR-C13-US
South Africa	250 VAC, 10 A, 50 Hz	SABS 164/1:1992 Type ZA/3	CBL-EX-PWR-C13-SA
Switzerland	250 VAC, 10 A, 50 Hz	SEV 6534-2 Type 12G	CBL-EX-PWR-C13-SZ	No graphic available
United Kingdom	250 VAC, 10 A, 50 Hz	BS 1363/A Type BS89/13	CBL-EX-PWR-C13-UK
