SRX4300 Power System

The SRX4300 is powered by two power supplies for 1 + 1 redundancy. The SRX4300 has hot-removable and hot-insertable power supply units (PSUs). If one PSU fails, you can replace it without powering off or disrupting the device function. The second PSU balances the electrical load without interruption. A fan in each power supply provides cooling.

Note:

We ship the SRX4300 with only one PSU. You can order the second PSU separately if required.
CAUTION:

You must not mix AC and DC power supplies in the same chassis.

AC Power Supply for SRX4300 Firewalls

The following figure shows the AC PSU.

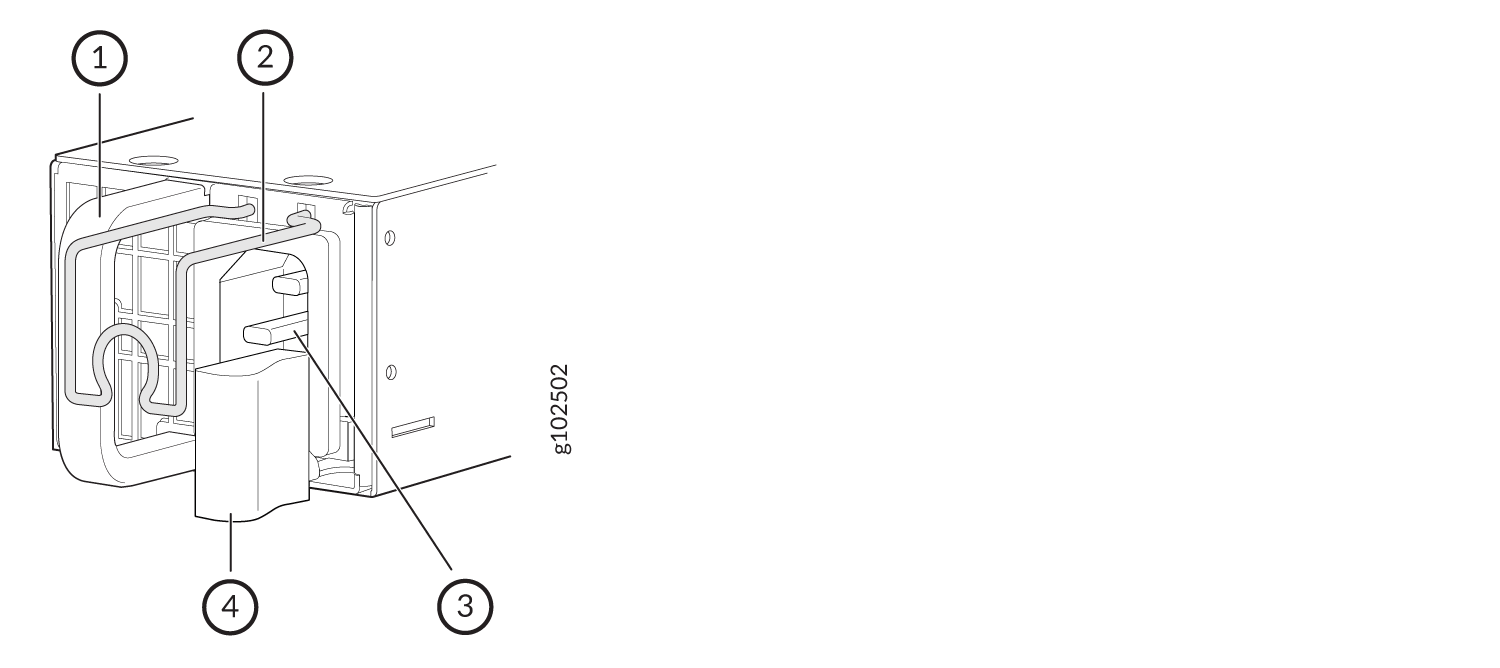

Figure 1: AC Power Supply Unit for SRX4300 AC Power Supply Unit for SRX4300
Table 1: Physical Specifications of the SRX4300 AC PSU
Height Width Depth Weight

1.61 in. (4.1 cm)

2.17 in. (5.5 cm)

14.17 in. (36 cm) (including handle)

2.23 lb (1.01 kg)

Table 2 describes the AC power specifications for SRX4300.

Table 2: AC PSU ratings for SRX4300
Item Specification
AC input voltage Operating range: 100-127 VAC / 200-240 VAC
AC input line frequency 50/60 Hz
AC input current rating

10.52 A at 100-127 VAC

5.26 A at 200-240 VAC
Maximum power output 850 W
Table 3: AC Power Consumption for SRX4300

Item

Specification

Maximum power consumption

393 W

Typical power consumption

327 W

You must use a dedicated external circuit breaker for each power supply. We recommend that use a 16 A (250 VAC) minimum, or as permitted by the local code.

Supported AC Power Cords

Warning:

The AC power cord for the firewall is intended for use with the firewall only and not for any other use.
Note:

In North America, AC power cords must not exceed a length of 4.5 m (approximately 14.75 ft). This length complies with National Electrical code (NEC) Section 400-8 (NFPA 75, 5-2.2) and 210-52, and Canadian Electrical Code (CEC) Section 4-010(3).

Table 4 provides power cord specifications, and Figure 2 depicts the plug on the AC power cord provided for each country or region.

Table 4: AC Power Cord Specifications

Country

Electrical Specification

Plug Standards

Australia

250 VAC, 10 A, 50 Hz

AS/NZ 3112-1993

China

250 VAC, 10 A, 50 Hz

GB2099.1 1996 and GB 1002 1996 (CH1-10P)

Europe (except Italy and United Kingdom)

250 VAC, 10 A, 50 Hz

CEE (7) VII

Italy

250 VAC, 10 A, 50 Hz

CEI 23-16/VII

Japan

125 VAC, 12 A, 50 or 60 Hz

JIS 8303

North America

125 VAC, 13 A/15 A, 60 Hz

NEMA 5-15

United Kingdom

250 VAC, 10 A, 50 Hz

BS 1363A

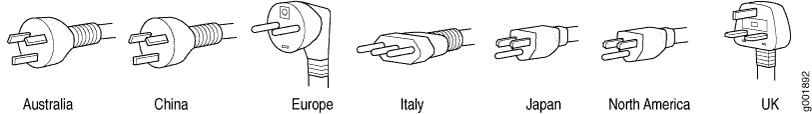

Figure 2: AC Plug Types AC Plug Types
Note:

Power cords and cables must not block access to firewall components or drape where people might trip on the cables.

DC Power Supply for SRX4300 Firewalls

The following figure shows the DC PSU.

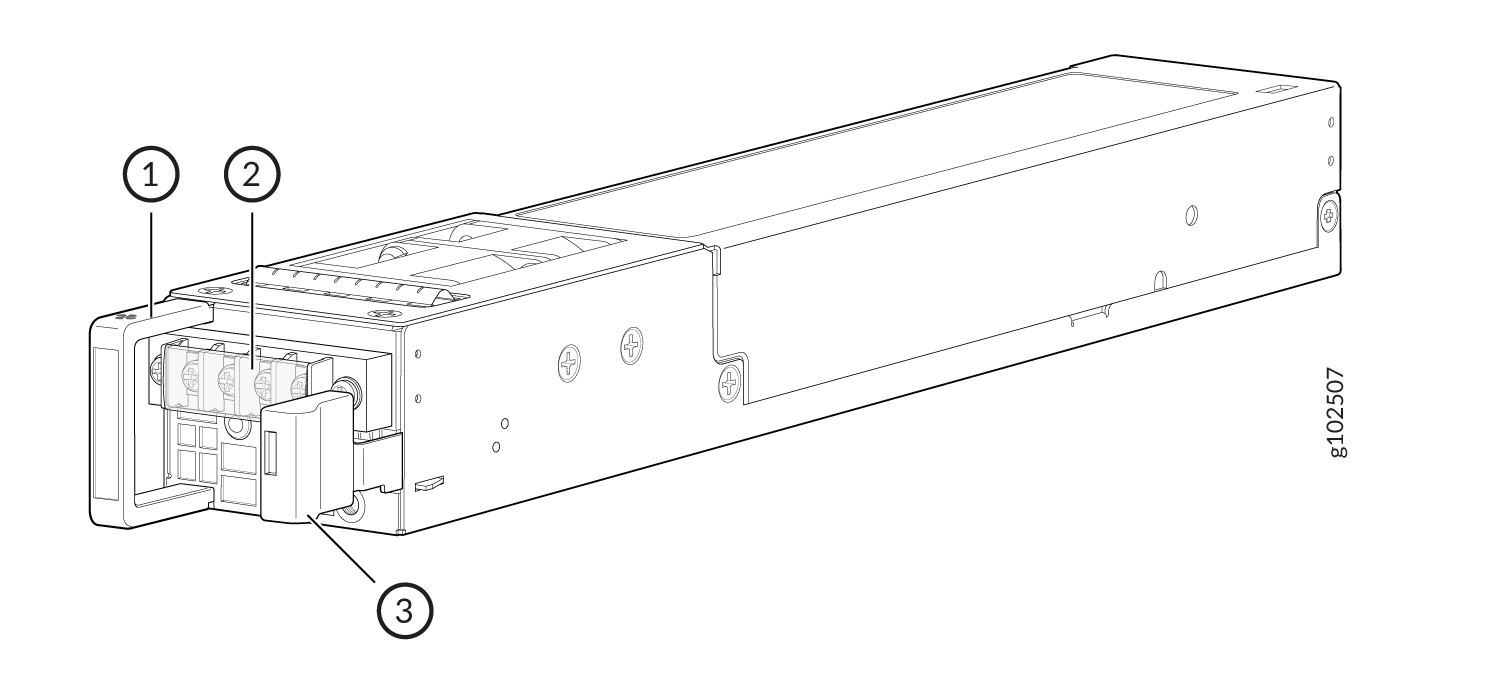

Figure 3: DC Power Supply PSU for SRX4300

Table 5: Physical Specifications of the SRX4300 DC PSU
Height Width Depth (including handle) Weight

1.61 in. (4.1 cm)

2.17 in. (5.5 cm)

14.17 in. (36 cm)

2.16 lb (0.98 kg)

Table 6 describes the DC power specifications for SRX4300.

Table 6: DC PSU ratings for SRX4300
Item Specification
DC Input Voltage –40 VDC through –72 VDC
DC input current rating 24 A maximum
Maximum power output 850 W
Table 7: DC Power Consumption for SRX4300

Item

Specification

Maximum power consumption

392 W

Typical power consumption

326 W

PSU LEDs on SRX4300 Firewalls

Figure 4 shows the location of the LEDs on the AC PSU and Table 8 describes the LEDs.

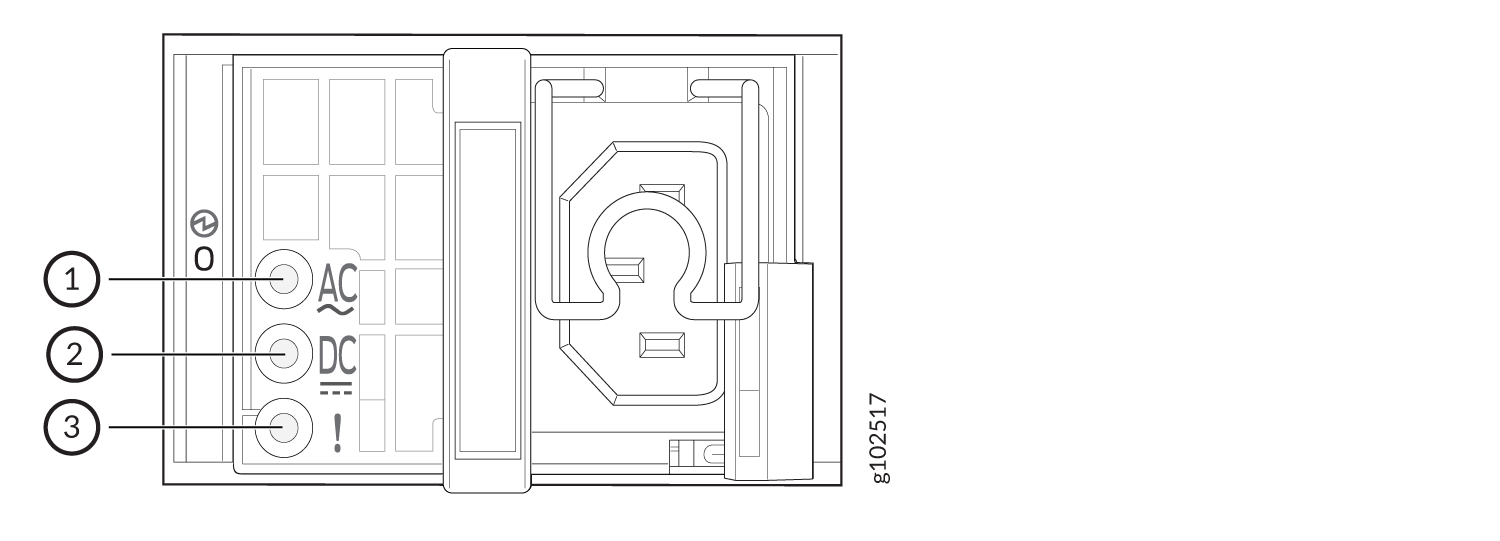

Figure 4: LEDs on the AC PSU
Table 8: LEDs on the AC PSU
Callout LED Color Description
1 AC Off No power input.
Green PSU is operating normally.
2 DC Off No power output.
Green PSU is operating normally.
3 Fault Amber The system has detected an error in the PSU. Replace the PSU immediately. To maintain proper airflow thorugh the chassis, leave the PSU installed in the chassis until you are ready to replace it.

Figure 5 shows the location of the LEDs on the DC PSU and Table 9 describes the LEDs.

Figure 5: LEDs on the DC PSU LEDs on the DC PSU
Table 9: LEDs on the DC PSU
Callout Name Color Description
1 Input Off No power input.
Green The PSU is operating normally.
2 Output Off No power output.
Green The PSU is operating normally.
3 Fault Amber The system has detected an error in the PSU. Replace the PSU immediately. To maintain proper airflow thorugh the chassis, leave the PSU installed in the chassis until you are ready to replace it.
