SRX380 Cooling System

The cooling system for the SRX380 Services Gateway includes three fixed fans. The fans draw air through vents on the front of the chassis and exhaust the air through the back of the chassis. The airflow produced by the fans keeps the device components within the acceptable temperature range.

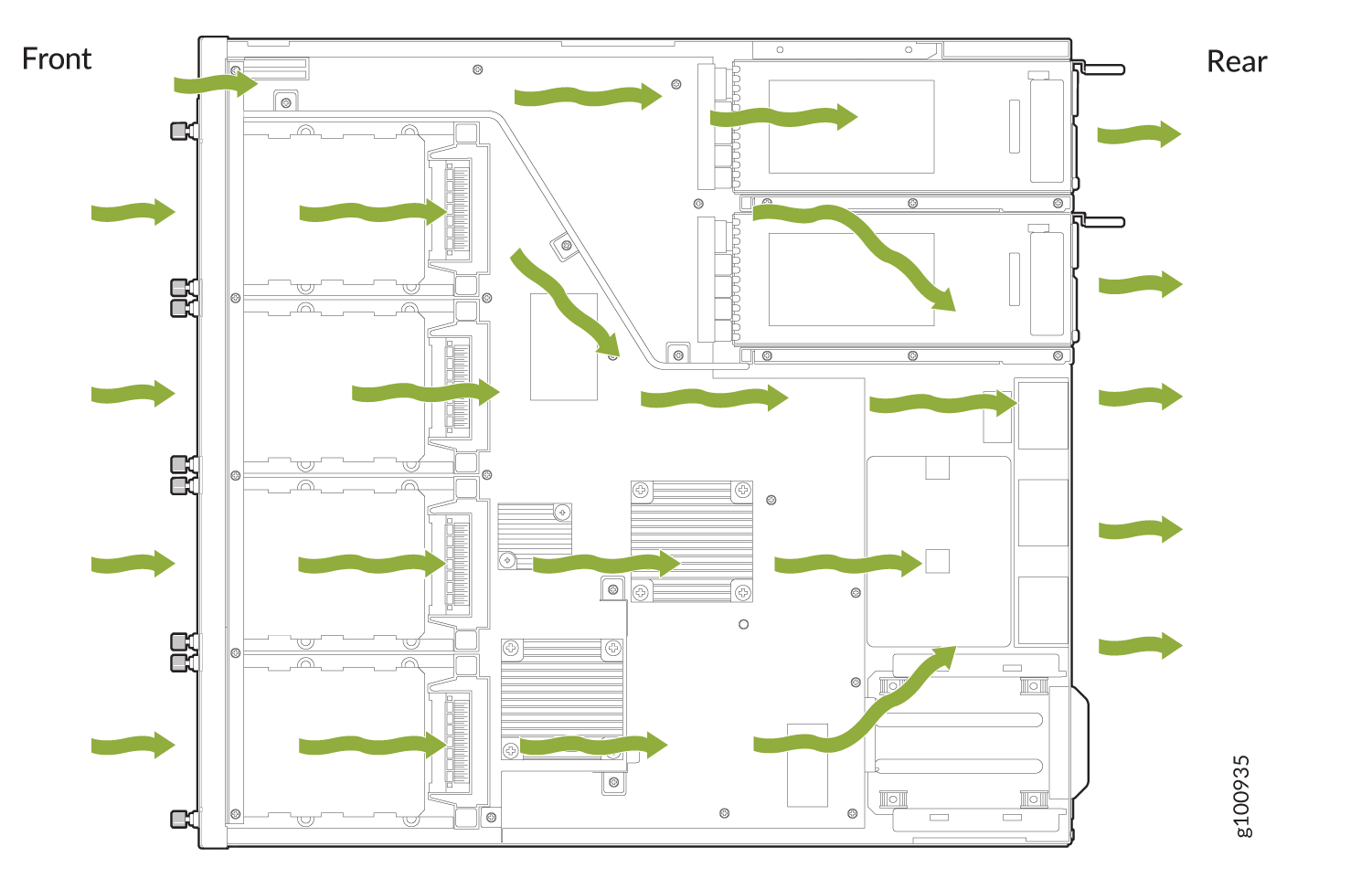

Figure 1 shows the airflow through the SRX380 Services Gateway chassis.

Figure 1: Airflow Through the SRX380 Services Gateway ChassisAirflow Through the SRX380 Services Gateway Chassis
