Fast Track to Rack Installation and Power

SUMMARY This procedure guides you through the simplest steps to install your SRX340 Firewall in a rack and connect it to power. Have more complex installation needs? See Installing the SRX340 Firewall in a Rack.

Install the SRX340 in a Rack

You can install the SRX340 Firewall in a two-post rack or cabinet. We’ll walk you through the steps to install an AC-powered firewall in a two-post rack.

Before you install, review the following:

  1. Wrap and fasten one end of the electrostatic discharge (ESD) grounding strap around your bare wrist, and connect the other end to a site ESD point.
  2. Attach the mounting brackets to the sides of the SRX340 using the eight mounting screws and the screwdriver.

    Depending on how you’d like the SRX340 to sit in the rack, you can attach the mounting brackets to the front or center mounting holes.

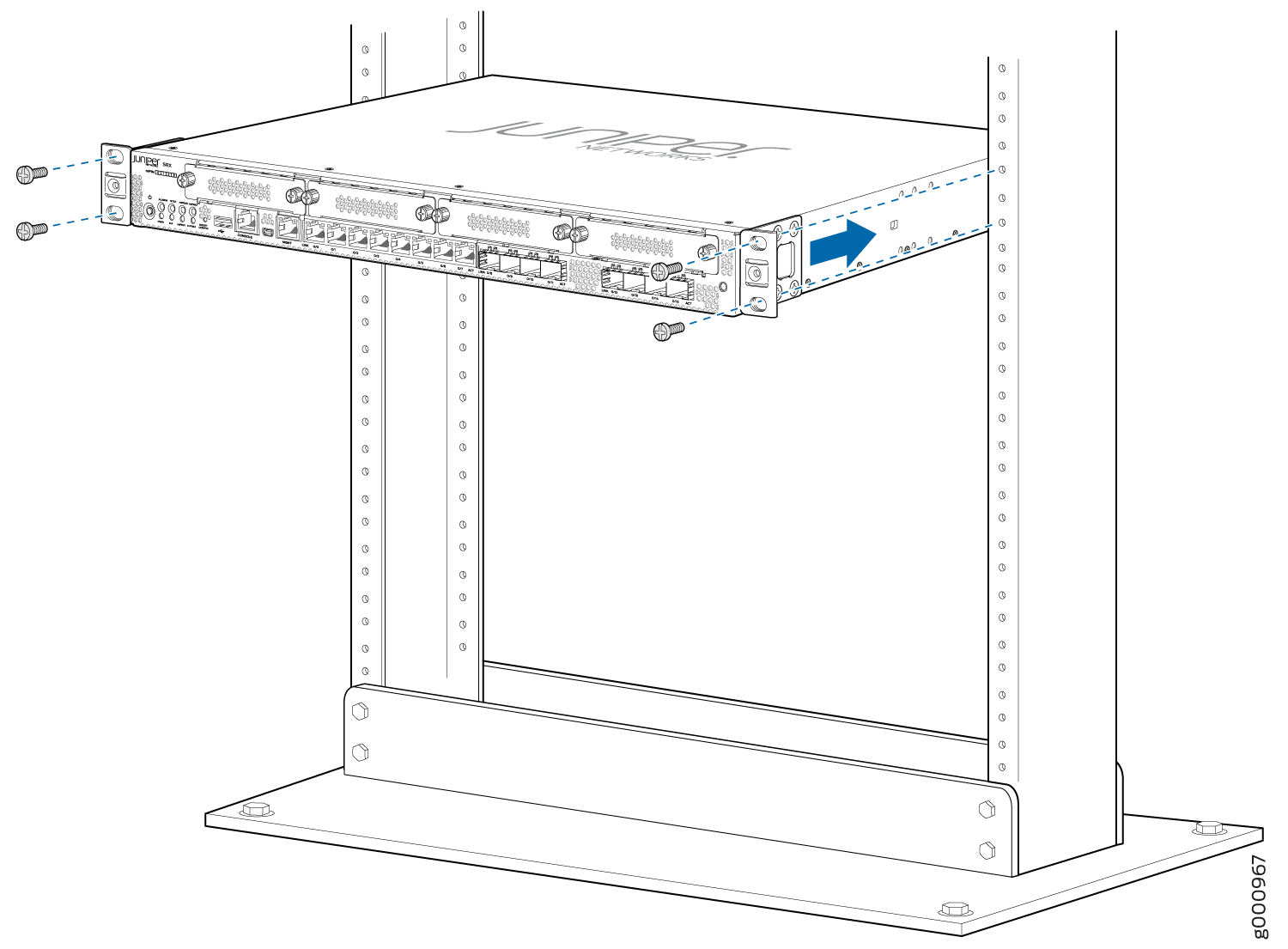

  3. Lift the SRX340 and position it in the rack. Line up the bottom hole in each mounting bracket with a hole in each rack rail, making sure that the SRX340 is level.
  4. While you’re holding the SRX340 in place, have a second person insert and tighten the rack mount screws to secure the mounting brackets to the rack. Make sure to tighten the screws in the two bottom holes first and then tighten the screws in the two top holes.
  5. Check that the mounting brackets on each side of the rack are level.

Connect to Power

To connect the SRX340 Firewall to AC power, you must do the following:

Ground the SRX340 Firewall

To ground the SRX340 Firewall, do the following:

  1. Wrap and fasten one end of the electrostatic discharge (ESD) grounding strap around your bare wrist, and connect the other end to a site ESD point.

  2. Attach a grounding cable to earth ground, and then attach the other end to the grounding point on the side panel of the SRX340.

Connect the Power Cord and Power On the Firewall

To connect the power cord, do the following:

  1. Wrap and fasten one end of the electrostatic discharge (ESD) grounding strap around your bare wrist, and connect the other end to a site ESD point.

  2. Plug the power cord into the power inlet on the SRX340 rear panel.

  3. If the AC power source outlet has a power switch, turn it off.

  4. Plug the power cord into an AC power source outlet.

  5. If the AC power source outlet has a power switch, turn it on. The firewall doesn't have a power switch and powers on as soon as you plug it in.
