Connect the SRX1600 to External Devices

Connect Your Device to a Network for Out-of-Band Management

Ensure that you have an Ethernet cable that has an RJ-45 connector at each end.

You can monitor and manage your device by using a dedicated management channel. Use the management port to connect your device to the management device. The management port accepts an Ethernet cable that has an RJ-45 connector.

To connect a device to a network for out-of-band management:

  1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and connect the strap to one of the ESD points on the chassis.
  2. Connect one end of the Ethernet cable to the management port on the device.
  3. Connect the other end of the cable to the management device (see Figure 1).

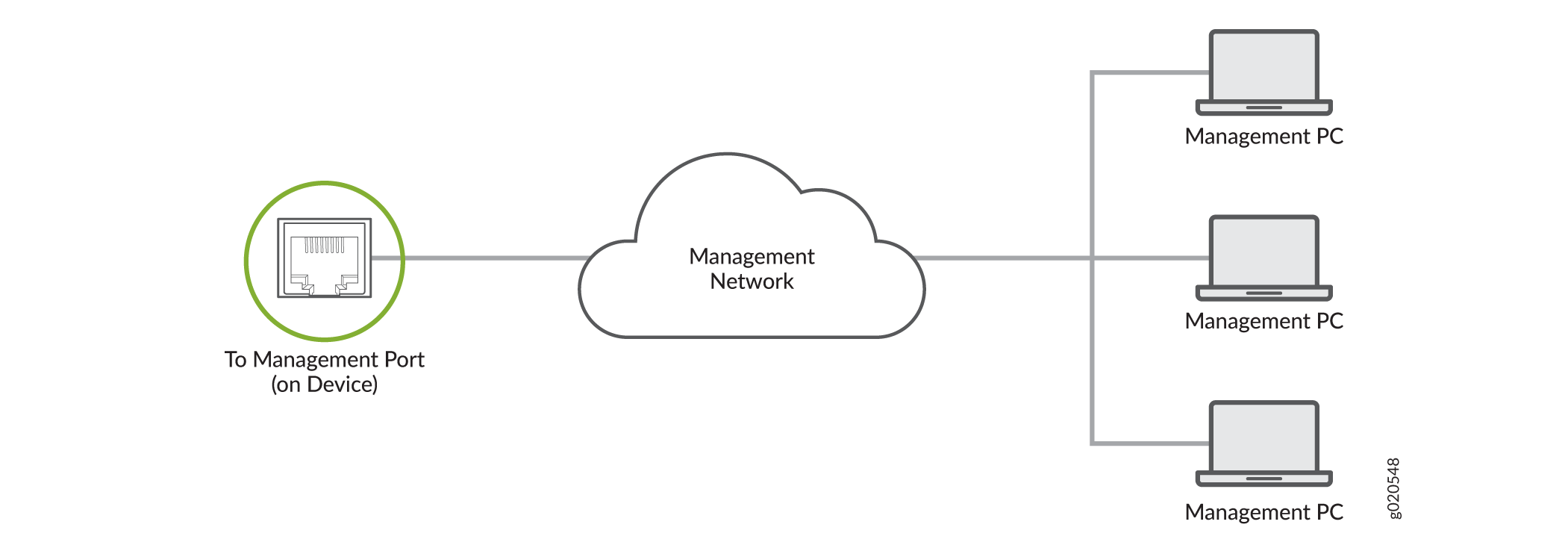

    Figure 1: Connecting Your Device to a Network for Out-of-Band Management Connecting Your Device to a Network for Out-of-Band Management

Connect Your Device to a Management Console

Ensure that you have an Ethernet cable that has an RJ-45 connector at either end. You will also need the appropriate adapter (not provided) depending upon your console server or management console. If you require a console cable, you can order it separately with the part number JNP-CBL-RJ45-DB9 (DB-9 to RJ-45 adapter with a CAT5E copper cable).

You can configure and manage your device by using a dedicated management channel. Use the console port to connect your device to the console server or management console. The console port accepts an Ethernet cable that has an RJ-45 connector.

To connect the device to a management console:

  1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and connect the strap to one of the ESD points on the chassis.
  2. Connect one end of the Ethernet cable to the console port on the device.
  3. Connect the other end of the cable to the console server (see Figure 2) or management console (see Figure 3).

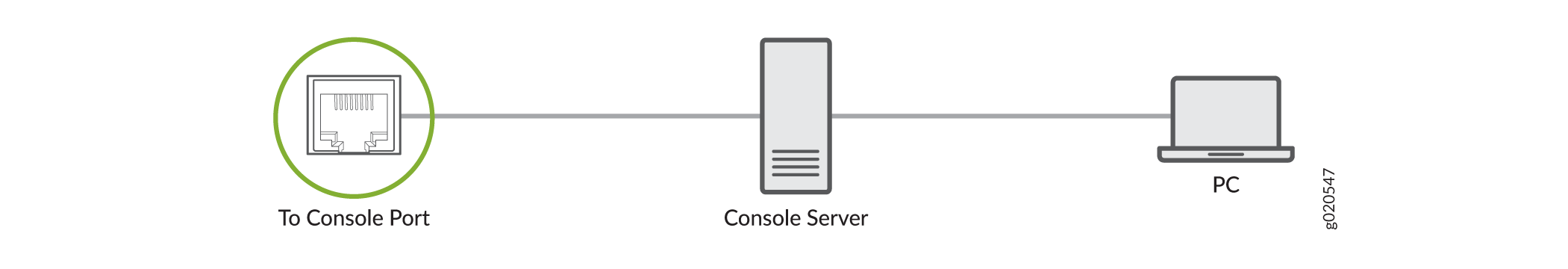

    Figure 2: Connecting Your Device to a Management Console through a Console Server Connecting Your Device to a Management Console through a Console Server

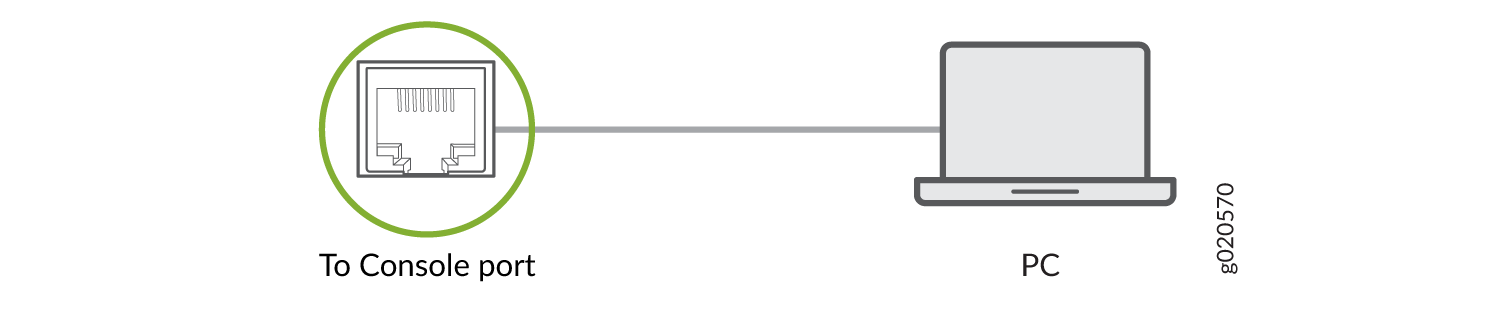

    Figure 3: Connecting the Your Device directly to a Management Console Connecting the Your Device directly to a Management Console
