Step 1: Begin

In this guide, we provide a simple, three-step path, to quickly get you up and running with your new SRX320. We’ve simplified and shortened the installation and configuration steps, and included how-to videos. You'll learn how to install the SRX320 in a rack, power it up, and deploy it on your network using the CLI.

Note:

We think you'll want to check out our Guided Setup: SRX300 Line Firewalls. Our Guided Setup picks up where this Day One+ ends, providing step-by-step instructions on how to easily secure and validate your branch location.

Are you interested in getting hands-on experience with the topics and operations covered in this guide? Visit Juniper Networks Virtual Labs and reserve your free sandbox today! You’ll find the Junos Day One Experience sandbox in the stand alone demonstration category.

Meet the SRX320

The Juniper Networks® SRX320 Firewall provides next-generation security, routing, switching, and WAN connectivity in a small desktop device. The SRX320 features eight 1GbE ports, including six RJ-45 network ports and two small form-factor pluggable (SFP) transceiver ports. The SFP ports are MACsec capable.

Install the SRX320 in a Rack

You can install the SRX320 on a table or desk, on a wall, or in a rack. We show you how to install it in a rack.

What’s in the Box?

  • SRX320 Firewall

  • A power cord appropriate for your geographic location

  • A USB cable

What Else Do I Need?

To mount the SRX320 in a rack, you’ll need to order the rack mount kit appropriate for your installation. The required rack mount kit depends on whether you have a PoE or non-PoE SRX320 model, and whether you already have a power supply adapter tray. Check out the following table to see which rack mount kit you need.

Model

Rack Mount Kit with Power Supply Adapter Tray

Rack Mount Kit Without Power Supply Adapter Tray

SRX320 (non-PoE model)

SRX320-RMK0

Includes:

  • Twelve flat-head M3x5mm Phillips mounting screws

  • One mounting bracket

  • One power supply adapter tray and two adapter stopper brackets

SRX320-RMK1

Includes:

  • Eight flat-head M3x5mm Phillips mounting screws

  • Two mounting brackets

SRX320 (PoE model)

SRX320-P-RMK0

Includes:

  • Thirteen flat-head M3x5mm Phillips mounting screws

  • One mounting bracket

  • One power supply adapter tray and three adapter stopper brackets

SRX320-P-RMK1

Includes:

  • Eight flat-head M3x5mm Phillips mounting screws

  • Two mounting brackets

You’ll also need to provide:

  • Someone to help you do the installation

  • Rack mount screws appropriate for your rack

  • A number 2 Phillips (+) screwdriver

  • A console cable with the required adapter

    Note:

    We no longer include the console cable as part of the device package. If the console cable and adapter are not included in your device package, or if you need a different type of adapter, you can order the following separately:

    • RJ-45 to DB-9 adapter (JNP-CBL-RJ45-DB9)

    • RJ-45 to USB-A adapter (JNP-CBL-RJ45-USBA)

    • RJ-45 to USB-C adapter (JNP-CBL-RJ45-USBC)

    If you want to use an RJ-45 to USB-A or RJ-45 to USB-C adapter, you must have the X64 (64-Bit) Virtual COM port (VCP) driver installed on your PC. See https://ftdichip.com/drivers/vcp-drivers/ to download the driver.

Rack It

  1. Review General Safety Guidelines and Warnings.
  2. Wrap and fasten one end of the electrostatic discharge (ESD) grounding strap around your bare wrist, and connect the other end to a site ESD point.

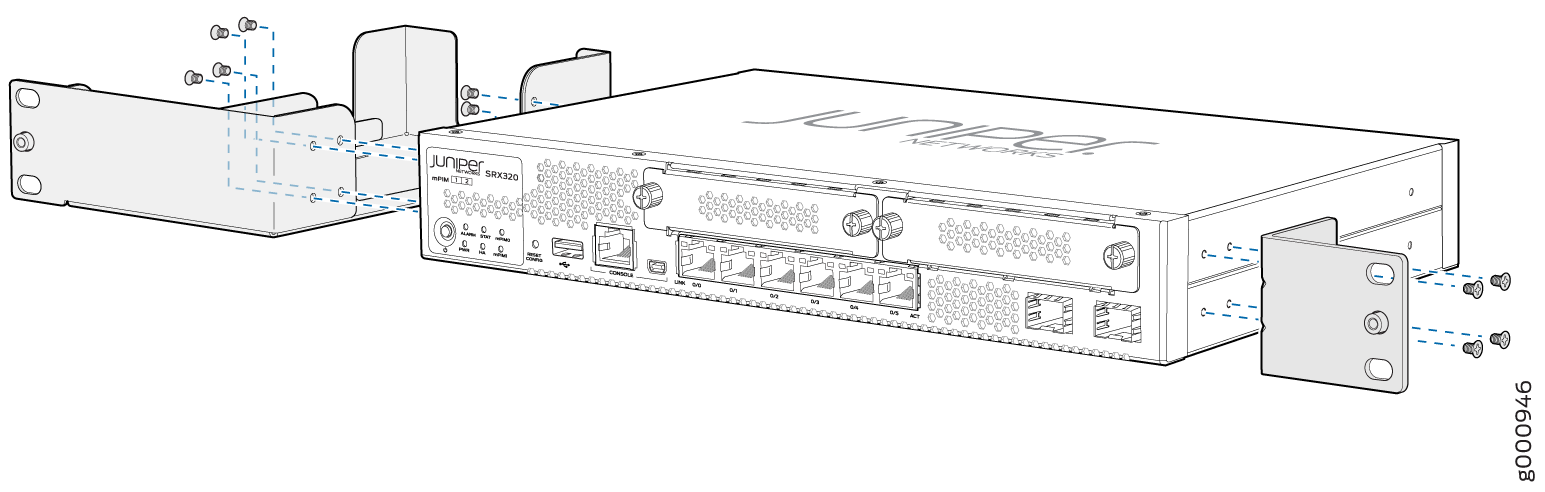

  3. Attach the mounting bracket and power supply adapter tray to the sides of the SRX320 using the screws that came with the rack mount kit and the screwdriver.

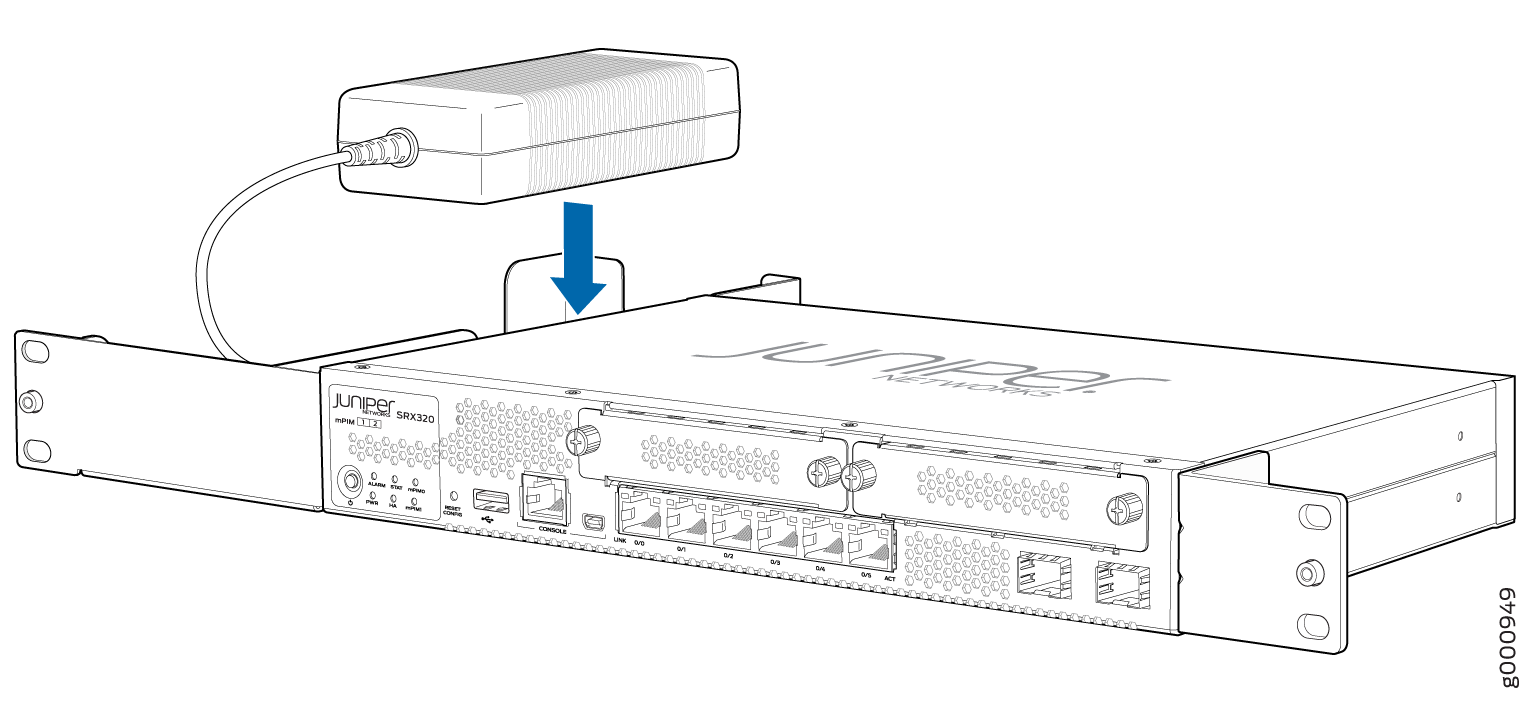

  4. Place the power supply adapter in the tray.
  5. Lift the SRX320 and position it in the rack. Line up the bottom hole in the mounting brackets with a hole in each rack rail, making sure the SRX320 is level.

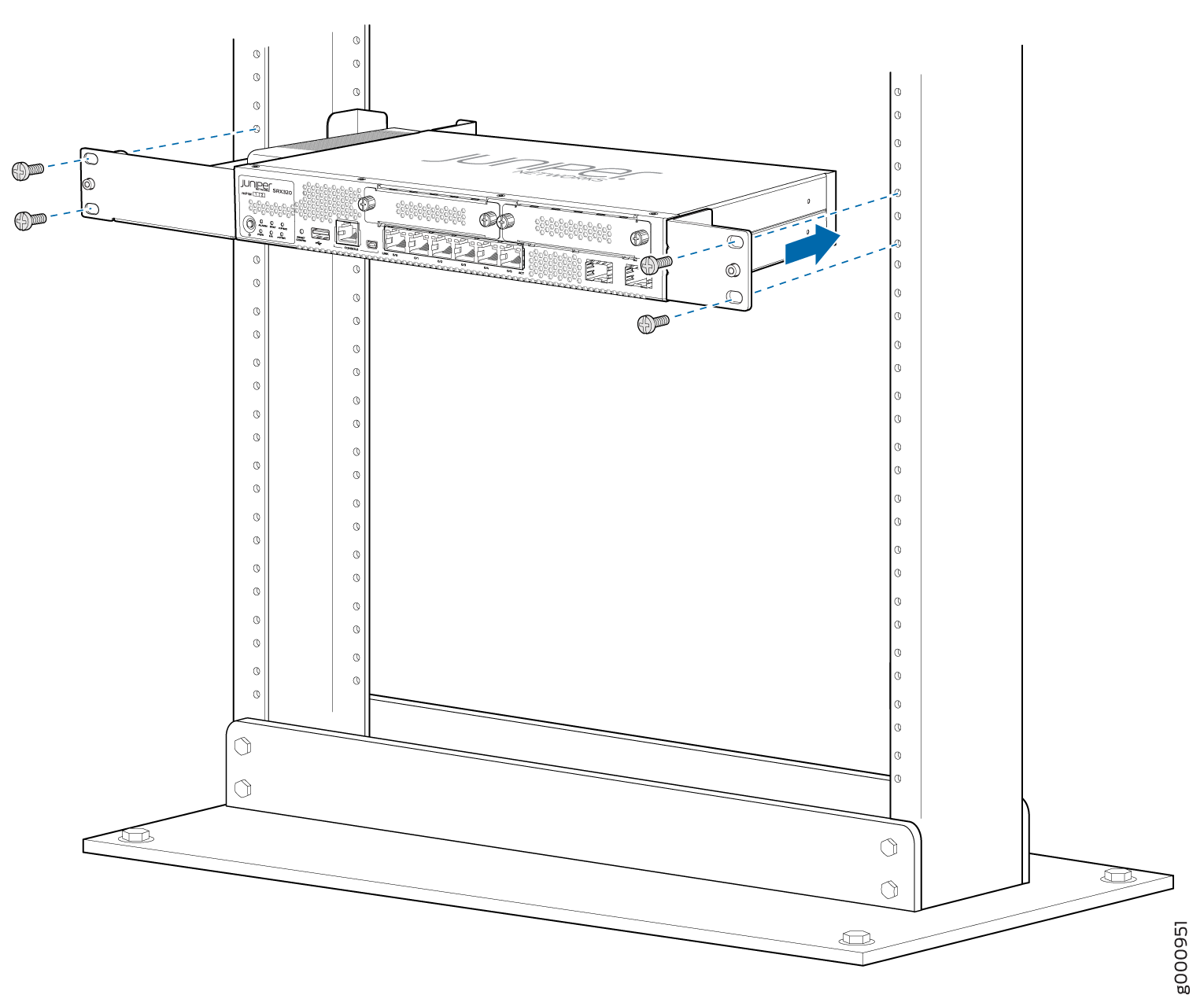

  6. While you’re holding the SRX320 in place, have a second person insert and tighten the rack mount screws to secure the adapter tray and mounting brackets to the mounting rails. Make sure to tighten the screws in the two bottom holes first and then tighten the screws in the two top holes.
  7. Check that the mounting brackets on each side of the rack are level.

Power On

Now that you’ve installed the SRX320 in the rack, you’re ready to connect it to power.

  1. Wrap and fasten one end of the electrostatic discharge (ESD) grounding strap around your bare wrist, and connect the other end to a site ESD point.
    Note:

    If the SRX320 has a supply adapter tray, you can perform step 2 and 3 with the power supply adapter seated in the tray.

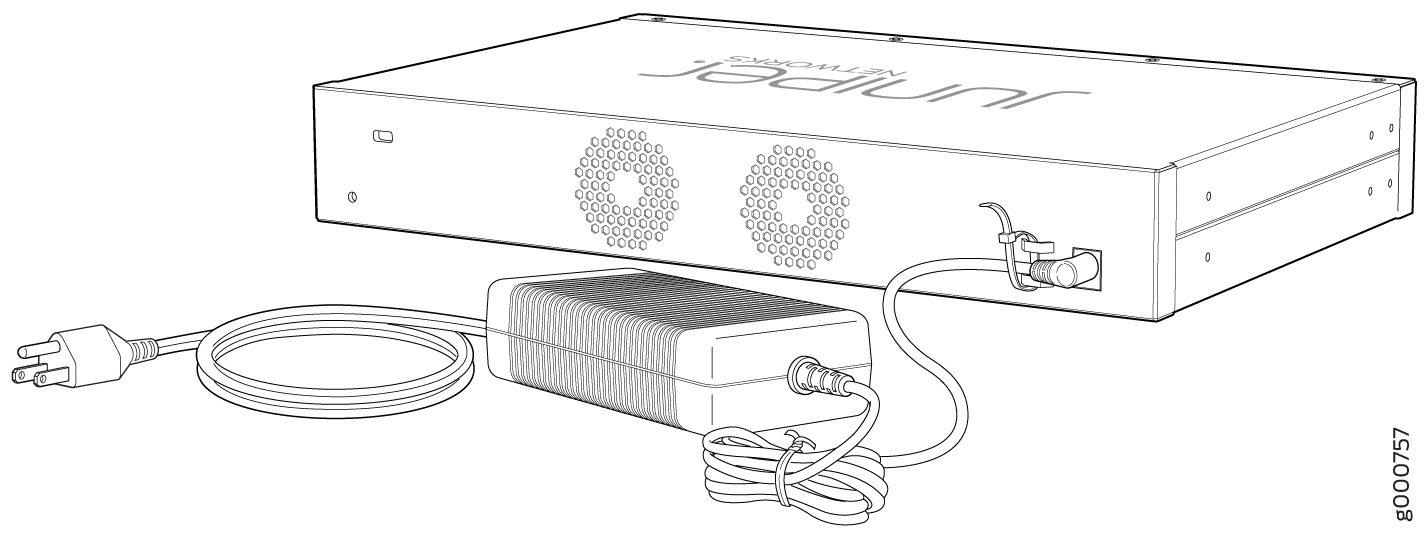

  2. Plug the DC connector end of the power cable into the power connector at the back of the SRX320.
  3. Plug the AC adapter end of the power cable into the power supply adapter.
  4. If the AC power source outlet has a power switch, turn it off.
  5. Plug the power cord into the AC power source outlet.
  6. If the AC power source outlet has a power switch, turn it on.

    The SRX320 powers up as soon as you connect it to power. When the STAT LED on the front panel is lit solid green, the SRX320 is ready to use.
