Maintain the Solid-State Drive in QFX5241-64OD and QFX5241-64QD Switches

The QFX5241-64OD and QFX5241-64QD switches support two 480-GB SSDs. You cannot install or remove the SSDs when the switch is up. You must shut down the switch before replacing the SSD. The SSDs are preinstalled in the switch.

Remove a Solid-State Drive from QFX5241-64OD and QFX5241-64QD Switches

Before you remove a solid-state drive (SSD) from the device, ensure that you have taken the necessary precautions to prevent ESD damage.

Ensure that you have the following parts and tools available to remove an SSD from the QFX5241-64OD and QFX5241-64QD switches:

  • ESD grounding strap

  • Antistatic bag or an antistatic mat

  • Phillips (+) screwdriver, number 1

  1. Place the antistatic bag or the antistatic mat on a flat, stable surface.
  2. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end of the strap to the ESD point on the rack.
  3. Turn the switch chassis upside down and locate the SSD cover plate.
  4. Remove the three screws securing the SSD cover plate by using the Phillips (+) screwdriver.

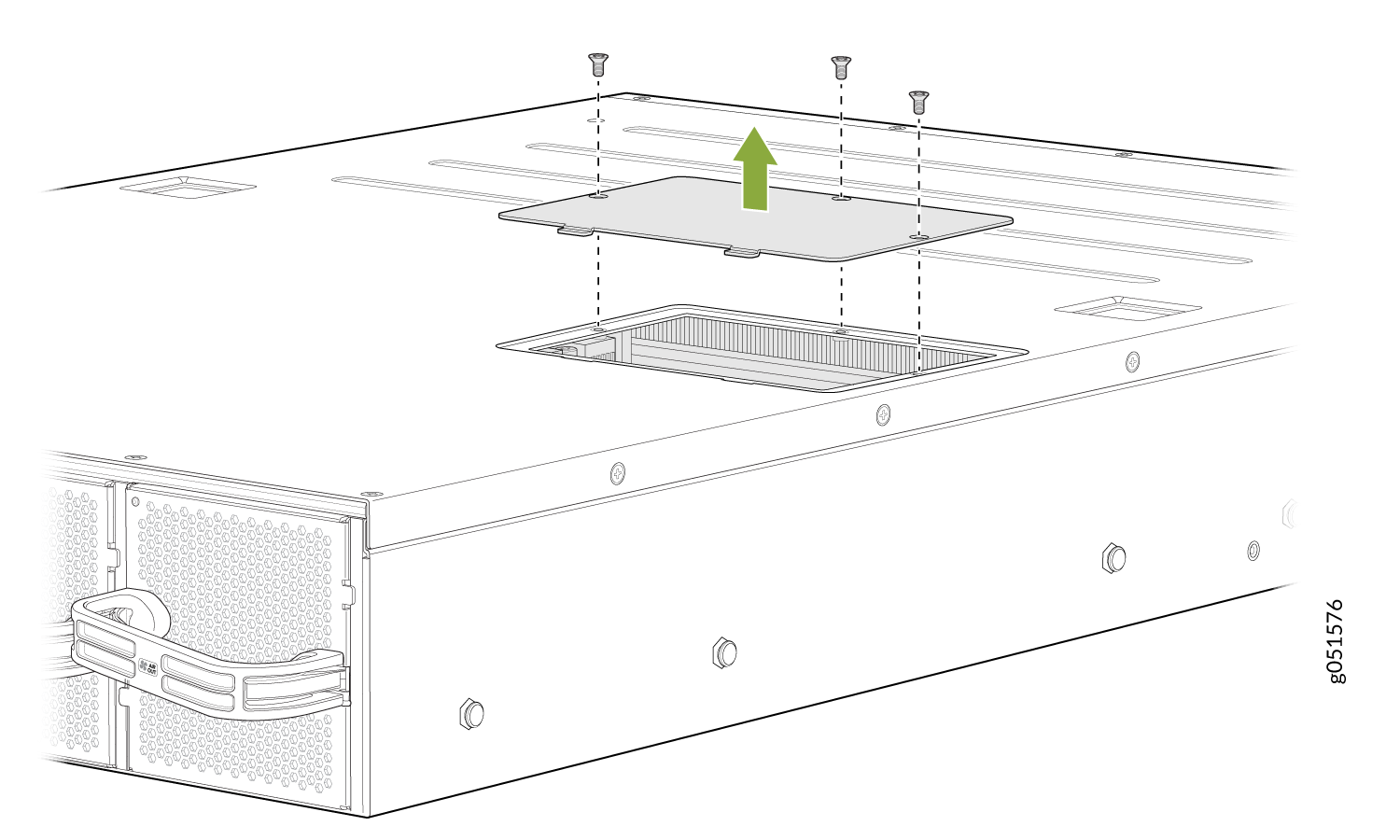

    Figure 1: Remove the SSD Cover Plate
  5. Remove the single screw holding the SSD in place and slide the drive out of its slot.

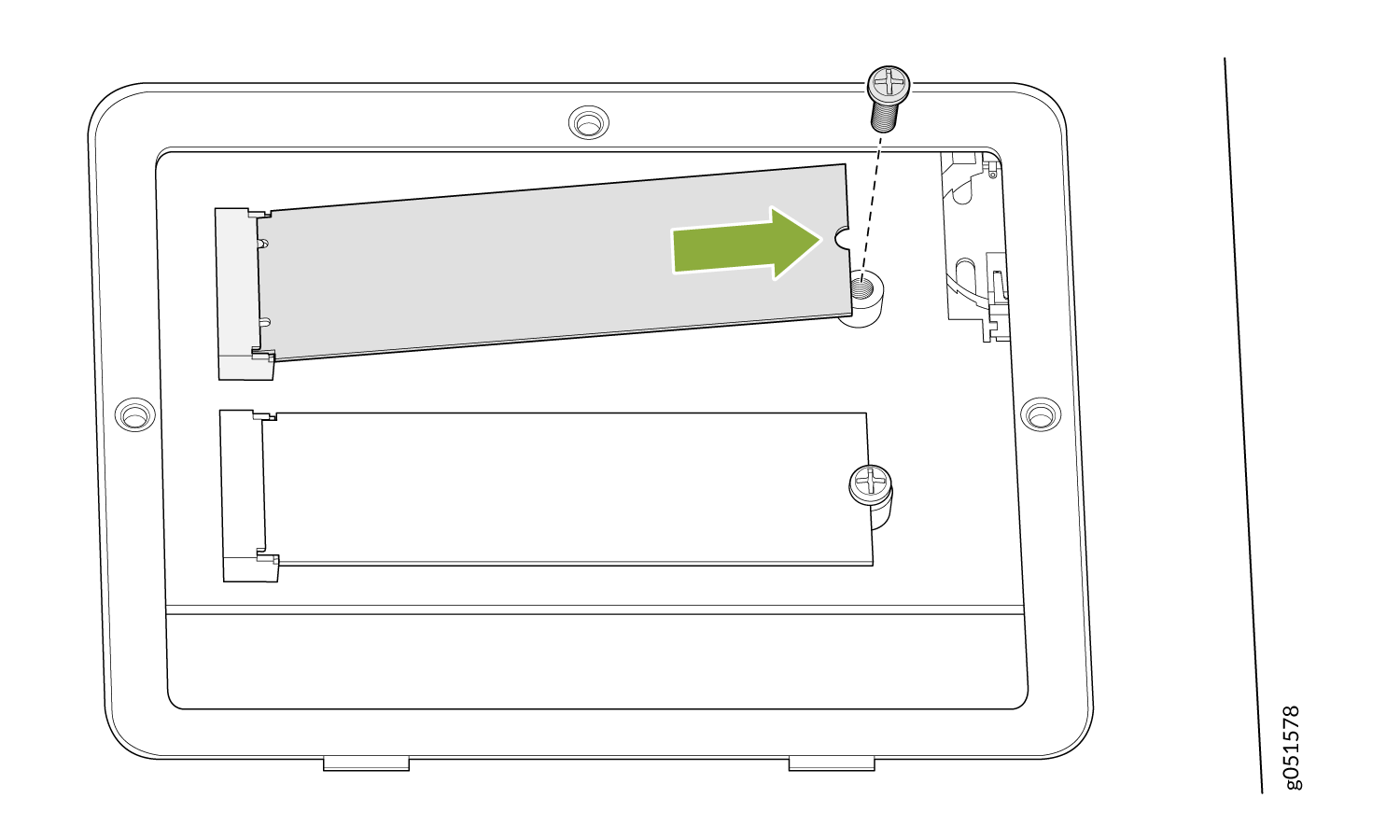

    Figure 2: Remove the SSDs Remove the SSDs
  6. Place the SSD in an electrostatic bag or on an antistatic mat.
  7. Place the SSD cover plate back on the chassis and tighten the three screws securing the SSD cover plate.

Install a Solid-State Drive in QFX5241-64OD and QFX5241-64OD Switches

Before you install an SSD in the device, ensure that you have taken the necessary precautions to prevent ESD damage.

Ensure that you have the following parts and tools available to install an SSD in the QFX5241-64OD and QFX5241-64QD switches:

  • ESD grounding strap

  • Antistatic bag containing the SSD or an antistatic mat

  • Phillips (+) screwdriver, number 1

  1. Place the antistatic bag or the antistatic mat on a flat, stable surface.
  2. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end of the strap to the ESD point on the rack.
  3. Turn the switch upside down and locate the SSD cover plate.
  4. If the screws are not already removed, remove the three screws securing the SSD cover plate by using the Phillips (+) screwdriver.
    Figure 3: Remove the SSD Cover Plate Remove the SSD Cover Plate
  5. Slide the drive into the SSD slot and tighten the single screw holding the SSD.

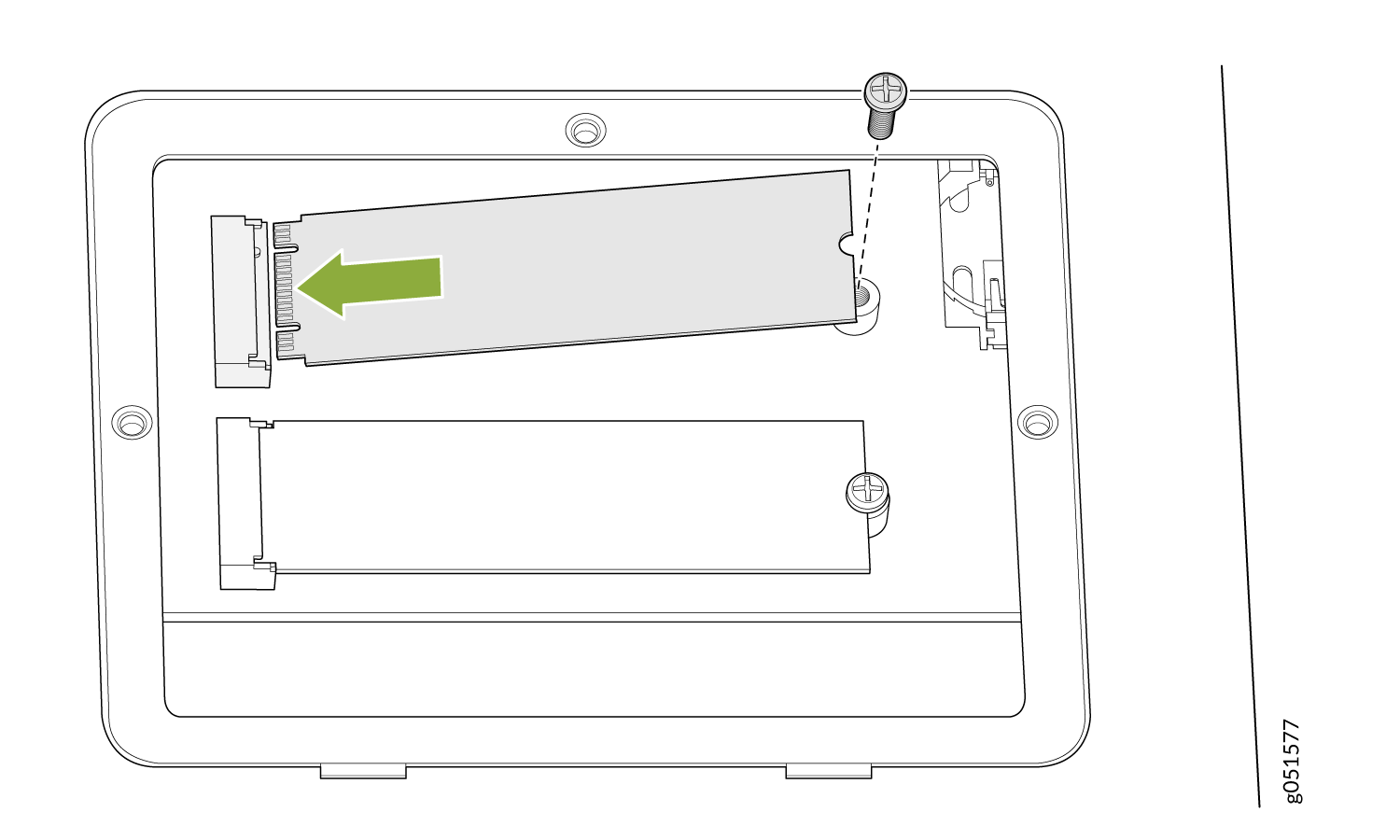

    Figure 4: Install the SSD Module installation or removal process with green arrow showing direction, visible screws, and mounting points.
  6. Place the SSD cover plate back on the chassis and tighten the three screws securing the SSD cover plate.

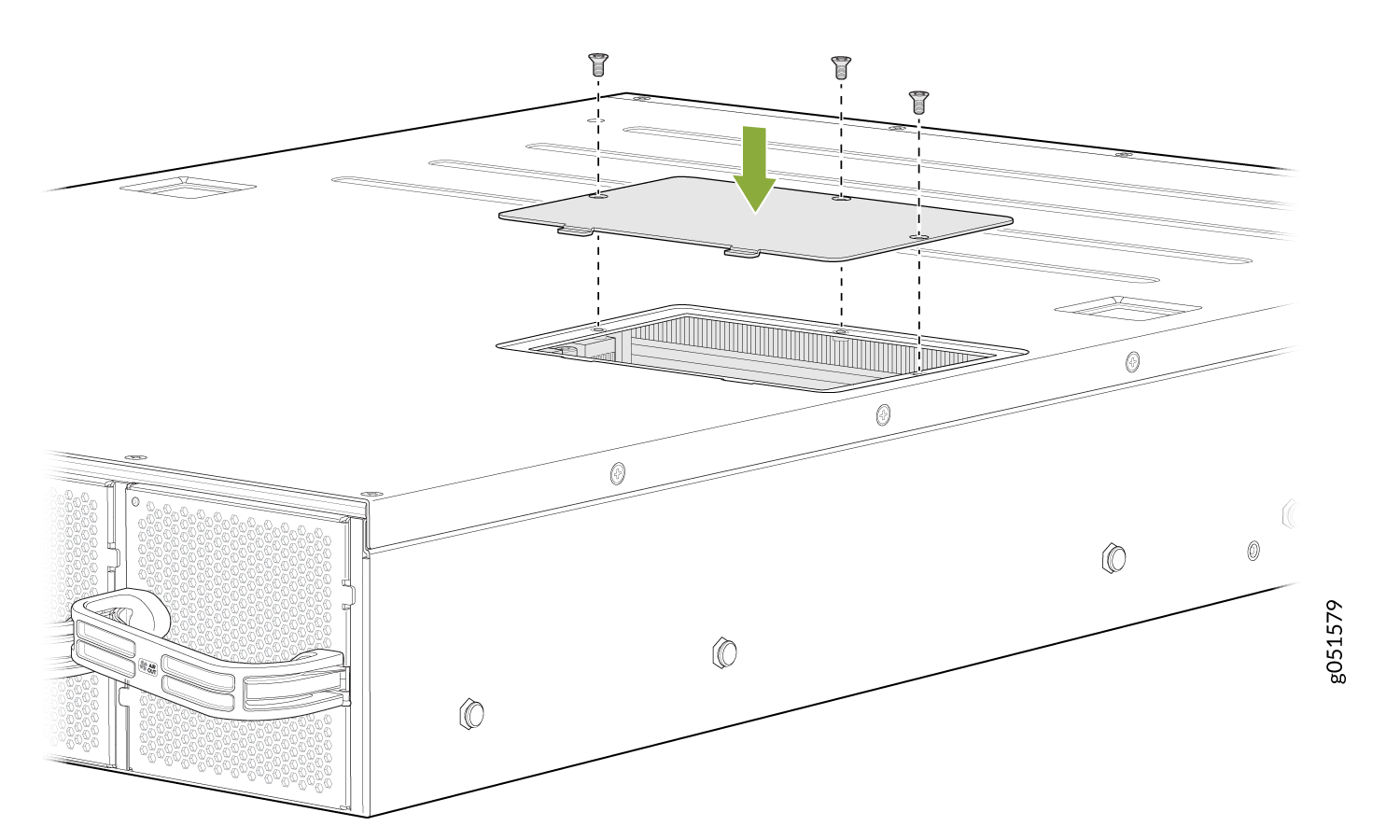

    Figure 5: Replace the SSD Cover Plate Removing or installing a panel on a server; green arrow shows direction, screws secure panel, vented section for airflow.
