QFX5140 Power System

The QFX5140 power system includes AC or DC power supply units (PSUs) with related power cords and cables. The PSUs operate within certain ranges and are equipped with status indicator LEDs.

The QFX5140 AC and DC models use two 1600-W PSUs with support for 1+1 redundancy. The PSUs are preinstalled at the factory. The PSUs in the QFX5140 are hot-insertable and hot-removable field-replaceable units (FRUs). If one PSU fails, you can replace it without powering off or disrupting the routing function. The other PSU balances the electrical load without interruption. A fan in each PSU provides cooling. The PSUs are located at the rear of the QFX5140.

CAUTION:

Avoid mixing:

  • AC and DC PSUs in the same chassis.

  • PSUs with different ratings in the same chassis.

  • PSUs with different airflow directions in the same chassis.

  • PSUs and fan modules with different airflow directions in the same chassis.

The maximum and typical power consumption of the system depends on the type of power supply.

Table 1: Power Consumption
PSU Type Maximum System Power Consumption Typical System Power Consumption

AC

883 W

543 W

DC

883 W

543 W
Note:

Maximum power consumption is measured at 40°C ambient temperature with SR optics, and at 100% load with IMIX traffic. Typical power consumption is measured at 25°C ambient temperature with DACs, and at 50% load with IMIX traffic, excluding transceivers. Power consumption is subject to operating conditions and unit-to-unit variations.

JPSU-1600W-1UACAFO

Figure 1 shows the QFX 5140 rear panel with AC PSUs.
Figure 1: QFX5140 Rear Panel with AC PSUs QFX5140 Rear Panel with AC PSUs
Table 2: QFX5140 Rear Panel with AC PSUs
Callout Name

1

AC Power Supply Units

2

Grounding Point

3

Fan Modules (6 units)
Figure 2shows the components on the JPSU-1600W-1UACAFO.

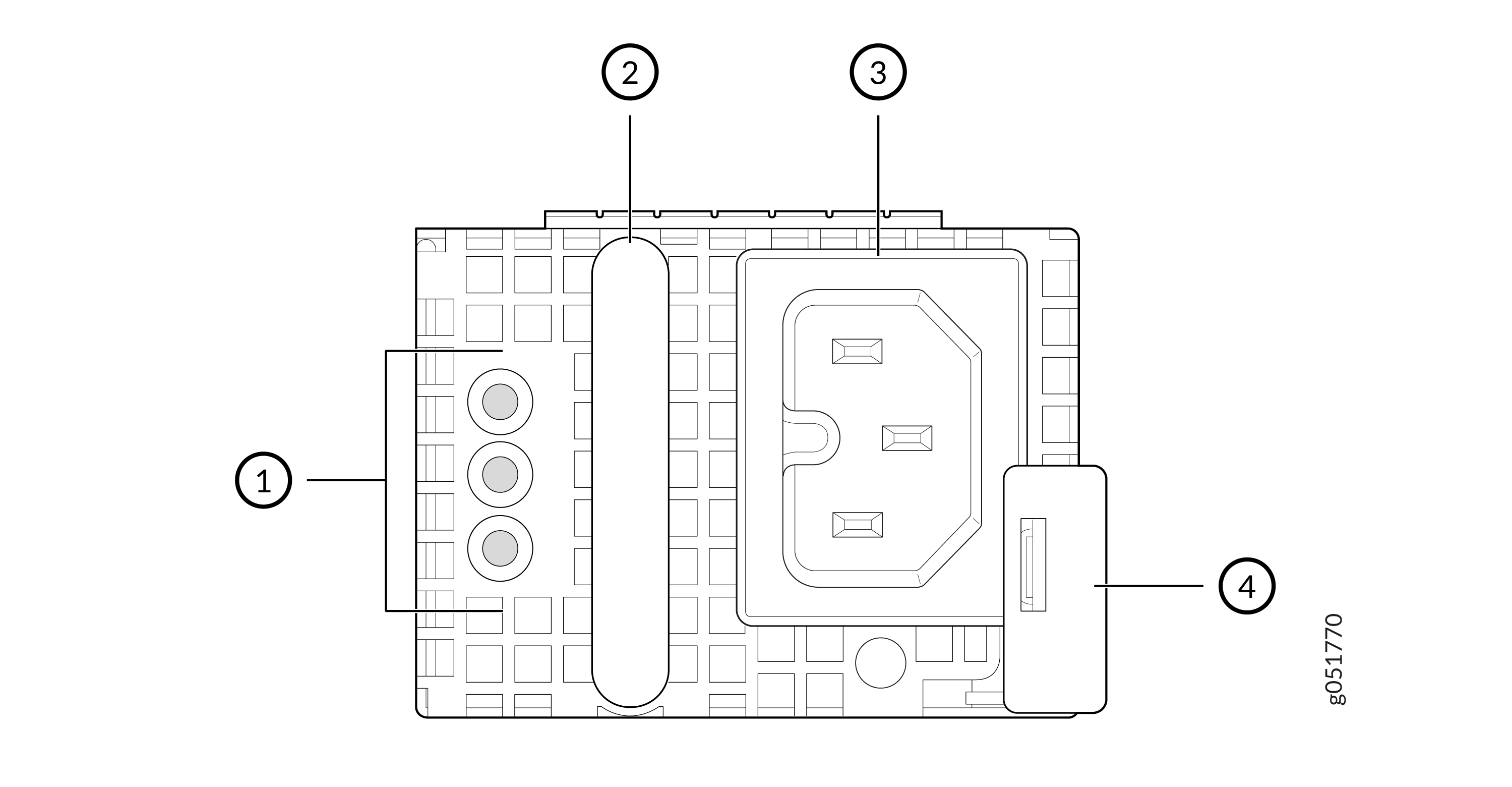

Figure 2: JPSU-1600W-1UACAFO (Front view) JPSU-1600W-1UACAFO (Front view)
Table 3: Components on the JPSU-1600W-1UACAFO (Front view)
Callout Name

1

Power Status LEDs

2

Handle

3

Terminal

4

Release latch

Figure 3 shows the JPSU-1600W-1UACAFO in isometric view.

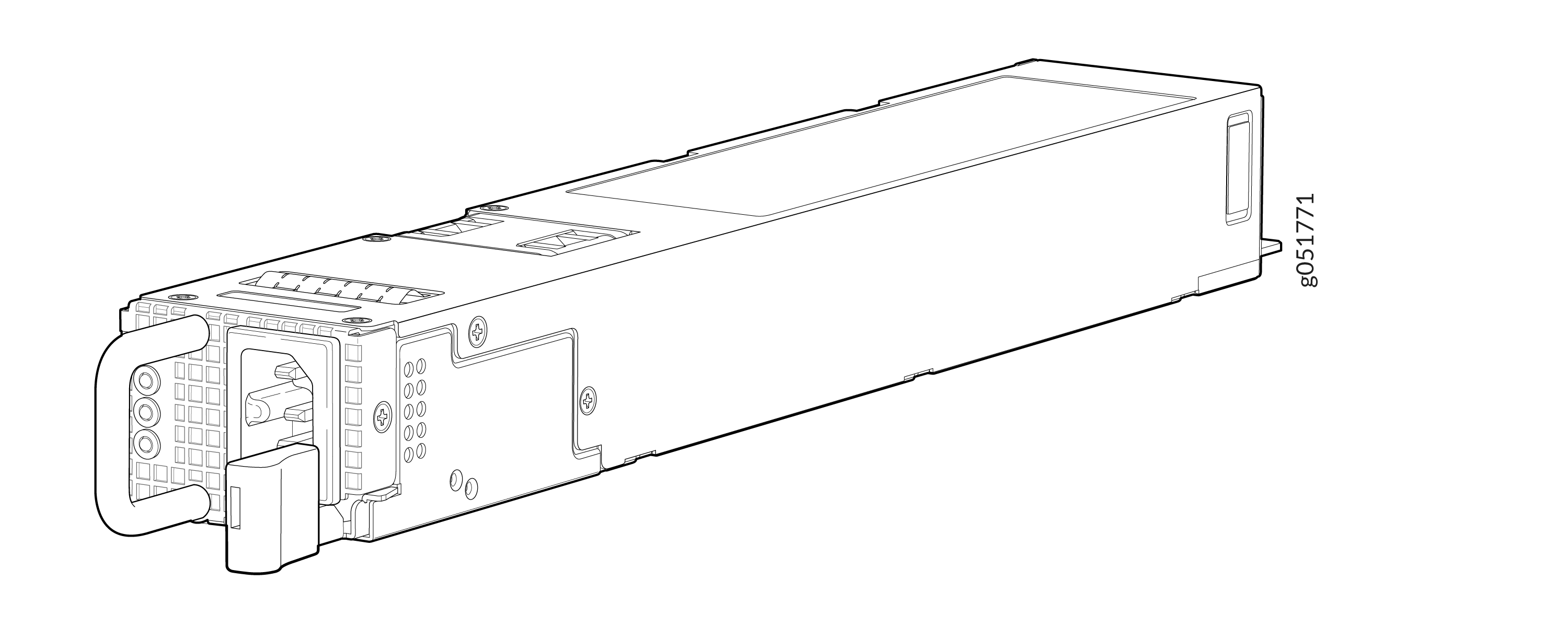

Figure 3: JPSU-1600W-1UACAFO PSU (Isometric View) JPSU-1600W-1UACAFO PSU (Isometric View)

JPSU-1600W-1UACAFO LEDs

Each JPSU-1600W-1UACAFO has three status LEDs on the PSU faceplate. Figure 4 shows the LEDs available on the JPSU-1600W-1UACAFO PSU.

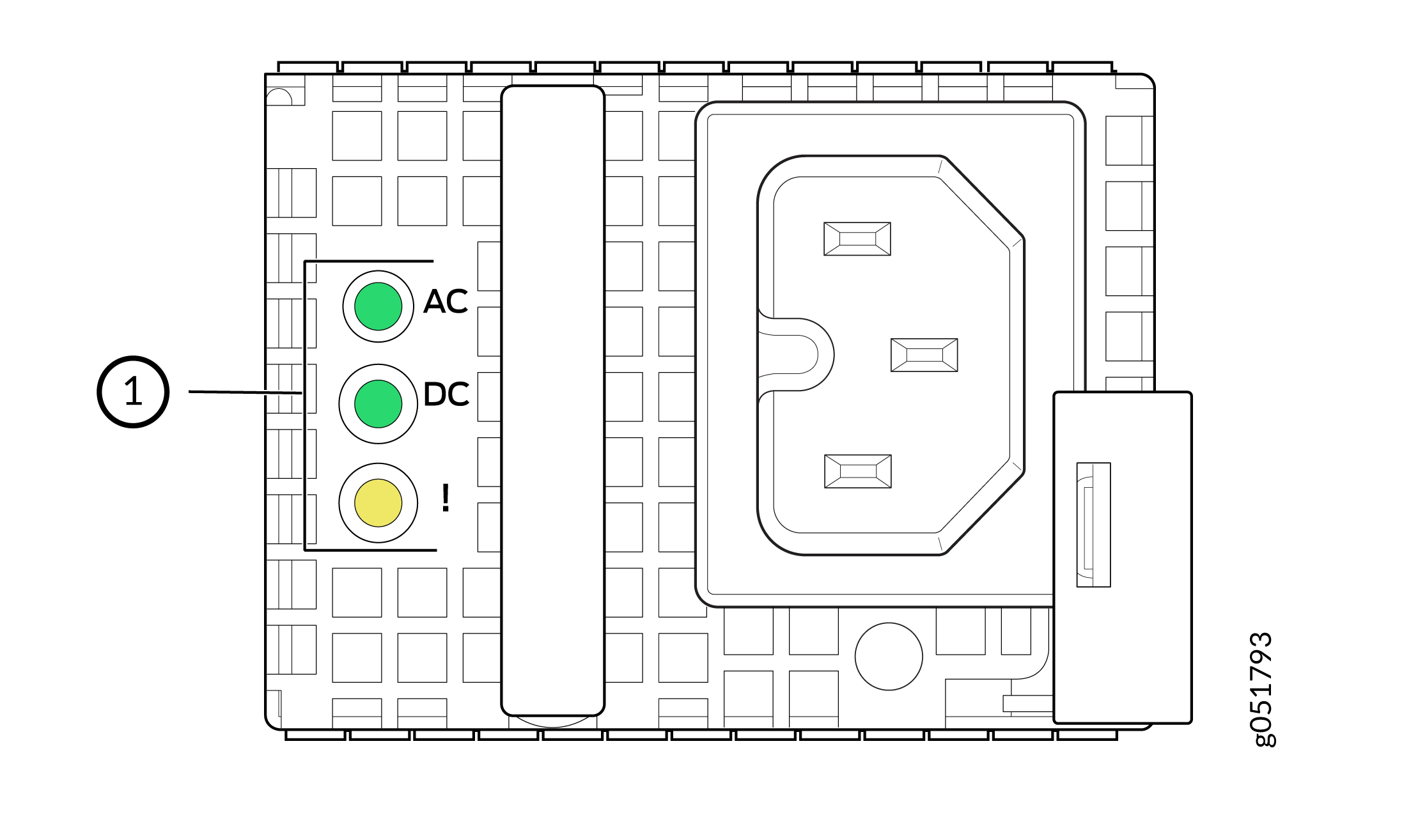

Figure 4: JPSU-1600W-1UACAFO LEDs JPSU-1600W-1UACAFO LEDs
Table 4: JPSU-1600W-1UACAFO PSU AC LED
LED Name Color State Description
AC Input LED Green ON (Steady) AC input present
AC Input LED - OFF No AC input
Table 5: JPSU-1600W-1UACAFO PSU DC LED
LED Name Color State Description
DC Output LED Green ON (Steady) Power Supply OK (12V output present)
DC Output LED Green Blinking Standby mode
DC Output LED - OFF No DC output (no AC input or PSU not operational)
Table 6: JPSU-1600W-1UACAFO PSU Fault LED
LED Name Color State Description
Fault LED Yellow (Amber) ON (Steady) PSU failure / Over-voltage / Over-temperature / Fan failure
Fault LED Yellow (Amber) Blinking Warning condition (overload, high temp, high current, slow fan, low input voltage)
Fault LED - OFF No fault condition
Table 7: Electrical Specifications
Specification Value

Maximum power output

1600 W

AC input voltage

Operating ranges:

  • 100 VAC through 127 VAC

    Typical: 120 VAC

  • 200 VAC through 240 VAC

    Typical: 230 VAC

AC input line frequency

Typical: 50 Hz through 60 Hz

Supported AC Power Cords on the JPSU-1600W-1UACAFO

QFX5140 is typically shipped with standardized IEC C15 interconnect (PDU) power cords suitable for modern data centers. Country‑specific cords are available where required. The plug end fits the power source outlet standard for your region; the coupler side is C15 per IEC 60320.

Table 8: Interconnect/PDU Cables for QFX5140

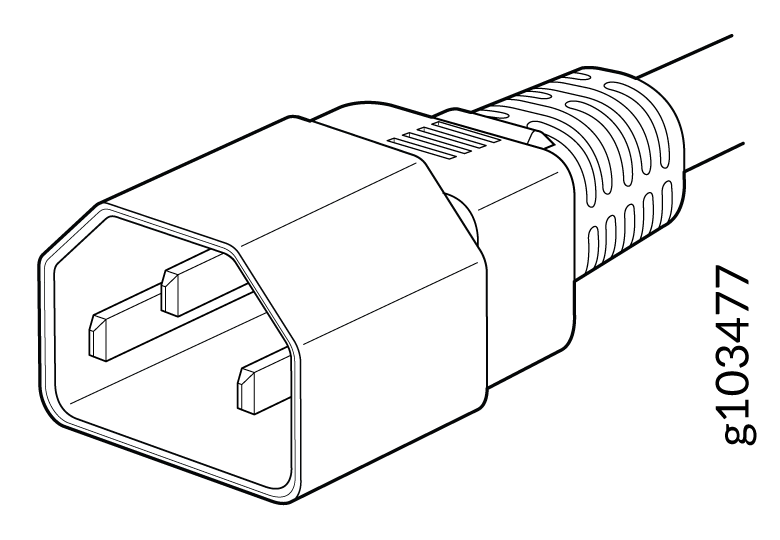

Country Specifications Shipped Power Cable Graphic
India

Power Cord, AC, India, C13, 10A, 250V, 2m, Straight, C14 to C15

CBL-C15-C14-IN-2M
Taiwan Power Cord, AC, Taiwan, C14, 10A, 250V, 2m, Straight, C14 to C15

CBL-C15-C14-TW-2M
United States, Japan Power Cord, AC, US, Japan, C14, 10A, 250V, 2m, Straight, C14 to C15   CBL-C15-C14-TW-2MCBL-C15-C14-US-2M
Europe, Israel, South Africa Power Cord, AC, Europe,Israel,South Africa,10A, 250V, 2m, Straight, C14 to C15   CBL-C15-C14-EU-2M
Brazil, China, South Korea Power Cord, AC, Brazil,China,South Korea C14,10A, 250V, 2m, Straight, C14 to C15 CBL-C15-C14-CN-2M
