Return the QFX5100 Chassis or Components

Locating the Serial Number on a QFX5100 Device or Component

If you are returning a switch or component to Juniper Networks for repair or replacement, you must locate the serial number of the switch or component. You must provide the serial number to the Juniper Networks Technical Assistance Center (JTAC) when you contact them to obtain a Return Materials Authorization (RMA). See Contacting Customer Support to Obtain a Return Materials Authorization for a QFX Series Device or Component.

If the switch is operational and you can access the command-line interface (CLI), you can list serial numbers for the switch and for some components with a CLI command. If you do not have access to the CLI or if the serial number for the component does not appear in the command output, you can locate the serial number ID label on the switch or component.

Note:

If you want to find the serial number ID label on a component, you need to remove the component from the switch chassis, for which you must have the required parts and tools available.

Listing the Chassis and Component Details Using the CLI

To list the QFX5100 switch and components and their serial numbers, use the show chassis hardware CLI operational mode command. If you are using the QFX5100 switch as a Node device in a QFabric system, you must first log in to the switch using the request component login CLI operational mode command.

Note:

You must remove the fan module to read the fan serial number from the serial number ID label. The fan module serial number cannot be viewed through the CLI. Fan Tray 2 refers to the third module from the left, counting from 0.

Locating the Chassis Serial Number ID Label on a QFX5100 Switch

The location for the chassis serial number ID label is product SKU-dependent. On the QFX5100-96S, QFX5100-48S, QFX5100-48SH, QFX5100-48T, and QFX5100-48TH product SKUs, the serial number ID label is located on the left side of the port panel. On legacy switches, or switches with an LCD, the port panel is referred to as the front panel. See Figure 1 through Figure 3 for examples of where to find the serial number ID. On the QFX5100-24Q, the serial number ID label is located next to the left expansion port on the port panel. See Figure 4.

Figure 1: Location of the Serial Number ID Label on a QFX5100-96S SwitchLocation of the Serial Number ID Label on a QFX5100-96S Switch

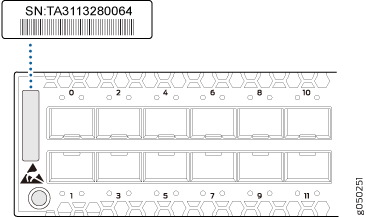

Figure 2: Location of the Serial Number ID Label on QFX5100-48S and QFX5100-48SH SwitchesLocation of the Serial Number ID Label on QFX5100-48S and QFX5100-48SH Switches

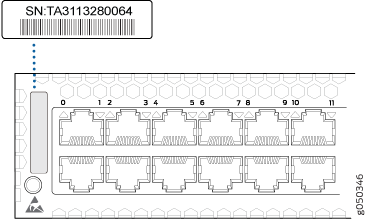

Figure 3: Location of the Serial Number ID Label on QFX5100-48T and QFX5100-48TH SwitchesLocation of the Serial Number ID Label on QFX5100-48T and QFX5100-48TH Switches
Figure 4: Location of the Serial Number ID Label on a QFX5100-24Q SwitchLocation of the Serial Number ID Label on a QFX5100-24Q Switch

Locating the Serial Number ID Labels on FRU Components

The power supplies, fan module, and expansion modules installed in QFX5100 switches are field-replaceable units (FRUs). For each FRU, you must remove the FRU from the switch chassis to see the FRU serial number ID label.

  • AC power supply—The serial number ID label is on the top of the AC power supply.

  • Fan module—The serial number ID label is on the top of the fan module.

  • Expansion module–The serial number ID label is in the middle of the printed circuit board (PCB).

See Also

How to Return a Hardware Component to Juniper Networks, Inc.

If a hardware component fails, please contact Juniper Networks, Inc. to obtain a Return Material Authorization (RMA) number. This number is used to track the returned material at the factory and to return repaired or new components to the customer as needed.

Note:

Do not return any component to Juniper Networks, Inc. unless you have first obtained an RMA number. Juniper Networks, Inc. reserves the right to refuse shipments that do not have an RMA. Refused shipments are returned to the customer by collect freight.

For more information about return and repair policies, see the customer support webpage at https://support.juniper.net/support/.

For product problems or technical support issues, contact the Juniper Networks Technical Assistance Center (JTAC) by using the Service Request Manager link at https://support.juniper.net/support/ or at 1-888-314-JTAC (within the United States) or 1-408-745-9500 (from outside the United States).

To return a defective hardware component:

  1. Determine the part number and serial number of the defective component.
  2. Obtain an RMA number from the Juniper Networks Technical Assistance Center (JTAC). You can send e-mail or telephone as described above.
  3. Provide the following information in your e-mail message or during the telephone call:

    • Part number and serial number of component

    • Your name, organization name, telephone number, and fax number

    • Description of the failure

  4. The support representative validates your request and issues an RMA number for return of the component.
  5. Pack the component for shipment.

Guidelines for Packing Hardware Components for Shipment

To pack and ship individual components:

  • When you return components, make sure that they are adequately protected with packing materials and packed so that the pieces are prevented from moving around inside the carton.

  • Use the original shipping materials if they are available.

  • Place individual components in antistatic bags.

  • Write the RMA number on the exterior of the box to ensure proper tracking.

CAUTION:

Do not stack any of the hardware components.
