PTX12008 Power System

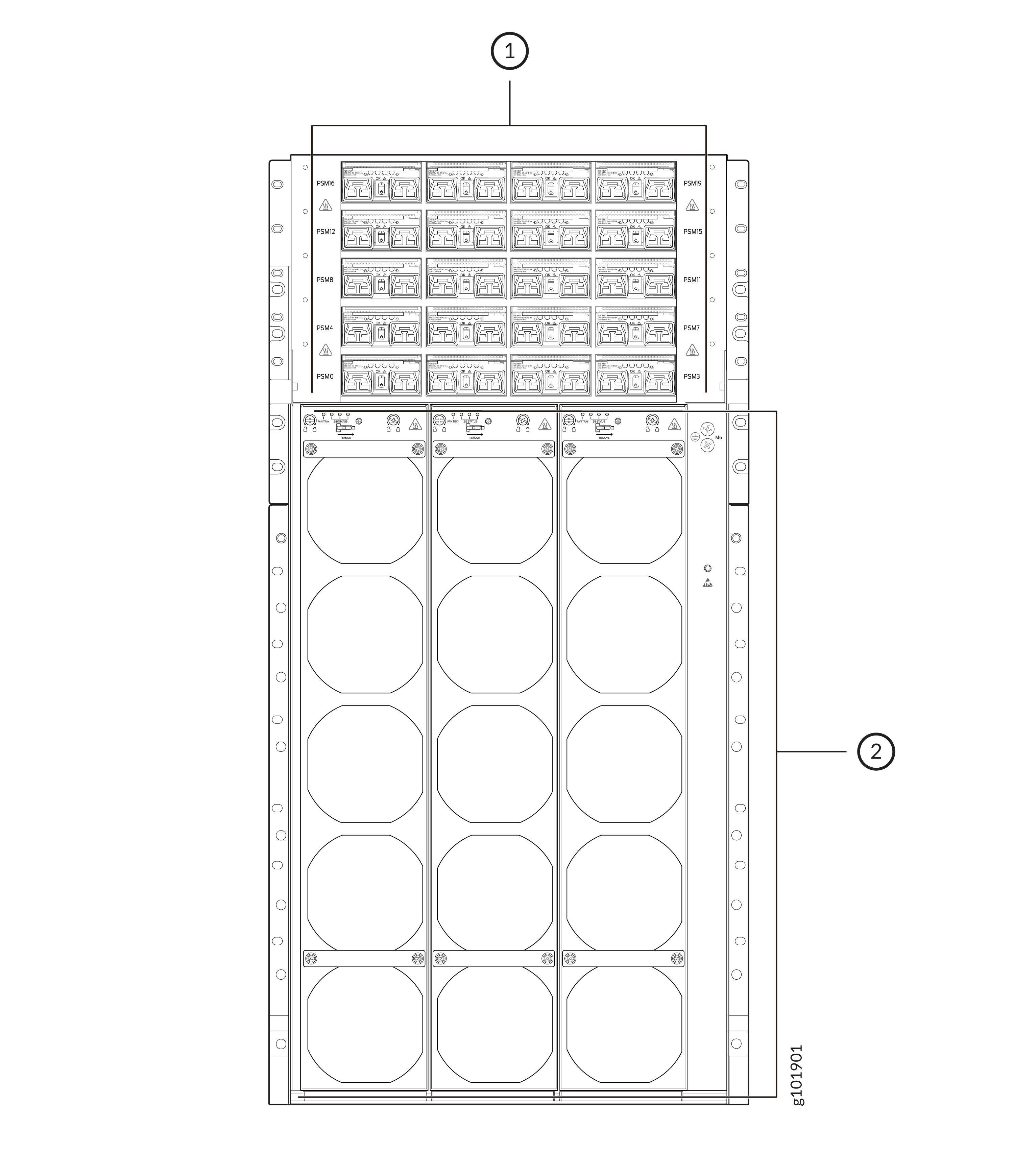

The power shelf provides the housing and electrical connections for the PSMs. It provides point-to-point connections for power and signal and DC power and connections between the PSMs and the PTX12008.

1. Power shelf

2. Fan trays

Table 1 shows the physical specifications of the power shelf.

Table 1: Power Shelf Specifications

Specification	Values
Number of PSMs that the power shelf can hold	20
PSM numbering	0 through 19
Height	7.91 in. (20.09 cm)
Width	17.2 in. (43.69 cm)
Depth	30 in. (76.2 cm)
Weight	109 lb (49.4 kg)

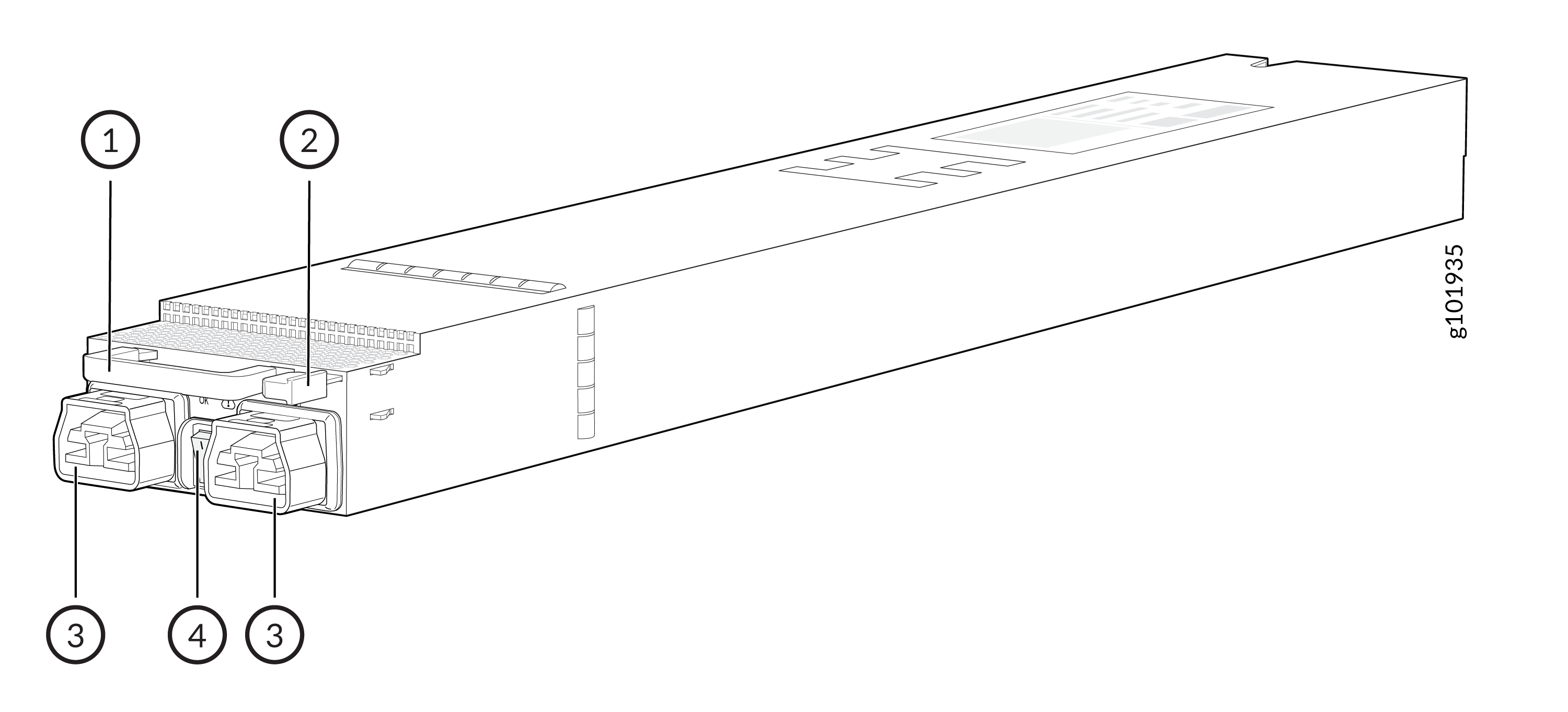

The JNP-PWR-3K-AC PSM supports AC, high-voltage AC (HVAC), or high-voltage DC (HVDC) input.

The PSM automatically detects whether there is AC, HVAC, or HVDC input and manages the power accordingly. The PSM provides 3000-watt (W) DC output.

Each PSM has its own fan and is cooled by its own internal cooling system. Hot air exhausts from the rear of the chassis.

Each PSM has two independent 16-Amperes (A) rated AC/HVAC/HVDC inlets on the faceplate. Though each inlet provides sufficient input power to provide full output, always connect both inlets to dedicated AC/HVAC/HVDC power sources to provide redundancy.

Each JNP-PWR-3K-AC PSM has a power switch with international markings for on (|) and off (O), a fan, and four status LEDs on the faceplate.

Table 2 shows the physical specifications of the AC/HVAC/HVDC PSM.

Table 2: AC/HVAC/HVDC PSM Physical Specifications

Specification	Values
Height	1.6 in. (4 cm)
Width	3.2 in. (8 cm)
Depth	21 in. (53.3 cm)
Weight	6.8 lb (3.1 kg)

PTX12008 operates within the AC/HVAC/HVDC input voltage range listed in Table 3.

Table 3: PTX12008 AC/HVAC/HVDC Power Specifications

Parameter	Minimum	Rated	Maximum
Input voltage—AC/HVAC	180 VAC	200–277 VAC	305 VAC
Frequency for input—AC/HVAC	47 Hz	50-60 Hz	63 Hz
Input voltage—HVDC	190 VDC	240–380 VDC	400 VDC

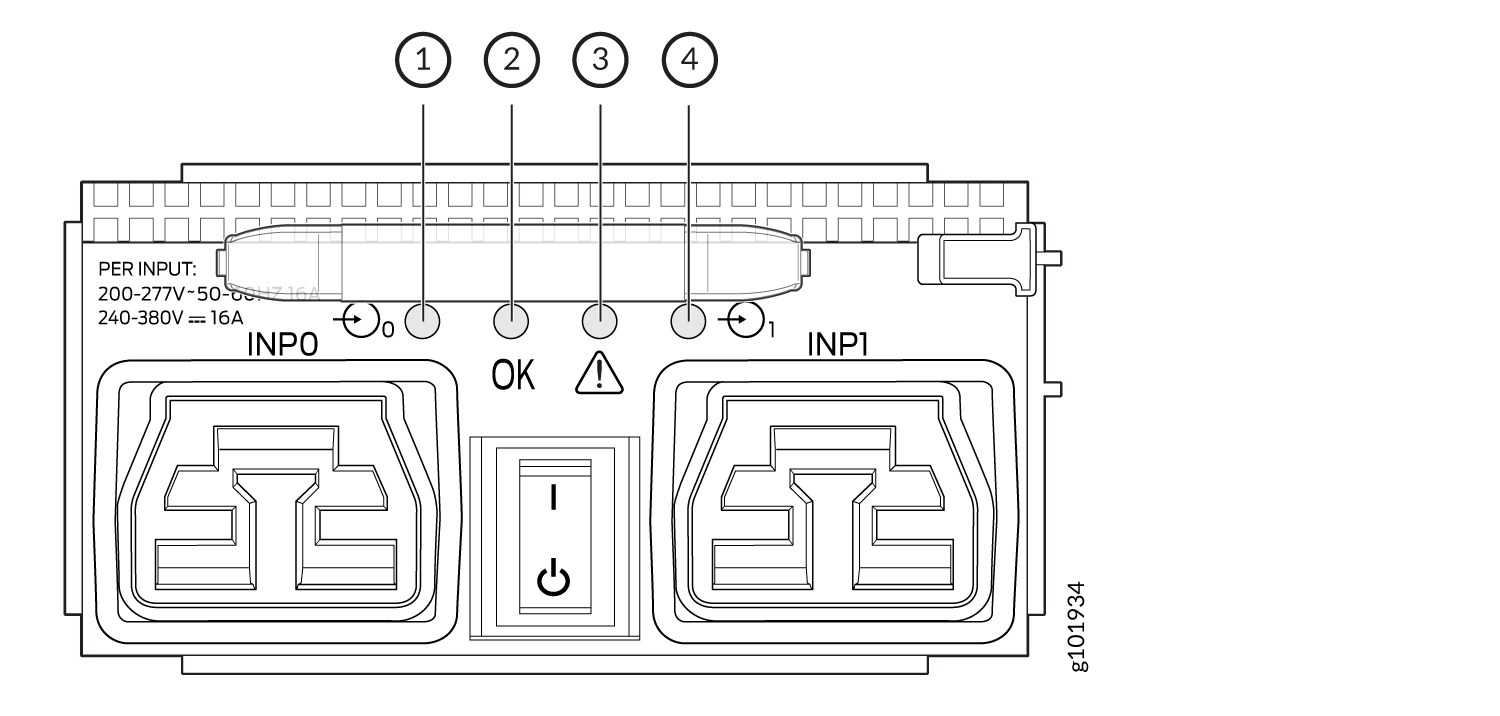

The JNP-PWR-3K-AC PSM has four LEDs on its faceplate: 0 (INP0), 1 (INP1), OK (Power OK), and ! (Fault). These LEDs display information about the status of the PSM.

Table 4: LEDs on the JNP-PWR-3K-AC PSM

LED	Color	State	Description
0 (INP0) and 1 (INP1)	Green	Solid	The input power is within normal operating range.
	Amber	Blinking	The input power is not within normal operating range.
	None	Unlit	The PSM is switched off; the voltage is zero.
OK (Power OK)	Green	Solid	The output power is within normal operating range.
	Amber	Blinking	The output power is not within normal operating range.
! (Fault)	Red	Solid	The PSM has failed; you must replace it.
	None	Unlit	The PSM is functioning normally.

You can get additional information about the status of the PSMs by using the show chassis power command.

Table 5 lists the specifications of the AC/HVAC power cord provided for each country or region.

Table 5: PTX12008 AC/HVAC Power Cord Specifications

Locale	Cord Set Rating	Plug Standards	Spare Juniper Model Number	Graphic
Argentina	16 A, 250 VAC	IRAM 2073 Type RA/3	CBL-JNP-SG4-AR
Australia and New Zealand	16 A, 250  VAC	AS/NZS 4417	CBL-JNP-SG4-AU
Brazil	16 A, 250 VAC	NBR 14136 Type BR/3	CBL-JNP-SG4-BR
China	16 A, 250 VAC	GB2099	CBL-JNP-SG4-CH
China, Europe, and Japan	16 A, 250 VAC	C20 to Anderson 3-5958p4	CBL-JNP-SG4-C20-CH

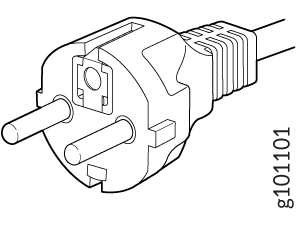

Europe (except Italy, Switzerland, and United Kingdom)	16 A, 250 VAC	CEE 7/7 STRAIGHT	CBL-JNP-SG4-EU
Great Britain	16 A, 250 VAC,	BS1363	CBL-JNP-SG4-UK
India	16 A, 250 VAC	SANS 164/1	CBL-JNP-SG4-SA
Israel	16 A, RA, 250 VAC	SI 32/1971 Type IL/3G	CBL-JNP-SG4-IL
Italy	16 A, 250 VAC	CEI 23-16	CBL-JNP-SG4-IT
Japan	16 A, 250 VAC	Nema L-20	CBL-JNP-SG4-JPL

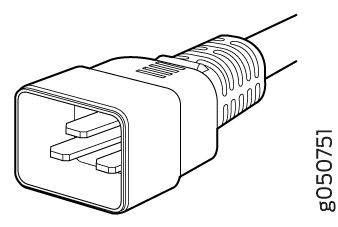

North America	20 A, 250 VAC	C20 to Anderson 3-5958p4	CBL-JNP-SG4-C20

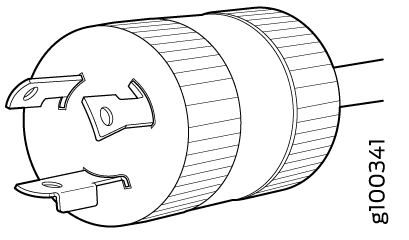

North America	20 A, 250 VAC	Locking NEMA L6-20P	CBL-JNP-SG4-US-L
North America	20 A, 250 VAC	NEMA 6-20P	CBL-JNP-SG4-US
North America	20 A, 277 V	NEMA L7-20P	CBL-JNP-SG4-HVAC
South Africa	16 A, 250 VAC	SANS 164/1	CBL-JNP-SG4-SA
Switzerland	16 A, 250 VAC	CEI 23-50	CBL-JNP-SG4-SZ

Table 6 lists the specifications of the HVDC power cord.

Table 6: PTX12008 HVDC Power Cord Specifications

Cord Set Rating	Spare Juniper Model Number
16 A, 400 HVDC	CBL-PWR2-BARE

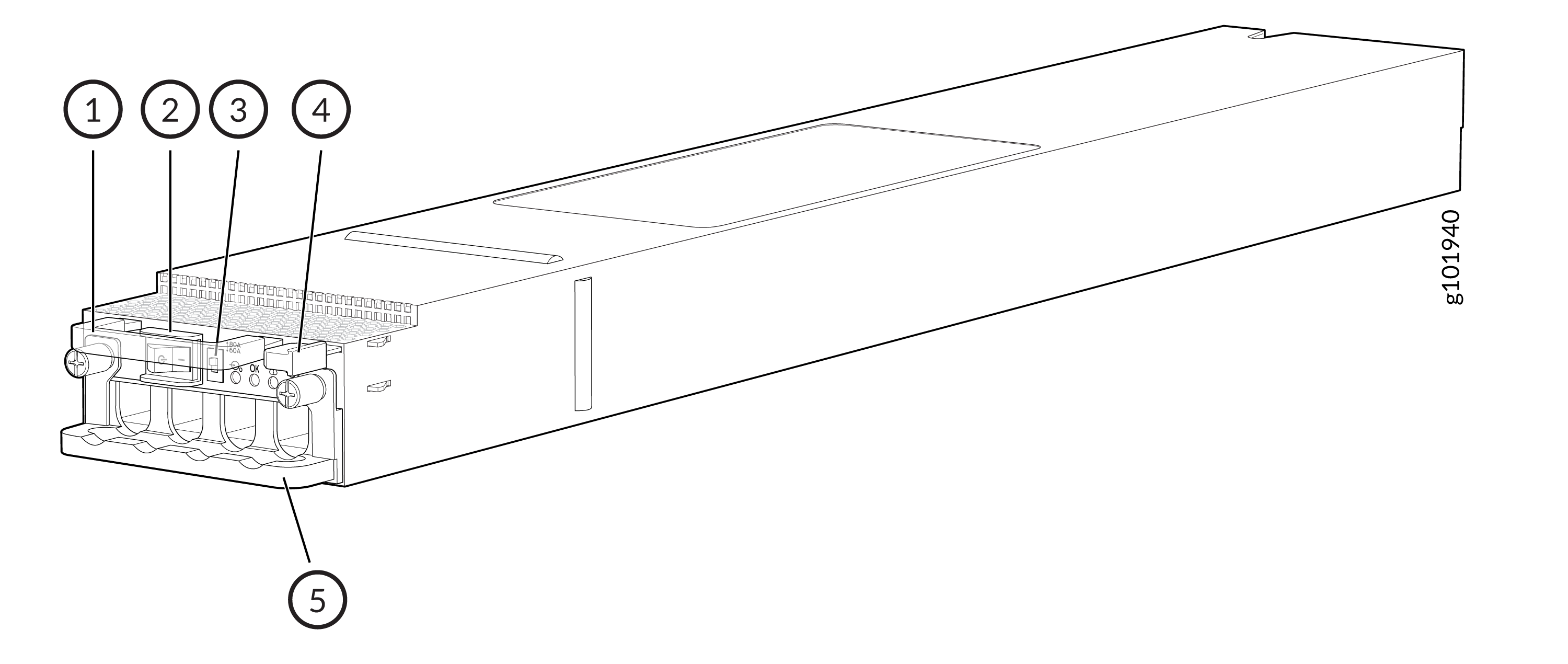

The JNP-PWR-3K-DC PSM can operate with an input current of either 60 A or 80 A. The PSM has two independent pairs of DC input lugs (labeled Input 0, RTN, –48V/–60V and Input 1, RTN, –48V/–60V) on the faceplate of the PSM. Each inlet requires a dedicated DC power feed. You must always connect each of inlet the PSM to a dedicated DC power feed to provide redundancy. Only one power feed is operational at a time. You can configure the input using a dual inline package (DIP) switch on the PSM faceplate.

Each PSM has its own fan and is cooled by its own internal cooling system. Hot air exhausts from the rear of the chassis.

The PSM has a power switch with international markings for on (|) and off (O), a built-in fan, and four status LEDs on the faceplate.

Table 7 shows the physical specifications of the DC PSM.

Table 7: DC PSM Physical Specifications

Specification	Values
Height	1.6 in. (4 cm)
Width	3.2 in. (8 cm)
Depth	21 in. (53.3 cm)
Weight	5.1 lb (2.3 kg)

Table 8 provides the specifications of the DC PSMs.

Table 8: PTX12008 DC PSM Specifications

Item	Specification
Input voltage	Rated operating voltage: –48 VDC
Input current rating	60 A

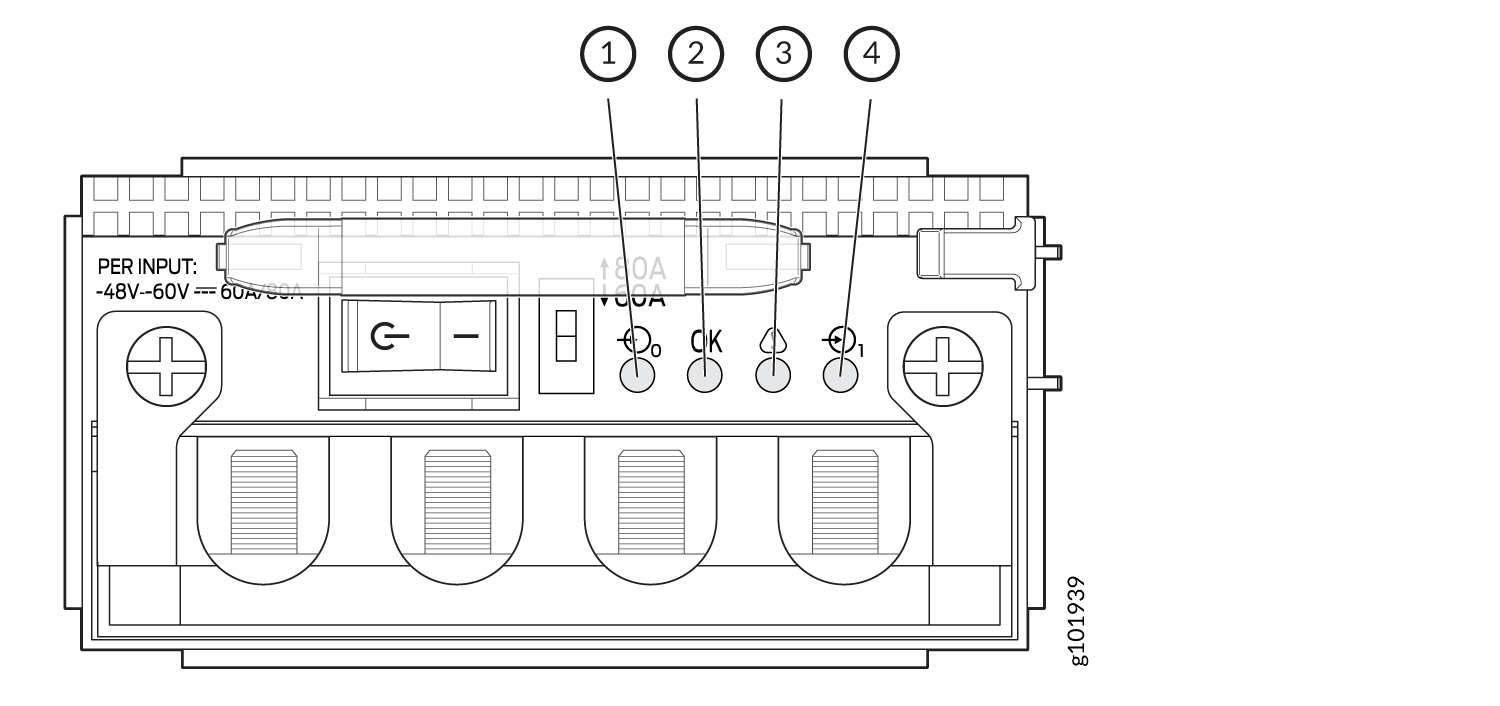

The JNP-PWR-3K-DC PSM has four LEDs on its faceplate: 0 (INP0), 1 (INP1), OK (Power OK), and ! (Fault). These LEDs display information about the status of the PSM.

Table 9: LEDs on a JNP-PWR-3K-DC PSM

LED	Color	State	Description
0 (INP0) and 1 (INP1)	Green	Solid	The input power is within normal operating range.
	Yellow	Blinking	The input power is not within normal operating range.
	Unlit	Off	The PSM is switched off; the voltage is zero.
OK (Power OK)	Green	Solid	The output power is within normal operating range.
	Yellow	Blinking	The output power is not within normal operating range.
! (Fault)	Red	Solid	The PSM has failed; you must replace it.
	Unlit	Off	The PSM is functioning normally.

You can get additional information about the status of the PSMs by using the show chassis power command.
