PTX12008 Status Panel

Status Panel Overview

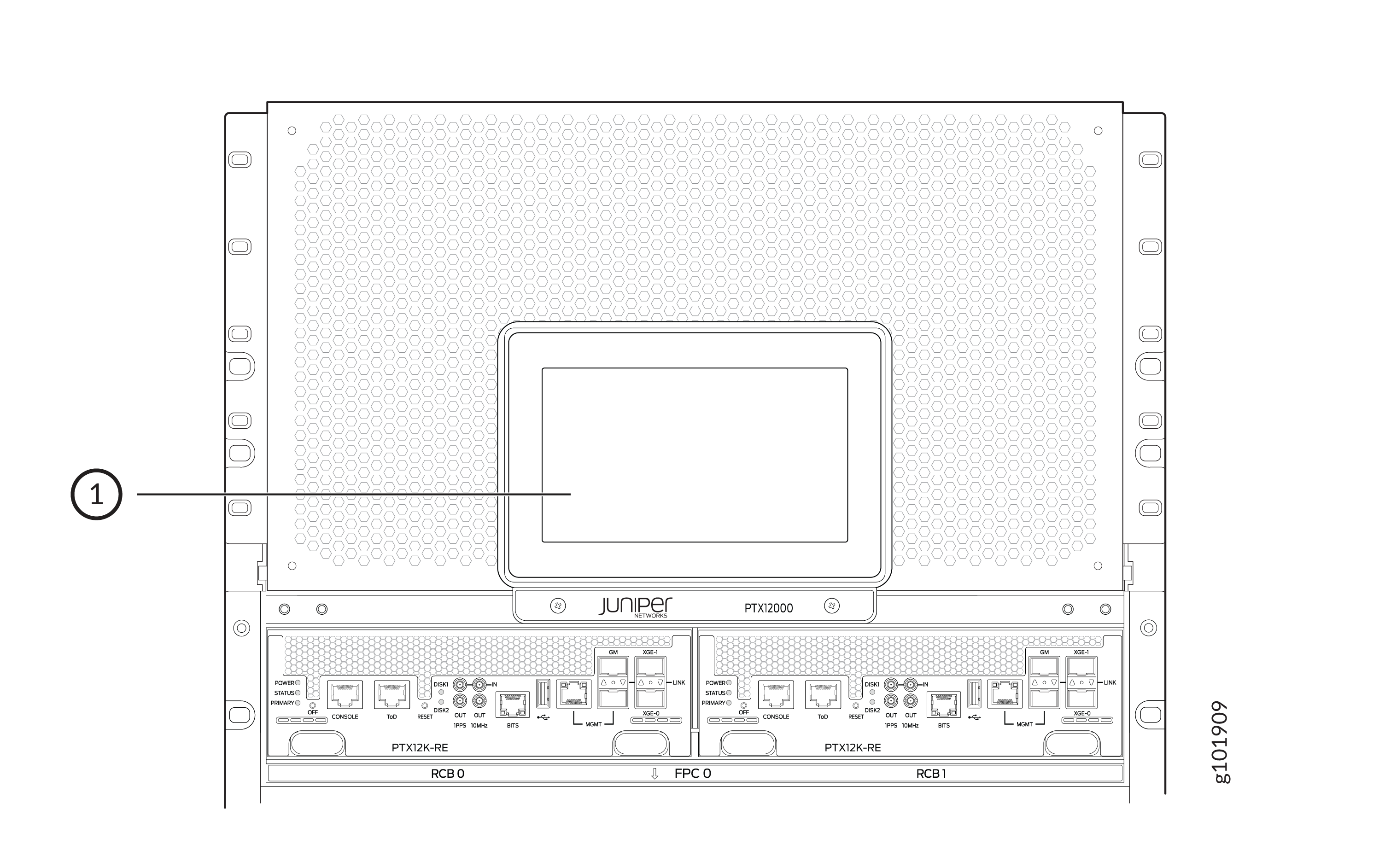

The status panel on the front panel of the PTX12008 is a touch panel that indicates the status of the chassis and the router components.

1

—

Status panel

The status panel provides the status of the following components:

The status panel also provides details about the following:

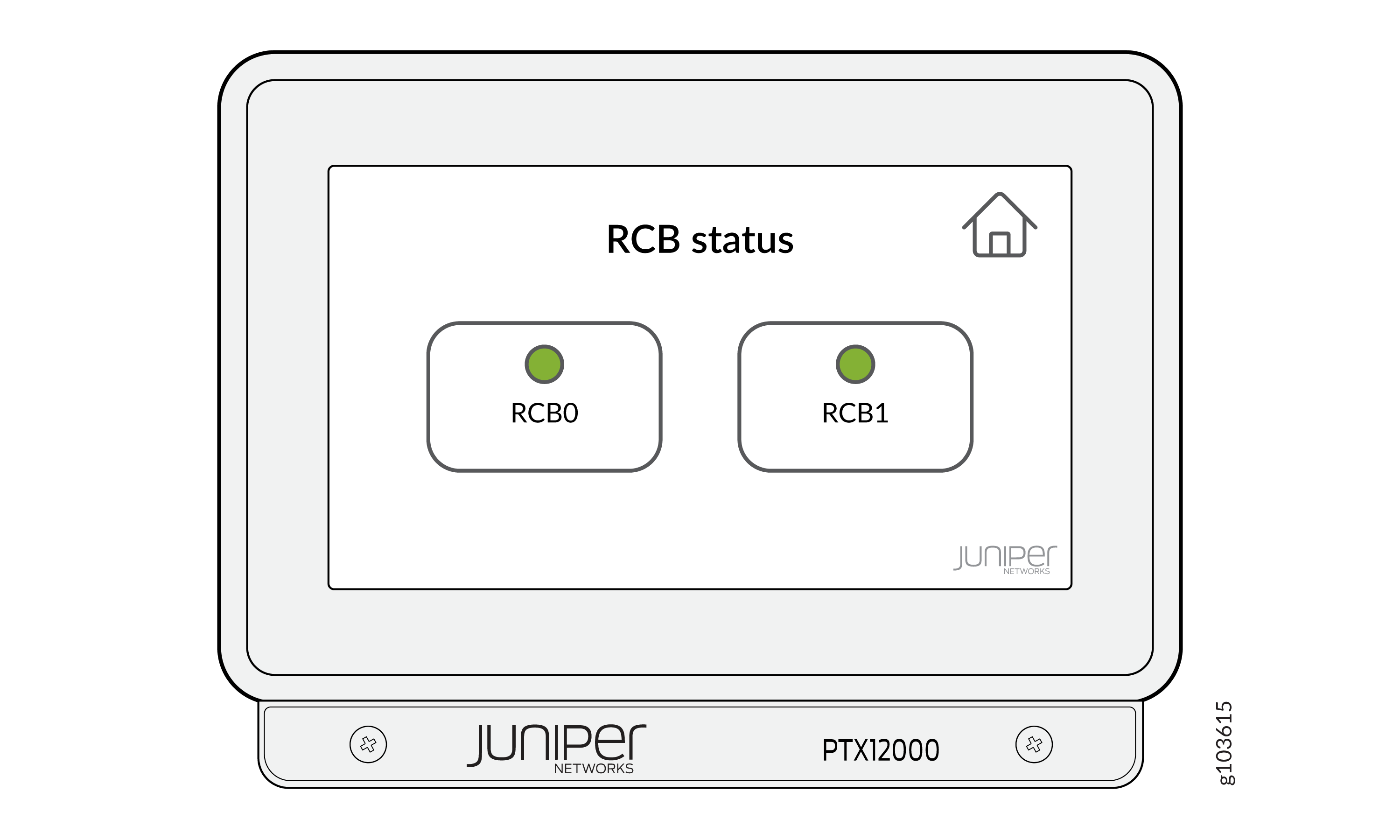

To view the status of the RCBs, click on the RCB icon in the home screen of the status panel.

Table 1: RCB Status
Color	State	Description
Green	On steadily	An RCB is present in the RCB slot and the RCB is online.
Red	On steadily	An RCB is present in the RCB slot and that RCB has a failure or a fault.
Light grey	Off	There is an RCB present in the RCB slot and the RCB is offline.
Dark grey	Off	There is no RCB present in the RCB slot.

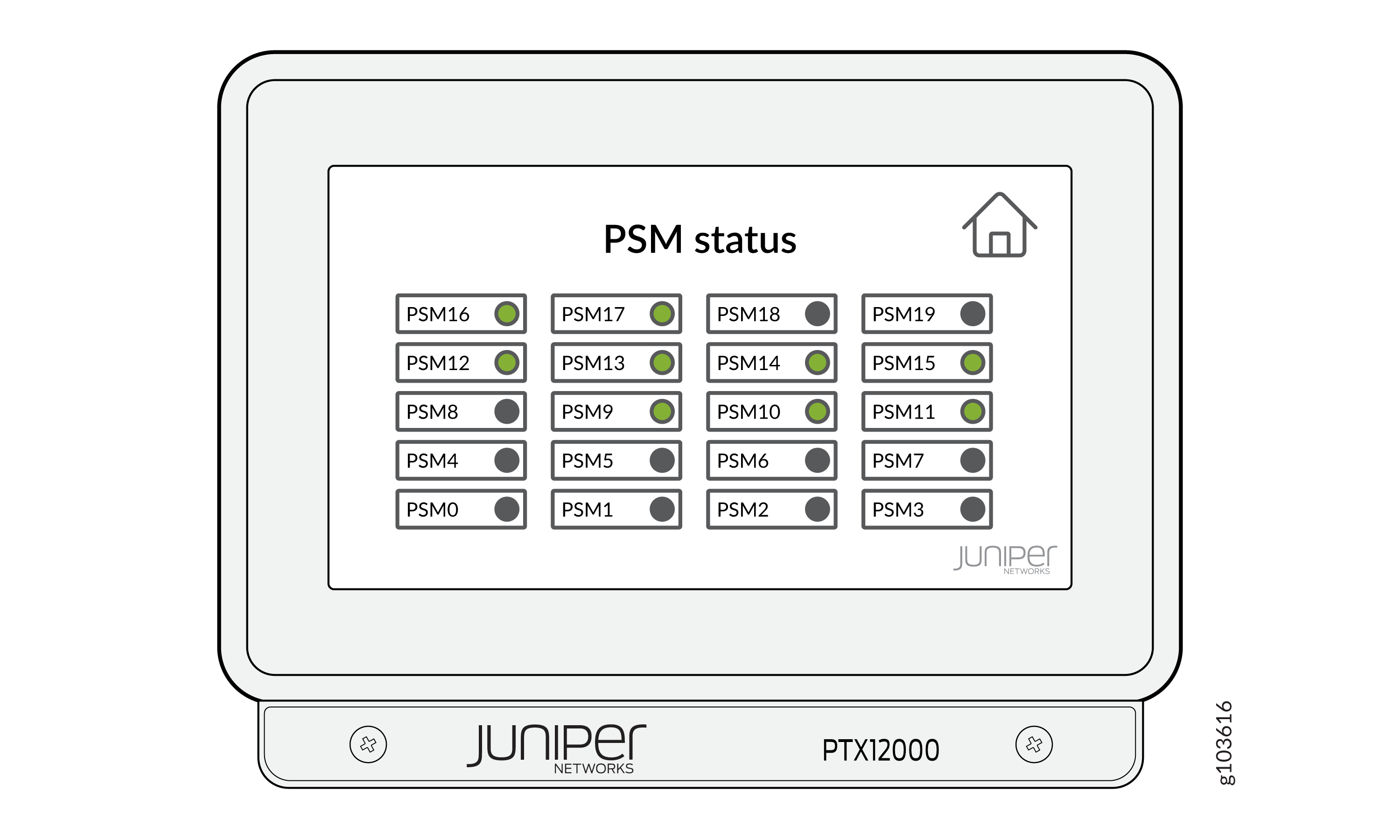

To view the status of the PSMs, click on the PSM icon in the home screen of the status panel.

Table 2: PSM Status
Color	State	Description
Green	On steadily	A PSM is present in the PSM slot and all the input voltages are within range.
Amber	On steadily	A PSM is present in the PSM slot and at least one input voltage is not in range.
Amber	Blinking	A PSM is present in the PSM slot and at least one input is absent.
Red	On steadily	A PSM is present in the PSM slot and that PSM has a failure or a fault.
Light grey	Off	There is a PSM present in the PSM slot and the PSM is offline.
Dark grey	Off	There is no PSM present in the PSM slot.

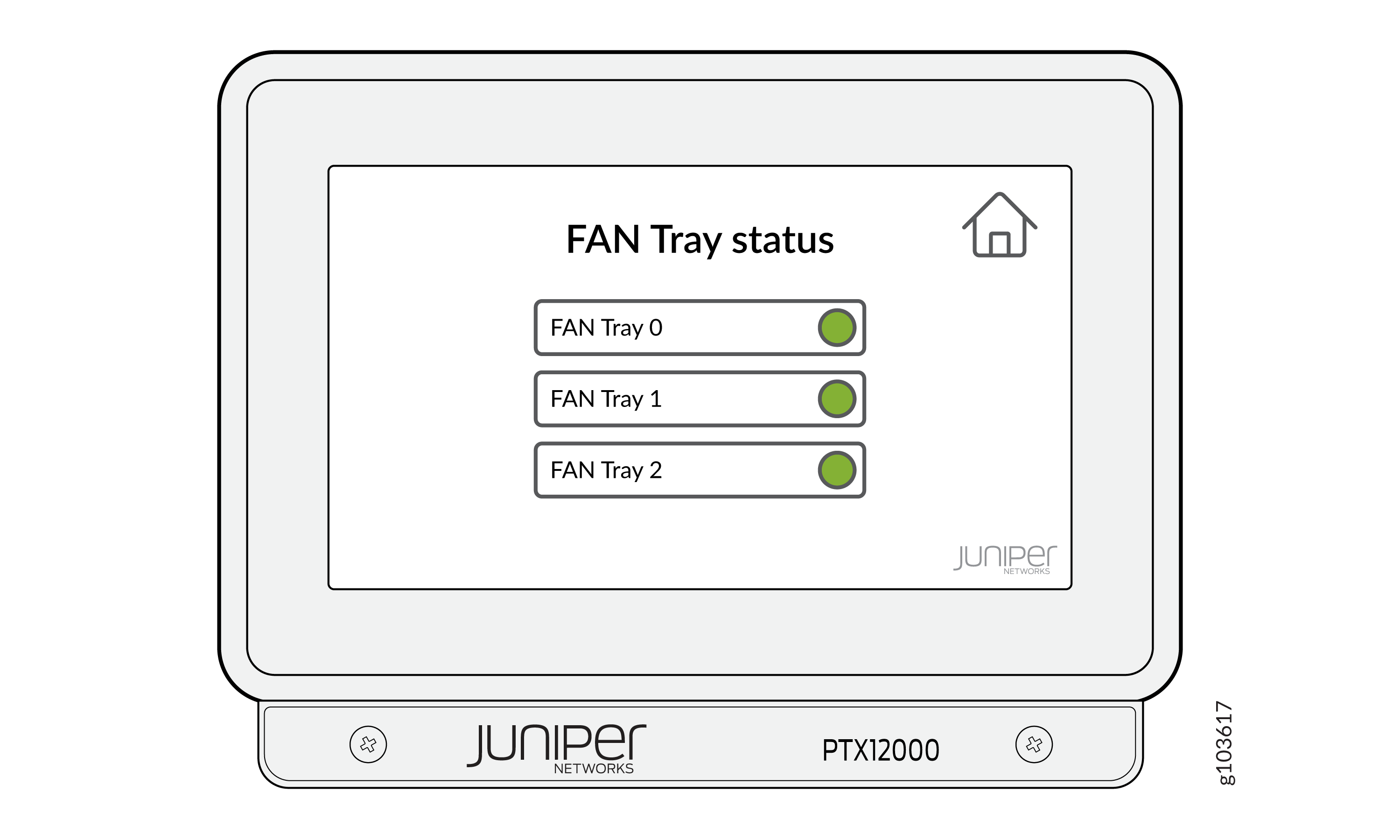

To view the status of the fan trays, click on the FAN icon in the home screen of the status panel.

Table 3: Fan Tray Status
Color	State	Description
Green	On steadily	A fan tray is present in the fan tray slot and all the fans are operating normally.
Green	Blinking	A fan tray is present in the fan tray slot and the fans are starting up.
Amber	Blinking	A fan tray is present in the fan tray slot and at least one fan in that fan tray has a failure or a fault.
Light grey	Off	There is a fan tray present in the fan tray slot and the fan tray is offline.
Dark grey	Off	There is no fan tray present in the fan tray slot.

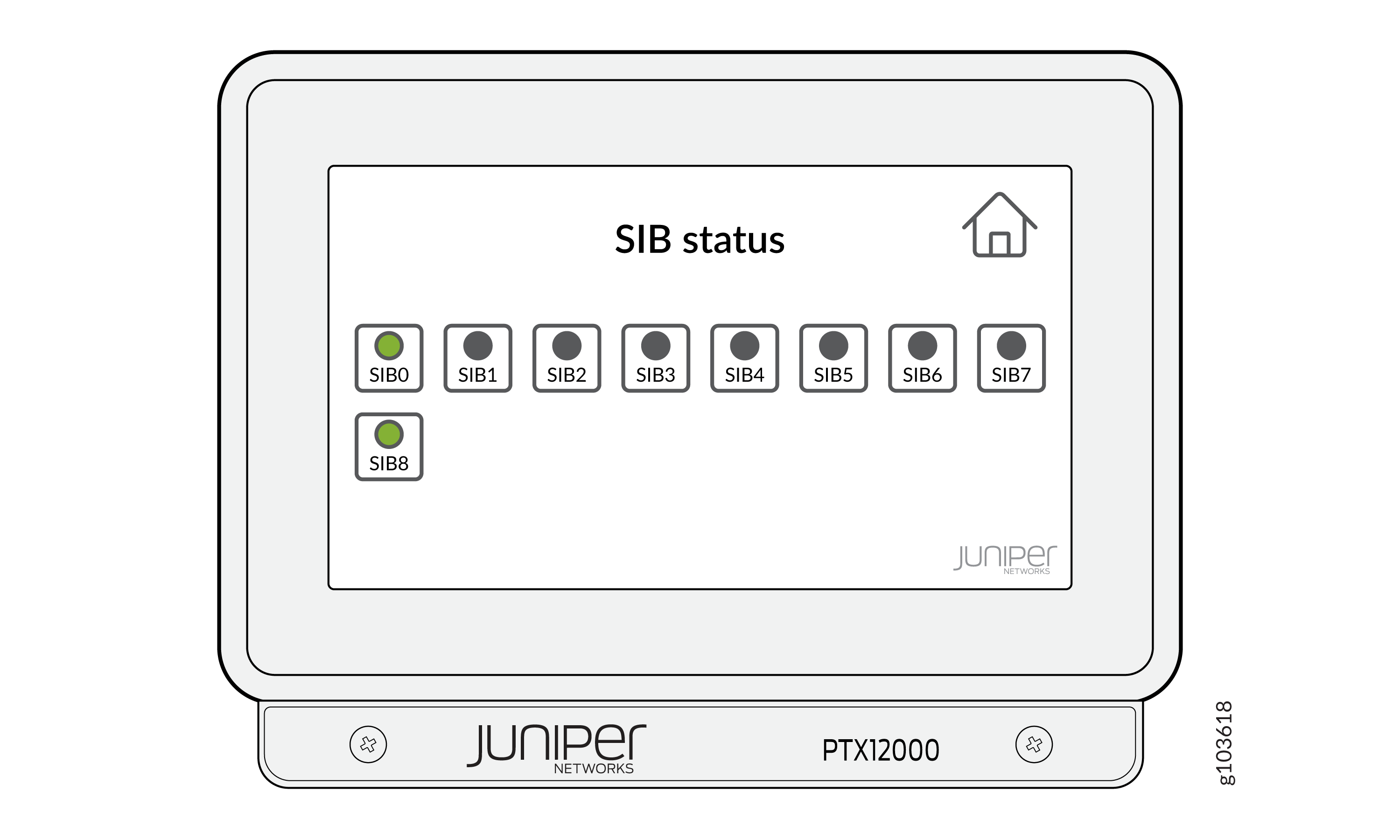

To view the status of the SIBs, click on the SIB icon in the home screen of the status panel

Table 4: SIB Status
Color	State	Description
Green	On steadily	A SIB is present in the SIB slot and the SIB is online.
Green	Blinking	A SIB is present in the SIB slot and that SIB is powering up.
Amber	Blinking	A SIB is present in the SIB slot and that SIB has a failure or a fault.
Light grey	Off	There is an SIB present in the SIB slot and the SIB is offline.
Dark grey	Off	There is no SIB present in the SIB slot.

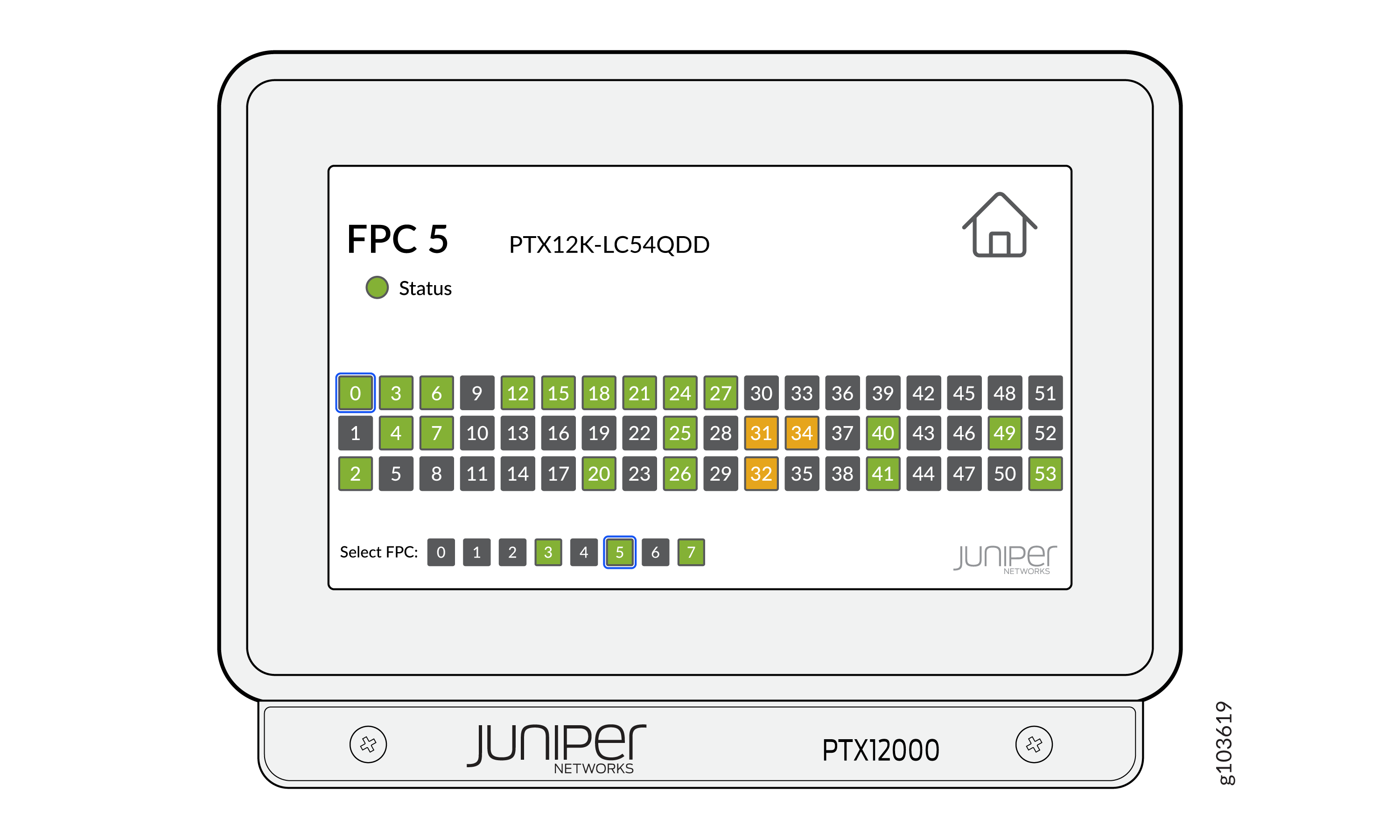

To view the status of the FPCs, click on the FPC icon in the home screen of the status panel.

Table 5: FPC Status
Color	State	Description
Green	On steadily	An FPC is present in the FPC slot and the FPC is online.
Green	Blinking	An FPC is present in the FPC slot and that FPC is initializing.
Red	On steadily	An FPC is present in the FPC slot and that FPC has a failure or a fault.
Light grey	Off	There is an FPC present in the FPC slot and the FPC is offline.
Dark grey	Off	There is no FPC present in the FPC slot.

When a port is channelized, if you click on the icon for that port, the state of the channels is displayed.

Table 6: Channels Status
Color	State	Description
Green	On steadily	The channel is active.
Amber	On steadily	The channel is not active.
Red	On steadily	The link is down because of a local fault or a hardware failure.
Unlit	Off	There is no transceiver present in the port or the link is down because of loss of signal.

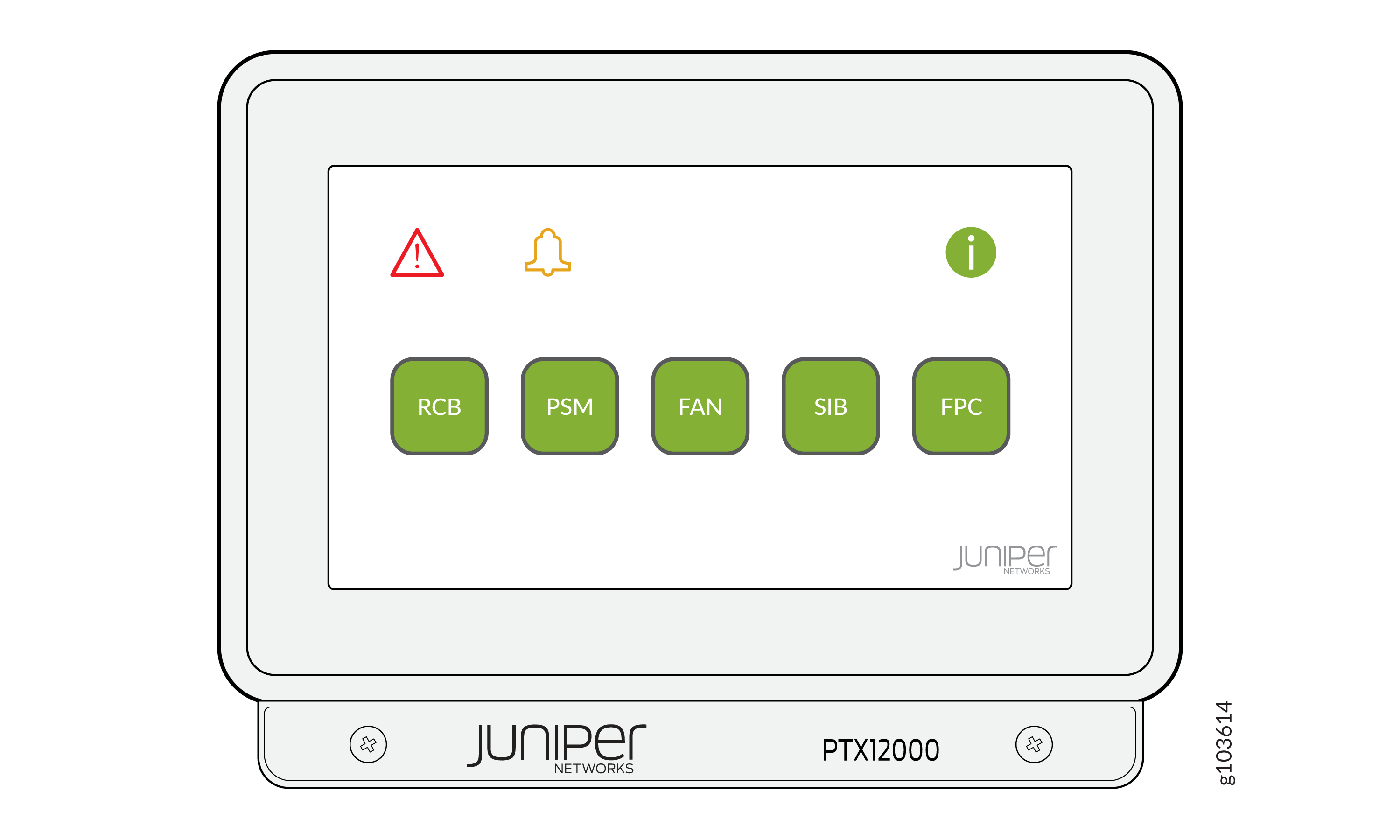

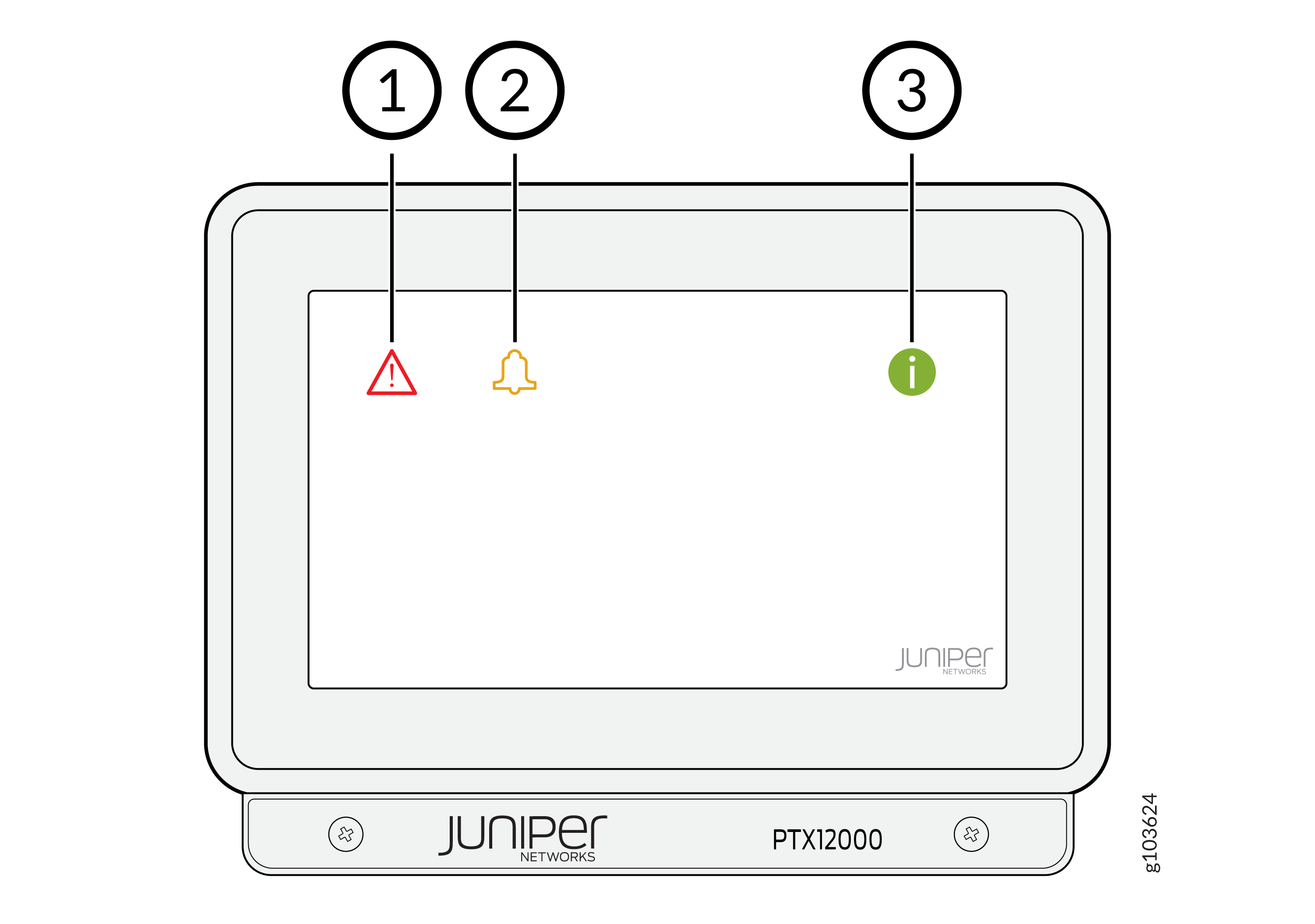

1 — Major alarm icon	3 — Diagnostic information icon
2 — Minor alarm icon

If there is at least one major alarm, the major icon in the home screen of the status panel is lit in red color.

If there is at least one minor alarm, the minor alarm icon in the home screen of the status panel is lit in amber color.

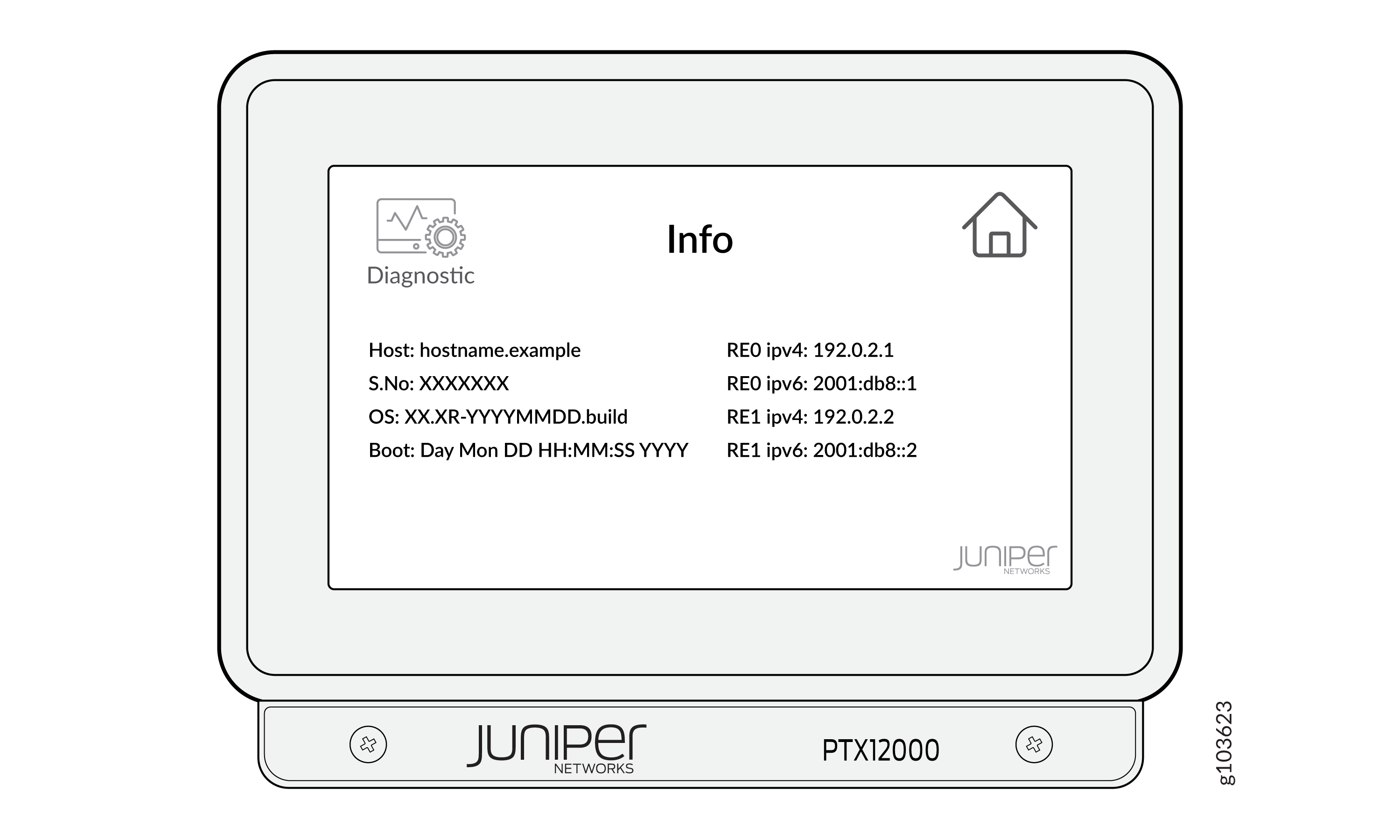

To view the diagnostic information about the status panel, click on the diagnostic information icon icon on the status panel.

Figure 1: Diagnostic Information
