PTX10002-60C Power System

PTX10002-60C AC Power Supply Description

The AC power supplies in the PTX10002-60C (see Figure 1 and Figure 2) are hot-removable, and hot-insertable field-replaceable units (FRUs) that you can install without powering off the router or disrupting the routing function. The PTX10002-60C has four power supplies. All the power supplies are initially installed at the factory.

CAUTION:

Do not mix AC and DC power supplies in the same chassis.

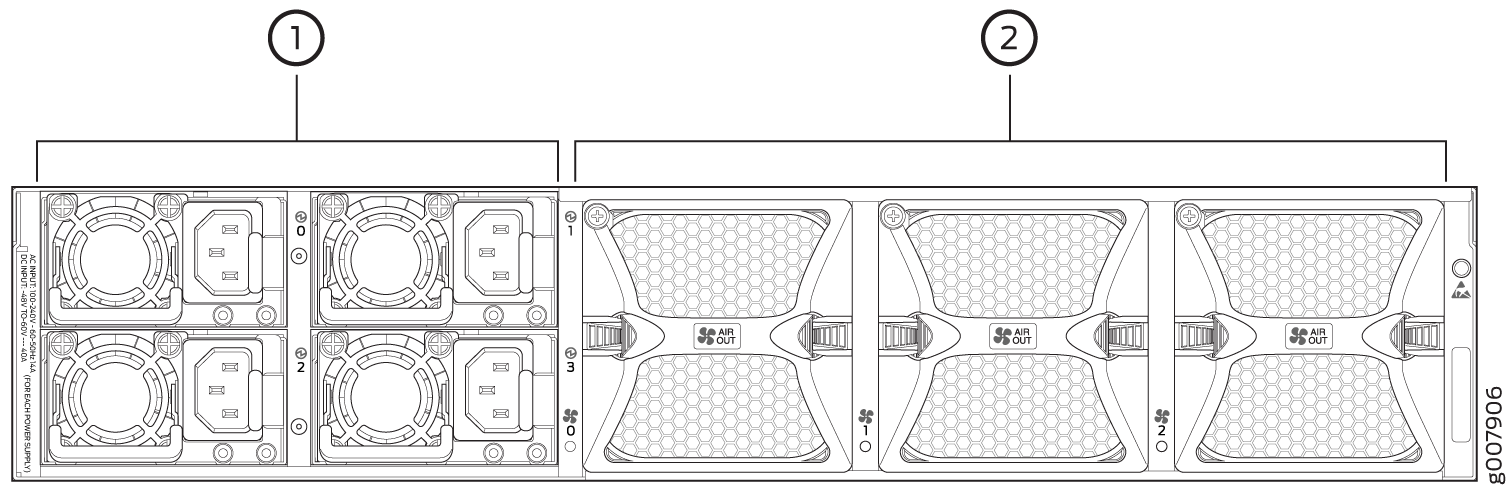

Figure 1: PTX10002-60C FRU PanelPTX10002-60C FRU Panel
  1

Power supplies (4)

  2

Fan modules (3)

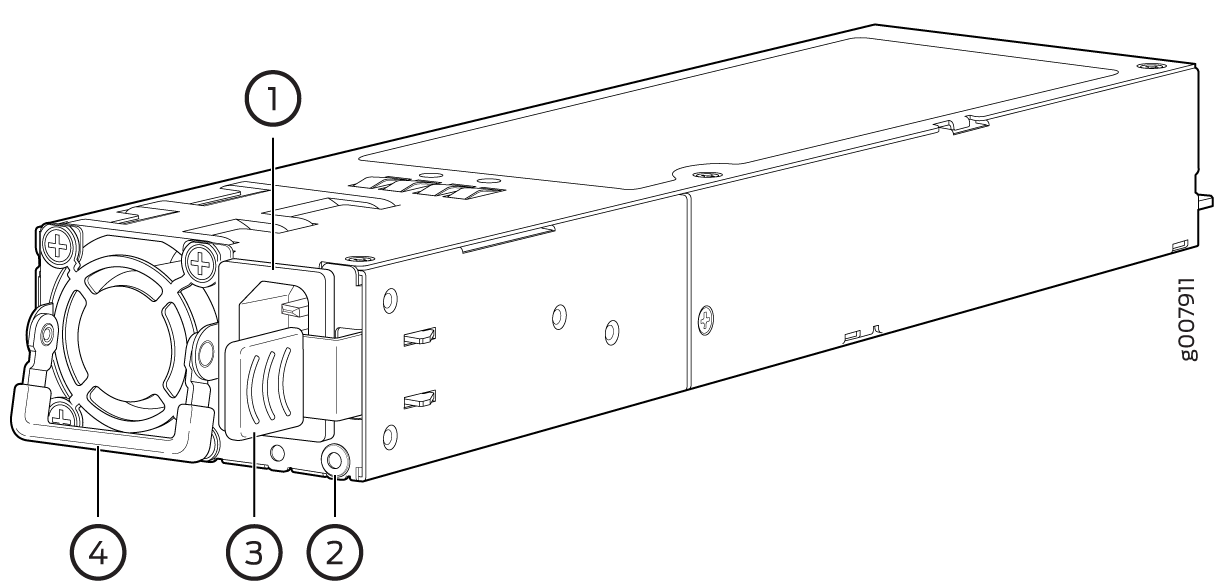

Figure 2: PTX10002-60C AC Power SupplyPTX10002-60C AC Power Supply
  1

plug power connector

  3

Ejector lever

  2

Status LED

  4

Handle

Each of the 1600-W power supplies has a single AC input. The power supply provides 12-VDC output with a standby voltage of 12 VDC. A PTX10002-60C provides for twice the number of power supplies needed to power all of the components in the device, which is known as 2N redundancy. When the PTX10002-60C has all four power supplies installed and connected to power, the router has full power redundancy. If a power supply fails or is removed, another power supply balances the electrical load without interruption.

Note:

For more information about power system redundancy, see PTX10002-60C Component Redundancy.

The fan in the power supply provides port-to-FRU airflow, which is also known as airflow out (AFO). A power supply with the label AFO or a gold-colored handle denotes port-to-FRU airflow.

Table 1 shows the characteristics of the power supply.

Table 1: PTX10002-60C AC Power Supply

Wattage

Product Number

Direction of Airflow

Color of Power Supply Handle

1600-W

JPSU-1600W-AC-AFO

Port-to-FRU

Juniper Gold

CAUTION:

To avoid electrical injury, carefully follow the instructions in Maintaining the PTX10002-60C Power Supplies.

PTX10002-60C DC Power Supply Description

The DC power supplies in the PTX10002-60C (see Figure 3 and Figure 4) are hot-removable and hot-insertable field-replaceable units (FRUs) that you can install without powering off the router or disrupting the routing function. The PTX10002-60C has four power supplies. All the power supplies are initially installed at the factory.

CAUTION:

Do not mix AC and DC power supplies in the same chassis.

Figure 3: PTX10002-60C FRU PanelPTX10002-60C FRU Panel
  1

Power supplies (4)

  2

Fan modules (3)

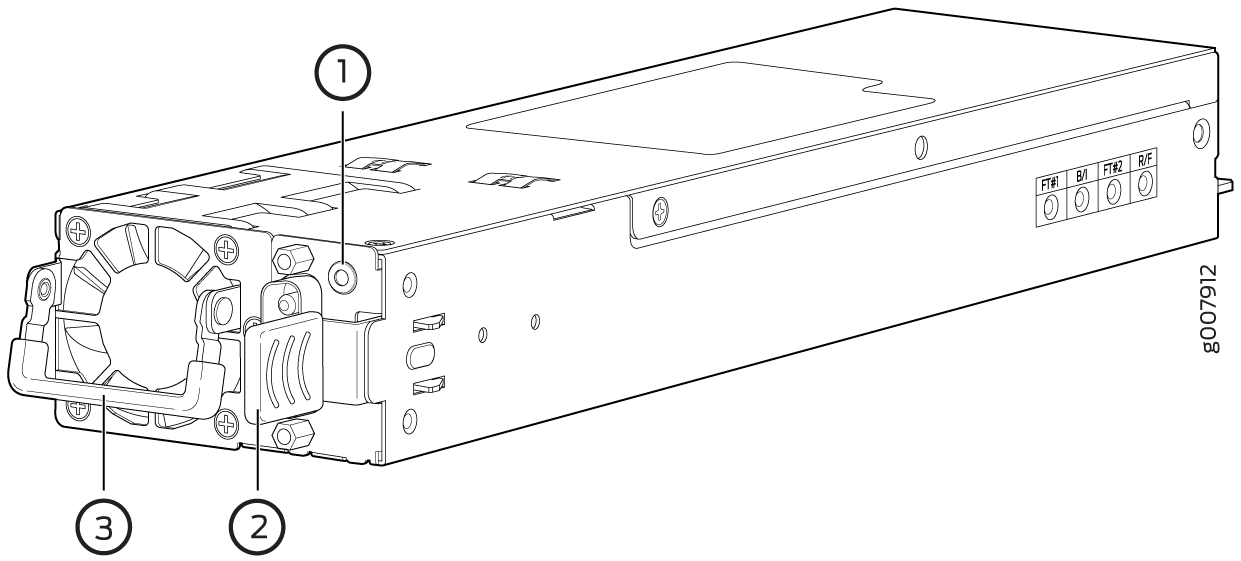

Figure 4: DC Power Supply in a PTX10002-60CDC Power Supply in a PTX10002-60C
  1

Status LED

  3

Handle

  2

Ejector lever



Each of the four 1600-W power supplies has a single DC input. The power supply provides 12-VDC output with a standby voltage of 12 VDC. A PTX10002-60C provides for twice the number of power supplies needed to power all of the components in the router, which is known as 2N redundancy. When the PTX10002-60C has all four power supplies installed and connected to power, the router has full power redundancy. If a power supply fails or is removed, another power supply balances the electrical load without interruption.

Note:

For more information about power system redundancy, see PTX10002-60C Component Redundancy.

The fan in the power supply provides port-to-FRU airflow, which is also known as airflow out (AFO). A power supply with the label AFO or a gold-colored handle denotes port-to-FRU airflow.

Table 2 shows the characteristics of the DC power supply.

Table 2: PTX10002-60C DC Power Supply

Wattage

Product Number

Direction of Airflow

Color of Power Supply Handle

1600-W

JPSU-1600W-DC-AFO

Port-to-FRU

Juniper Gold

CAUTION:

To avoid electrical injury, carefully follow instructions in Maintaining the PTX10002-60C Power Supplies.

Note:

We recommend that the 48-VDC facility DC source be equipped with a circuit breaker rated at 40 A (–48 VDC) minimum, or as required by local code.

PTX10002-60C Power Supply LED

Each PTX10002-60C power supply has a status LED on the power supply faceplate. Figure 5 shows the location of the LED on a PTX10002-60C AC power supply and Figure 6 shows the location of the LED on a PTX10002-60C DC power supply.

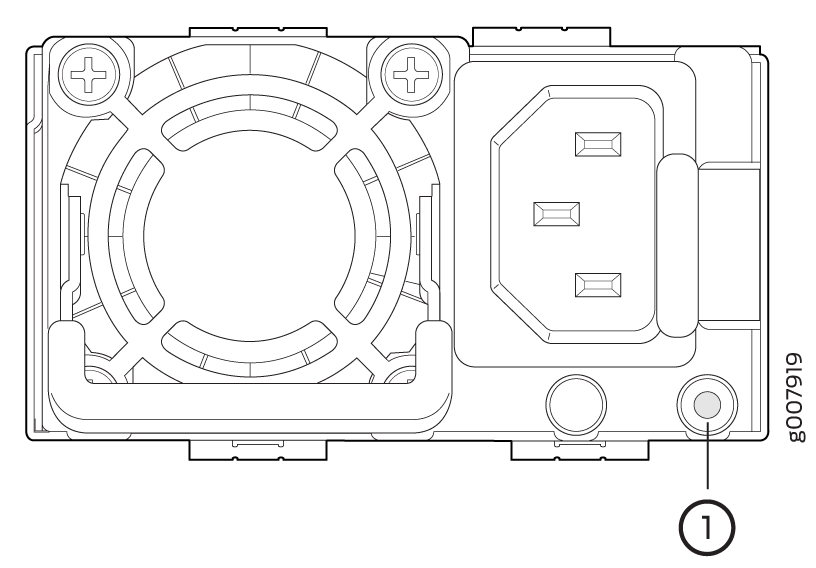

Figure 5: AC Power Supply LED on a PTX10002-60CAC Power Supply LED on a PTX10002-60C
  1

Status LED

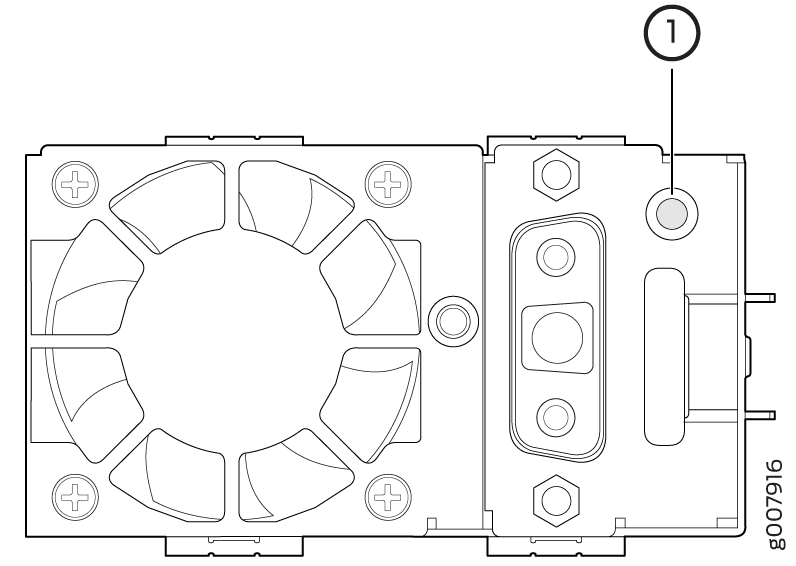

Figure 6: DC Power Supply LED on a PTX10002-60CDC Power Supply LED on a PTX10002-60C
  1

Status LED



Use Table 3 to interpret the state of the power supply LED.

Table 3: PTX10002-60C Power Supply LED

Color

State

Description

Green

Amber

On steadily

Off

The power supply is on and operating correctly.

Green

Amber

Slow blinking (1 Hz)

Off

The power supply is in cold standby mode; only the 12 V DC input is present.

Green

Amber

Blinking (2 Hz)

Off

The power supply is uploading firmware.

Green

Amber

Off

Blinking

Warning events are being detected; the power supply continues to operate. Often these events are because of rising temperatures. Check the fans and ensure there is proper airflow through the chassis.

Green

Amber

Off

On steadily

Either the power cord is unplugged or a major error is detected in the power supply. Examples of a major error are: power supply failure, an over voltage protection error, an over current protection error, or a fan failure.

  • If the power cord is unplugged or missing, reattach the power cord appropriate for your country.

  • If a major error is occurring, Replace the power supply as soon as possible. To maintain proper airflow through the chassis, leave the power supply installed in the chassis until you are ready to replace it.

Green

Amber

Off

Off

There is no AC power to any of the power supplies.

You can get additional information about the status of the power modules using the show chassis power command. For example:

PTX10002-60C AC Power Specifications

Table 4 describes the AC power specifications for a PTX10002-60C.

Table 4: PTX10002-60C AC Power Specifications

Item

Specifications

AC input voltage

Operating range: 100–240 VAC

AC input line frequency

50–60 Hz

AC input current rating

11.5 A at 100–120 VAC

AC input current rating

14 A at 100–120 VAC

Typical power consumption

1728 W

Maximum power consumption

1824 W

PTX10002-60C AC Power Cord Specifications

Detachable AC power cords are shipped with the chassis if you include them as part of your order. The coupler is type C13 as described by International Electrotechnical Commission (IEC) standard 60320. The plug end of the power cord fits into the power source outlet that is standard for your geographical location.

Note:

In North America, AC power cords must not exceed 14.75 feet (approximately 4.5 meters) in length, to comply with National Electrical Code (NEC) Sections 400-8 (NFPA 75, 5-2.2) and 210-52 and Canadian Electrical Code (CEC) Section 4-010(3). The cords that can be ordered for the PTX10002-60C are in compliance.

Table 5 lists AC power cord specifications provided for each country or region.

Table 5: PTX10002-60C AC Power Cord Specifications

Country/Region

Electrical Specifications

Plug Standards

Shipped Juniper Model Number

Spare Juniper Model Number

Graphic

Australia

250 VAC, 10 A, 50 Hz

AS/NZ 3109-1996

CG_CBL-C13-06-AU

CBL-EX-PWR-C13-AU

China

250 VAC, 10 A, 50 Hz

GB 1002-1996

CG_CBL-C13-06-CH

CBL-EX-PWR-C13-CH

Europe (except Italy, Switzerland, and United Kingdom)

250 VAC, 10 A, 50 Hz

CEE (7) VII

CG_CBL-C13-06-EU

CBL-EX-PWR-C13-EU

Italy

250 VAC, 10 A, 50 Hz

CEI 23-16/VII

CG_CBL-C13-06-IT

CBL-EX-PWR-C13-IT

Japan

125 VAC, 12 A, 50 Hz or 60 Hz

JIS C8303

CG_CBL-C13-06-JP

CBL-EX-PWR-C13-JP

North America

250 VAC, 13 A, 60 Hz

250 VAC, 13 A, 60 Hz

CAN/CSA No. 49-92

NEMA L6-15

NEMA 6-15

CG_CBL-C13-06-US

CBL-EX-PWR-C13-US

CBL-PW-C13-250-US

CBL-PWR-C13-250-US

South Korea

250 VAC, 10 A, 60 Hz

250 VAC, 13 A, 60 Hz

KSC 8305; K60884-1

CG_CBL-C13-06-KR

CBL-EX-PWR-C13-KR

Switzerland

250 VAC, 10 A, 50 Hz

SEV 1011 SEV 1991; EN 60320 C13

CG_CBL-C13-06-SZ

CBL-EX-PWR-C13-SZ

United Kingdom

250 VAC, 10 A, 50 Hz

BS 1363/A

CG_CBL-C13-06-UK

CBL-EX-PWR-C13-UK

PTX10002-60C DC Power Specifications

Table 6 describes the DC power specifications for a PTX10002-60C.

Note:

We recommend that the 48-VDC facility DC source be equipped with a circuit breaker rated at 40 A (–48 VDC) minimum, or as required by local code.

Table 6: PTX10002-60C DC Power Specifications

Item

Specifications

DC input voltage

  • Rated operating voltage: –48 VDC through –60 VDC

  • Operating voltage range: –40 VDC through –72 VDC

DC input current rating

57.4 A maximum

Typical power consumption

1642 W

Maximum power consumption

1857 W

PTX10002-60C DC Power Cable Specifications

PTX10002-60C DC power supplies require a D-Sub 3W3- type connector. The three pins on the connector provide –48 VDC input (–), return (+), and ground connections to the power supply.

DC power cables, each approximately 13.1 ft (4 m) long, are supplied with the PTX10002-60C. The provided cables include the three-pin connector on one end and insulated wires at the opposite end, for connection to the site’s DC power distribution system.

Table 7 lists the specifications for the PTX10002-60C DC power cables.

Table 7: PTX10002-60C DC Power Cable Specifications

Juniper Model Number

Wire Function

Insulation Color

Wire Size

CBL-JNP-PWR-DSUB (straight cable)

–48 VDC input (–)

Blue

8 AWG (8.4 mm²), 90° C

Return (+)

Black

8 AWG (8.4 mm²), 90° C

Ground

Green and yellow

8 AWG (8.4 mm²), 90° C

CBL-JNP-PWR-DSUB2 (optional) right-angle cable

–48 VDC input (–)

Blue

8 AWG (8.4 mm²), 90° C

Return (+)

Black

8 AWG (8.4 mm²), 90° C

CBL-JNP-PWR-DSUB3

(Optional) FT4 vertical-flame rated, right-angle cable

–48 VDC input (–)

Gray

8 AWG (8.4 mm²), 90° C

Return (+)

Gray

8 AWG (8.4 mm²), 90° C

Note:

The optional right-angle DC power cables, CBL-JNP-PWR-DSUB2 and CBL-JNP-PWR-DSUB3, do not include a ground connection wire.

Regardless which DC power cable you use, you must connect the PTX10002-60C to earth ground before you connect it to power, using the procedure described in Connecting the PTX10002-60C to Ground.

Warning:

For field-wiring connections, use copper conductors only.

Warning:

Power cables must not block access to PTX10002-60C components or drape where people could trip over them.

CAUTION:

You must ensure that power connections maintain the proper polarity. The power source cables might be labeled (+) and (–) to indicate their polarity. There is no standard color coding for DC power cables. The color coding used by the external DC power source at your site might be different from the color coding for the leads on the DC power cable provided with the chassis.
