PTX10002-60MR Power System
The PTX10002-60MR power system includes AC or DC power supply units and related power cords and cables.
The chassis is designed with 1+1 power supply units (PSU) redundancy and supports both AC or DC PSUs. The PSUs are installed in the rear panel of the chassis. The PSUs have inbuilt fans for cooling and the PSU area has a separate baffle to manage cooling.
The router supports the following PSUs:
|
PSU Type |
Airflow |
Description |
|---|---|---|
|
AC/HVAC/HVDC |
AFO |
AC, 2200W, 200-277V, AC/HVAC/HVDC (190V-410V), AFO |
|
DC |
AFO |
DC, 2200W, 48/60V, AFO |
A combination of PSU types is not supported on the same device. The system must have only same type of PSUs - either 2 AC PSUs or 2 DC PSUs. The system does not support mixed mode, that is,1 AC PSU and 1 DC PSU. To transition from 2 AC PSUs to 2 DC PSUs and vice-versa, remove and replace one PSU at a time.
The following table represents the system electrical rating for PTX10002-60MR.
|
Input Voltage |
Current Rating |
Frequency for Input |
|---|---|---|
|
200 to 277 VAC |
16 A |
50-60 Hz |
|
240 to 380 VDC |
16 A |
- |
|
-48V to -60 VDC |
60 A |
- |
|
+48V to +60VDC |
60 A |
- |
PTX10002-60MR AC, HVAC, and HVDC Power Supply Units
The router supports the 2200-W AFO HVAC and HVDC PSUs.
Each AC, HVAC, or HVDC PSU weighs approximately 3 lb (1.36 kg) and consists of a handle, an ejector lever, an appliance inlet, a built-in fan, and an LED to monitor the status of the PSU. Each inlet requires a dedicated power feed and a dedicated customer-site circuit breaker.

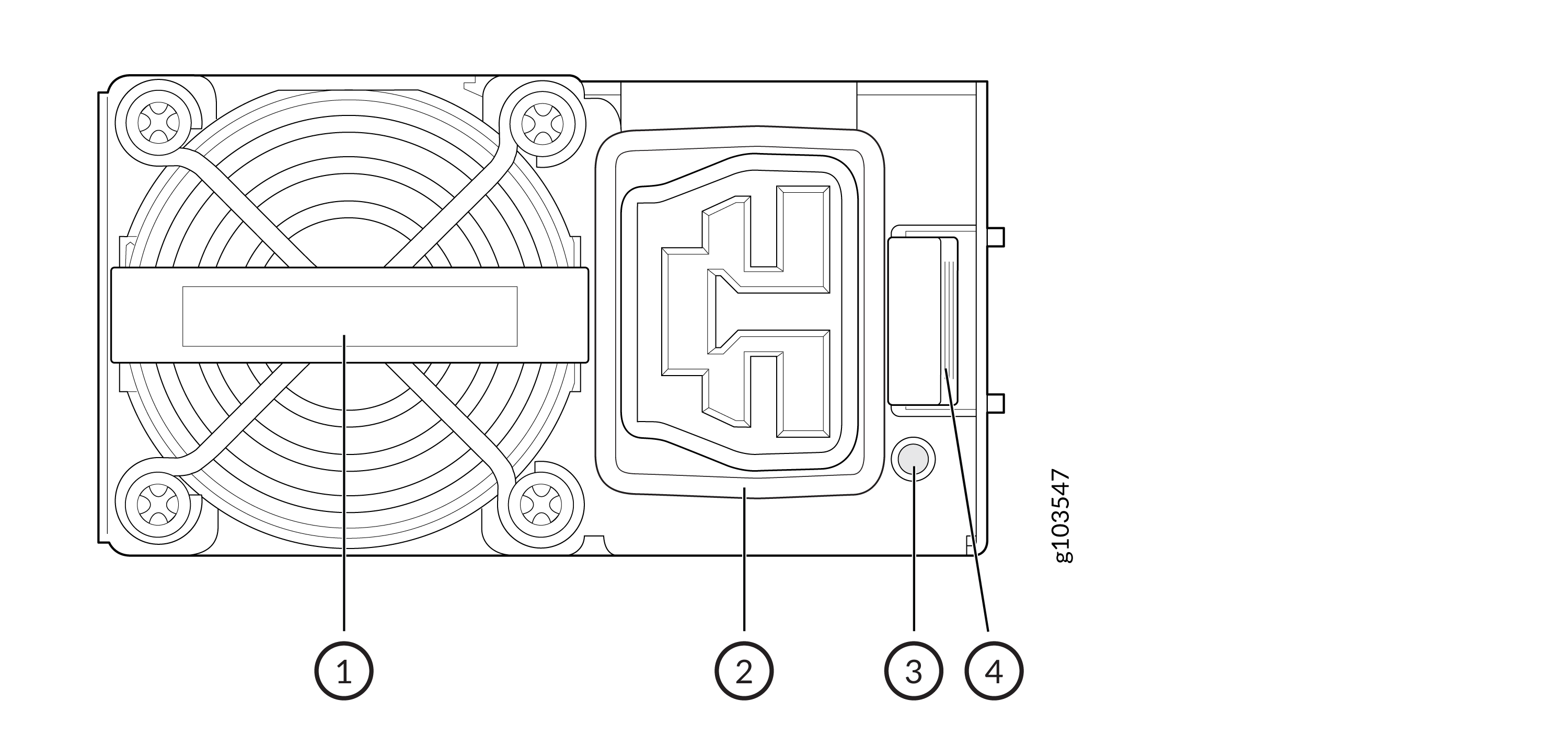

1 — Handle | 3 — LED |
2 — Inlet plug | 4 — Ejector lever |
|
State |
Color |
Pattern |
Description |
|---|---|---|---|
|
On |
Green |
On steadily |
The PSU is receiving power. |
|
On |
Green |
Blinking |
There is input power; however, the PSU is off. |
|
On |
Amber |
On steadily |
The PSU is not functioning normally and has a fault. |
|
On |
Amber |
Blinking |
The system software has shut down the PSU. |
|
Off |
— |
— |
The PSU is off. |
The router operates within the AC, HVAC, or HVDC input voltage range as listed below:
|
Parameter |
Minimum |
Rated |
Nominal Rating |
Maximum |
|---|---|---|---|---|
|
Input voltage—AC or HVAC |
180 VAC |
200-277 VAC |
20A |
305 Vac |
|
Frequency for input—AC or HVAC |
47 Hz |
50-60 Hz |
20A |
63 Hz |
|
Input voltage—HVDC |
190 VDC |
240-380 VDC |
20A |
400 VDC with tolerance for 410 VDC for 1 second |
The following table lists the specifications of the AC or HVAC power cord provided for each country or region.
|
Locale |
Cord Set Rating |
Plug Standards |
Spare Juniper Model Number |
Graphic |
|---|---|---|---|---|
|
Argentina |
16 A, 250 VAC |
IRAM 2073 Type RA/3 |
CBL-JNP-SG4-AR |
|
|
Australia and New Zealand |
16 A, 250 VAC |
AS/NZS 4417 |
CBL-JNP-SG4-AU |
|
|
Brazil |
16 A, 250 VAC |
NBR 14136 Type BR/3 |
CBL-JNP-SG4-BR |
|
|
China |
16 A, 250 VAC |
GB2099 |
CBL-JNP-SG4-CH |
|
|
China, Europe, and Japan |
16 A, 250 VAC |
C20 to Anderson 3-5958p4 |
CBL-JNP-SG4-C20-CH |
|
|
Europe (except Italy, Switzerland, and United Kingdom) |
16 A, 250 VAC |
CEE 7/7 STRAIGHT |
CBL-JNP-SG4-EU |
|
|
Great Britain |
16 A, 250 VAC, |
BS1363 |
CBL-JNP-SG4-UK |
|
|
India |
16 A, 250 VAC |
SANS 164/1 |
CBL-JNP-SG4-SA |
|
|
Israel |
16 A, RA, 250 VAC |
SI 32/1971 Type IL/3G |
CBL-JNP-SG4-IL |
|
|
Italy |
16 A, 250 VAC |
CEI 23-16 |
CBL-JNP-SG4-IT |
|
|
Japan |
16 A, 250 VAC |
Nema L-20 |
CBL-JNP-SG4-JPL |
|
|
North America |
20 A, 250 VAC |
C20 to Anderson 3-5958p4 |
CBL-JNP-SG4-C20 |
|
|
North America |
20 A, 250 VAC |

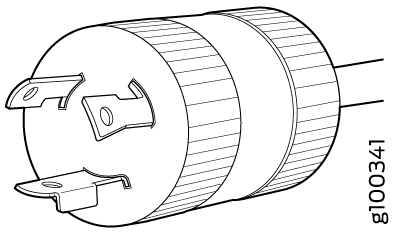

Locking NEMA L6-20P |
CBL-JNP-SG4-US-L |
|
|
North America |
20 A, 250 VAC |
NEMA 6-20P |
CBL-JNP-SG4-US |
|
|
North America |
20 A, 277 VAC |
NEMA I7-20P |
CBL-JNP-SG4-HVAC |
|
|
South Africa |
16 A, 250 VAC |
SANS 164/1 |
CBL-JNP-SG4-SA |
|
|
Switzerland |
16 A, 250 VAC |
CEI 23-50 |
CBL-JNP-SG4-SZ |
|
The following table lists the specifications of the HVDC power cord.
|
Cord Set Rating |
Spare Juniper Model Number |
|---|---|
|
16 A, 400 HVDC |
CBL-PWR2-BARE |
Following are the circuit breaker details :
-
AC/HVAC: 277 VAC/20A or as required by local code.
-
HVDC: 500 VDC/20A or as required by local code.
PTX10002-60MR DC Power Supply Units
The router supports 2200 W, 48/60 V, AFO PSUs. Each PSU has a single DC input and provides 12 VDC output with a standby voltage of 12 VDC.
Each DC PSU weighs approximately 3 lb (1.36 kg) and consists of a handle, an ejector lever, a terminal block that provides a single DC input (–48/–60 VDC and return), a built-in fan, and an LED to monitor the status of the PSU. The DC PSU requires a dedicated customer-site circuit breaker. We recommend that you use a dedicated customer-site circuit breaker rated for 80 A (80 VDC), or as required by the local code.

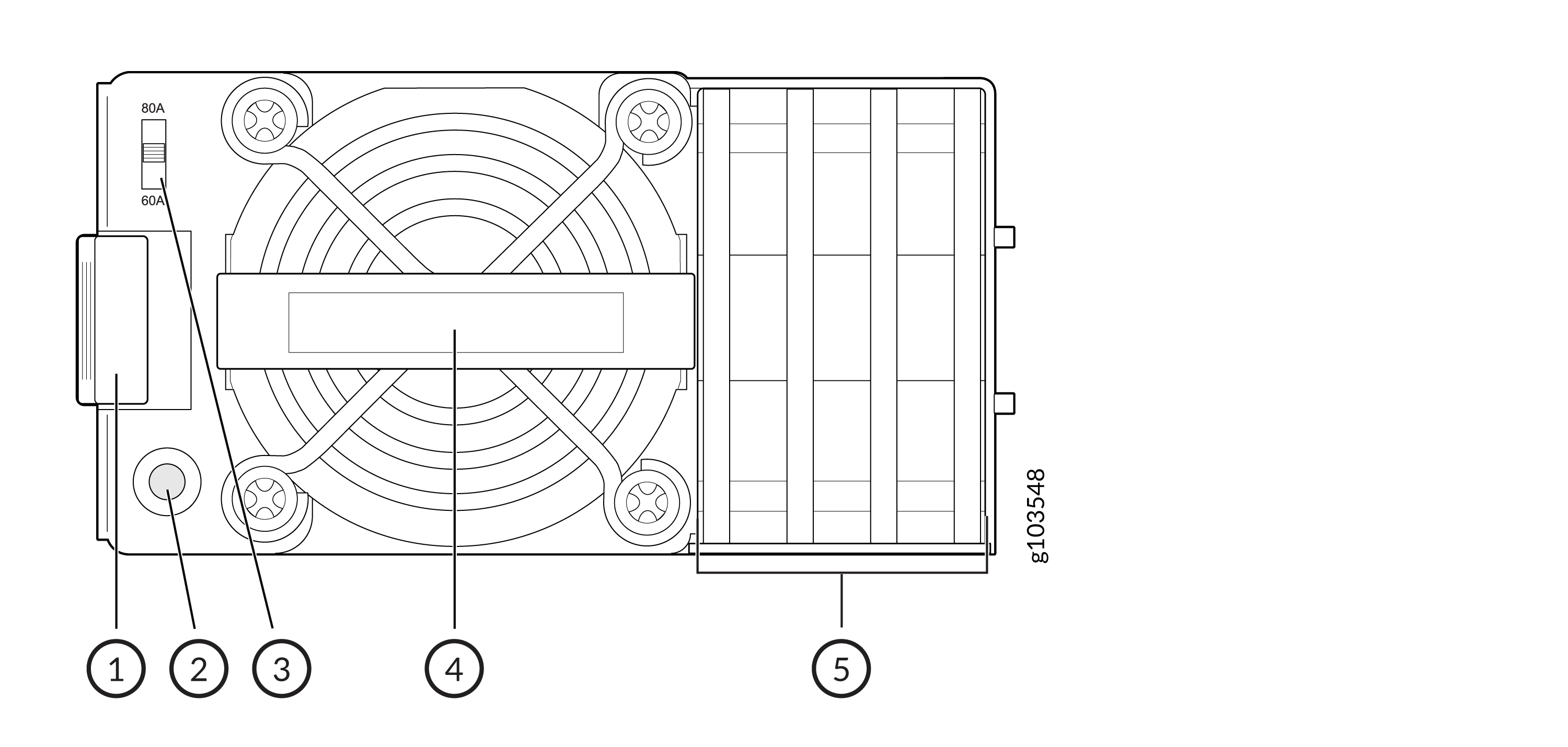

1 — Ejector lever | 4 — Handle |
2 — LED | 5 — Terminal block |
3 — DC input current selector (DIP) switch |
|
State |
Color |
Pattern |
Description |
|---|---|---|---|
|
On |
Green |
On steadily |
The PSU is receiving power. |
|
On |
Green |
Blinking |
There is input power; however, the PSU is off. |
|
On |
Amber |
On steadily |
The PSU is not functioning normally and has a fault. |
|
On |
Amber |
Blinking |
The system software has shut down the PSU. |
|
Off |
— |
— |
The PSU is in off state. |
The DC input voltage specifications are as below. The PSU must operate within all specified limits over the following input voltage range.
|
Parameter |
Minimum |
Nominal |
Rated |
Maximum |
Max Input Current |
|---|---|---|---|---|---|
|
DC Voltage |
-40 VDC |
+48 VDC to +60 VDC |
-48 VDC/-60 VDC |
-72 VDC |
60 ADC |
