PTX10002-60MR Router Overview

Learn about the hardware features of the PTX10002-60MR Router.

Meet the PTX10002-60MR

The PTX10002-60MR Router is a closed-door compact small form factor router and delivers high density and cost efficient 400GE and 100GE optimized platform with 800GE enabled. The device is a 2 rack-unit (U) system, delivering 14.4 terabit per second (tbps) maximum system bandwidth at line rate.

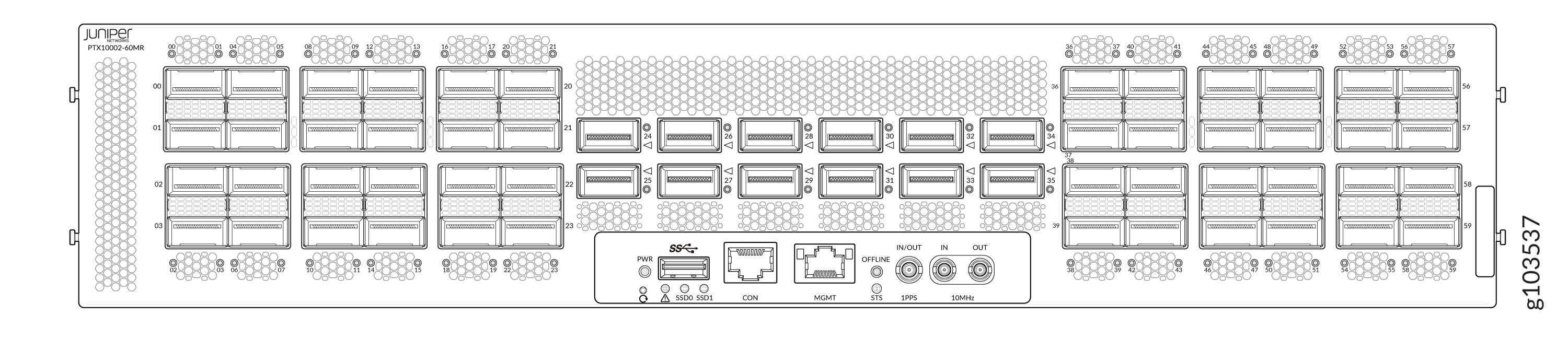

Front view

Meet the PTX10002-60MR

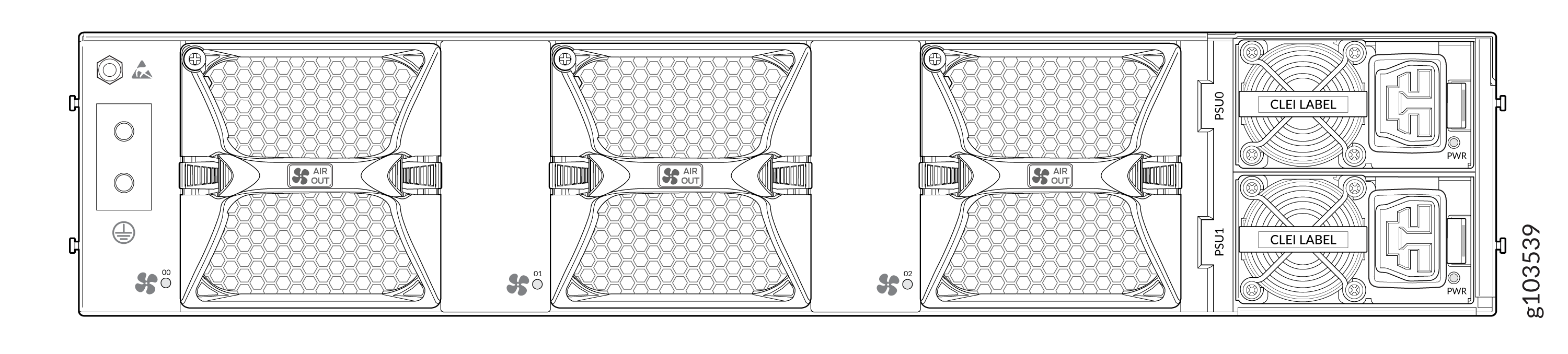

Rear view

Meet the PTX10002-60MR

The chassis is designed with 1+1 PSU redundancy and supports both AC and DC SKUs. The PSUs and fans will plug in from the rear side. There will be separate baffle for PSU’s cooling. Each fan tray uses dual rotor 80 mm x 80 mm x 80 mm high pressure fan with AFO.

Table 1: PTX10002-60MR Description

Form factor

 2 RU

Chassis type

Fixed

Operating system

Junos OS

Power system variants

AC and DC

Cooling system variants

AFO

Storage

Two 200-GB SSDs preinstalled.

Memory

4xDIMM socket, 32GB/DIMM

Managed using

  • Juniper® Routing Director

  • Juniper® Apstra

  • Junos OS CLI

Cooling System

The cooling system in PTX10002-60MR consists the following configuration.

  • AFO (front to back) cooling

For AFO operation, three fan modules each with 2 fans are plugged into Forwarding Control Board from the rear side of the chassis to suck air out of the system. Vents are provided in the faceplate to allow air inlet.

Power System

The power supplies are fully redundant, load-sharing, and hot-removable and hot-insertable FRUs. You can install the power supplies in the power supply slots on the rear of the device. Each router operates with a minimum of one AC/DC power supply to a maximum of two AC/DC power supplies. Each power supply has its own fan and is cooled by its own internal cooling system. Hot air exhausts from the rear of the chassis.

The PTX10002-60MR has PSUs for different combinations.

PSU Description

Type

Airflow

2200 W, 200-277 V

AC/HVAC/HVDC

AFO

2200 W, 48/60 V

DC

AFO

Field-Replaceable Units

Field-replaceable units (FRUs) are components that you can replace at your site. The FRUs in the router are hot-removable and hot-insertable: You can remove and replace them without powering off the router or disrupting the router functions. The following are the FRUs.

  • Fan modules

  • PSUs
