PTX1000 Management Panel

The PTX1000 management panel is found next to the port panel (see Figure 1).

Figure 1: PTX1000 Port Panel and Management Panel

—

Port panel

—

Management panel

You manage the PTX1000 by using the Junos OS CLI, which is accessible through the console and out-of-band management ports on the management panel. In addition, the management panel has system status LEDs that alert you to minor or major alarms or other issues with the router, external clock synchronization ports, and a USB port to support software installation and recovery. Figure 2 shows the management panel in detail.

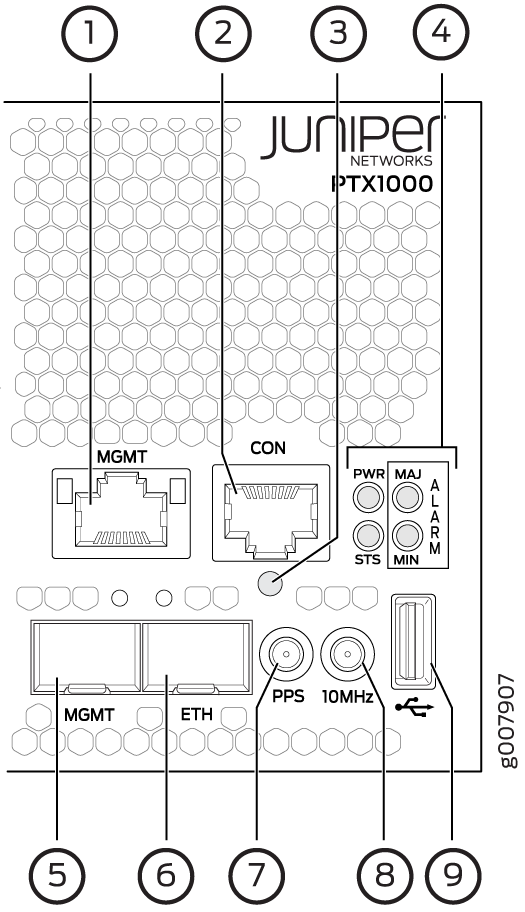

Figure 2: PTX1000 Management Panel Components

1 — RJ-45 (1000BASE-T) management Ethernet port (labeled MGMT). In the Junos OS CLI, this port is identified as `em0`.	6 — SFP PTP Ethernet (1000BASE-T) port (labeled ETH). Port reserved for future use.
2 — RJ-45 console port (CON) to support RS-232 serial ports.	7 — 10 Hz pulses-per-second (PPS) SubMiniature B (SMB) connector for input and output measuring of the timing drift to and from a grandmaster clock. Port reserved for future use.
3 — Reset button. Press and hold 5 seconds to reset the hardware. Clock functions and FPGA status registers are not reset.	8 — 10 MHz SMB timing connector (10MHz). Port reserved for future use.
4 — Status LEDs—Power (PWR), status (STS), major alarm (MAJ), and minor alarm (MIN).	9 — USB port.
5 — SFP management Ethernet port (labeled MGMT). In the Junos OS CLI, this port is identified as `em1`.

PTX1000 Management Port LEDs

There are two management ports on the PTX1000, located on the management panel next to the network ports. Both ports are labeled MGMT. The RJ-45 management port is for 10/100/1000BASE-T connections and the small form-factor pluggable (SFP) management port is for 10/100/1000BASE-T and 1000BASE-X connections.

The RJ-45 port has separate LEDs for status and activity. The SFP port has a LED to indicate both link and activity. Figure 3 shows the location of the LEDs.

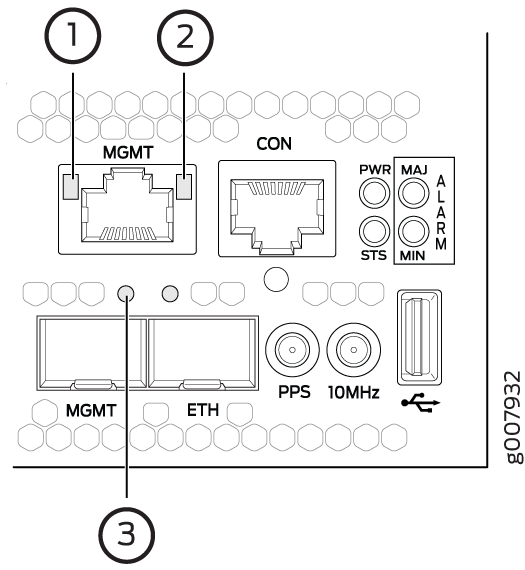

Figure 3: Management Port LEDs on a PTX1000

1 — Status LED (RJ-45)	3 — Link activity LED (SFP)
2 — Link activity LED (RJ-45)

Table 1 describes the RJ-45 management port LEDs.

Table 1: PTX1000 RJ-45 Management Port LEDs
LED	Color	State	Description
Link activity	Unlit	Off	No link is established, there is a fault, or the link is down.
Link activity	Amber	Blinking or flickering	A link is established, and there is link activity.
Status	Unlit	Off	Either the port speed is 10 Mbps or the link is down.
Status	Green	On steadily	The port speed is 1000 Mbps.

Table 2 describes the SFP management port LED.

Table 2: PTX1000 SFP Management Port LED
LED	Color	State	Description
Link activity	Unlit	Off	No link is established, there is a fault, or the link is down.
	Green	On steadily	A link is established, but there is no link activity.
	Green	Blinking or flickering	A link is established, and there is link activity.

PTX1000 Chassis Status LEDs

The PTX1000 has four status LEDs on the management panel of the chassis, next to the network ports (see Figure 4).

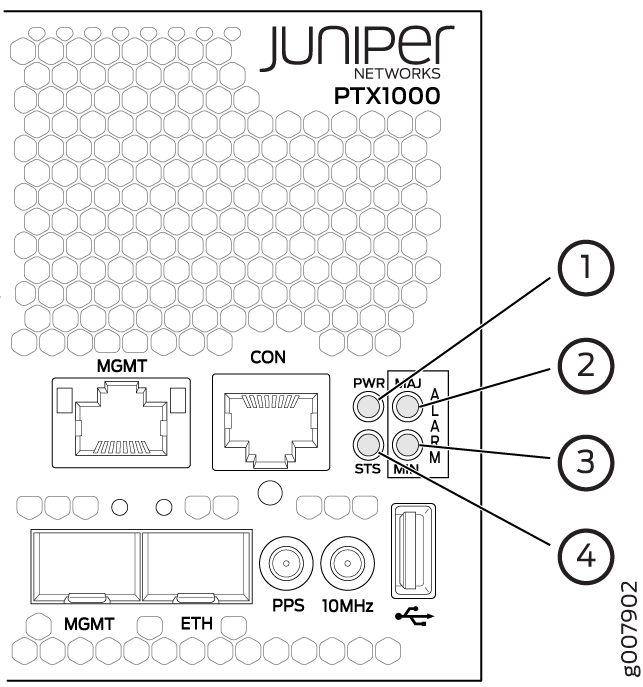

Figure 4: Chassis Status LEDs on a PTX1000

1 — Power (PWR) LED	3 — Minor alarm (MIN) LED
2 — Major alarm (MAJ) LED	4 — Status (STS) LED

Table 3 describes the chassis status LEDs on a PTX1000.

Table 3: PTX1000 Chassis Status LEDs
Name	Color	State	Description
Power (PWR)	Unlit	Off	The PTX1000 is powered off— there is no power to the device.
	Green	On steadily	The power system is working correctly.
	Amber	Blinking	There is a problem with the power system. Power off the PTX1000 by setting the AC power source outlet to the off (O) position or by unplugging the AC power cords. Correct any voltage issues. Power on the PTX1000 and monitor the power supply and fan LEDs to help determine where the error is occurring. If there is a CPU power failure, the PTX1000 does not boot.
Status (STS) LED	Unlit	Off	The PTX1000 is powered off or Junos OS is halted.
	Green	On steadily	Junos OS has booted.
	Amber	Blinking	The PTX1000 detects a fault.
Major alarm (MAJ) LED	Unlit	Off	There are no major alarms.
Major alarm (MAJ) LED	Red	On steadily	A major hardware fault has occurred, such as a temperature alarm or power failure, and the PTX1000 has halted.
Minor alarm (MIN) LED	Unlit	Off	There are no minor alarms.
Minor alarm (MIN) LED	Amber	On steadily	A minor alarm has occurred, such as a software error.
