Installing the MX2010 Extended Cable Manager

To install the extended cable manager (see Figure 1):

  1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect the strap to one of the ESD points on the chassis.
  2. Position the extended cable manager on the studs below the lower card cage.
  3. Attach the extended cable manager using eight screws as shown in Figure 1.
  4. Replace the cable manager cover, and secure it with the two captive screws.

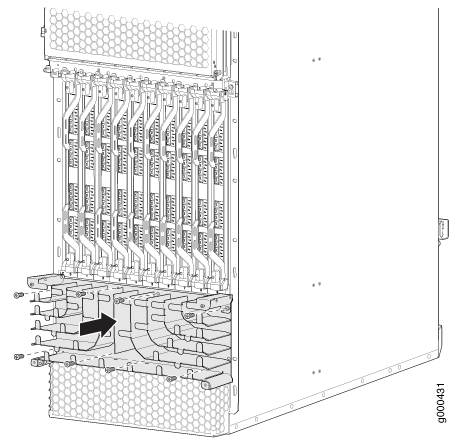

Figure 1: Installing the Extended Lower Cable ManagerInstalling the Extended Lower Cable Manager
