MX150 Chassis

Chassis Physical Specifications for an MX150

MX150 chassis is a rigid sheet-metal structure that houses the hardware components. Table 1 summarizes the physical specifications of the MX150 chassis.

Table 1: Physical Specifications for the MX150 Chassis

Product SKU

Height

Width

Depth

Weight

MX150

1.72 in. (4.3 cm)

17.36 in. (44.1 cm)

12 in. (30.5 cm)

9.4 lb (4.3 kg)

Front Panel of an MX150

The front panel of an MX150 consists of the following components:

  • Eight 1-Gigabit Ethernet network ports

  • Two 1-Gigabit Ethernet RJ-45 access ports or uplink ports

  • Two 1-Gigabit SFP ports

  • Two 1/10-Gigabit SFP+ ports

  • Link (LINK) and status (ST) LEDs for SFP and SFP+ ports

  • 1 Mini-USB Type-B console port

  • 1 RJ-45 console port

  • 1 USB port

  • 1-Gigabit management port

  • 4 system status LEDs

  • 3 port parameter LEDs

  • 1 Mode button

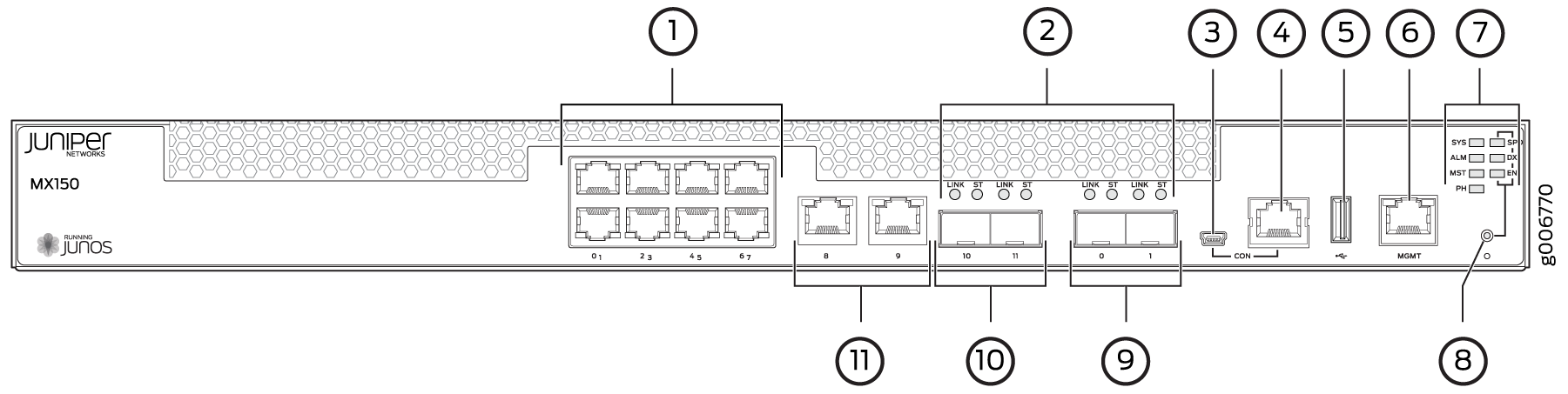

Figure 1: MX150 Front Panel ComponentsMX150 Front Panel Components
  1
1-Gigabit Ethernet RJ-45 network ports
  7
system status LEDs and port parameter LEDs
  2
Link and Status LEDs for SFP and SFP+ ports
  8
Mode button
  3
Mini-USB console port
  9
Port 0 and 1 support SFP (1G) and SFP+(10G). In Junos CLI, these ports are shown as ge-0/0/12 and ge-0/0/13 when you use the SFP (1G) modules, and xe-0/0/12 and xe-0/0/13 when you use the SFP+ (10G) modules.
  4
Console (CON) port
10
Port: 10 and 11 support SFP only;
  5
USB port
11
1-Gigabit Ethernet RJ-45 network or uplink ports
  6
1-Gigabit management (mgmt) port

CAUTION:

Do not use the Reset button to restart the power sequence unless under the direction of Juniper Networks Technical Assistance Center (JTAC).

Rear Panel of an MX150

The rear panel of the MX150 consists of the following components (see Figure 2):

  • Ground area

  • Electrostatic discharge (ESD) point

  • Exhaust vents

  • Power switch

  • AC power cord inlet

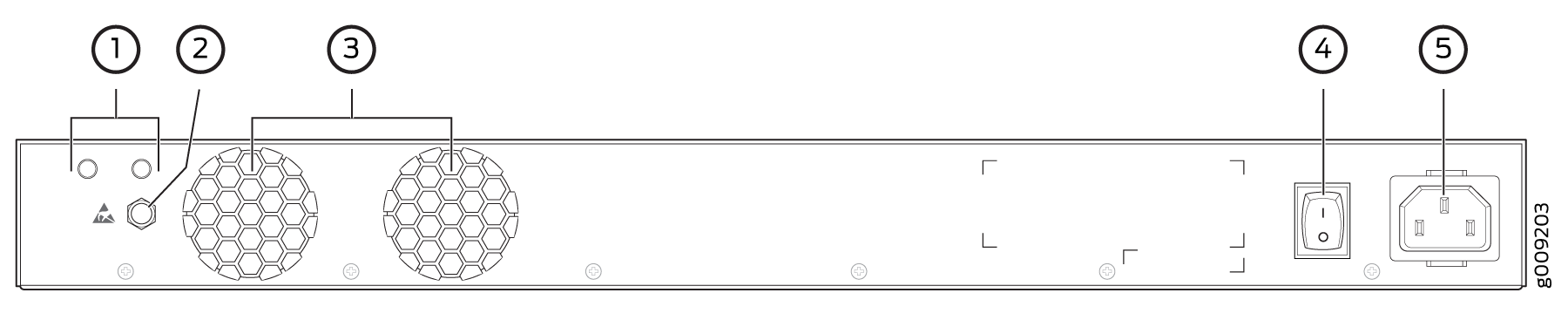

Figure 2: MX150 Rear PanelMX150 Rear Panel
  1
Ground area
  4
Power switch
  2
Electrostatic discharge (ESD) point
  5
AC power cord inlet
  3
Exhaust vents


Chassis Status LEDs on MX150

The front panel of an MX150 has chassis status LEDs (labeled ALM, SYS, MST and PH), next to the MGMT port (see Figure 3).

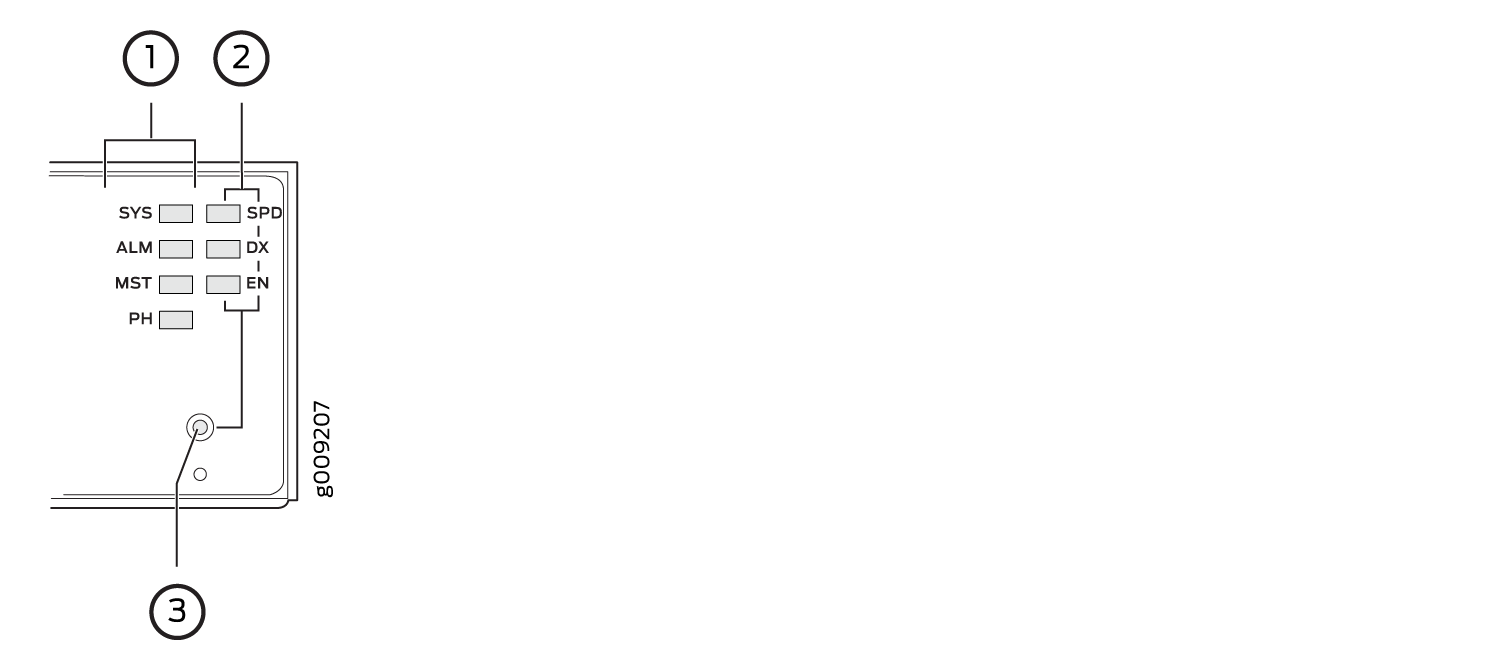

Figure 3: Chassis Status LEDs in an MX150 Chassis Status LEDs in an MX150
  1
Chassis status LEDs (ALM, SYS, MST, and PH)
  3
Mode button
  2
Port parameter LEDs (SPD, DX, and EN)


Table 2 describes the chassis status LEDs on an MX150, their colors and states, and the status they indicate. You can view the colors of the four LEDs remotely through the CLI by issuing the operational mode command show chassis craft-interface.

Table 2: Chassis Status LEDs in an MX150

LED Label

Color

State and Description

ALM (Alarm)

Unlit

There is no alarm or the device is halted.

Red

There is a major alarm.

Amber

There is a minor alarm.

SYS (System)

Green

  • On steadily—Junos OS has been loaded on the device.

  • Blinking—The device is booting.

  • Off—The device is powered off or is halted.

MST (Primary)

Green

  • On steadily—The device is functioning normally.

  • Off—The device is powered off or is halted.

PH

Unlit

This LED is not used. So, the status of this LED is off.

A major alarm (red) indicates a critical error condition that requires immediate action.

A minor alarm (amber) indicates a noncritical condition that requires monitoring or maintenance. A minor alarm left unchecked might cause interruption in service or performance degradation.

All three LEDs can be lit simultaneously.

Management Port LEDs on MX150

The management port on the front panel of an MX150 has two LEDs that indicate link activity and port status (see Figure 6).

Figure 6: LEDs on the Management Port of an MX150LEDs on the Management Port of an MX150
  1
Link activity
  2
Status

Table 5 describes the Link activity LED.

Table 5: Link activity LED on the Management Port of an MX150

LED

Color

State and Description

Link activity

Green

  • Blinking—The port and the link are active, and there is link activity.

  • On steadily—The port and the link are active, but there is no link activity.

  • Off—The port is not active.

Table 6 describes the status LED.

Table 6: Status LED on the Management Port of an MX150

LED

Color

State and Description

Status

Green

Indicates the speed. The speed indicators are:

  • One blink per second—10 Mbps

  • Two blinks per second—100 Mbps

  • Three blinks per second—1000 Mbps
