MX104 Interface Modules
MX104 Modular Interface Card (MIC) Overview
MICs receive incoming packets from the network and transmit outgoing packets to the network. During this process, each MIC performs framing and high-speed signaling for its media type. Before transmitting outgoing data packets through the MIC interfaces, the Packet Forwarding Engine encapsulates the packets received.
The MX104 routers support the following types of MICs:
Front-Pluggable MICs
Modular Interface Cards (MICs) install into four slots in the front of the MX104 router and provide the physical connections to various network media types. MICs are hot-removable and hot-insertable. The slots are labeled 0/0, 0/1, 1/0, and 1/1. You can install MICs of different media types on the same router as long as the router supports those MICs. For complete specifications, see MICs Supported by MX80 and MX104 Routers in the MX Series Interface Module Reference.
Built-in 10-Gigabit Ethernet MIC
The built-in 10-Gigabit Ethernet MIC is fixed on the MX104 router. The MIC is labeled XE and is located on the front panel.
If you ordered a license for the built-in 10-Gigabit Ethernet ports on the MX104 and you do not receive a paper license with your shipment, open a case with customer support. See Contact Customer Support for more information.
The built-in 10-Gigabit Ethernet MIC has the following components:
Hardware features:
Four 10-Gigabit Ethernet ports labeled 2/0/0 through 2/0/3, left to right
High-performance throughput on each port at speeds up to 10 Gbps
Line-rate on all four 10-Gigabit Ethernet ports
LAN-PHY mode at 10.3125 Gbps
Maximum transmission units (MTUs) of up to 9192 bytes
One green Link LED per port
Software features:
Configurable LAN-PHY mode options
Synchronous Ethernet support
Optical diagnostics and related alarms
Virtual Router Redundancy Protocol (VRRP) support
IEEE 802.1Q virtual LANs (VLANs) support
Remote monitoring (RMON) EtherStats
Source MAC learning
MAC accounting and policing—Dynamic local address learning of source MAC addresses
Flexible Ethernet encapsulation
Multiple Tag Protocol Identifiers (TPID)
Cables and connectors:
Duplex LC/PC connector (Rx and Tx)
Fiber-optic 10-gigabit small form-factor pluggable (SFP+) transceivers:
Connector: Duplex LC/PC (Rx and Tx)
10GBASE-SR (model numbers EX-SFP-10GE-SR, EX-SFP-10GE-USR, and SFPP-10GE-SR)
10GBASE-LR (model numbers EX-SFP-10GE-LR and SFPP-10GE-LR)
10GBASE-LRM (model number SFPP-10GE-LRM)
Optical interface specifications—see the Hardware Compatibility Tool at https://apps.juniper.net/hct
MIC LEDs
Each front-pluggable MIC has LEDs located on the faceplate. For more information about LEDs on the MIC faceplate, see the “LEDs” section for each MIC in the MX Series Interface Module Reference.
The built-in 10-Gigabit Ethernet MIC labeled XE accepts 10-Gigabit Ethernet SFP+. Each transceiver has one pair of port LEDs. Table 1 describes the LEDs in more detail.
Name |
Color |
State |
Description |
|---|---|---|---|
Link |
Green |
Steady |
The data cable has been connected to the port, and the |
– |
Off |
The data cable has been disconnected from the port. |
|
Red |
Steady |
The interface has been disabled, or the 10GbE port does not have the required license. |
See Also
MX104 Port and Interface Numbering
Identifying Interface Numbers on the Hardware

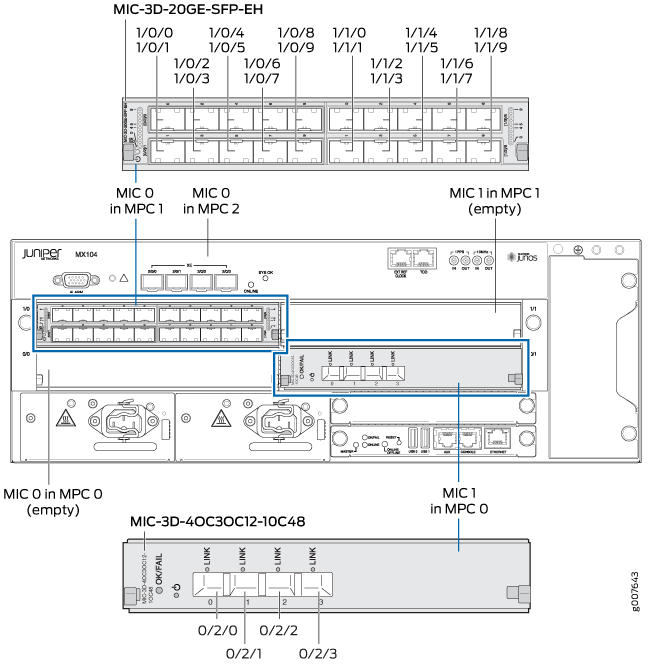

Each MX104 router has three built-in MPCs, which are represented
in the CLI as FPC 0 through FPC 2. The numbering of the MPCs is from bottom to
top (see Figure 1).
The port numbers on MICs correspond to the port numbers on the interface. The port numbering on the MIC-3D-20GE-SFP-EH MIC depicted in Figure 1 is only one example of the port numbering for MICs.
Each MIC might number ports differently—horizontally or vertically, for example—and it is important to review the port numbering for your particular MIC in the MX Series Interface Module Reference.
MPC 0 and MPC 1 have two slots each that accept MICs. The MICs
are represented as MIC 0 and MIC 1 in the CLI and are logically divided into PICs
depending on their type. A MIC installed in the left-most MIC slot
(0/0 or 1/0) is represented
in the CLI as PIC 0 and PIC 1. A MIC installed
in the right-most MIC slot (0/1 or 1/1) is represented as PIC 2 and PIC 3.
MPC 2 houses a 4-port 10-Gigabit Ethernet MIC. Both the MPC
and the MIC are considered fixed and are built into the front panel
of the chassis. The MPC is represented as FPC 2 in the CLI. The MIC is represented as MIC 0 in the CLI and is logically divided into a single PIC, which is
represented as PIC 0.
Table 2 summarizes the relationship between the components and the interface names.
Component |
Component Name in the CLI |
Interface Names |
|---|---|---|
Built-in 4-port 10-Gigabit Ethernet MIC |
4x 10GE SFP+ |
|
MIC 0 (left) installed in MPC 0 (labeled 0/0) |
|
|
MIC 1 (right) installed in MPC 0 (labeled 0/1) |
|
|
MIC installed in MIC slot 1/0 |
|
|
MIC installed in MIC slot 1/1 |
|
Identifying Interface Numbers in the CLI
In the physical part of the interface name, a hyphen (-) separates the media type from the MPC number (represented as an FPC in the CLI), and a slash
(/) separates the logical PIC and port numbers:
type-fpc/pic/port
type—Media type, which identifies the network device. For example:
ge—Gigabit Ethernet interface
so—SONET/SDH interface
xe—10-Gigabit Ethernet interface
For a complete list of media types, see Interface Naming Overview.
fpc—Slot in which the MPC is installed. On the MX104 router, the three MPCs are built into the chassis and are represented in the CLI as
FPC 0,FPC 1, orFPC 2.pic—Logical PIC on the MIC. The number of logical PICs varies depending on the type of MIC.
port—Port number.
The MIC number is not included in the interface name.
The following sample CLI output displays the three built-in MPCs and five MICs.
user@host> show chassis hardware
Hardware inventory:
Item Version Part number Serial number Description
Chassis G3498 MX104
Midplane REV 28 750-044219 CAAX5767 MX104
PEM 0 REV 03 740-045932 1H073050110 DC Power Entry Module
PEM 1 REV 03 740-045932 1H073050017 DC Power Entry Module
Routing Engine 0 REV 03 750-053342 CABP2893 RE-MX-104
Routing Engine 1 REV 03 750-053342 CABP2978 RE-MX-104
AFEB 0 BUILTIN BUILTIN Forwarding Engine Processor
FPC 0 BUILTIN BUILTIN MPC BUILTIN
MIC 0 REV 02 750-046905 CAAV2145 3D 20x 1GE(LAN)-EH,SFP
PIC 0 BUILTIN BUILTIN 10x 1GE(LAN) -EH SFP
PIC 1 BUILTIN BUILTIN 10x 1GE(LAN) -EH SFP
MIC 1 REV 02 750-047733 CAAN7024 16x CHE1T1 -H, RJ48
PIC 2 BUILTIN BUILTIN 16x CHE1T1 -H, RJ48
FPC 1 BUILTIN BUILTIN MPC BUILTIN
MIC 0 REV 05 750-046905 CAAY0325 3D 20x 1GE(LAN)-EH,SFP
PIC 0 BUILTIN BUILTIN 10x 1GE(LAN) -EH SFP
PIC 1 BUILTIN BUILTIN 10x 1GE(LAN) -EH SFP
MIC 1 REV 05 CAAW5365 1x COC12/4x COC3 CH-CE -H, SFP
PIC 2 BUILTIN BUILTIN 1x COC12/4x COC3 CH-CE -H, SFP
FPC 2 BUILTIN BUILTIN MPC BUILTIN
MIC 0 BUILTIN BUILTIN 4x 10GE(LAN) SFP+
PIC 0 BUILTIN BUILTIN 4x 10GE(LAN) SFP+
Fan Tray 0 REV 02 711-049570 CAAX6564 Fan TrayThe show interfaces terse command displays the four
built-in 10-Gigabit Ethernet interfaces as xe-2/0/0 through xe-2/0/3.
user@host> show interfaces terse Interface Admin Link Proto Local Remote ... xe-2/0/0 up up xe-2/0/0.0 up up inet xe-2/0/1 up up xe-2/0/1.0 up up inet xe-2/0/2 up up xe-2/0/2.0 up up inet xe-2/0/3 up up xe-2/0/3.0 up up inet ...
The show interfaces terse command displays the Gigabit
Ethernet interfaces for the 20-port Gigabit Ethernet MIC installed
in MIC slot 1/0. The media type of the 20-port
Gigabit Ethernet MIC dictates that the MIC be logically divided into
two PICs, each with 10 ports. The interfaces are numbered ge-1/0/0 through ge-1/0/9 and ge-1/1/0 through ge-1/1/9.
user@host> show interfaces terse
Interface Admin Link Proto Local Remote
...
ge-1/0/0 up up
ge-1/0/0.0 up up inet 10.0.0.10/24
multiservice
ge-1/0/1 up up
ge-1/0/1.0 up up inet 10.0.1.10/24
multiservice
ge-1/0/2 up up
ge-1/0/2.0 up up inet 10.0.2.10/24
multiservice
ge-1/0/3 up up
ge-1/0/3.0 up up inet 10.0.3.10/24
multiservice
ge-1/0/4 up up
ge-1/0/4.0 up up inet 10.0.4.10/24
multiservice
ge-1/0/5 up up
ge-1/0/5.0 up up inet 10.0.5.10/24
multiservice
ge-1/0/6 up up
ge-1/0/6.0 up up inet 10.0.6.10/24
multiservice
ge-1/0/7 up up
ge-1/0/7.0 up up inet 10.0.7.10/24
multiservice
ge-1/0/8 up up
ge-1/0/8.0 up up inet 10.0.8.10/24
multiservice
ge-1/0/9 up up
ge-1/0/9.0 up up inet 10.0.9.10/24
multiservice
ge-1/1/0 up up
ge-1/1/0.0 up up inet 10.1.0.11/24
multiservice
ge-1/1/1 up up
ge-1/1/1.0 up up inet 10.1.1.11/24
multiservice
ge-1/1/2 up up
ge-1/1/2.0 up up inet 10.1.2.11/24
multiservice
ge-1/1/3 up up
ge-1/1/3.0 up up inet 10.1.3.11/24
multiservice
ge-1/1/4 up up
ge-1/1/4.0 up up inet 10.1.4.11/24
multiservice
ge-1/1/5 up up
ge-1/1/5.0 up up inet 10.1.5.11/24
multiservice
ge-1/1/6 up up
ge-1/1/6.0 up up inet 10.1.6.11/24
multiservice
ge-1/1/7 up up
ge-1/1/7.0 up up inet 10.1.7.11/24
multiservice
ge-1/1/8 up up
ge-1/1/8.0 up up inet 10.1.8.11/24
multiservice
ge-1/1/9 up up
ge-1/1/9.0 up up inet 10.1.9.11/24
multiservice
...
The show interfaces terse command displays the four
SONET/SDH interfaces for the MIC installed in MIC slot 0/1 as coc3-0/2/0 through co3-2/0/3.
user@host> show interfaces terse Interface Admin Link Proto Local Remote ... coc3-0/2/0 up up coc1-0/2/0:1 up up coc3-0/2/1 up up coc1-0/2/1:1 up up coc3-0/2/2 up up coc1-0/2/2:1 up up coc3-0/2/3 up up coc1-0/2/3:1 up up ...
