10-Gigabit Ethernet OTN MIC with SFP+ (24 Ports)

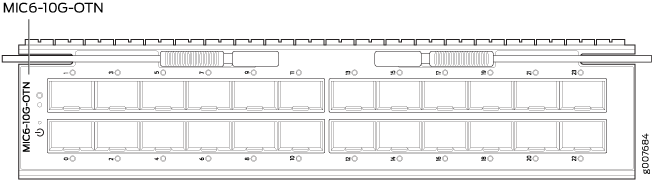

MIC-10G-OTN module layout showing ports for 10 Gigabit Optical Transport Network connectivity in networking equipment.

Software release

Description

  • Twenty-four 10-Gigabit optical transport network (OTN) ports for transport of 10-Gigabit Ethernet (10GBASE-R) traffic

  • Power requirement: 1.5 A @ 52 V (84 W)

  • Weight: 3.4 lb (1.54 kg)

  • Model number: MIC6-10G-OTN

  • Name in the CLI: 24x10GE OTN

Hardware features

  • High-performance throughput on each port at speeds up to 10 Gbps

  • LAN-OTU2e mode (G.Sup43, 7.1) at 11.09 Gbps

  • WAN-OTU2 mode (G.Sup43, 6.1) at 10.70 Gbps

  • Supports LOS-squelch, enabling Synchronous Ethernet fast-clock-failover on a port-down event

  • Provides IEEE 1588 time-stamping at physical interface for improved accuracy

  • Maximum transmission units (MTUs) of up to 9192 bytes

Software features

  • OTN support for 10-Gigabit Ethernet interface

  • Compliant with ITU-T specifications

  • Transparent transport of 10-Gigabit Ethernet signals with optical channel transport unit 2 (OTU2/OTU2e) framing

  • Optical diagnostics and related alarms

  • Configurable LAN-PHY, WAN-PHY, or OTN mode options per port

  • Virtual Router Redundancy Protocol (VRRP) support

  • IEEE 802.1Q VLAN support

  •  IEEE 802.1ad support

  • Remote monitoring (RMON) EtherStats

  • Source MAC learning

  • MAC accounting and policing—Dynamic local address learning of source MAC addresses

  • In-service software upgrade (Unified ISSU)

Cables and connectors
Tip:

You can use the Hardware Compatibility Tool to find information about the pluggable transceivers supported on your Juniper Networks device.

The list of supported transceivers for the MX Series is located at https://pathfinder.juniper.net/hct/category/#catKey=100001&modelType;=All&pf;=MX+Series.

LEDs

OK/FAIL LED, one bicolor:

  • Green—MIC is functioning normally.

  • Yellow—MIC is coming online.

  • Red—MIC has failed.

LINK LED, one bicolor per port:

  • Off—No link.

  • Green—Link is up.

  • Yellow—Link is disabled.

The ports are labeled:

  • Port [0] through Port [23]
