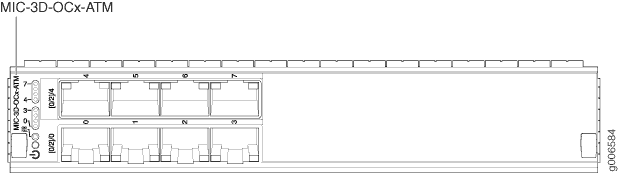

Figure 1: 8-Port ATM MIC with SFP8-Port ATM MIC with SFP

Software release

  • Junos 12.1 and later

For information on which MPCs support this MIC, see MIC/MPC Compatibility. For information on which MICs are supported on MX Series routers, see MICs Supported by MX Series Routers.


  • Rate-selectable using one of the following rates:

    • 8-port OC3

    • 2-port OC12

  • Power requirement: 0.73 A @ 48 V (35 W)

  • Weight: 1.2 lb (0.54 kg)

  • Model number: MIC-3D-8OC3-2OC12-ATM

  • Name in the CLI: 3D 80C3 20C12 ATM

Hardware features

  • High-performance parsing of SONET/SDH frames

  • Packet segmentation and reassembly (SAR) management and output port queuing

  • Packet buffering, Layer 2 parsing

  • Line rate throughput for each port

Software features

  • Circuit cross-connect (CCC) for leveraging ATM access networks

  • User-configurable virtual circuit (VC) and virtual path (VP) support

  • Support for idle cell or unassigned cell transmission

  • OAM fault management processes alarm indication signal (AIS), remote defect indication (RDI) cells, and loop cells

  • Point-to-point and point-to-multipoint mode Layer 2 counters per VC and per VP

  • Local and remote loopback

  • Simple Network Management Protocol (SNMP):

    • Management Information Base (MIB) 2 (RFC 1213)

    • ATM MIB (RFC 1695)


    • PWE3 MIB (RFC 5603)

    • PW-ATM-MIB (RFC 5605)

    • PW-FRAME-MIB (RFC 5601)

    • MIB for CoS

  • Unspecified bit rate (UBR), non-real-time variable bit rate (VBR), and constant bit rate (CBR) traffic shaping

  • Per-VC or per-VP traffic shaping

  • Support for F4 OAM cells (AIS, RDI, Loopback, and Continuity Check)

  • Support for F5 OAM cells (AIS, RDI, Loopback, and Continuity Check)

  • Support for 16 bit VCI range

  • Encapsulations:

    • atm-ccc-cell-relay (Junos 12.1 and later)

    • atm-ccc-vc-mux (Junos 12.1 and later)

    • atm-snap (Junos 12.2 and later)

    • atm-vc-mux (Junos 12.2 and later)

    • atm-tcc-snap (Junos 13.3 and later)

    • atm-tcc-vc-mux (Junos 13.3 and later)

    • vlan-vci-ccc (Junos 16.1 and later)

    • ether-over-atm-llc

    • ppp-over-ether-over-atm-llc

    • atm-ppp-vc-mux


    Inline MLPPP is not supported on this MIC.

Cables and connectors


You can use the Hardware Compatibility Tool to find information about the pluggable transceivers supported on your Juniper Networks device.

The list of supported transceivers for the MX Series is located at;=All&pf;=MX+Series.


OK/FAIL LED, one bicolor:

  • Green—MIC is functioning normally.

  • Red—MIC has failed.

Link LED, one green per port:

  • Off—No link.

  • On steadily—Link is up.

  • Blinking—Online with alarms for remote failures

  • Blinking rapidly—Active with a local alarm; router has detected a failure

Alarms, errors, and events

  • Alarm indication signal—line (AIS-L)

  • Alarm indication signal—path (AIS-P)

  • Bit error rate—signal degrade (BERR-SD)

  • Bit error rate—signal fail (BERR-SF)

  • Loss of cell delineation (LOC)

  • Loss of frame (LOF)

  • Loss of pointer (LOP-P)

  • Loss of signal (LOS)

  • Payload mismatch (PLM-P)

  • Payload unequipped (unequipped STS at path level) (UNEQ-P)

  • Remote defect indication—line (RDI-L)

  • Remote defect indication—path (RDI-P)

  • Error detection:

    • Bit interleaved parity errors B1, B2, B3

    • Errored seconds (ES-S, ES-L, ES-P)

    • Far-end bit errors, remote error indication—line (REI-L), far-end line coding violations (CV-LFE)

    • Far-end bit errors, remote error indication—path (REI-P), far-end path coding violations (CV-PFE)

    • Far-end errored seconds (ES-LFE, ES-PFE)

    • Far-end severely errored seconds (SES-LFE, SES-PFE)

    • Far-end unavailable seconds (UAS-LFE, UAS-PFE)

    • Severely errored framing (SEF)

    • Severely errored framing seconds (SEFS-S)

    • Severely errored seconds (SES-S, SES-L, SES-P)

    • Unavailable seconds (UAS-L, UAS-P)


MIC-3D-8OC3-2OC12-ATM Revision 8 and Revision 22 are supported only by the following Junos OS releases:

  • Junos OS Release 12.3—12.3R9 and later

  • Junos OS Release 13.3—13.3R6 and later

  • Junos OS Release 14.1—14.1R4 and later

  • Junos OS Release 14.2—14.2R3 and later

  • Junos OS Release 15.1 and later

You must upgrade to a supported Junos OS release to use MIC-3D-8OC3-2OC12-ATM Revision 8 and Revision 22 and later.
