ME-X1-M Specifications

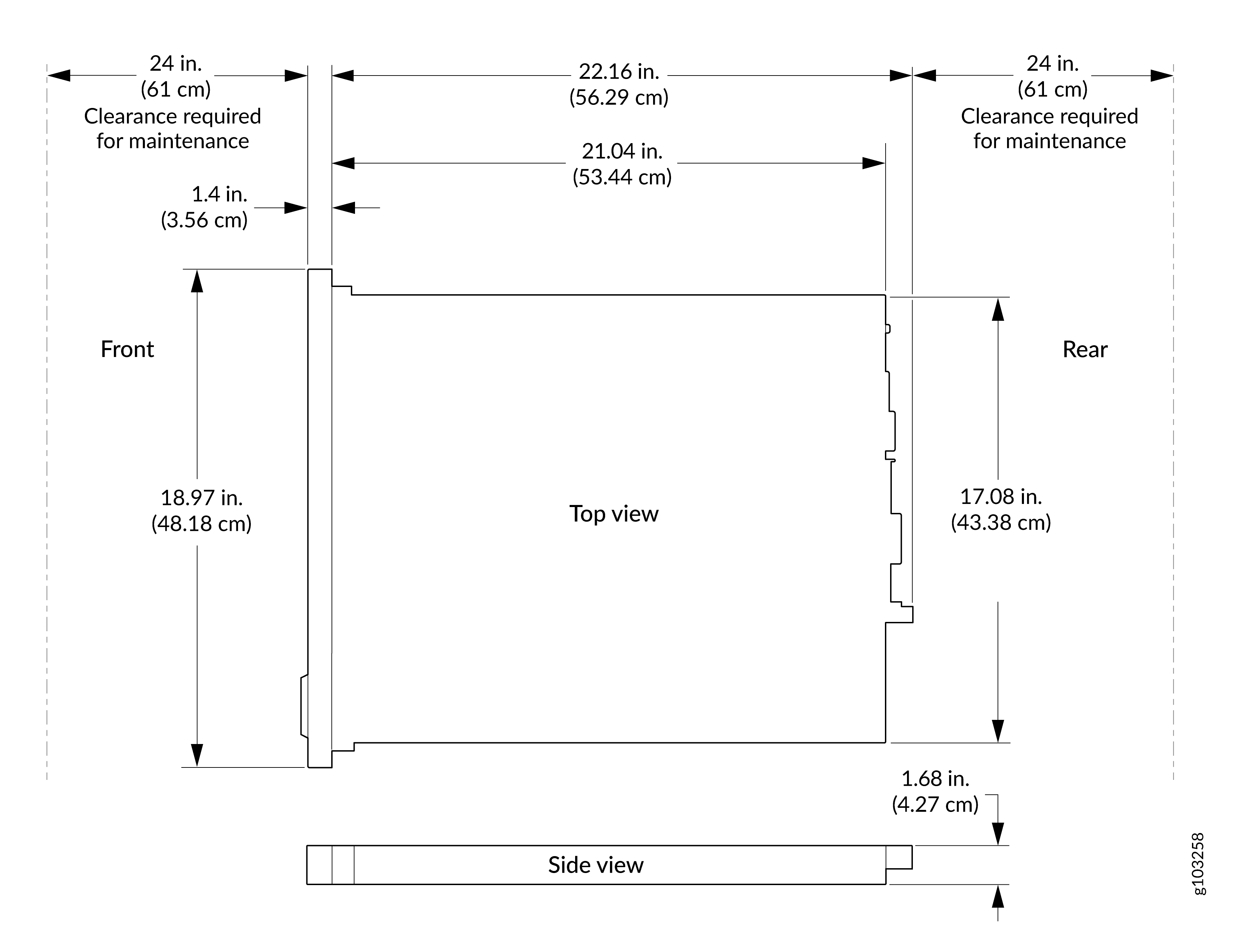

Figure 1: ME-X1-M Dimensions

ME-X1-M Dimensions

Table 1: ME-X1-M Physical Specifications
Parameter	Value
Form Factor	1 U
Height	1.68 in. (4.27 cm)
Width	18.97 in. (48.18 cm)
Depth	22.16 in. (56.29 cm)
Weight	27.51 lb (12.48 kg)
Power supplies	Single, cabled, 450 W
Cooling system	Multiple internal fans

Table 2: ME-X1 Network Capacity
Parameter	Value
Maximum APs	500
Maximum clients	5000
Maximum throughput	4 Gbps
Data interfaces	Quad-Port 1GbE RJ-45
Management interfaces	Dual-Port 1GbE RJ-45

Table 3: ME-X1 Power Specifications
Parameter	Value
Maximum power supply output	450 W
Operating voltage	100-240 VAC, autoranging
Operating frequency	50 to 60 Hz
Maximum power draw	387.5 W
Idle power draw	134 W
Maximum heat dissipation	1725 BTU/hour

Table 4: ME-X1 Environmental Specifications
Parameter	Value
Operating temperature	50 °F through 95 °F (10 °C through 35 °C)
Ambient temperature restriction	86 °F (30 °C)
Mean time between failures (MTBF)	170,000 hours
