Installing the JSA7800 Appliance
Place the shipping container on a flat surface and carefully remove the hardware components.
To install the JSA7800 appliance:
- Mount the JSA appliance in your server rack using the attached mounting brackets. See Installing the JSA7800 Appliance Using Front-and-Rear-Mounting Flush to a Rack.
- Plug the power cords into each of the AC receptacle on

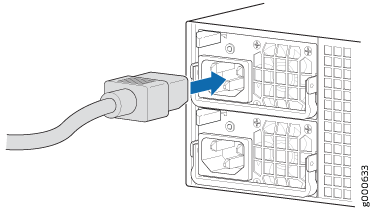

the rear panel. See Figure 1. Figure 1: Connecting the AC Power Cord
- Plug the other end of the power cords into the wall socket.
Plug each power cord into a separate power circuit to ensure that the device continues to receive power if one of the power circuits fails.
- Plug the Ethernet cable into the Ethernet port on the
back panel.
When you turn on the power, the internal port uses two LEDs to indicate the LAN connection status, as shown in Figure 2.
Figure 2: LEDs on the JSA78001—Power LED4—Hard Drive LED2—eno2 LED5—eno1 LED3—Alert/Power fail LED6—Information LED - Plug a RS-232 (DB-9 F/F) cable into the console port.
This cable is a console cable and DB-9 connector with 1-8 pinouts.
The connector is shipped with your JSA7800 appliance.
Table 1 describes the details of DB-9 console port pinouts for the JSA7800 appliance.
Table 1: DB-9 Console Connector Pinouts for the JSA7800 Appliance Pin
Signal
Description
1
DCD
Data Carrier Detect
2
RxD
Receive Data
3
TxD Output
Transmit Data
4
DTR Output
Data Terminal Ready
5
GND
Chassis Ground
6
DSR Input
Data Set Ready
7
RTS Output
Request to Send
8
CTS Input
Clear to Send
9
RI
Ring Indicator
10
NC
Not Connected
- Push the power button on the front panel.
The power LED below the power button turns on.
