EX4100-H-12T Switch Model

This topic provides details of the EX4100-H-12T switch model and its specifications, information on the number and types of ports in each models, and the components in the shipment for each model.

The EX4100-H-12T switch model is a non-PoE device with fanless convection cooling.

EX4100-H-12T

Components on the Front and Rear Panels

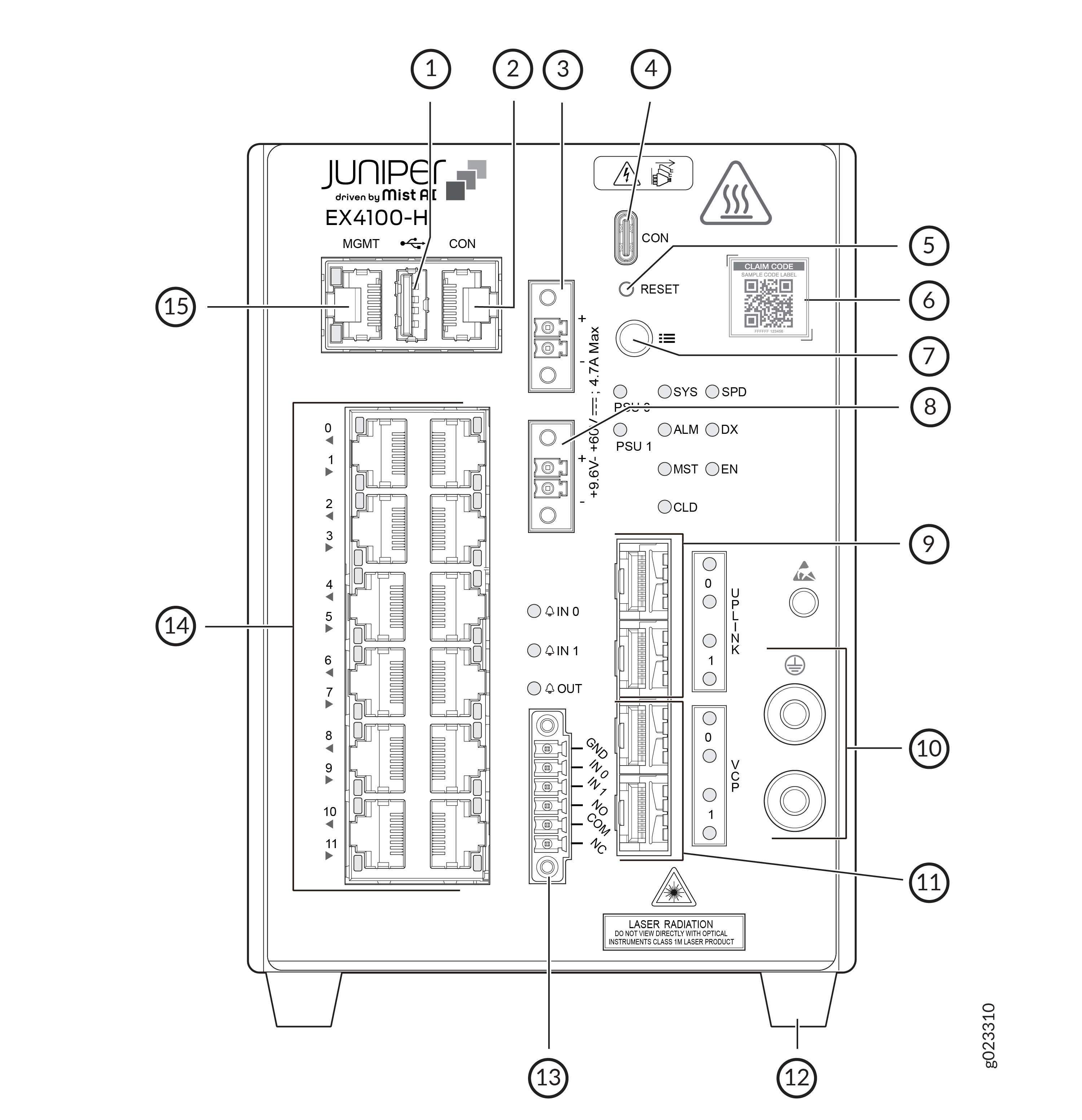

Figure 1: Front Panel of the EX4100-H-12T Switch Front Panel of the EX4100-H-12T Switch
Table 1: Components on the EX4100-H-12T Front Panel
Callout Item

1

USB 2.0 Type-A host port

2

RJ-45 RS232 console port

3

PSU connector

4

USB Type-C console port

5

Reset button

6

Claim code label

7

Mode button

8

PSU connector

9

Two 1/10 Gbps SFP/SFP+ MACsec-enabled uplink ports

10

Protective ground terminal

11

Two 1/10 Gbps SFP/SFP+ Virtual Chassis ports (VCPs)

12

Footpad

13

Dry contact alarm ports

14

Twelve 10M/100M/1 Gbps non-PoE BASE-T ports

15

RJ-45 management port

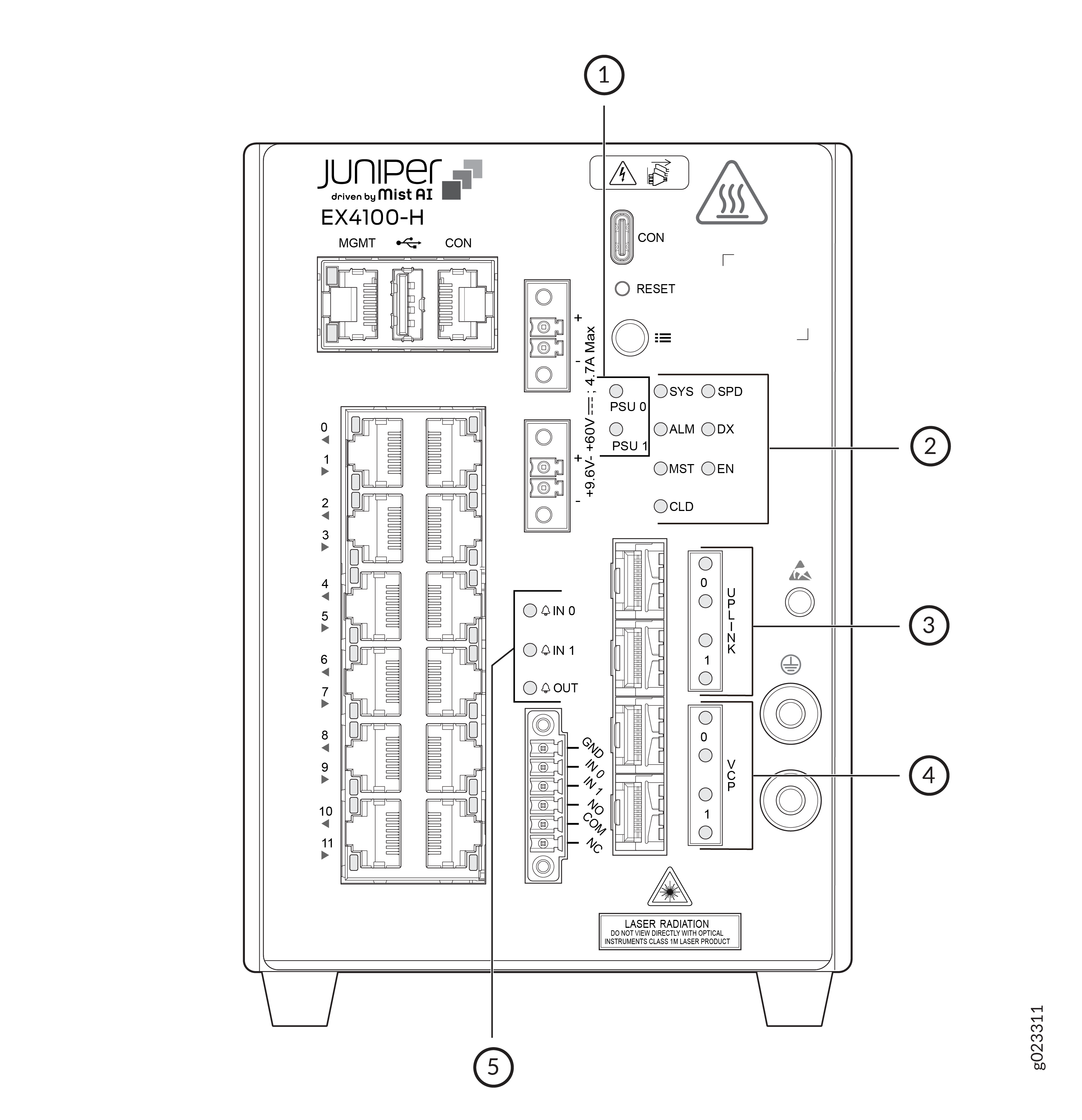

Figure 2: Components on the Front Panel of an EX4100-H-12T Switch (LEDs) Components on the Front Panel of an EX4100-H-12T Switch (LEDs)
Table 2: Components on Front Panel of an EX4100-H-12T Switch (LEDs)
Callout Item

1

PSU LEDs

2

Port mode and chassis status LEDs

  • Chassis status LEDs (labeled SYS, ALM, MST, and CLD)

  • Port mode LEDs (labeled SPD, DX, EN)

3

LEDs on the 10 Gbps SFP+ MACsec-enabled uplink ports

4

LEDs on the 10 Gbps SFP+ VCPs

5

LEDs of the Dry Contact Alarm

EX4100-H-12T Power System and Cooling System

Table 3: EX4100-H-12T Power System and Cooling System Specifications
Component Slots Shipped

Power supplies

2 PSU connectors to connect up to external DC PSUs

NA

Fan modules

NA. Fanless model. Convection cooled

NA
