BT11 Components and Specifications
Figure 1 shows the components on the BT11 access point (AP).

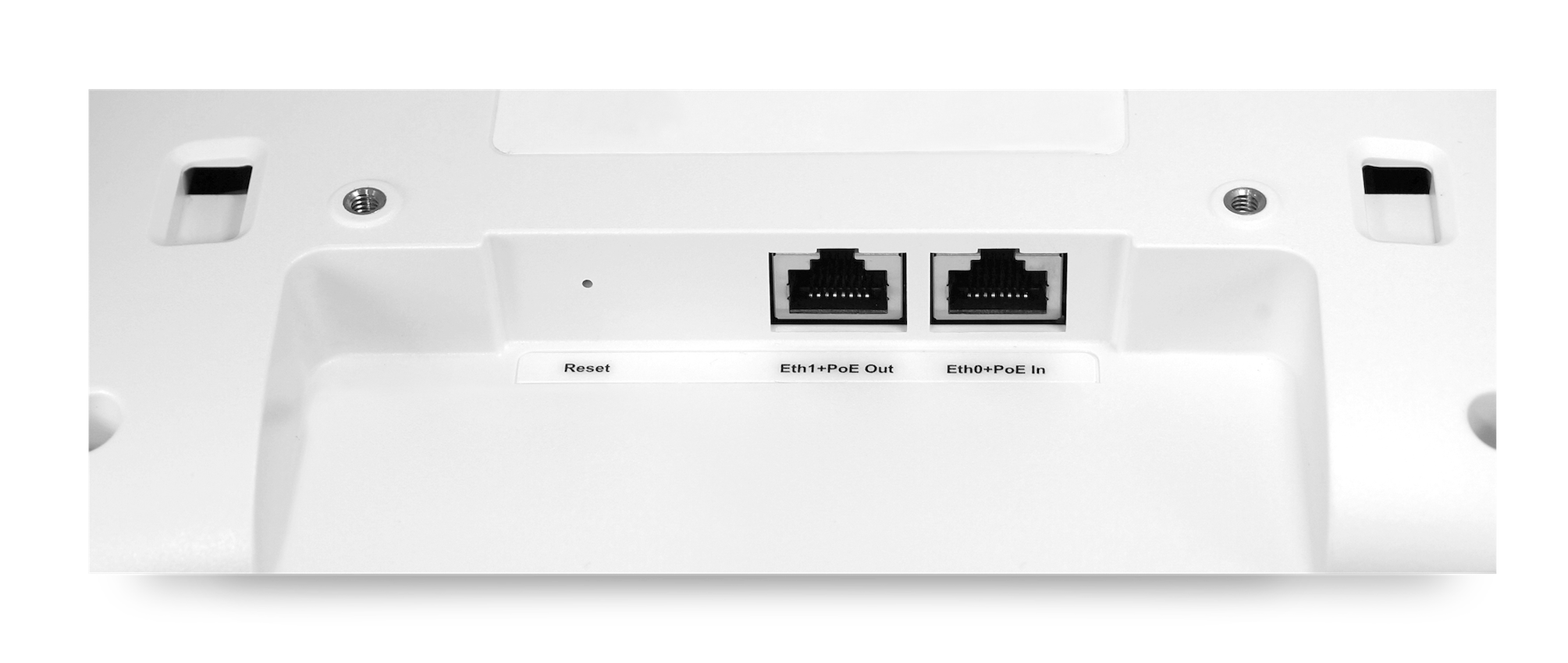

Figure 1: BT11 Components
| Component | Description |
|---|---|
| Reset | A pinhole reset button that you can use to reset the AP configuration to the factory default. |
| Eth1+PoE Out | 10/100/1000BASE-T RJ-45 port that can provide 48-V PoE output |
| Eth0+PoE In | 10/100/1000BASE-T RJ-45 port that supports an 802.3at PoE-powered device |
| Kensington lock slot on the side of the AP | Slot for a Kensington-style lock that you can use to secure the AP. |
| Status LED | A multicolor status LED to indicate the status of the AP and to help troubleshoot issues. See Troubleshoot a Juniper Access Point. |
For BT11 specifications, see the BT11 Datasheet.
