AP12 Components and Specifications

Table 1 shows the components on the AP12.

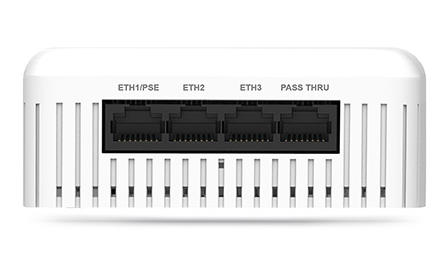

Figure 1: AP12 Components Back panel of a networking device with four Ethernet ports labeled ETH1/PSE for PoE, ETH2, ETH3, and PASS THRU.

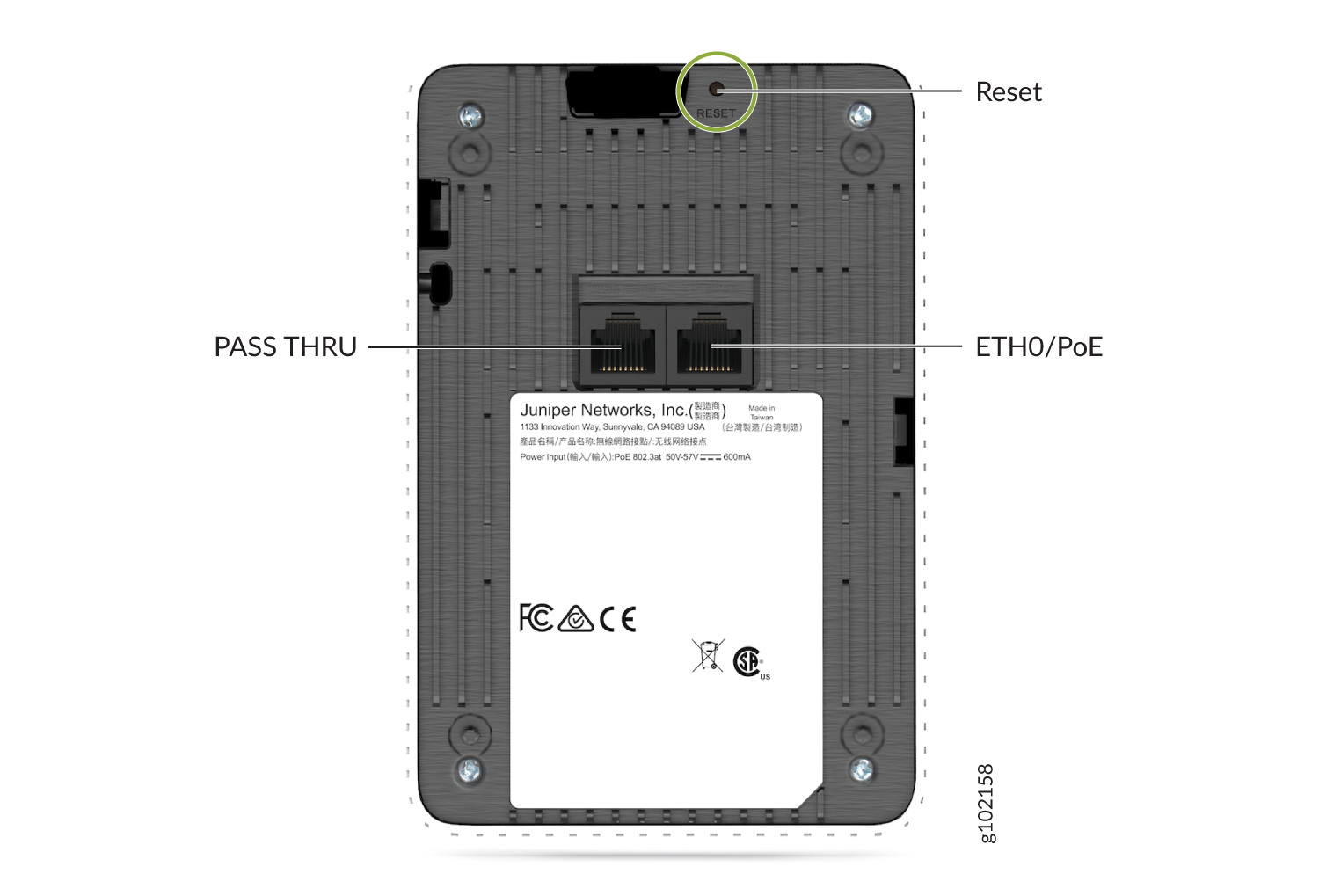

Back panel of Juniper Networks device with Reset button, ETH0/PoE port, PASS THRU port, and regulatory markings.
Table 1: AP12 Components
Component Description
ETH1/PSE 10/100/1000Base-T RJ-45 port

Functions as a Class 2 Power over Ethernet (PoE) output port if you provide 802.3at PoE input on the ETH0 port
ETH2 10/100/1000BASE-T RJ-45 port
ETH3 10/100/1000BASE-T RJ-45 port
PASS THRU Passive RJ-45 passthrough port
ETH0 + POE 10/100/1000BASE-T RJ-45 port that supports an 802.3at PoE-powered device
RESET A pinhole reset button that you can use to reset the AP configuration to the factory default. See Reset an AP to the Factory-Default Configuration.
Status LED A multicolor status LED to indicate the status of the AP and to help troubleshoot issues. See Troubleshoot a Juniper Access Point.
Figure 2: Status LED on the AP12 Back panel of a networking device with four labeled Ethernet ports and a highlighted LED indicator.

For AP12 specifications, see the AP12 Datasheet.
