Mount an Access Point on a Pole (Flush Mount)

The mounting procedures differ by the mounting bracket used. The various mounting brackets and their supported access points (APs) are listed below:

  • APOUTBR-FM: AP61 and AP63.

  • APOUTBR-FM2: AP64 and AP66.

Mount an Access Point Using the APOUTBR-FM Bracket

Note:

This topic is applicable to the following access points (APs): AP61 and AP63.

You will need the APOUTBR-FM mounting kit.

To mount an AP on a pole:
  1. Attach the hose clamps to the APOUTBR-FM flush mount bracket. Use a screwdriver to release the hose clamps and then pass the hose clamps through the slots on the flush mount bracket.

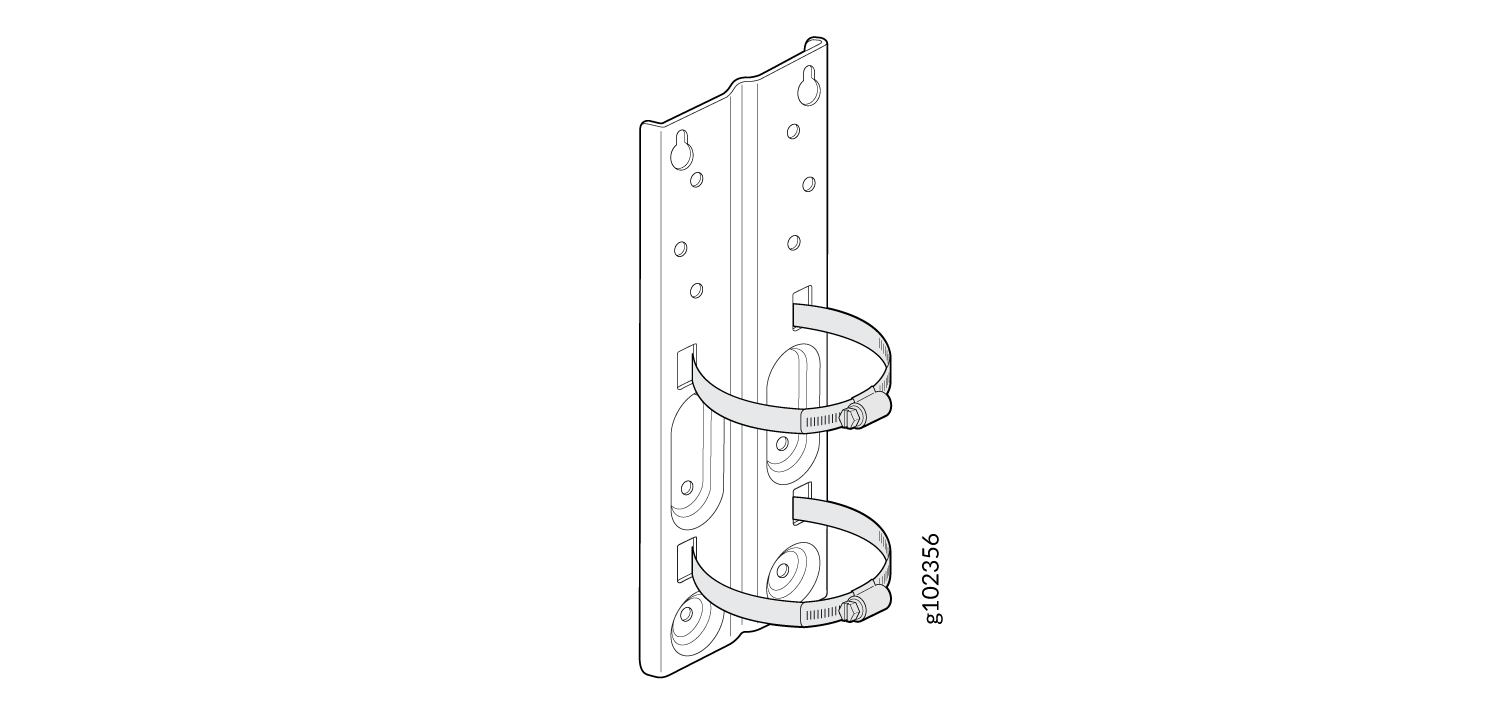

    Figure 1: Attach Hose Clamps to the APOUTBR-FM Flush Mount Bracket Technical drawing of a mounting bracket with two adjustable clamps for securing cylindrical objects to a flat surface.
  2. Attach the APOUTBR-FM flush mount bracket with the hose clamps to the AP by using the four screws, washers, and spring washers provided along with the AP.

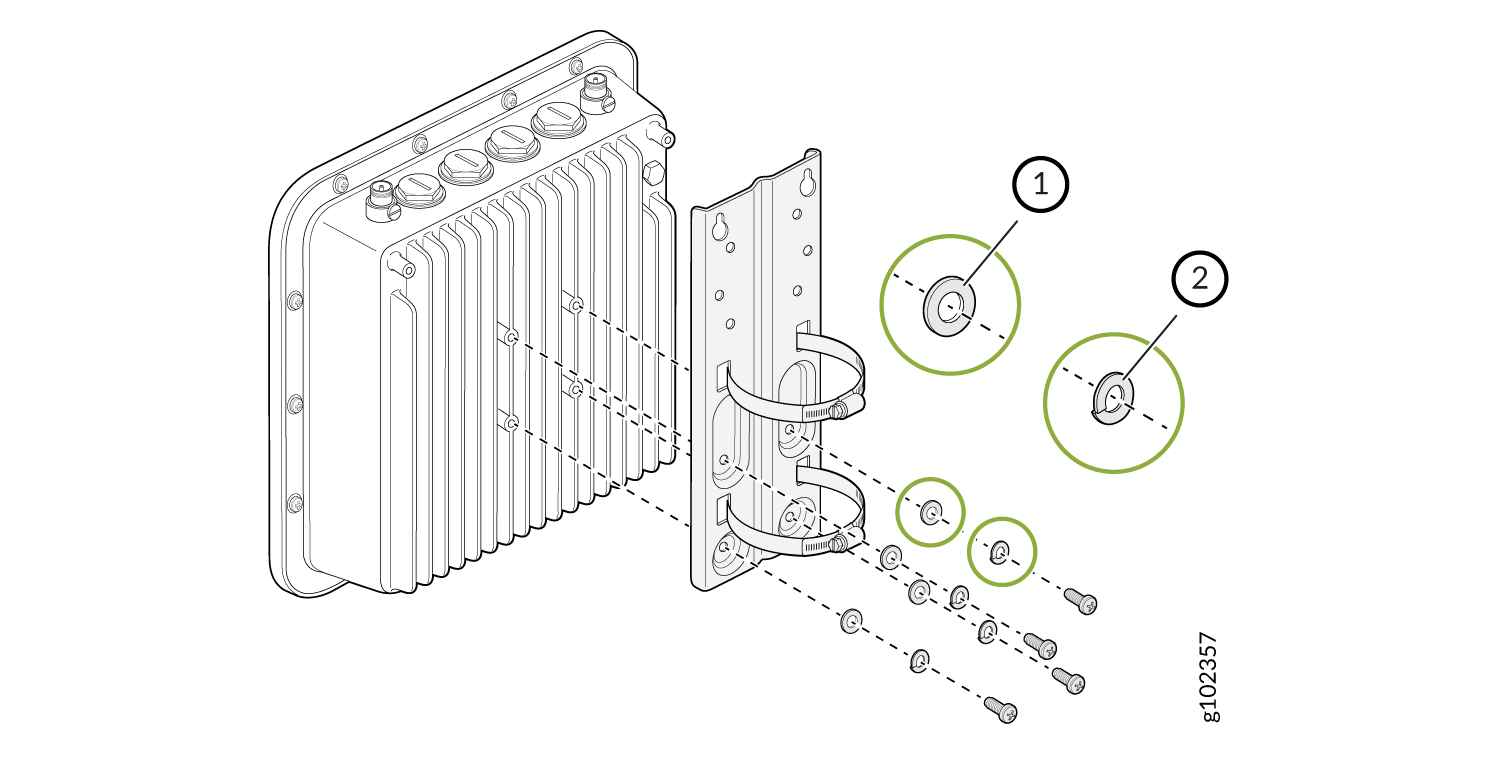

    Figure 2: Attach the APOUTBR-FM Flush Mount Bracket to the AP Exploded view diagram showing assembly of an electronic device with a heat sink on a mounting bracket using screws and washers.
    1—Washer 2—Spring washer
  3. Mount the AP on the pole. Wind the open end of the hose clamps around the pole and tighten the hose clamp screws by using a screwdriver. Tighten the screws until the AP and bracket assembly are secured in place.

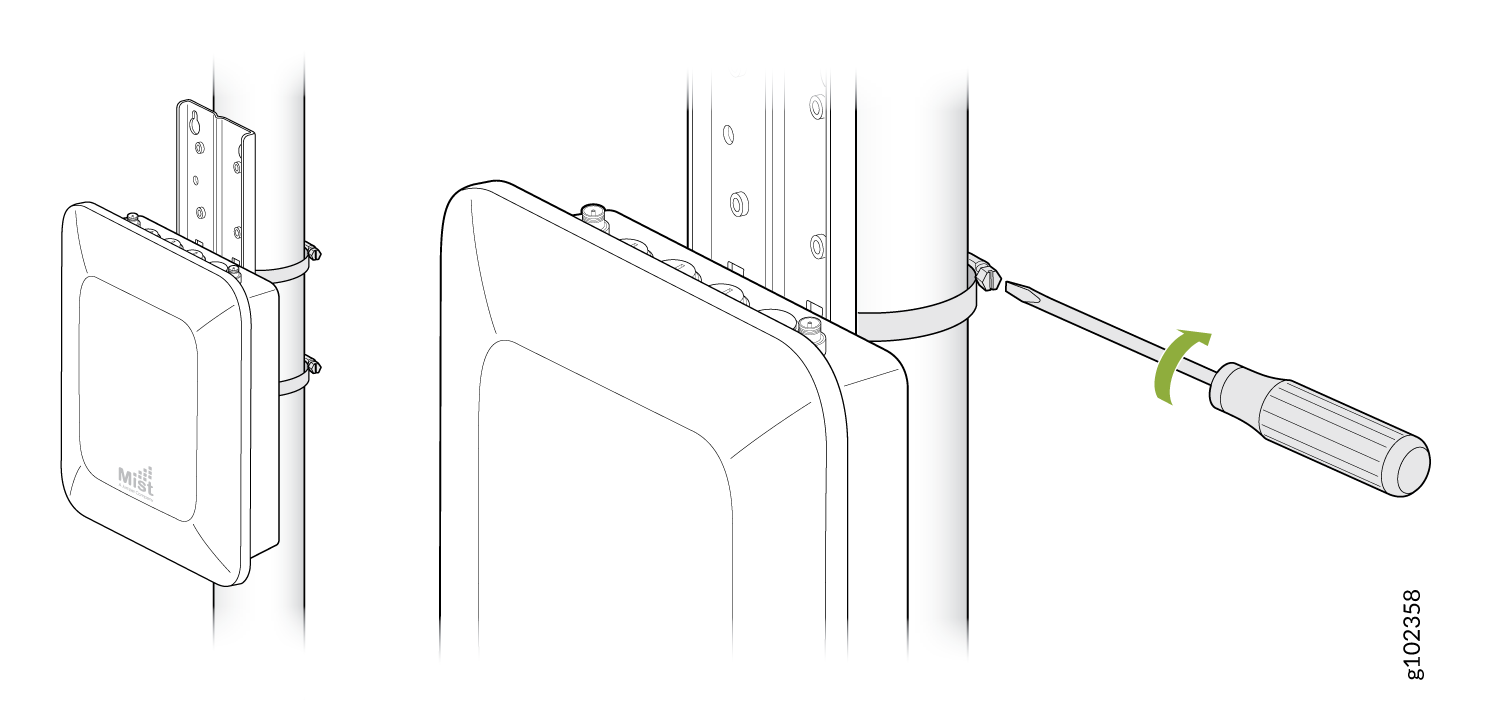

    Figure 3: Mount the AP on a Pole (Flush Mount) Mist wireless access point being installed on a pole with a mounting bracket and clamps using a screwdriver.

Mount an Access Point Using the APOUTBR-FM2 Bracket

Note:

This topic is applicable to the following access points (APs): AP64 and AP66.

You will need the APOUTBR-FM2 mounting kit.

To mount an AP on a pole:
  1. Attach the hose clamps to the APOUTBR-FM2 mounting bracket. Use a screwdriver to release the hose clamps and then pass the hose clamps through the slots in the flush mount bracket.

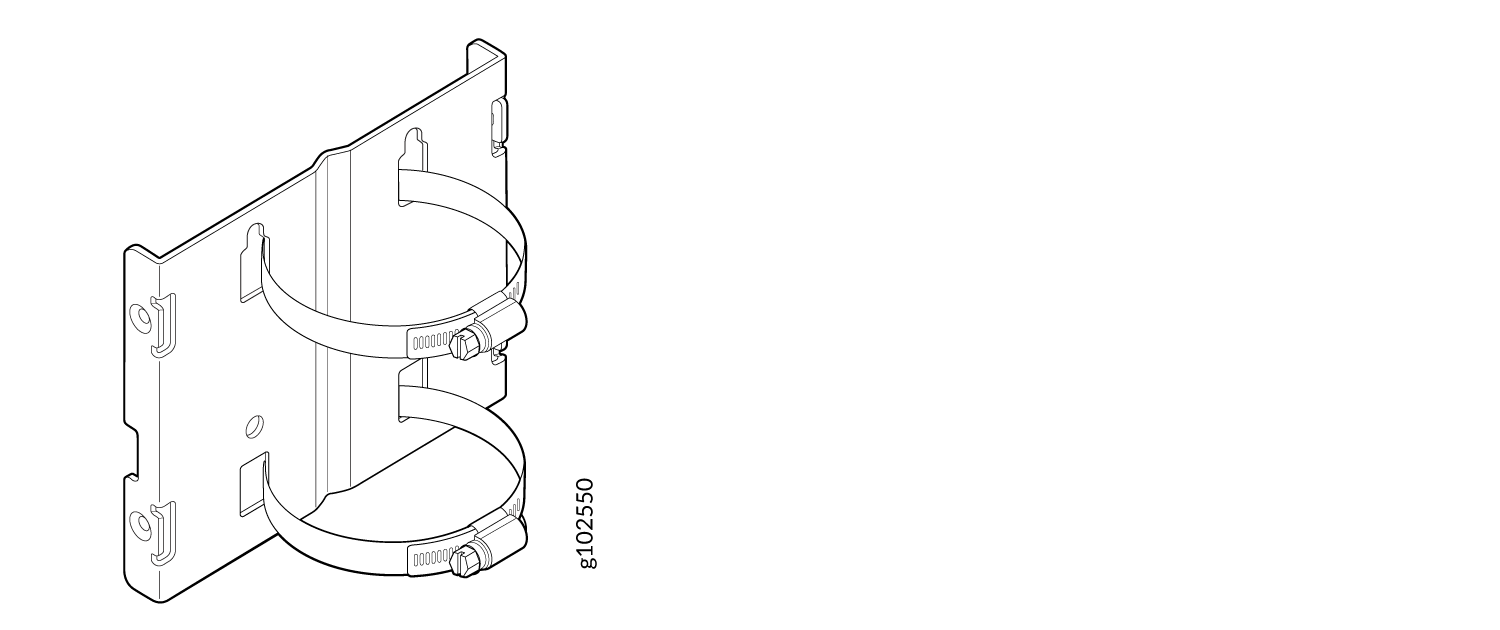

    Figure 4: Attach Hose Clamps to the APOUTBR-FM2 Mounting Bracket Mounting bracket with two circular clamps for securing cylindrical objects and part number g102550.
  2. Secure the APOUTBR-FM2 mounting bracket to the pole. Wind the open end of the hose clamps around the pole and tighten the hose clamp screws by using a screwdriver. Tighten the screws until the mounting bracket is secured in place.

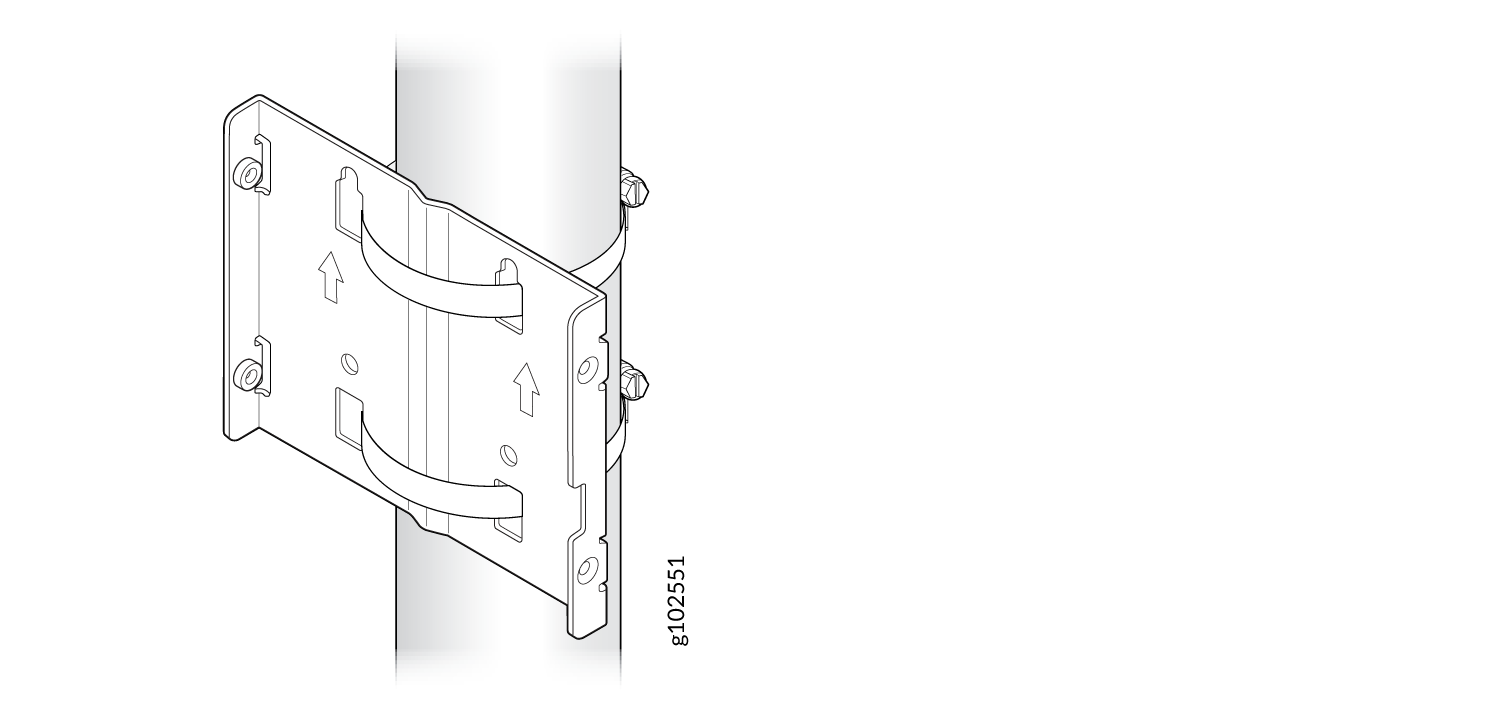

    Figure 5: Install the APOUTBR-FM2 Technical drawing of a mounting bracket attached to a cylindrical pole with bolts and straps, indicating installation direction.
  3. Attach the AP to the APOUTBR-FM2 mounting bracket using the four M6 screws, washers, and lock washers provided along with the AP.

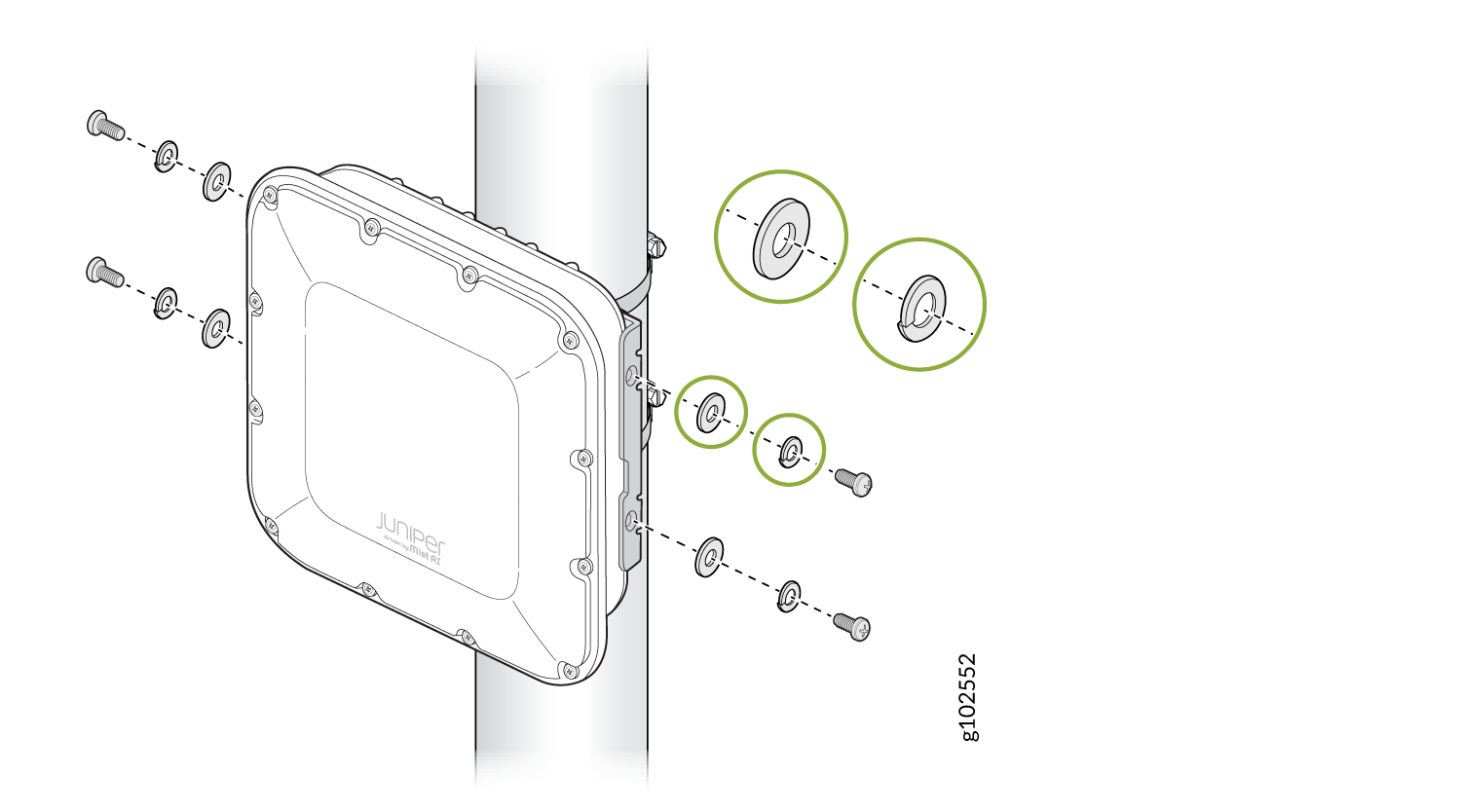

    Figure 6: Mount the AP on a Pole (Flush Mount) Juniper outdoor wireless access point installation on pole with exploded views of screws and washers for assembly.
