Mount an Access Point on a 16-mm Threaded Rod

The mounting procedures differ by the mounting bracket used. The various mounting brackets and their supported access points (APs) are listed below:

  • APBR-U and APBR-ADP-M16: AP24, AP27, AP34, AP36, AP37, AP45, and AP47.

  • APBR-M16: AP32, AP33, AP41, and AP43.

  • APBR-M16 and APBR-SW1: AP21 and BT11.

Mount an Access Point Using the APBR-U Bracket and APBR-ADP-M16 Adapter

Note:

This topic is applicable to the following access points (APs): AP24, AP27, AP34, AP36, AP37, AP45, and AP47.

You will need the APBR-U universal mounting bracket and the APBR-ADP-M16 bracket adapter.

To mount an AP on a 16-mm threaded rod:

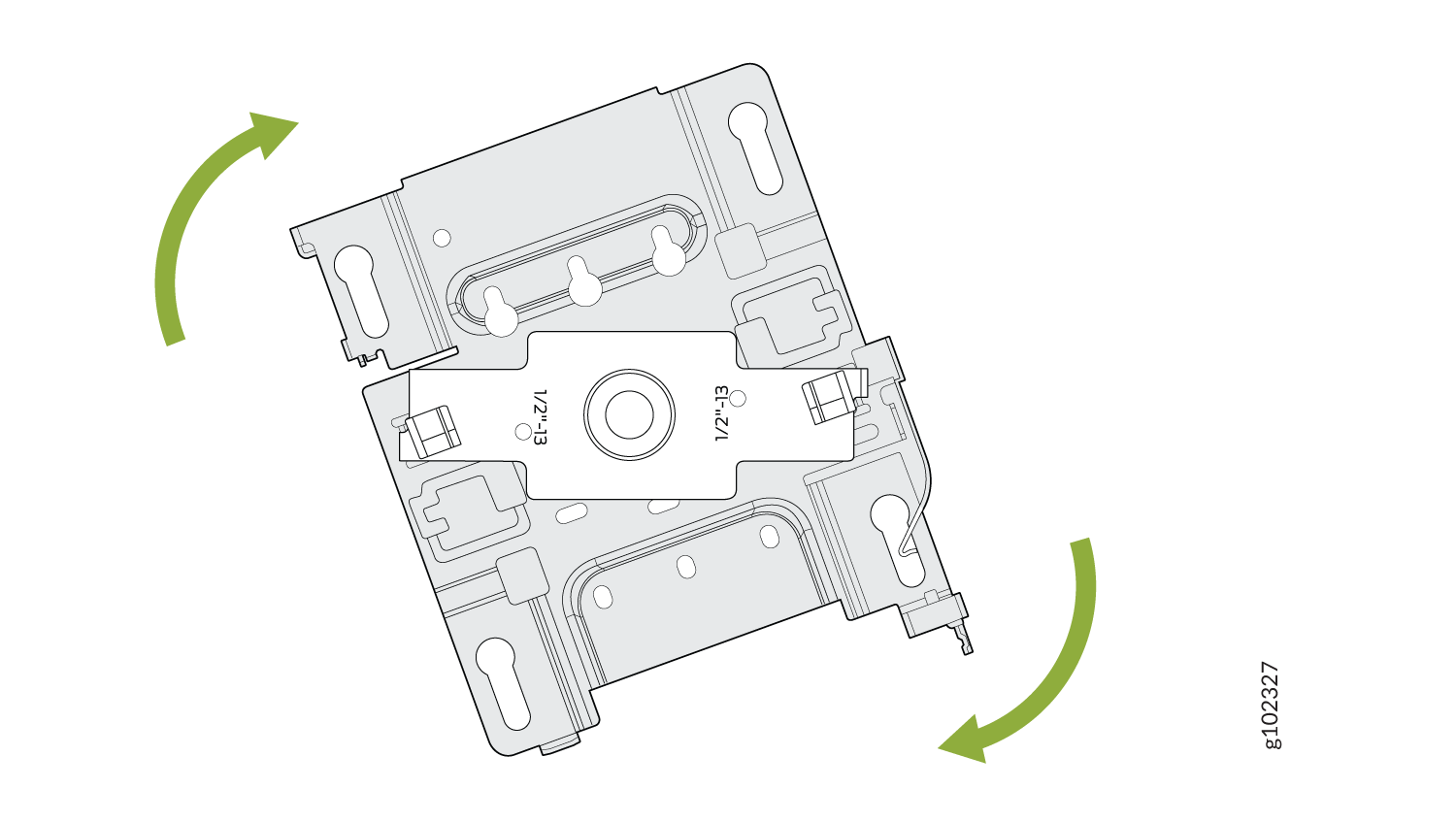

  1. Attach the APBR-ADP-M16 bracket adapter to the APBR-U mounting bracket. Rotate the bracket until you hear a distinct click, which indicates that the bracket is locked in place.
    Figure 1: Attach the APBR-ADP-M16 Bracket Adapter to the APBR-U Mounting Bracket Attach the APBR-ADP-M16 Bracket Adapter to the APBR-U Mounting Bracket
  2. Secure the adapter to the bracket using a screw.

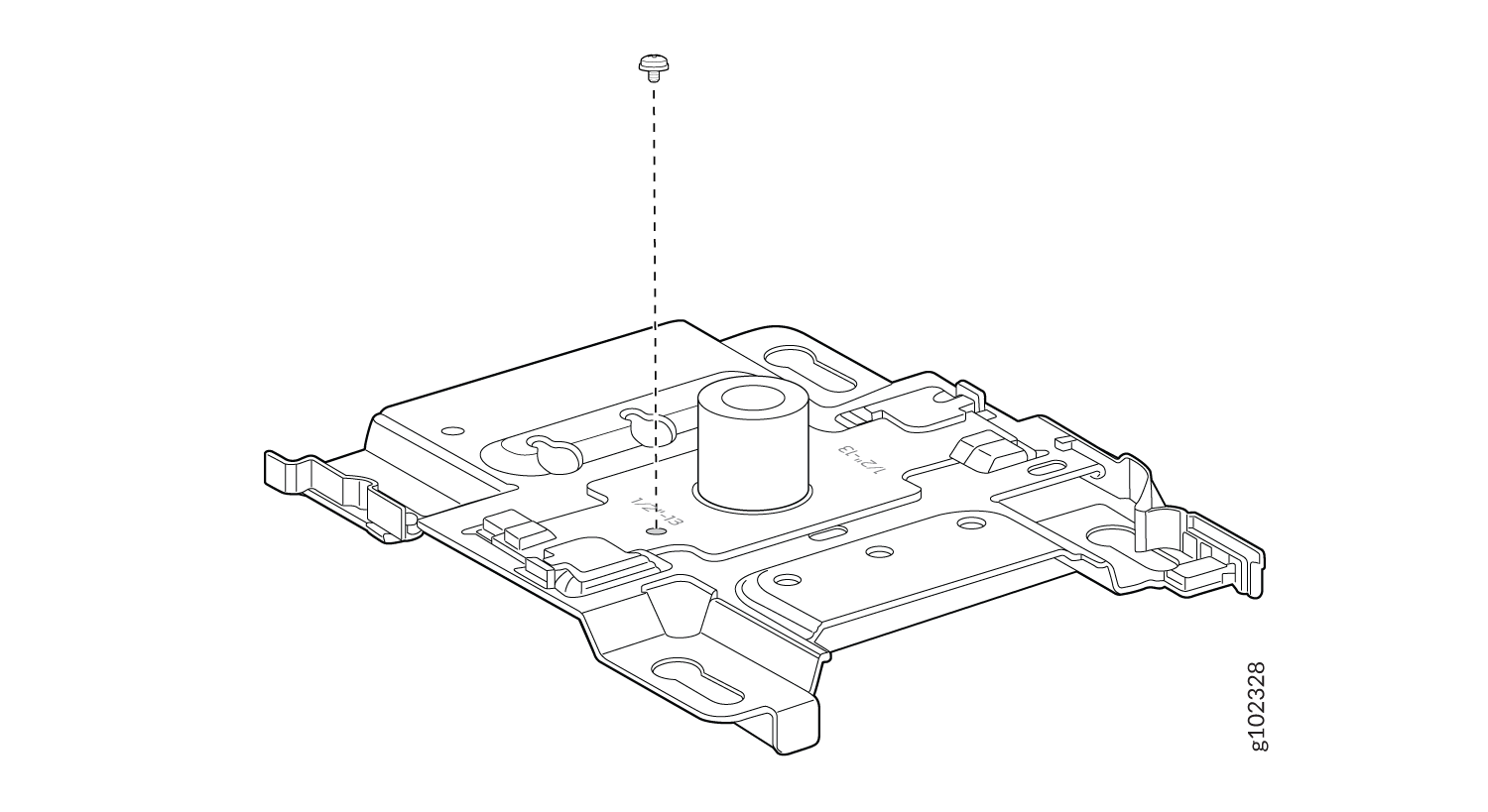

    Figure 2: Secure the APBR-ADP-M16 Bracket Adapter to the APBR-U Mounting Bracket Secure the APBR-ADP-M16 Bracket Adapter to the APBR-U Mounting Bracket
  3. Attach the bracket assembly (bracket and adapter) to the 16-mm threaded rod by using the lock washer and nut provided

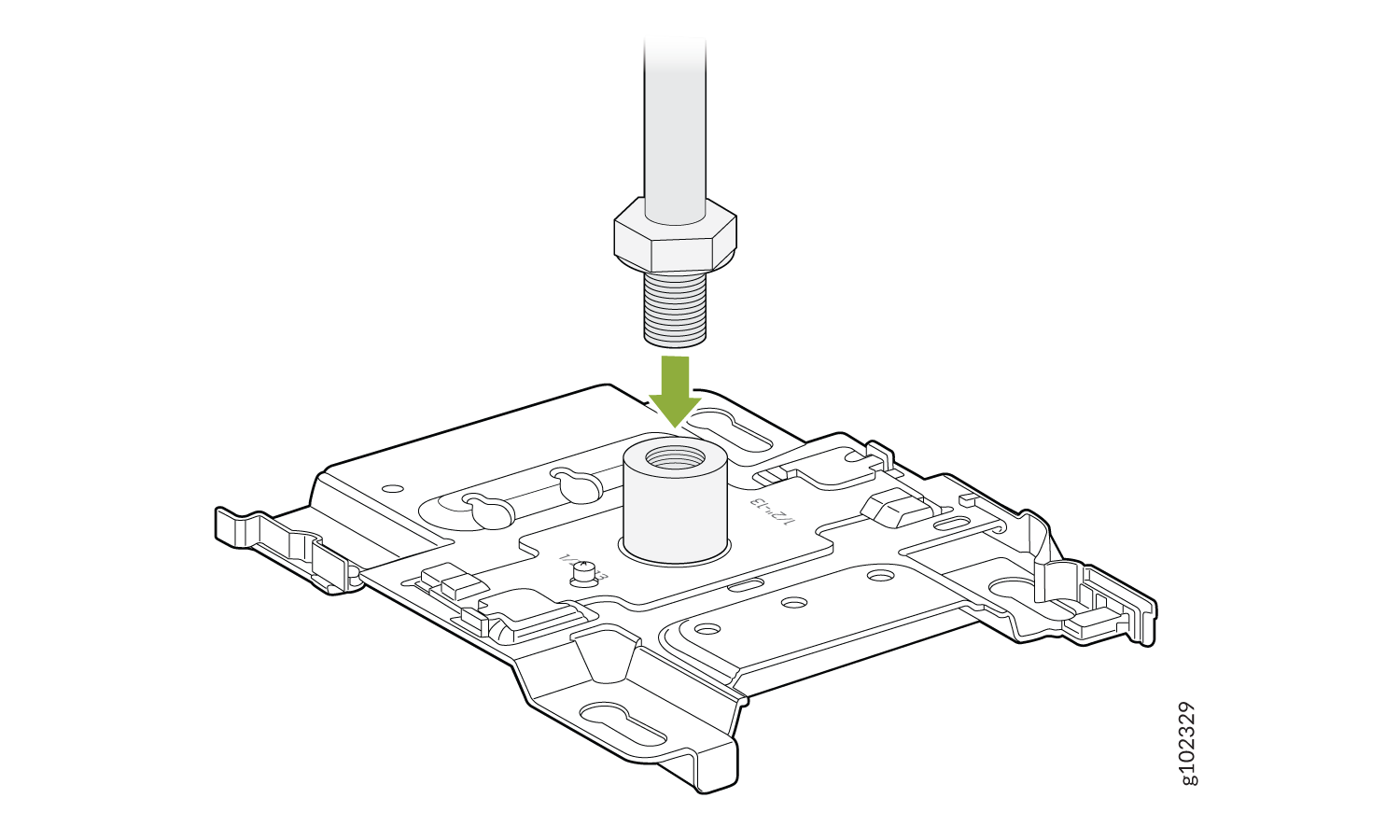

    Figure 3: Attach the APBR-ADP-M16 and APBR-U Bracket Assembly to the 16-mm Threaded Rod Attach the APBR-ADP-M16 and APBR-U Bracket Assembly to the 16-mm Threaded Rod
  4. Position the AP such that the shoulder screws on the AP engage with the keyholes of the mounting bracket. Slide and lock the AP in place.

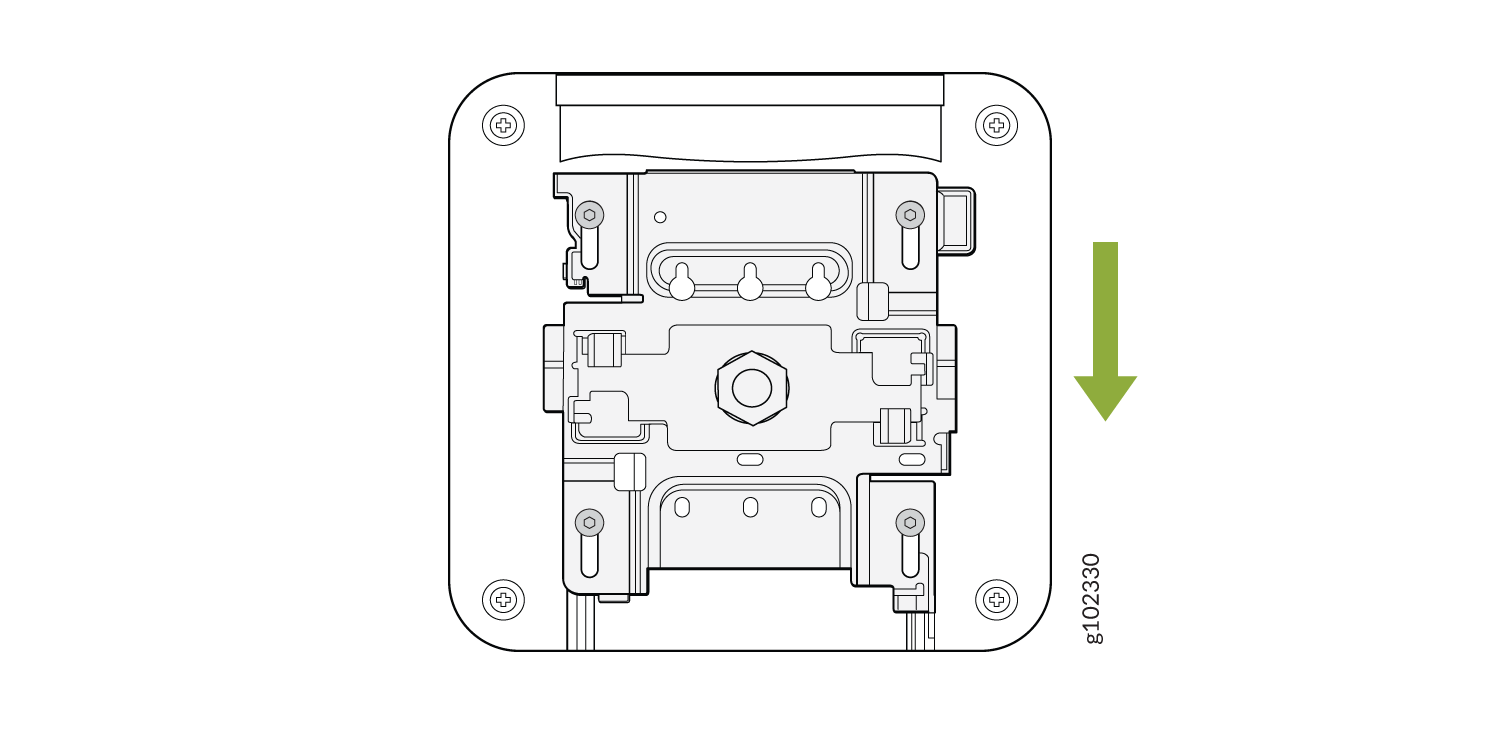

    Figure 4: Mount the AP on a 16-mm Threaded Rod Mount the AP on a 16-mm Threaded Rod

Mount an Access Point Using the APBR-M16 Bracket

Note:

This topic is applicable to the following access points (APs): AP32, AP33, AP41, and AP43.

You will need the APBR-M16 mounting bracket.

To mount an AP on a 16-mm threaded rod:
  1. Attach the APBR-M16 bracket to the threaded rod by using the lock washer and nut provided.

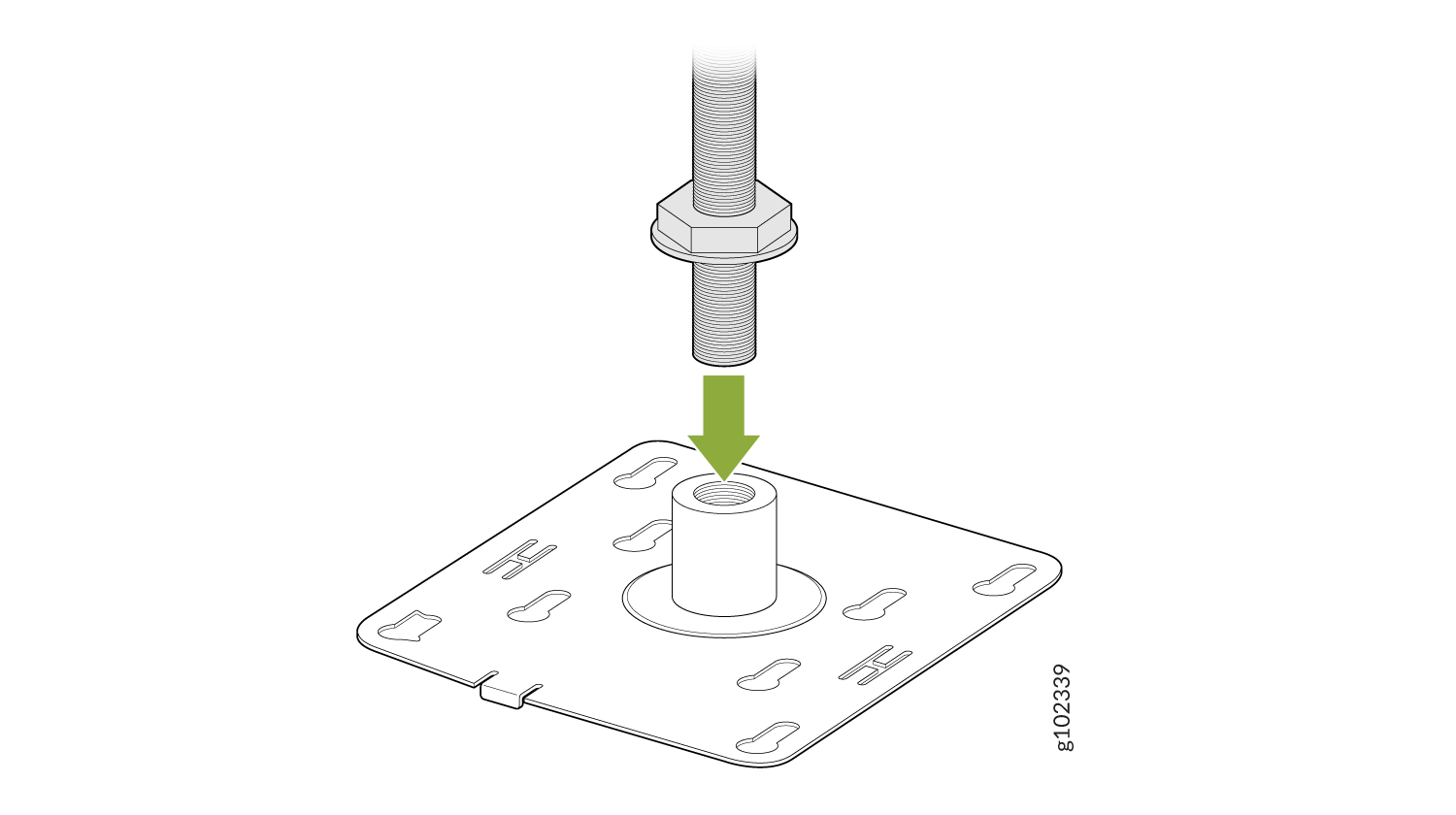

    Figure 5: Attach the APBR-M16 Bracket to a 16-mm Threaded Rod Attach the APBR-M16 Bracket to a 16-mm Threaded Rod
  2. Install four shoulder screws on the AP if the AP did not ship with shoulder screws installed.
  3. Position the AP such that the shoulder screws on the AP engage with the keyholes of the mounting bracket. Slide and lock the AP in place.

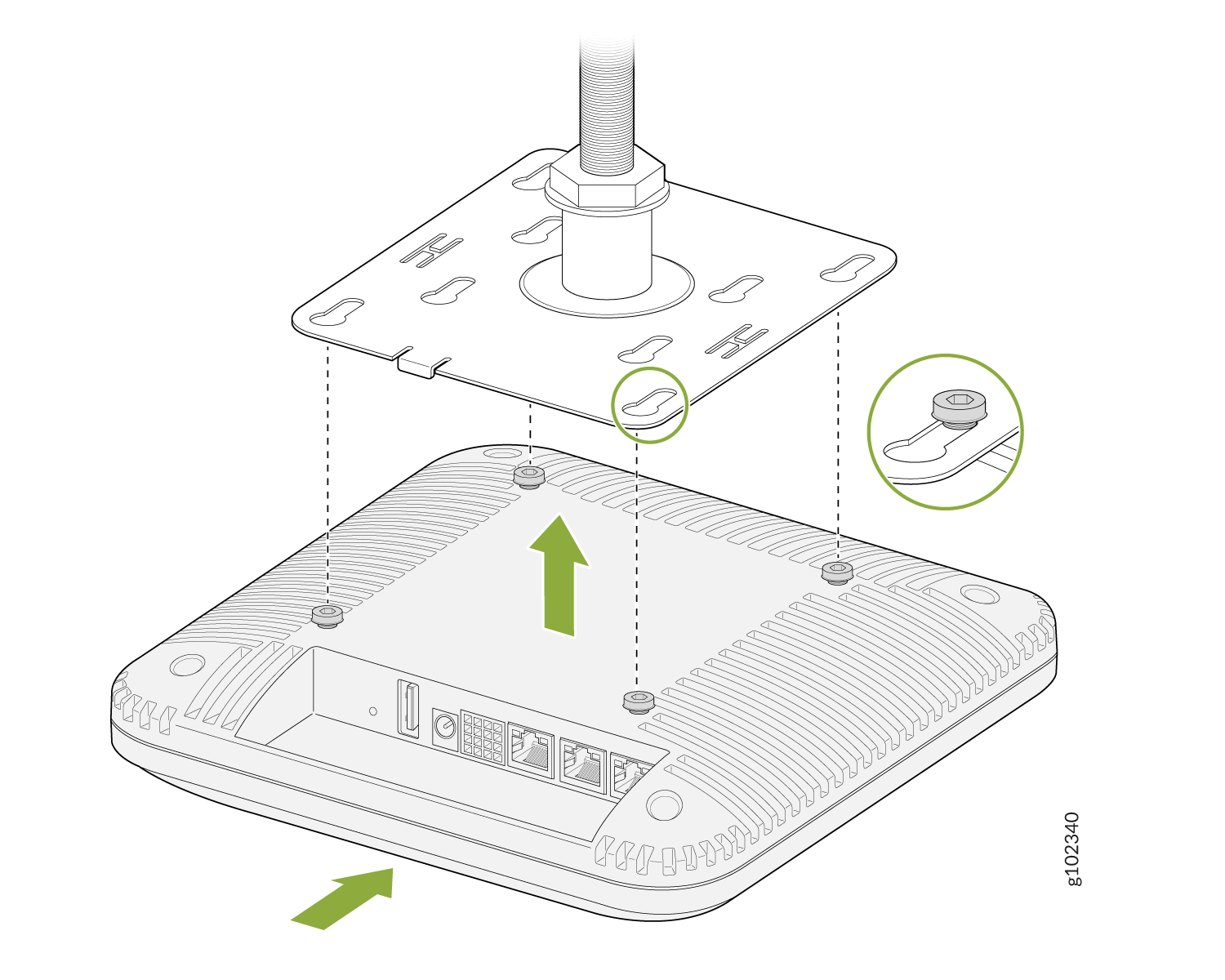

    Figure 6: Mount the AP on a 16-mm Threaded Rod Mount the AP on a 16-mm Threaded Rod

Mount an Access Point Using the APBR-M16 and APBR-SW1 Brackets

Note:

This topic is applicable to the following access points (APs): AP21 and BT11.

You will need the APBR-M16 and the APBR-SW1 mounting brackets.

To mount an AP on a 16-mm threaded rod:
  1. Attach the APBR-M16 bracket to the threaded rod by using the lock washer and nut provided.

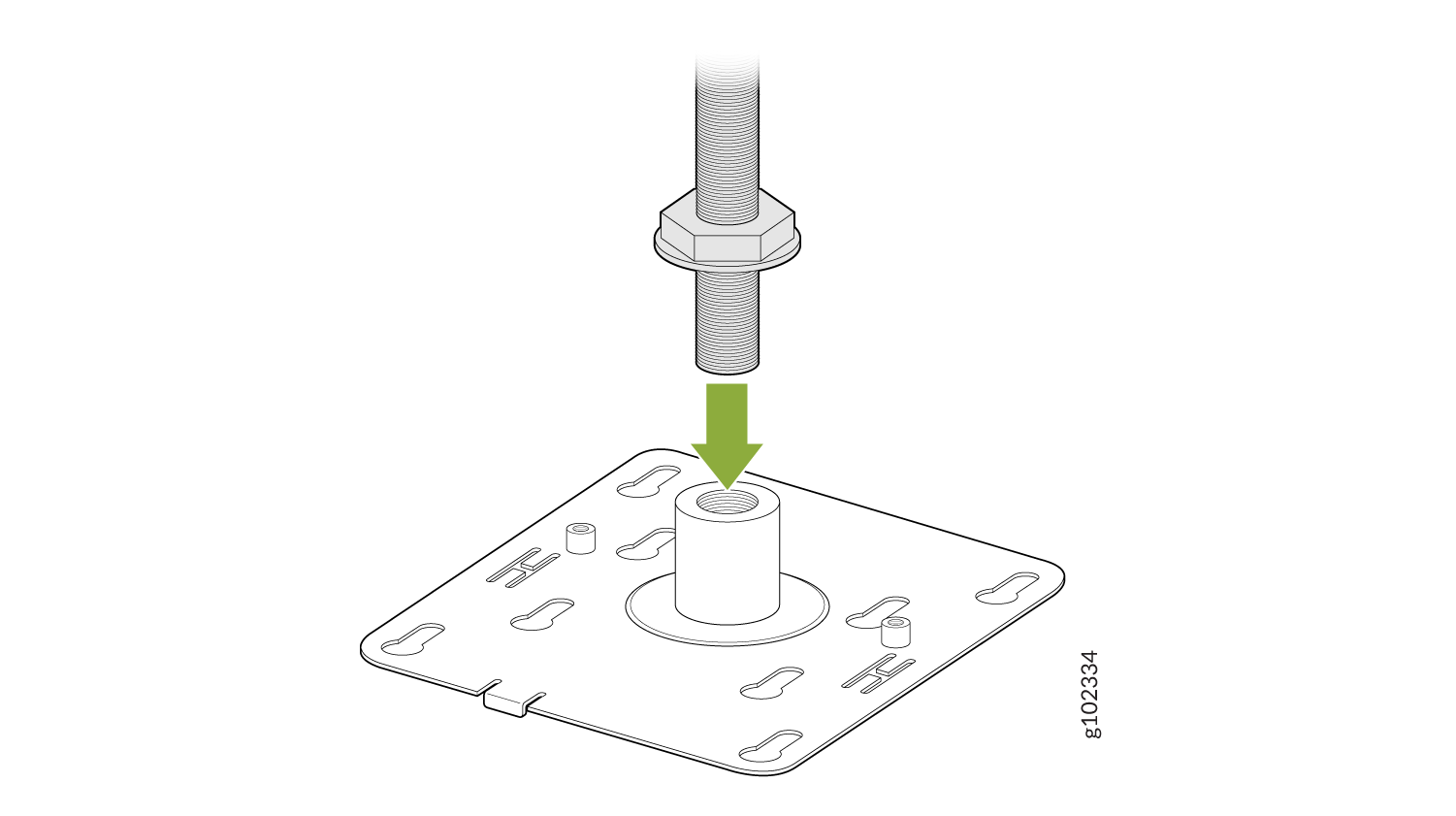

    Figure 7: Attach the APBR-M16 Bracket to a 16-mm Threaded Rod Attach the APBR-M16 Bracket to a 16-mm Threaded Rod
  2. Attach the APBR-SW1 bracket adapter to the APBR-M16 mounting bracket using two screws (provided with the AP).

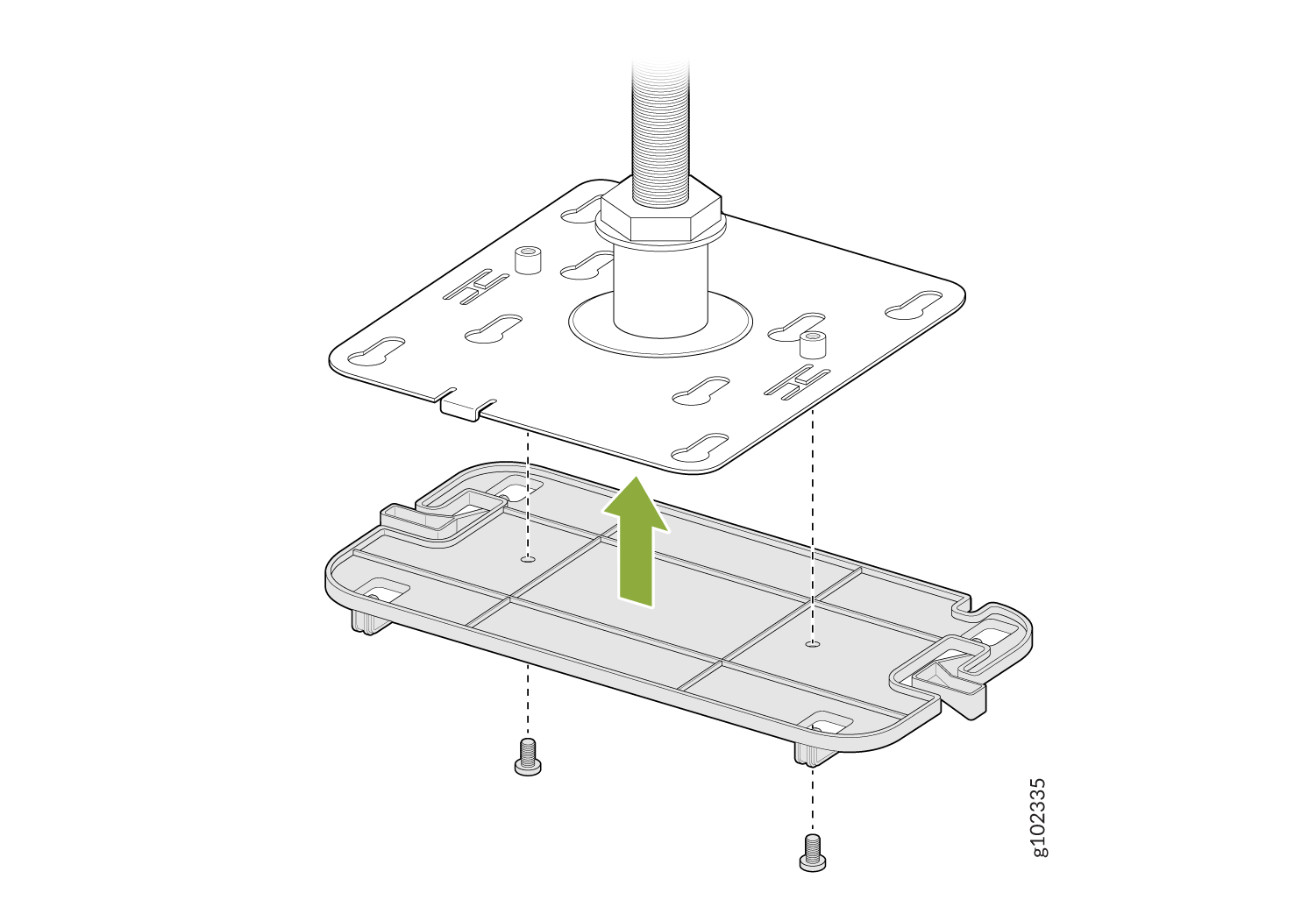

    Figure 8: Attach the APBR-SW1 Bracket Adapter to the APBR-M16 Mounting Bracket Attach the APBR-SW1 Bracket Adapter to the APBR-M16 Mounting Bracket
  3. Position the AP such that the shoulder screws on the AP engage with the keyholes of the mounting bracket. Slide and lock the AP in place.

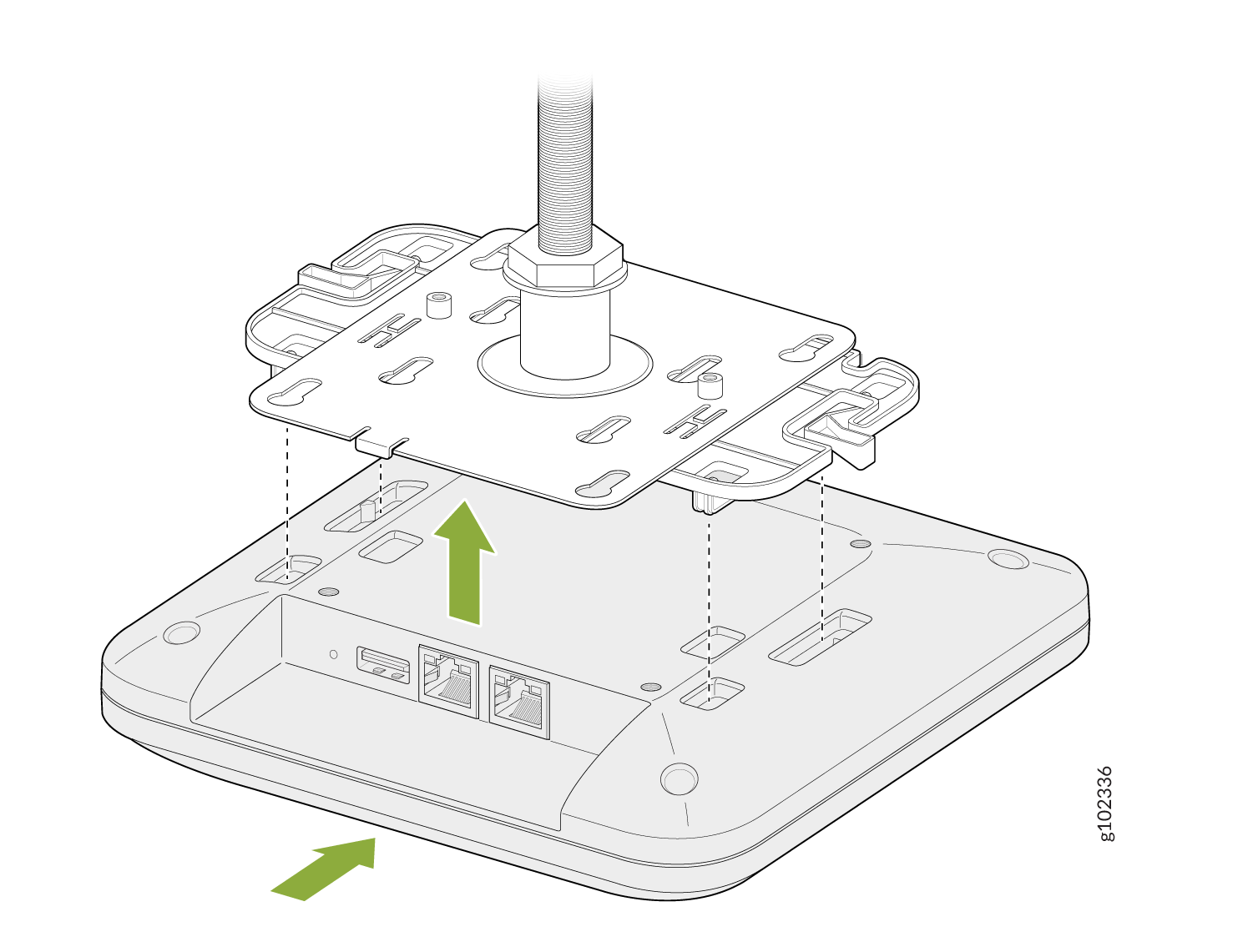

    Figure 9: Mount the AP on a 16-mm Threaded Rod Mount the AP on a 16-mm Threaded Rod
