Mount an Access Point on a Recessed 15/16-Inch T-Bar

Note:

This topic is applicable to the following access points (APs): AP21, AP24, AP27, AP32, AP33, AP34, AP36, AP37, AP41, AP43, AP45, AP47, and BT11

You will need the APBR-U mounting bracket and the APBR-ADP-RT15 adapter.

To mount an AP on a recessed 15/16-in. ceiling T-bar:
  1. Attach the APBR-ADP-RT15 adapter to the T-bar.
    Figure 1: Attach the APBR-ADP-RT15 Adapter to the T-Bar Attach the APBR-ADP-RT15 Adapter to the T-Bar
  2. Align the APBR-U mounting bracket with the center of the adapter. Rotate the bracket until you hear a distinct click, which indicates that the bracket is locked in place.

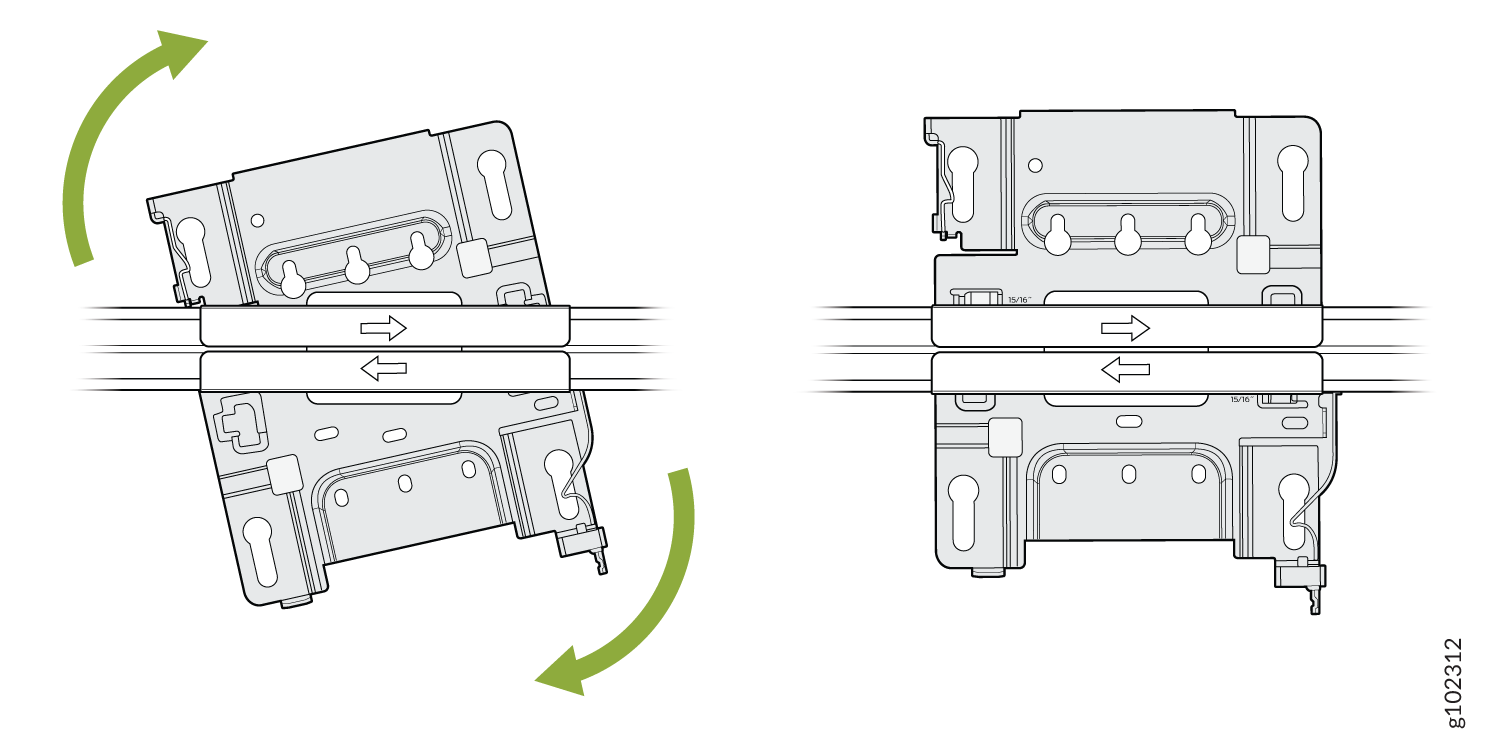

    Figure 2: Attach the Mounting Bracket (APBR-U) to the APBR-ADP-RT15 Adapter Attach the Mounting Bracket (APBR-U) to the APBR-ADP-RT15 Adapter
  3. Position the AP such that the keyholes of the mounting bracket engage with the shoulder screws on the AP. Slide and lock the AP in place.

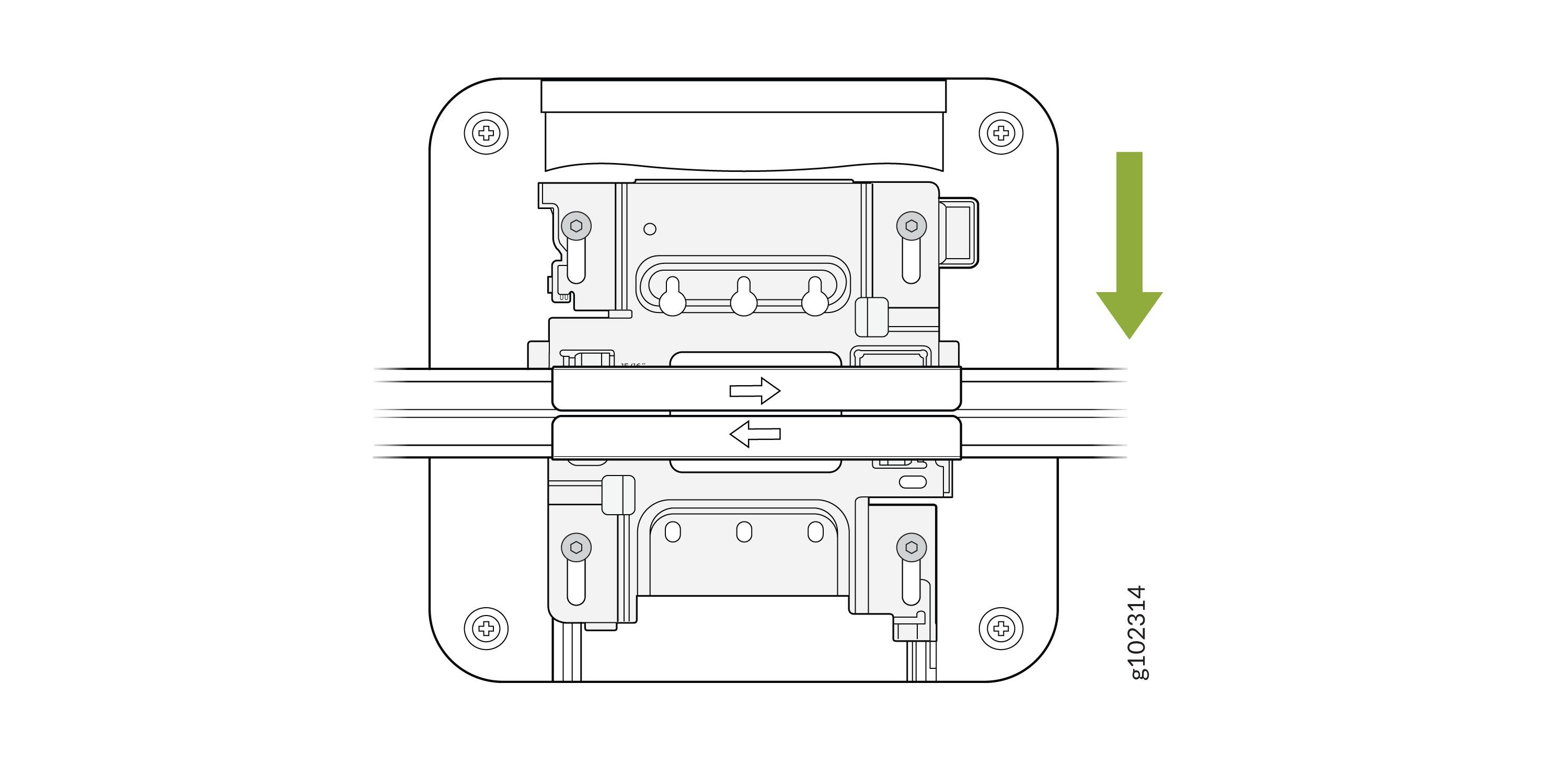

    Figure 3: Attach the AP to a Recessed 15/16-Inch T-Bar Attach the AP to a Recessed 15/16-Inch T-Bar
