Mount an Access Point on an EU Junction Box

Note:

This topic is applicable to the following access points (APs): AP21, AP24, AP27, AP32, AP33, AP34, AP36, AP37, AP41, AP43, AP45, AP47, and BT11.

You will need the APBR-U universal mounting bracket.

To mount an AP on an EU junction box:
  1. Attach the APBR-U mounting bracket to the EU junction box by using two screws. Ensure that you insert the screws in the holes marked 4 as shown in Figure 1.

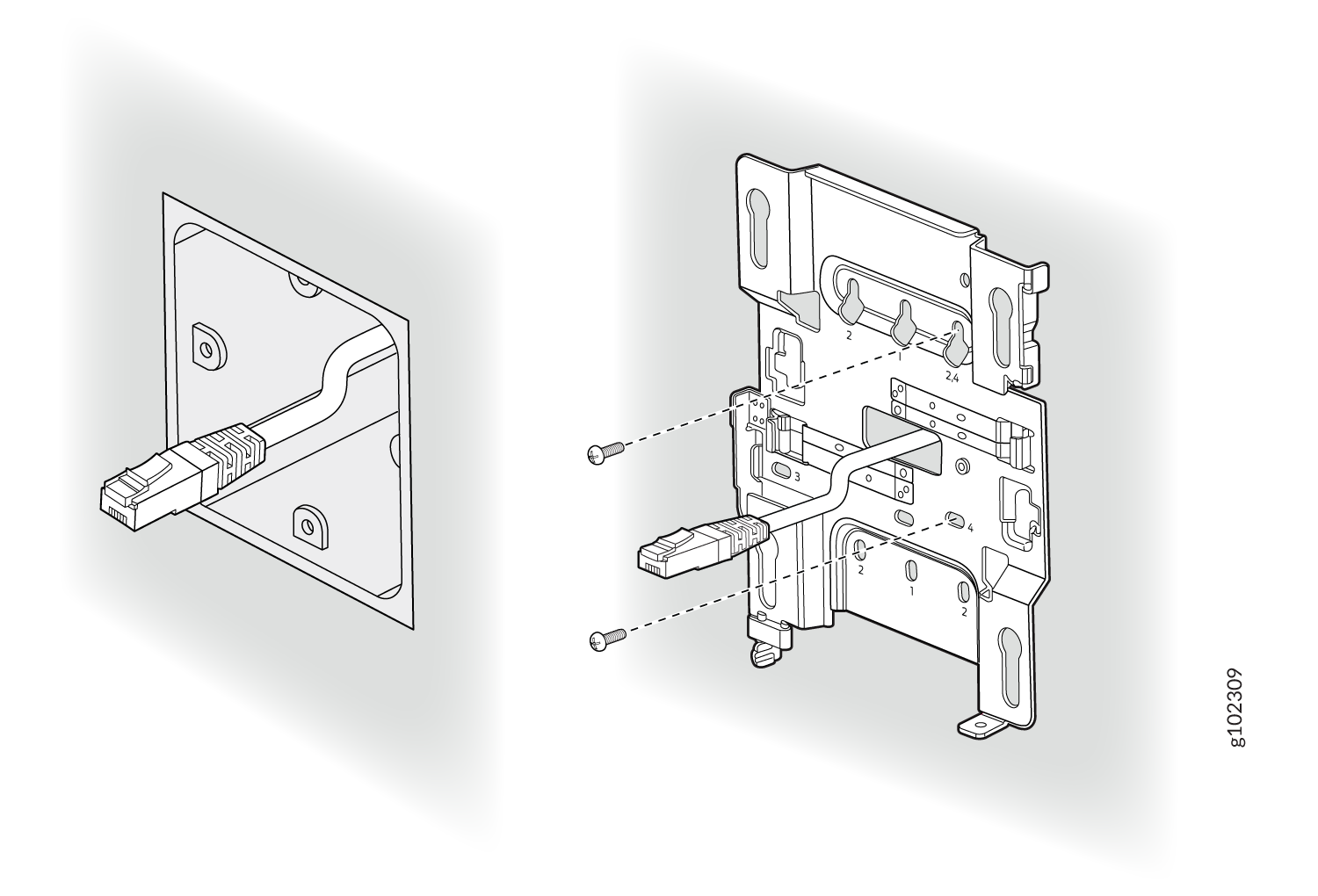

    Figure 1: Attach the APBR-U Mounting Bracket to an EU Junction Box Attach the APBR-U Mounting Bracket to an EU Junction Box
  2. Extend the Ethernet cable through the bracket.
  3. Position the AP such that the shoulder screws on the AP engage with the keyholes of the mounting bracket. Slide and lock the AP in place.
    Figure 2: Mount an Access Point on an EU Junction Box Mount an Access Point on an EU Junction Box
