Mount an Access Point on a 1.5-Inch T-Bar

Note:

This topic is applicable to the following access points (APs): AP21, AP24, AP27, AP32, AP33, AP34, AP36, AP37, AP41, AP43, AP45, AP47, and BT11

You will need the APBR-U mounting bracket and the APBR-ADP-WS15 adapter.

To mount an AP on a 1.5-in. ceiling T-bar:
  1. Attach the APBR-ADP-WS15 adapter to the T-bar.

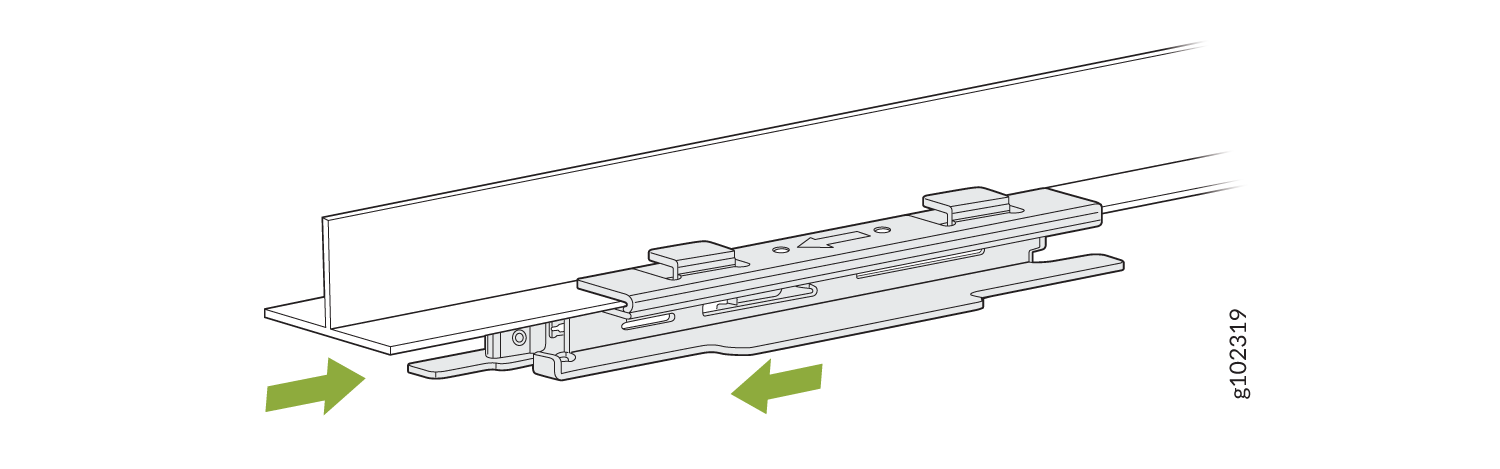

    Figure 1: Attach the APBR-ADP-WS15 Adapter to a 1.5-Inch T-Bar Attach the APBR-ADP-WS15 Adapter to a 1.5-Inch T-Bar
  2. Attach the universal mounting bracket (APBR-U) to the adapter. Rotate the bracket until you hear a distinct click, which indicates that the bracket is locked in place.

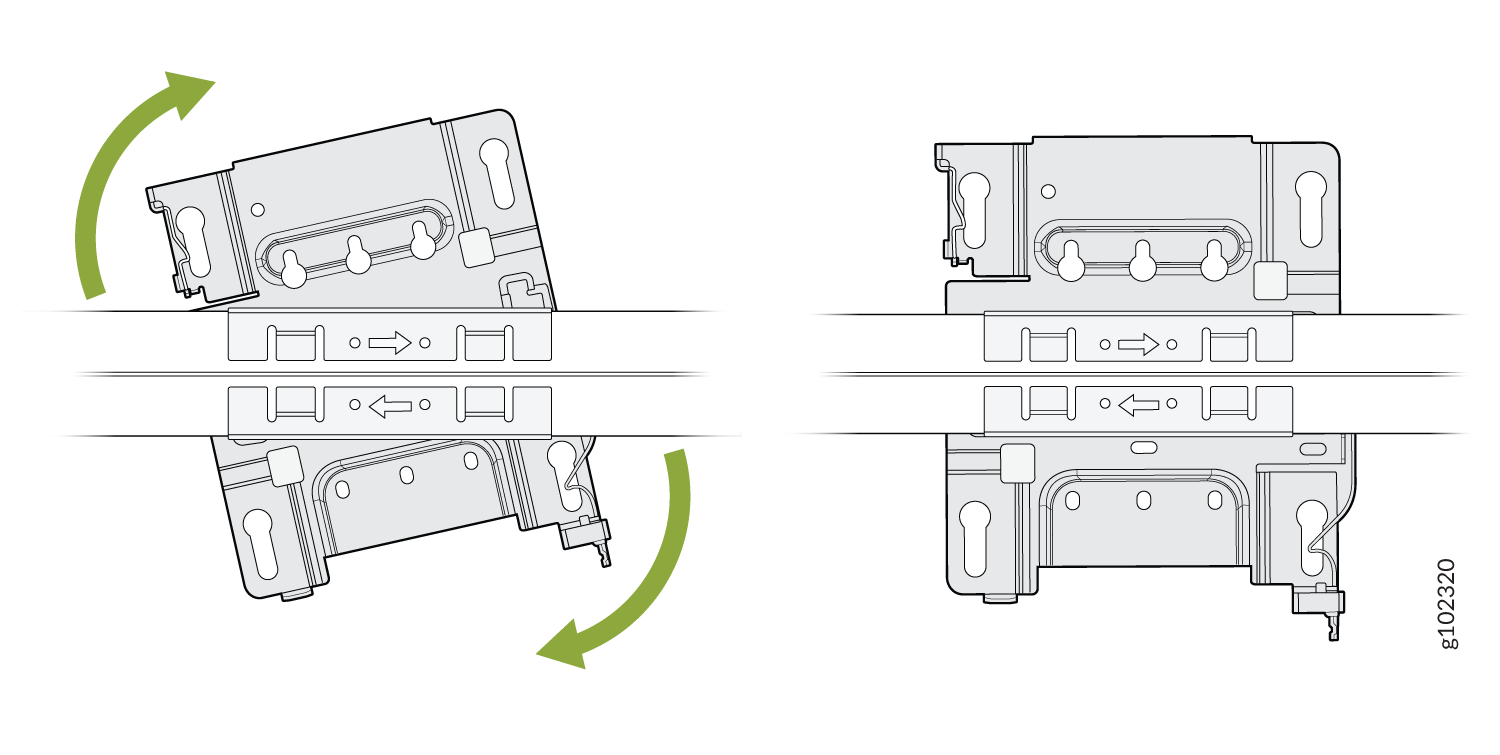

    Figure 2: Attach the APBR-U Mounting Bracket to the APBR-ADP-WS15 Adapter Attach the APBR-U Mounting Bracket to the APBR-ADP-WS15 Adapter
  3. Position the AP such that the keyholes of the mounting bracket engage with the shoulder screws on the AP. Slide and lock the AP in place.

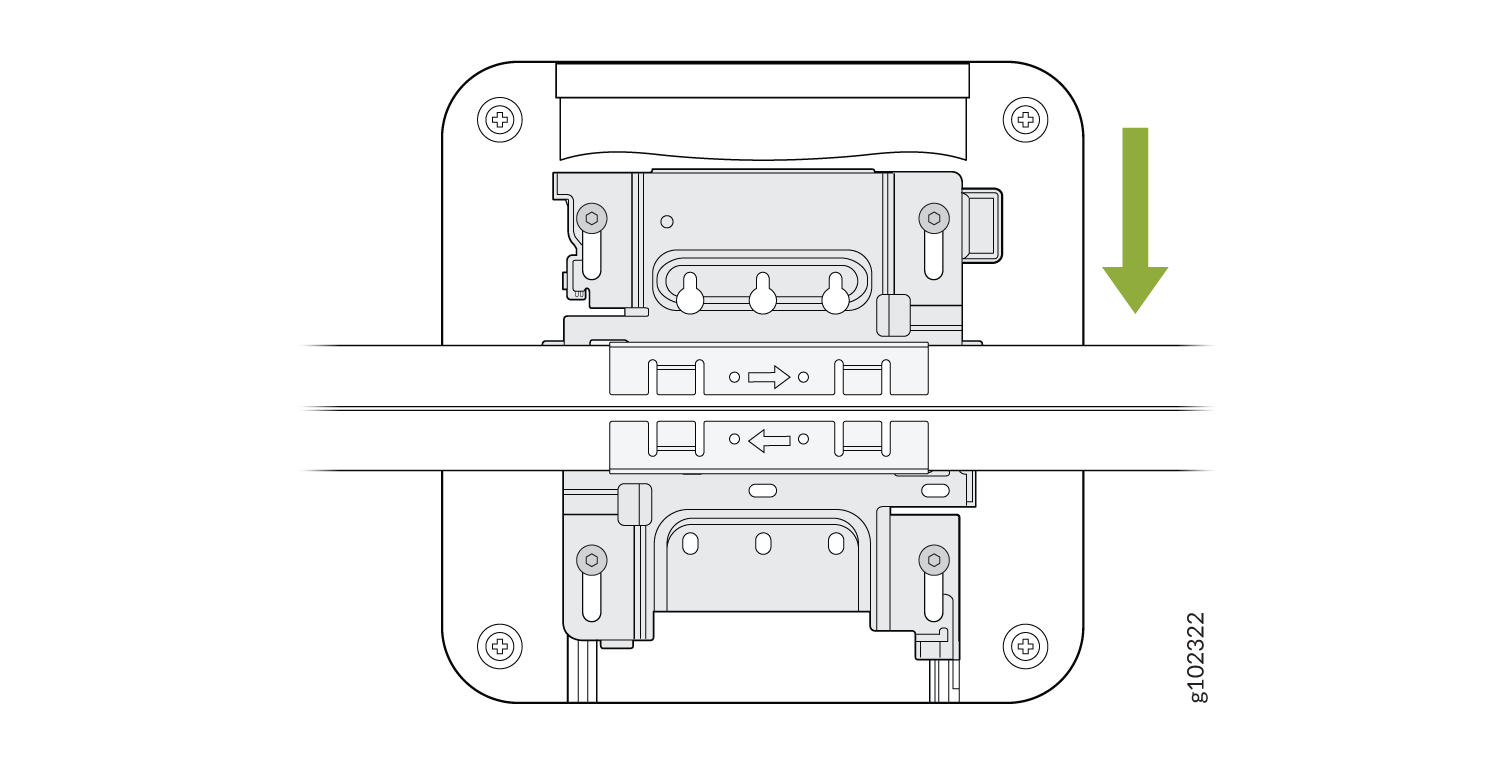

    Figure 3: Attach the AP to a 1.5-Inch T-Bar Attach the AP to a 1.5-Inch T-Bar
