Articulating and Flush Mounting Brackets

We provide different mounting brackets depending upon the access point (AP) and mounting option used.

APOUTBR-ART Mounting Kit

The mounting kit shipped with the APOUTBR-ART articulation mount bracket includes the following:

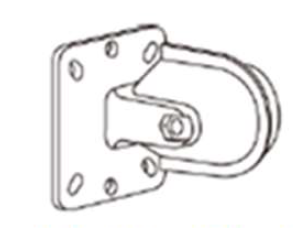

  • One articulation mounting bracket

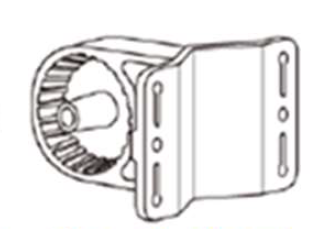

  • One T-form bracket

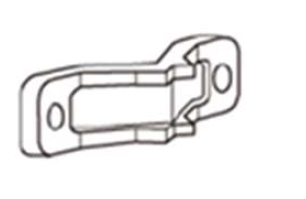

  • One W-Bar

  • Two M8x80 screw bolts

  • One M8x90 screw bolt and nut

  • Four M6x16 screws

  • Four M6x10 screws

  • Four wood screws

  • Four wood or gyprock plugs

  • Eight washers

  • Eight spring washers

  • One metal plate assembly with RT2 mount

APOUTBR-ART2 Mounting Kit

The mounting kit shipped with the APOUTBR-ART2 articulation mount bracket includes the following:

  • Three mounting brackets

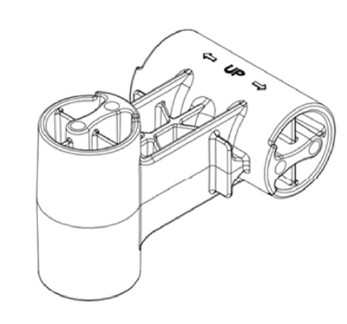

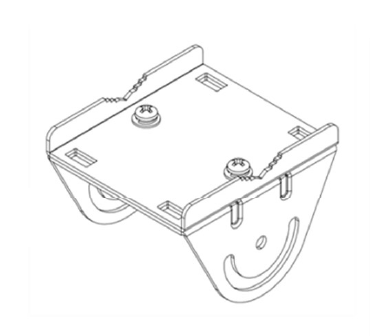

    • Mounting bracket 1

    • Mounting bracket 2

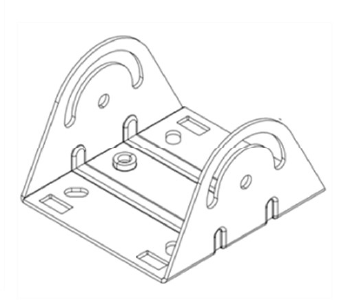

    • Mounting bracket 3

  • Four M6x10mm screws

  • Four bolts and nuts

APOUTBR-FM Mounting Kit

The mounting kit shipped with the APOUTBR-FM flush mount bracket includes the following:

  • One APOUTBR-FM bracket

  • Two hose clamps

  • Four M6 screws

  • Four sets of M6 screws, washers, and spring washers

  • Five sets of anchors and screws

Figure 1 shows the screw holes to use for mounting on a wall and pole.
Figure 1: APOUTBR-FM Flush Mount Bracket
1—Screw holes to use for mounting an AP on a wall 2—Holes to use for attaching hose clamps
3—Screw holes to use for attaching the bracket to an AP

APOUTBR-FM2 Mounting Kit

The mounting kit shipped with the APOUTBR-FM2 flush mount bracket includes the following:

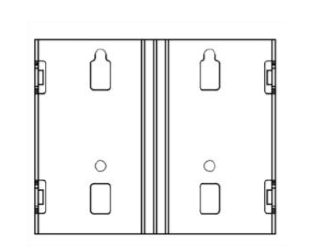

  • One APOUTBR-FM2 bracket

  • Two hose clamps

  • Four sets of M6 screws, washers, and lock washers

  • Five sets of anchors and screws
