Micro-B Console Port

NOTE
AP-723H access points running HPE Mist do not utilize the Micro-B Console Port.

The console port is a Micro-B connector located on the back of the access point. Use the proprietary APCBL-SERU cable (sold separately) for direct management of the access point when connected to a serial terminal or laptop.

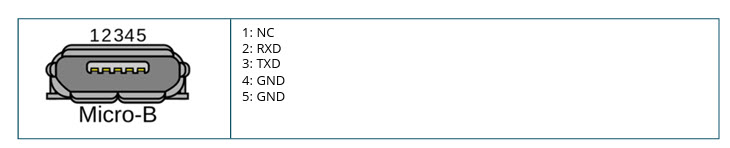

Figure 1. Micro-B Console Port Pin-out
