ACX6360 Port Panel

ACX6360 Port Panel

The ACX6360 supports 10-Gbps, 40-Gbps, 100-Gbps, and 200-Gbps port speeds. Figure 1 shows the ACX6360 port panel.

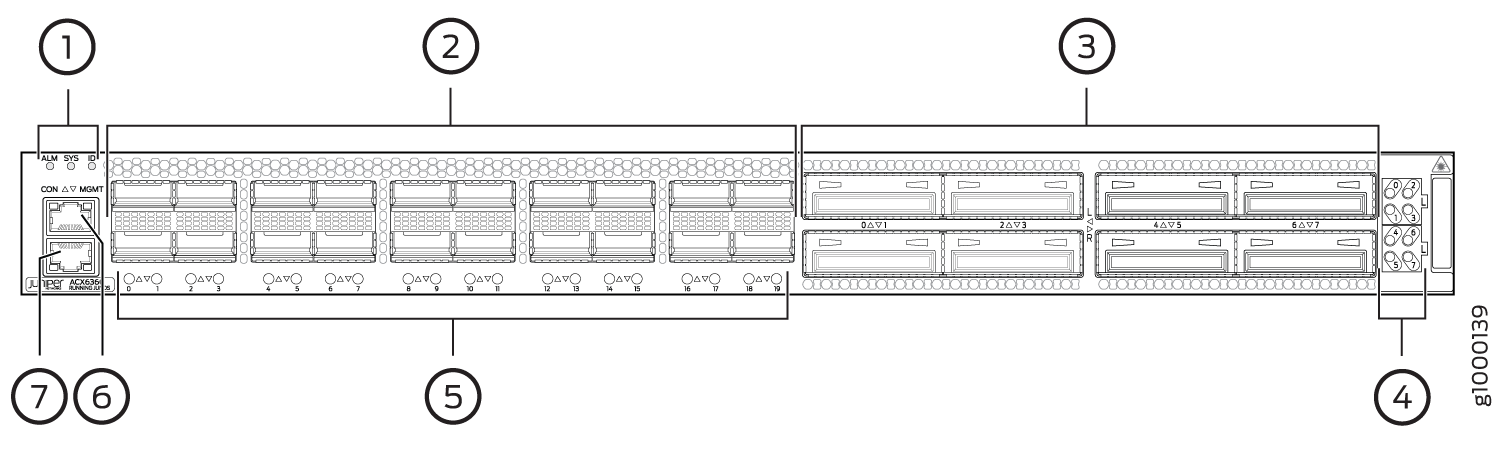

Figure 1: ACX6360 Port PanelACX6360 Port Panel
  1
Status LEDs—Alarm (ALM), system (SYS), identification (ID).
  5
Network port LEDs (for the QSFP28 ports)
  2
Network ports (QSFP28 ports)
  6
RJ-45 console port (CON) to support RS-232 serial ports.
  3
Network ports (CFP2 ports)
  7
RJ-45 (1000BASE-T) management Ethernet port (labeled MGMT). In the Junos OS CLI, this port is identified as em0.
  4
Network port LEDs (for the CFP2 ports)


QSFP28 Network Ports

The ACX6360 has 20 28-Gbps quad small form-factor pluggable (QSFP28) sockets that are configured as 100-Gigabit Ethernet ports by default.

The QSFP28 network ports, (0 to 19) support:

  • 100 Gbps QSFP28 transceivers

  • 40 Gbps QSFP+ transceivers

  • 100 Gbps active optical cables (AOC)

  • 40 Gbps AOC

  • QSFP28 direct attach copper (DAC) cables

  • QSFP+ DAC cables

  • QSFP+ direct attach copper break out (DACBO) cables

  • QSFP28 DACBO cables

Note:

Port speeds are configured using the set chassis fpc 0 pic 0 port port-number speed speed command. You configure ports to operate at a particular speed by using the appropriate speed option. If you configure a port to operate at a certain speed, and you want to return the port to the default configuration, delete the speed statement from the configuration at the [chassis fpc 0 pic 0 port port-number] hierarchy level and commit the configuration. The network port is reset to the default Ethernet interface.

CFP2-DCO Network Ports

The ACX6360 has 8 CFP2 network ports that support C form-factor pluggable type 2 transceivers.

The CFP2 network ports, (0 to 7) support:

  • 200 Gbps CFP2 transceivers

ACX6360 Chassis Status LEDs

The ACX6360 has three status LEDs on the port panel of the chassis, next to the network ports (see Figure 2).

Figure 2: ACX6360 Port PanelACX6360 Port Panel
  1
System status LEDs
  5
Network port LEDs (for the QSFP28 ports)
  2
Network ports (QSFP28 ports)
  6
Console port
  3
Network ports (CFP2-DCO ports)
  7
Management port
  4
Network port LEDs (for the CFP2-DCO ports)


Table 1 describes the chassis status LEDs on an ACX6360, their colors and states, and the status they indicate.

Table 1: Chassis Status LEDs on an ACX6360 Device

Name

Color

State

Description

ALM–Alarm or beacon

Unlit

Off

The device is halted or there is no alarm.

Red

On steadily

A major hardware fault has occurred, such as a temperature alarm or power failure, and the device has halted. Power off the device by setting the AC power source outlet to the OFF (O) position, or unplugging the AC power cords. Correct any voltage or site temperature issues, and allow the device to cool down. Power on the device and monitor the power supply and fan LEDs to help determine where the error is occurring.

Amber

On steadily

A minor alarm has occurred, such as a software error. Power off the device by setting the AC power source outlet to the OFF (O) position, or unplugging the AC power cords. Power on the device and monitor the status LEDs to ensure that Junos OS boots properly.

SYS–System

Unlit

Off

The device is powered off or halted.

Green

On steadily

Junos OS is loaded on the device.

ID–Identification

Unlit

Off

The beacon feature is not enabled on the device. This feature is enabled using the request chassis beacon command.

Blue

Blinking

The beacon feature is enabled on the device. This feature is enabled using the request chassis beacon command.

ACX6360 Management Port LEDs

There are two management ports on the ACX6360, Both ports are labeled MGMT. The RJ-45 management port is for 10/100/1000BASE-T connections and is located on the port panel. The small form-factor pluggable (SFP) management port is for 10/100/1000BASE-T and 1000BASE-X connections and is located on the FRU end of the device.

The RJ-45 port has separate LEDs for status and activity. The SFP port has a LED to indicate both link and activity. Figure 3 shows the location of the LEDs.

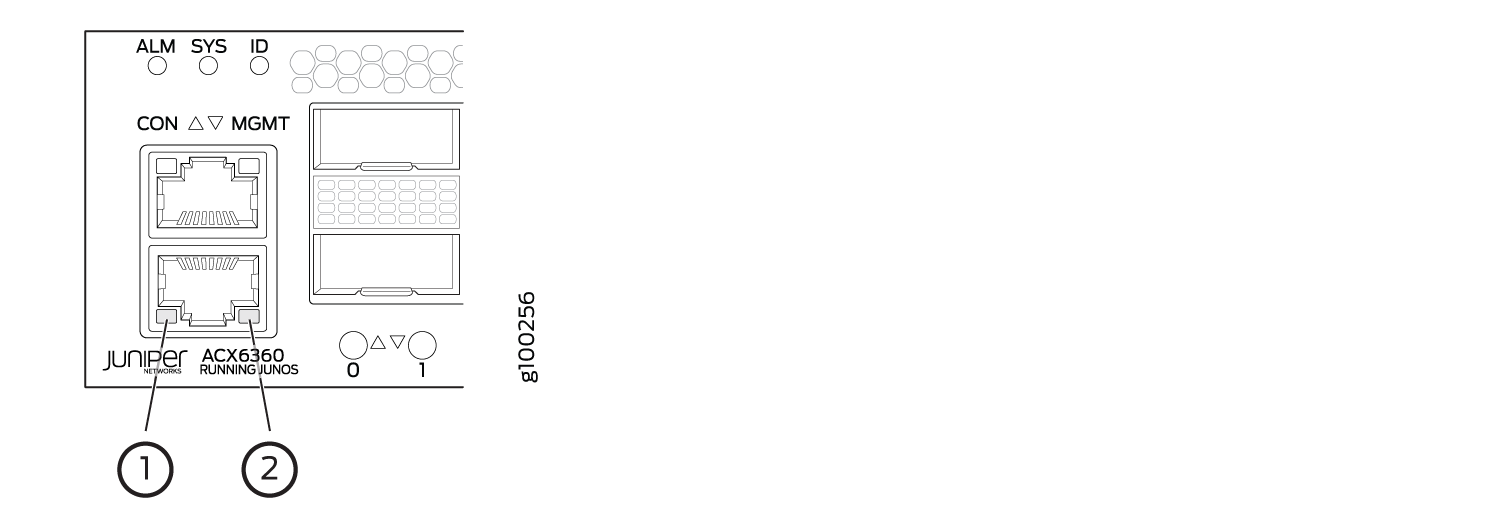

Figure 3: Management Port LEDs on an ACX6360Management Port LEDs on an ACX6360
  1
Status LED (RJ-45)
  2
Link activity LED (RJ-45)

Table 2 describes the RJ-45 management port LEDs.

Table 2: ACX6360 RJ-45 Management Port LEDs

LED

Color

State

Description

Link activity

Unlit

Off

No link is established, there is a fault, or the link is down.

Amber

Blinking or flickering

A link is established, and there is link activity.

Status

Unlit

Off

Either the port speed is 10 Mbps or the link is down.

Green

On steadily

The port speed is 1000 Mbps.

Table 3 describes the SFP management port LED.

Table 3: ACX6360 SFP Management Port LED

LED

Color

State

Description

Link activity

Unlit

Off

No link is established, there is a fault, or the link is down.

Green

On steadily

A link is established, but there is no link activity.

Blinking or flickering

A link is established, and there is link activity.

ACX6360 Network Port LEDs

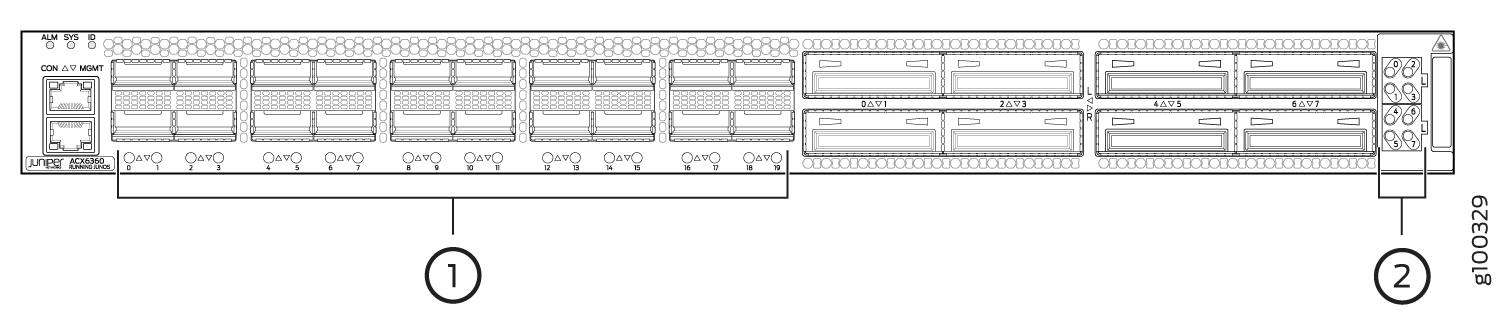

Each ACX6360 network port uses a single bicolored LED to indicate link status and activity. The circular LEDs for the QSFP28 ports are located underneath the ports. The triangular arrow next to the LED points either up or down indicating whether the LED is associated with the top or bottom port. The circular LEDs for the CFP2 ports are located to the right of the ports.Figure 4 shows the location of the LEDs.

Figure 4: Network Port LEDs on an ACX6360Network Port LEDs on an ACX6360
  1
Network port LEDs (for the QSFP28 ports)
  2
Network port LEDs (for the CFP2 ports)

For the QSFP28 ports, the number next to the LED indicates the port number that the LED belongs to and the arrow next to the LED indicates if it is the top or bottom port.

Table 4 describes the QSFP28 network port LEDs.

Table 4: ACX6360 QSFP28 Port LEDs

Color

State

Description

Unlit

Off

The port is administratively disabled, there is no power, the link is down, or a transceiver is not present.

Green

On steadily

A link is established.

Blinking

The beacon function was enabled on the port.

Amber

On steadily

When the port is configured to operate as four 10-Gigabit Ethernet interfaces, indicates that one or more interfaces (but not all four) are up.

Blinking

There are one or more errors on the connections.

For the CFP2 ports, the number next to the LED indicates the port number that the LED belongs to.

Table 5 describes the CFP2 network port LEDs.

Table 5: ACX6360 CFP2 Port LEDs

Color

State

Description

Unlit

Off

The port is administratively disabled, there is no power, the link is down, or a transceiver is not present.

Green

On steadily

A link is established.

Blinking

The beacon function was enabled on the port.
