ACX6360 Management Panel

ACX6360 Management Panel

The ACX6360 management panel is found on the Field Replaceable Unit (FRU) end of the device.

You manage the ACX6360 by using the Junos OS CLI, which is accessible through the console and out-of-band management ports on the management panel. In addition, the management panel has system status LEDs that alert you to minor or major alarms or other issues with the router, external clock synchronization ports, and a USB port to support software installation and recovery. See Figure 1for management panel details.

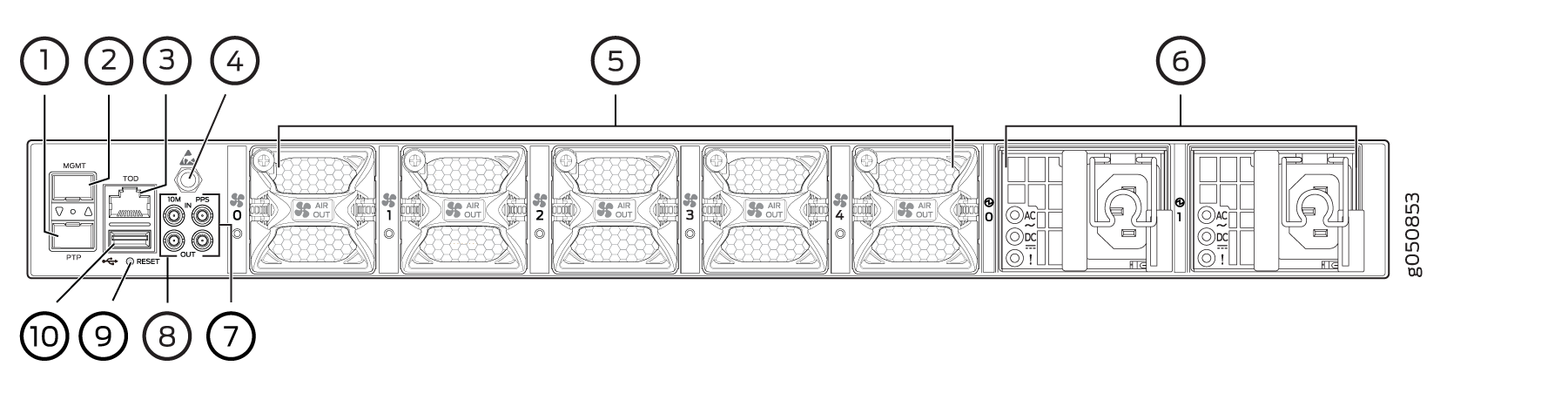

Figure 1: ACX6360 Management PanelACX6360 Management Panel
  1

SFP PTP Ethernet (1000BASE-T) port (labeled PTP). The PTP port is not currently supported. It is reserved for future use.

  6

Power supplies

  2

SFP management Ethernet port (labeled MGMT). In the Junos OS CLI, this port is identified as em2.

  7

Pulses-per-second SMB connector (labeled PPS) input and output. The PPS port is not currently supported. It is reserved for future use.

  3

RS-232 Time-of-day port (labeled TOD). The TOD port is not currently supported. It is reserved for future use.

  8

10 MHz SubMiniature B (SMB) connector (labeled 10M) input and output. The 10M port is not currently supported. It is reserved for future use.

  4

Electrostatic discharge (ESD) terminal

  9

Reset button. Press and hold 5 seconds to reset the hardware.

  5

Fan modules

10

USB port.
