ACX6160 Management Panel
ACX6160 Management Panel
The ACX6160 management panel is found on the rear panel of the device.

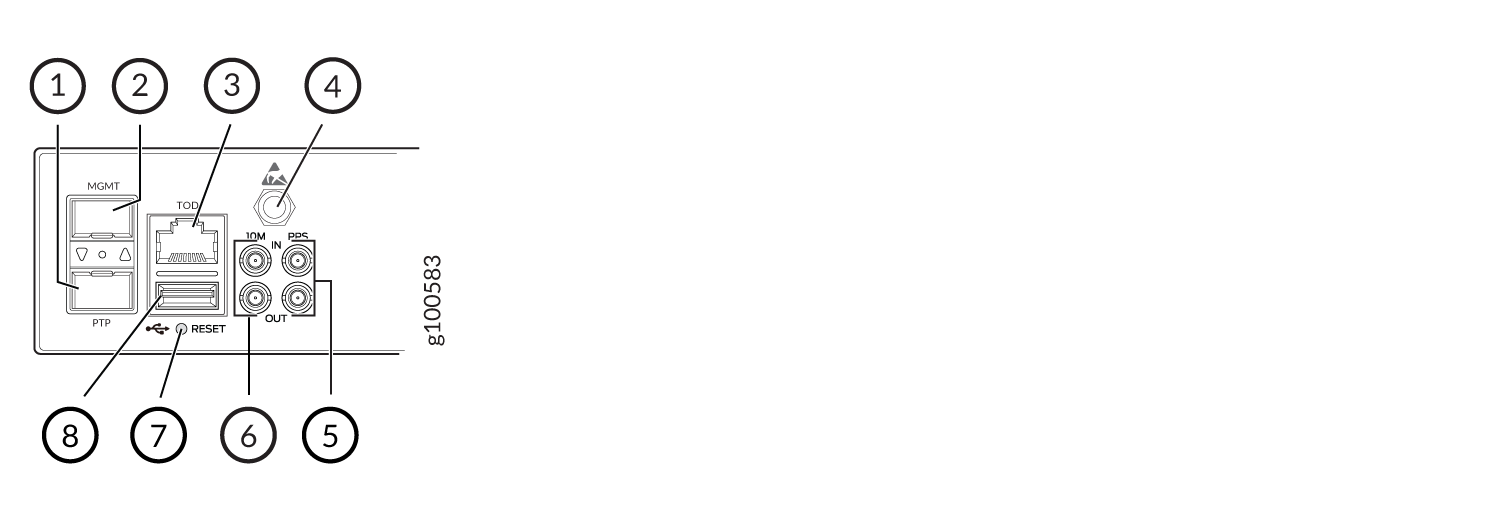

There are MGMT and PTP ports that support SFP optics on the management panel on the FRU side. The small form-factor pluggable (SFP) management port is for 10/100/1000BASE-T and 1000BASE-X connections and is located on the rear panel of the device. The USB port is also located on the rear panel and supports software installation and recovery. SeeFigure 1 for management panel details.
1 — SFP PTP Ethernet (100BASE-T) port(labeled PTP). The PTP is not currently supported. It is reserved
for future use. | 5 — Pulses-per-second SMBconnector (labeled PPS) input and output. The PPS port is not currently supported. It is
reserved for future use. |
2 — SFP management Ethernet port (labeled MGMT). In the Junos OS CLI, this port is identified as em2. | 6 — 10 MHz SubMiniature B (SMB) connector (labeled 10M)
input and output. The 10M port is not currently supported. It is reserved
for future use. |
3 — RS-232 Time-of-day port (labeled TOD). The TOD port is not currently supported. It is reserved for future
use. | 7 — Reset button. Press and hold 5 seconds to reset the
hardware. |
4 — Electrostatic discharge (ESD) terminal | 8 — USB port. |
The SFP port has a LED to indicate both link and activity.Table 1 describes the SFP management port LEDs.
LED |
Color |
State |
Description |
|---|---|---|---|
Link activity |
Unlit |
Off |
No link is established, there is a fault, or the link is down. |
Green |
On steadily |
A link is established, but there is no link activity. |
|
Blinking or flickering |
A link is established, and there is link activity. |
