ACX5048 and ACX5096 Power System

AC Power Supply for an ACX5000 Router

The two power supplies in ACX5000 routers are hot-removable and hot-insertable field-replaceable units (FRUs). The power supplies are installed in the router at the factory. You can install replacement power supplies from the management panel without powering off the router or disrupting the router function.

The AC power supply in 1 U ACX5048 is 650 W; the AC power supply in the 2 U ACX5096, is 850 W. Both power supplies look identical. Be sure to use the correct power supply for your chassis product SKU (see Table 1).

CAUTION:

Do not mix power supplies with different wattage. The system raises an alarm when a power supply having a different wattage is inserted into the chassis.

See Figure 1 for an example of the 1 U design and Figure 2 for an example of the 2 U power supply.

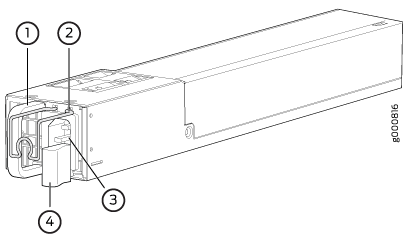

Figure 1: 1 U AC Power Supply in an ACX50481 U AC Power Supply in an ACX5048
  1

Handle

  3

AC appliance inlet

  2

Security latch

  4

Ejector lever

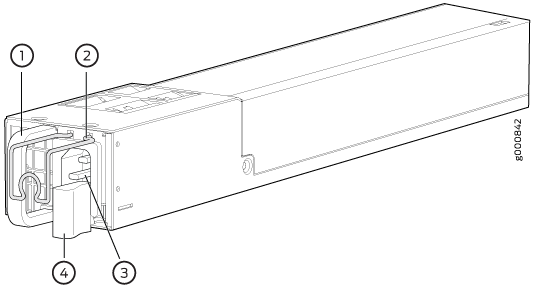

Figure 2: 2 U AC Power Supply in an ACX50962 U AC Power Supply in an ACX5096

The power supply provides port-to-FRU airflow depending on the product SKU you purchase. The power supplies either have labels on the handles that indicate the direction of airflow or they have color-coded handles with a fan icon. See Figure 3 for an example of the power supply. A power supply with the label AFO or a gold-colored handle denotes port-to-FRU airflow.

Figure 3: Power Supply Handle DetailPower Supply Handle Detail
  1

Fan icon on handle


CAUTION:

Verify that the airflow direction on the power supply handle matches the direction of airflow in the chassis. Ensure that each power supply you install in the chassis has the same airflow direction.

To avoid electrical injury, carefully follow instructions in Connecting AC Power to an ACX5000 Router.

Table 1 shows the different power supplies and their direction of airflow.

Table 1: Airflow Direction in an ACX5000 AC Power Supplies

ACX5000 Product SKUs

Wattage

Product Number

Direction of Airflow

Color of Power Supply Handle

ACX5048

650 W

JPSU-650W-AC-AFO

Port-to-FRU

Juniper Gold

ACX5096

850 W

JPSU-850W-AC-AFO

AC Power Supply LEDs on an ACX5000 Router

Figure 4 shows the location of the LEDs on the power supply.

Figure 4: AC Power Supply LEDs on an ACX5000 RouterAC Power Supply LEDs on an ACX5000 RouterAC Power Supply LEDs on an ACX5000 Router

Table 2 describes the LEDs on the AC power supplies.

Table 2: AC Power Supply LEDs on an ACX5000 Router

LED

Color

State

Description

AC OK

Unlit

Off

The power supply is disconnected from power, or power is not coming into the power supply.

Green

On steadily

Power is coming into the power supply.

DC OK

Unlit

Off

The power supply is disconnected from power, or the power supply is not sending out power correctly.

Green

On steadily

The power supply is sending out power correctly.

Fault

Amber

On steadily

An error has been detected in the power supply. Replace the power supply as soon as possible. To maintain proper airflow through the chassis, leave the power supply installed in the chassis until you are ready to replace it.

Note:

If the AC OK LED and the DC OK LED are unlit, either the AC power cord is not installed properly or the power supply fuse has failed. If the AC OK LED is lit and the DC OK LED is unlit, the AC power supply is installed properly, but the power supply has an internal failure.

DC Power Supply for an ACX5000 Router

The power supplies in ACX5000 routers (see Figure 5) are hot-removable and hot-insertable field-replaceable units (FRUs) that you can install in 1 U DC ACX5048 SKUs of ACX5000 routers without powering off the router or disrupting the routing function.

The DC power supply in 1 U ACX5048 is 650 W with dual feeds for power resiliency. The DC power supply in the 2 U ACX5096 is 850 W with dual feeds for power resiliency. Both power supplies have a similar design and look identical. Be sure to use the correct power supply for your chassis product SKU (see Table 3). See Figure 5 for an example of the 1 U design and Figure 6 for an example of the 2 U power supply.

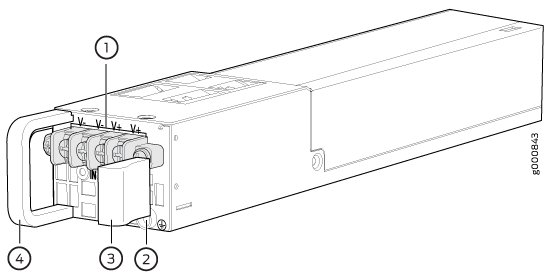

Figure 5: DC Power Supply in ACX5048 RoutersDC Power Supply in ACX5048 Routers
  1

Terminal block

  3

Ejector lever

  2

ESD grounding point

  4

Handle

Figure 6: DC Power Supply for an ACX5096DC Power Supply for an ACX5096
  1

Terminal block

  3

Ejector lever

  2

ESD grounding point

  4

Handle

Note:

The DC power supply in the router has four terminals labeled V–, V–, V+, and V+ (see Figure 7) for connecting DC power source cables labeled positive (+) and negative (–). The V+ terminals are shunted internally together, as are the V- terminals.

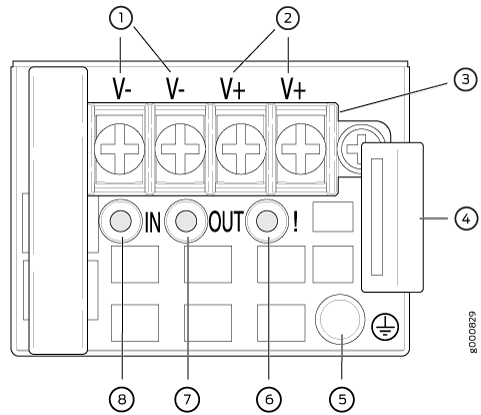

Figure 7: DC Power Supply Faceplate in ACX5000 RoutersDC Power Supply Faceplate in ACX5000 Routers
  1

Shunt negative input terminals (+RTN)

  5

ESD grounding point

  2

Shunt positive input terminals (–48V)

  6

Fault LED

  3

Terminal block

  7

Output LED

  4

Ejector lever

  8

Input LED

To avoid electrical injury, carefully follow instructions in Installing a Power Supply in an ACX5000 Router and Removing a Power Supply from an ACX5000 Router.

Table 3 shows the different power supplies and their direction of airflow.

Table 3: Airflow Direction in ACX5000 DC Power Supplies

Router Model

Wattage

Product Number

Direction of Airflow

Color of Power Supply Handle

ACX5048

650 W

JPSU-650W-DC-AFO

Port-to-FRU

Juniper Gold

ACX5096

850 W

JPSU-850W-DC-AFO

DC Power Supply LEDs on an ACX5000 Router

Figure 8 shows the location of the LEDs on the DC power supply.

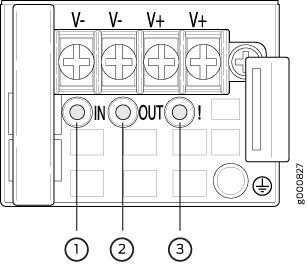

Figure 8: DC Power Supply Faceplate on an ACX5000 RouterDC Power Supply Faceplate on an ACX5000 Router
  1

Input LED

  3

Fault LED

  2

Output LED


CAUTION:

The V+ terminals are shunted internally together, as are the V– terminals. The same polarity terminal can be wired together from the same source to provide an additional current path in a higher power chassis. Do not connect the terminals to different sources.

Table 4 describes the LEDs on the DC power supplies.

Table 4: DC Power Supply LEDs on an ACX5000 Router

Name

Color

State

Description

Input

Unlit

Off

The power supply is disconnected from power, or power is not coming into the power supply.

Green

On steadily

Power is coming into the power supply.

Output

Unlit

Off

The power supply is disconnected from power, or the power supply is not sending out power correctly.

Green

On steadily

The power supply is sending out power correctly.

Fault

Amber

On steadily

An error has been detected in the power supply. Replace the power supply as soon as possible. To maintain proper airflow through the chassis, leave the power supply installed in the chassis until you are ready to replace it.

AC Power Specifications for an ACX5000 Router

Table 5 describes the AC power specifications for an ACX5000 router.

Table 5: AC Power Specifications for an ACX5000 Router

Item

Specification

AC input voltage

Operating range:

  • 100 / 240 VAC

AC input line frequency

50–60 Hz (all product SKUs)

AC input current rating

  • 4.5 A at 100–120 VAC

  • 2.0 A at 200–240 VAC

Typical power consumption

ACX5048

230 W

ACX5096

315 W

Maximum power consumption

ACX5048

365 W

ACX5096

470 W

AC Power Cord Specifications for an ACX5000 Router

Detachable AC power cords are shipped with the chassis, if you include them as part of your order. The coupler is type C13 as described by International Electrotechnical Commission (IEC) standard 60320. The plug end of the power cord fits into the power source outlet that is standard for your geographical location.

Note:

In North America, AC power cords must not exceed 14.75 feet (approximately 4.5 meters) in length, to comply with National Electrical Code (NEC) Sections 400-8 (NFPA 75, 5-2.2) and 210-52 and Canadian Electrical Code (CEC) Section 4-010(3). The cords that can be ordered for the ACX Series routers are in compliance.

Table 6 lists AC power cord specifications provided for each country or region.

Table 6: AC Power Cord Specifications

Country/Region

Electrical Specifications

Plug Standards

Juniper Model Number

Graphic

Australia

250 VAC, 10 A, 50 Hz

AS/NZ 3109-1996

CBL-GP-PWR-C13-AU

China

250 VAC, 10 A, 50 Hz

GB 1002-1996

CBL-GP-PWR-C13-CH

Europe (except Italy, Switzerland, and United Kingdom)

250 VAC, 10 A, 50 Hz

CEE (7) VII

CBL-GP-PWR-C13-EU

Italy

250 VAC, 10 A, 50 Hz

CEI 23-16/VII

CBL-GP-PWR-C13-IT

Japan

125 VAC, 12 A, 50 Hz or 60 Hz

JIS C8303

CBL-GP-PWR-C13-JP

North America

125 VAC, 13 A, 60 Hz

CAN/CSA No. 49-92

CBL-GP-PWR-C13-US

South Korea

250 VAC, 10 A, 60 Hz

KSC 8305; K60884-1

CBL-GP-PWR-C13-KR

Switzerland

250 VAC, 10 A, 50 Hz

SEV 1011 SEV 1991; EN 60320 C13

CBL-GP-PWR-C13-SZ

United Kingdom

250 VAC, 10 A, 50 Hz

BS 1363/A

CBL-GP-PWR-C13-UK

DC Power Specifications for an ACX5000 Router

Table 7 describes the DC power specifications for DC variant of an ACX5000 router.

Table 7: DC Power Specifications for an ACX5000 Router

Item

Router Model

Specifications

DC input voltage

ACX5048

  • Rated operating voltage: –48 VDC to -60 VDC

  • Operating voltage range: –40 VDC through –72 VDC

ACX5096

  • Rated operating voltage: VDC –48 VDC to –60 VDC

  • Operating voltage range: –40 VDC through –72 VDC

DC input current rating

ACX5048

ACX5096

10 A maximum

Typical power consumption

ACX5048

300 W

ACX5096

315 W

Maximum power consumption

ACX5048

385 W

ACX5096

470 W
