ACX500 Chassis

ACX500 Indoor Router Description

The ACX500 indoor routers contain a total of 10 ports that support 1-Gbps speed, eight of which are labeled COMBO. At any point of time, you can use a maximum of six ports.

The ports labeled COMBO (combination ports) consist of four Gigabit Ethernet ports that support RJ-45 connectors and four Gigabit Ethernet ports that support small form-factor pluggable (SFP) transceivers. Out of the four RJ-45 ports, three ports support Power over Ethernet (PoE+ and PoE++).

The two ports that are not part of the COMBO ports are Gigabit Ethernet SFP ports.

On the ACX500, the six ports that you can use at any point of time can be two Gigabit Ethernet SFP ports (non-combination) and four ports from the COMBO ports.

Note:

You can mix and match the four RJ-45 and SFP COMBO ports as long as the port numbers are unique.

For example, from the COMBO ports, you can use the 0/1/0 SFP port along with the 0/1/1 PoE+ RJ-45 port, but not the 0/1/0 PoE++ RJ-45 port, as the port numbers of the SFP and the RJ-45 ports are same (0/1/0).

Figure 1 and Figure 2 shows the front views of the AC-powered and the DC-powered ACX500 indoor routers.

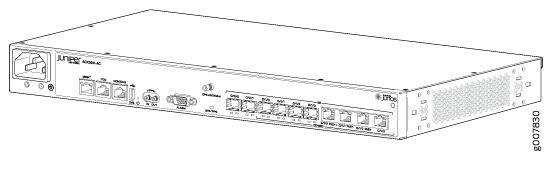

Figure 1: Front View of the ACX500 Indoor Routers—AC PoweredFront View of the ACX500 Indoor Routers—AC Powered
Figure 2: Front View of the ACX500 Indoor Routers—DC PoweredFront View of the ACX500 Indoor Routers—DC Powered

Figure 3 shows the rear view of the AC-powered and the DC-powered ACX500 indoor routers.

Figure 3: Rear View of the ACX500 Indoor RouterRear View of the ACX500 Indoor Router
Note:

The top view and bottom view of an AC-powered ACX500 router are respectively the same as those of a DC-powered router. The only component that appears different is the power inlet for the two routers.

ACX500 Outdoor Router Description

The ACX500 outdoor routers contain three Gigabit Ethernet ports that support SFP transceivers and three Gigabit Ethernet ports that support RJ-45 connectors. The ACX500 outdoor routers install on a pole or a wall, with the chassis installed in a vertical orientation with the cables pointing downward and the eye bolt for hoisting the router pointing upward.

Figure 4 and Figure 5 show the ACX500 outdoor router from bottom and top.

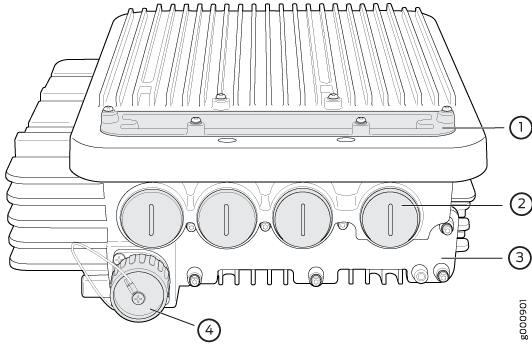

Figure 4: Bottom View of the ACX500 Outdoor RouterBottom View of the ACX500 Outdoor Router
  1

Interface port chamber with weather seal cover

  3

Management port chamber with weather seal cover

  2

Cable connector ports with weather seal cap

  4

Power port with weather seal cap

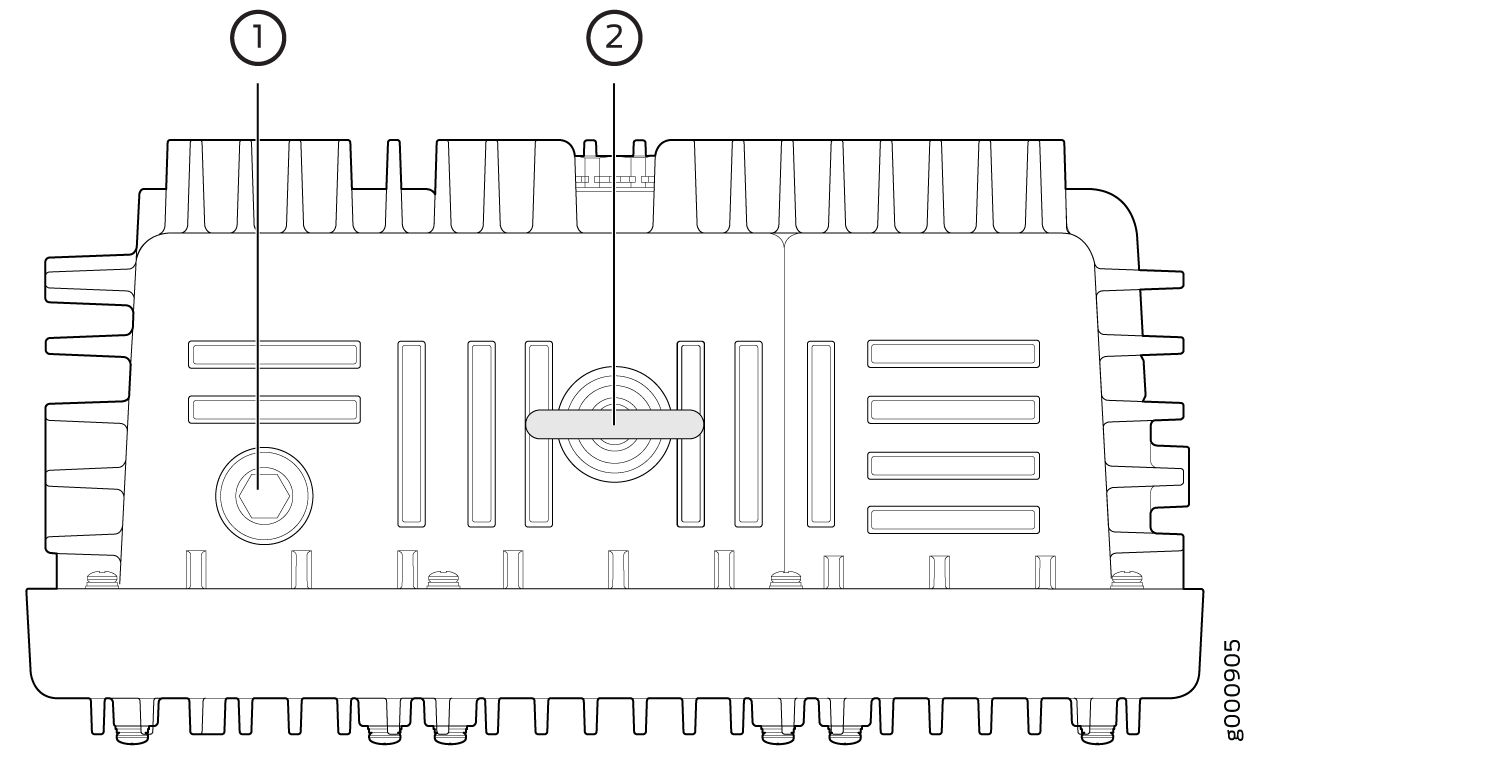

Figure 5: Top View of the ACX500 Outdoor RouterTop View of the ACX500 Outdoor Router
  1

GPS antenna port

  2

Eye bolt

Note:

The top view and bottom view of an AC-powered ACX500 router are respectively the same as those of a DC-powered router. The only component that appears different is the power inlet for the two routers.

ACX500 Outdoor Router with PoE Description

The ACX500 outdoor routers with Power over Ethernet (PoE) contain three Gigabit Ethernet RJ-45 ports that support PoE+ and three Gigabit Ethernet SFP ports. Out of the three RJ-45 ports, the port labeled 0/1/0 supports PoE++, and the ports labeled 0/1/1 and 0/1/2 support PoE+ with a maximum system PoE power limit of 80 W. The ACX500 outdoor routers with PoE install on a pole or a wall, with the chassis installed in a vertical orientation with the cables pointing downward and the eye bolt for hoisting the router pointing upward.

Figure 6 and Figure 7 show the ACX500 outdoor router with PoE from bottom and top.

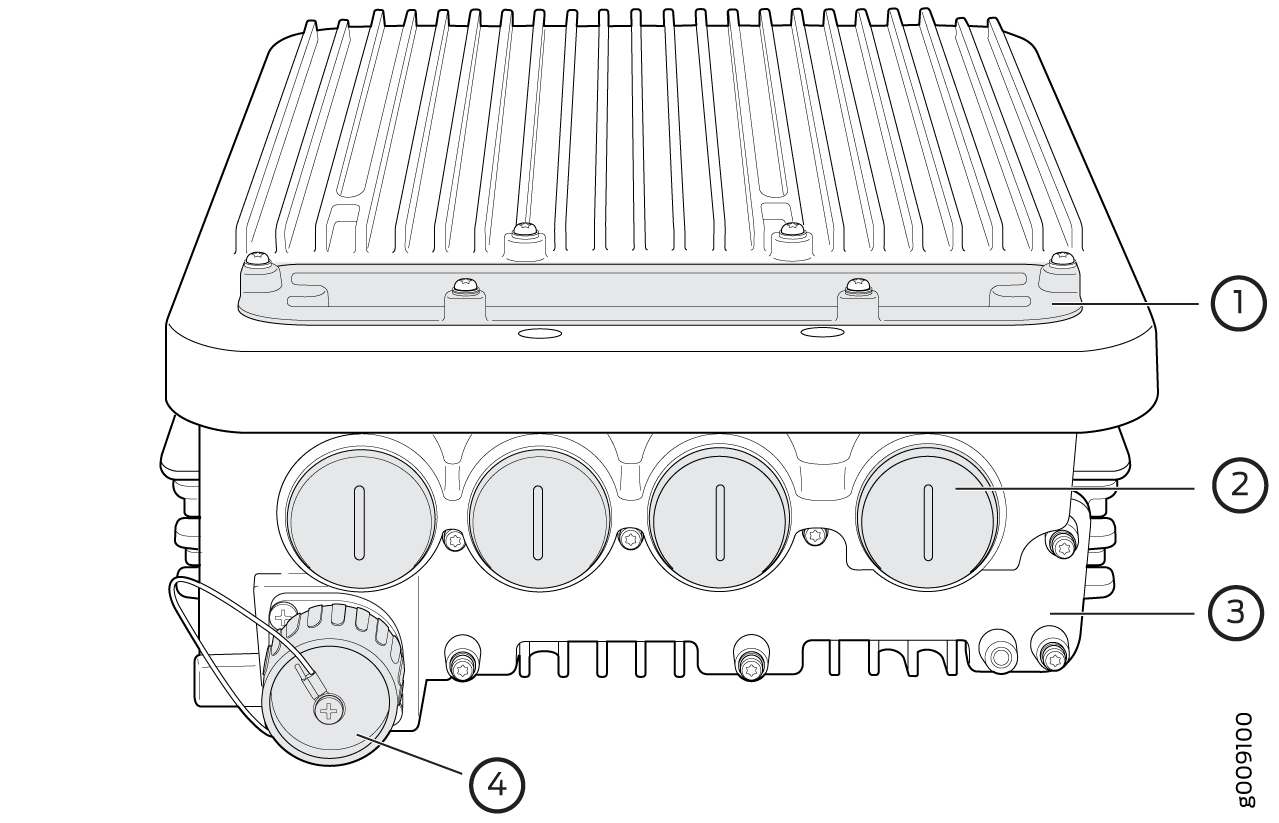

Figure 6: Bottom View of the ACX500 Outdoor Router with PoEBottom View of the ACX500 Outdoor Router with PoE
  1

Interface port chamber with weather seal cover

  3

Management port chamber with weather seal cover

  2

Cable connector ports with weather seal cap

  4

Power port with weather seal cap

Figure 7: Top View of the ACX500 Outdoor Router with PoETop View of the ACX500 Outdoor Router with PoE
  1

GPS antenna port

  2

Eye bolt

Note:

The top view and bottom view of an AC-powered ACX500 router are respectively the same as those of a DC-powered router. The only component that appears different is the power inlet for the two routers.

Front Panel of an ACX500 Indoor Router

The front panel of an ACX500 indoor router consists of the following components (see Figure 8 and Figure 9):

  • Chassis status LED labeled SYS

  • Power inlet

  • USB port for upgrading Junos OS

  • Management Ethernet port labeled MGMT

  • Time of day (TOD) RJ-45 port

  • Console port labeled CONSOLE

  • Alarm contact port labeled ALARM—accepts a DE-15 alarm cable

  • GPS antenna port labeled GPS ANTENNA

  • External clocking 1 PPS input and output ports labeled IN and OUT

  • GPS clocking LED labeled GPS 1PPS

  • Network ports and corresponding status LEDs:

    • Two Gigabit Ethernet SFP ports labeled 0/0/0 and 0/0/1

    • Combination Gigabit Ethernet ports labeled 0/1/0 through 0/1/3, which can be either of the following configurations:

      • Four Gigabit Ethernet RJ-45 ports.

        Out of the four RJ-45 ports, three are PoE ports labeled 0/1/0 PoE++, 0/1/1 PoE+ and 0/1/2 PoE+ that provide electrical current to devices through network cables. These ports comply with IEEE 802.3af (PoE) and IEEE 802.3at (PoE+). The PoE++ (ge-0/1/0) port support 65 W, and the PoE+ ports (ge-0/1/1 through ge-0/1/2) support 35 W power. The total PoE power supported for these three ports is 80 W.

      • Four Gigabit Ethernet ports, labeled 0/1/0 through 0/1/3, that accept SFP transceivers

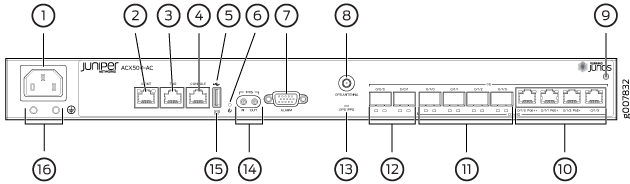

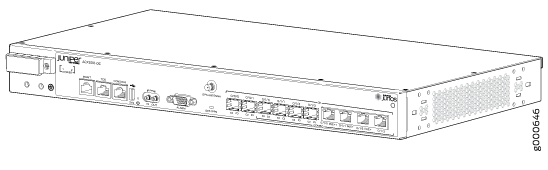

Figure 8: Front Panel of the ACX500 Indoor Router—AC ChassisFront Panel of the ACX500 Indoor Router—AC Chassis
  1

AC appliance inlet

  9

ESD point

  2

Management Ethernet port (MGMT)

10

Gigabit Ethernet RJ-45 ports (COMBO)

  3

Time of day (TOD) RJ-45 port

11

Gigabit Ethernet SFP ports (COMBO)

  4

Console port (CONSOLE)

12

Gigabit Ethernet SFP ports

  5

USB port

13

GPS LED (GPS 1PPS)

  6

Recovery switch

14

External clocking ports

  7

Alarm contact port

15

System status LED (SYS)

  8

GPS antenna port

16

Grounding terminals

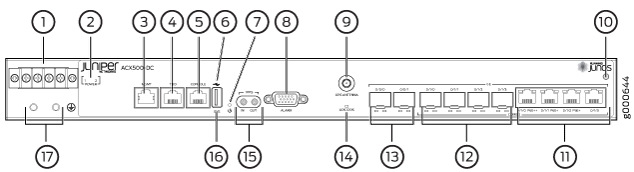

Figure 9: Front Panel of the ACX500 Indoor Router—DC ChassisFront Panel of the ACX500 Indoor Router—DC Chassis
  1

DC terminals

10

ESD point

  2

DC power status LED

11

Gigabit Ethernet RJ-45 ports (COMBO)

  3

Management Ethernet port (MGMT)

12

Gigabit Ethernet SFP ports (COMBO)

  4

Time of day (TOD) RJ-45 port

13

Gigabit Ethernet SFP ports

  5

Console port (CONSOLE)

14

GPS LED (GPS 1PPS)

  6

USB port

15

External clocking ports

  7

Recovery switch

16

System status LED (SYS)

  8

Alarm contact port

17

Grounding terminals

  9

GPS antenna port



Front Panel of an ACX500 Outdoor Router with PoE

The front panel of an ACX500 outdoor router with PoE consists of the following components (see Figure 10, Figure 11, and Figure 12):

  • Chassis status LED labeled SYS

  • USB port for upgrading Junos OS

  • Management Ethernet port labeled MGMT

  • Time of day (TOD) RJ-45 port

  • Console port labeled CONSOLE

  • Alarm contact port labeled ALARM—accepts a DE-15 alarm cable

  • External clocking 1 PPS input and out ports labeled IN and OUT

  • GPS clocking LED labeled GPS 1PPS

  • Network ports and corresponding status LEDs:

    • Three Gigabit Ethernet SFP ports labeled 0/0/0 through 0/0/2

    • Three Gigabit Ethernet RJ-45 ports (with PoE+ support) labeled 0/1/0 through 0/1/2

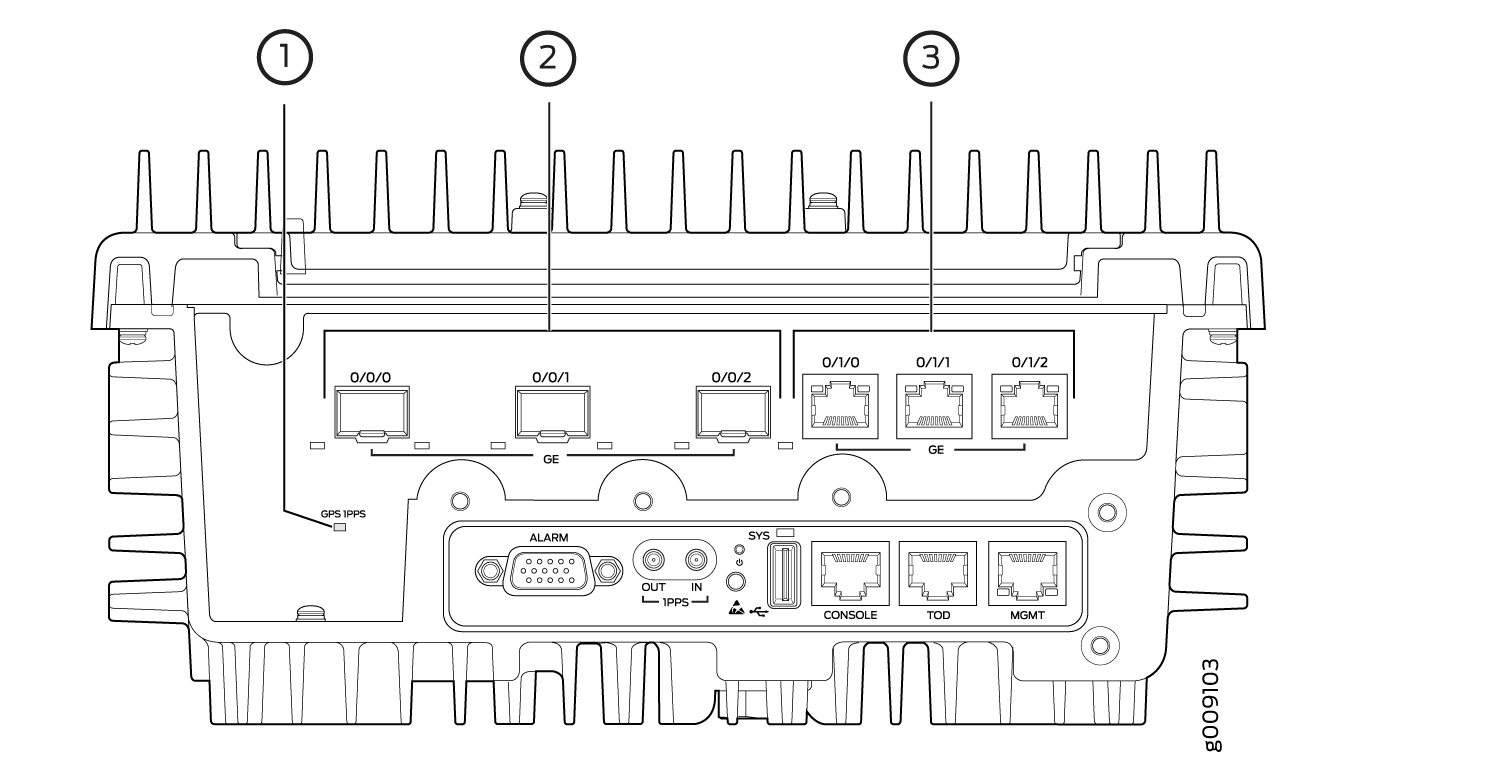

Figure 10: Front Panel of the ACX500 Outdoor Router with PoEFront Panel of the ACX500 Outdoor Router with PoE
  1

Interface ports

  2

Management ports

Figure 11 shows the ports that are available under the management port cover.

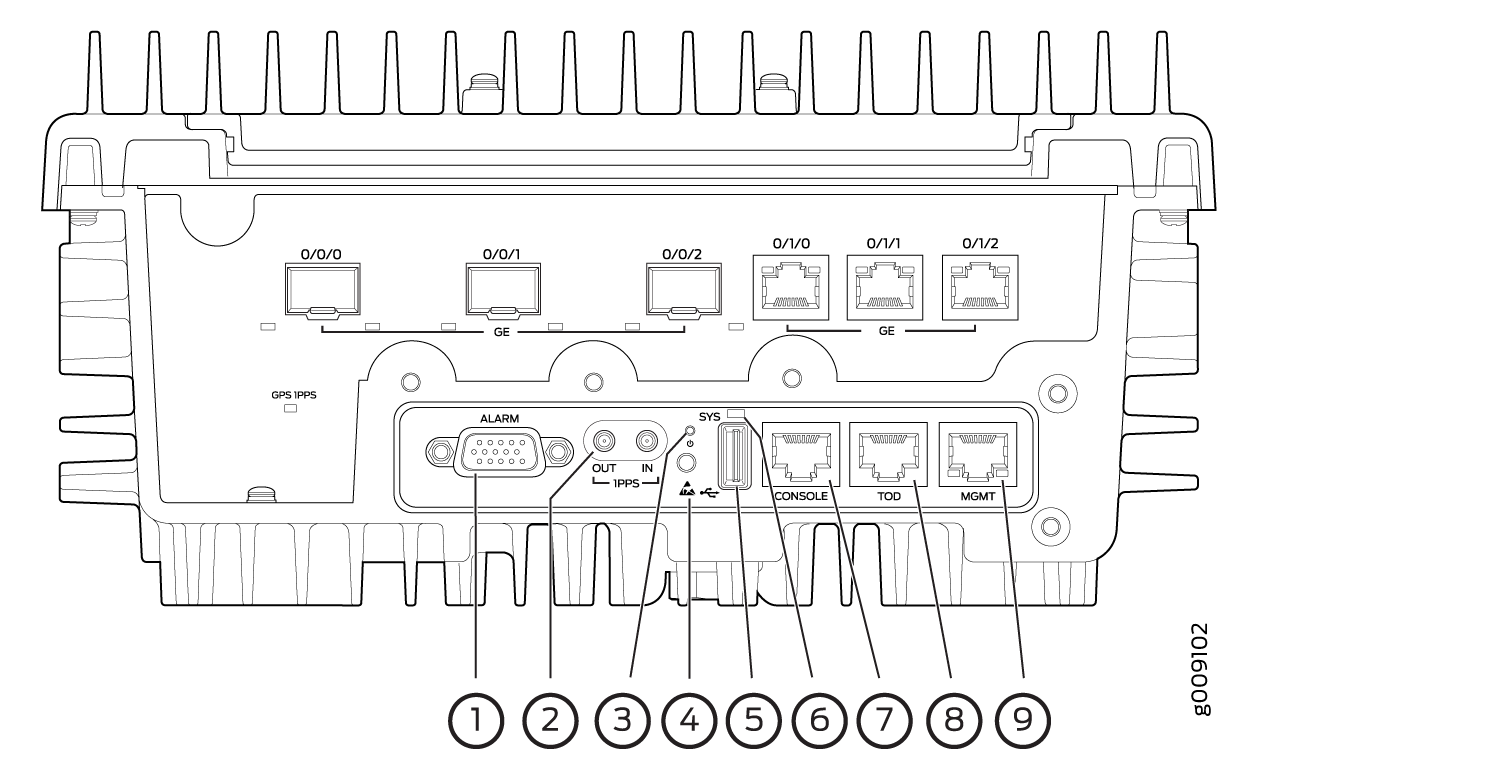

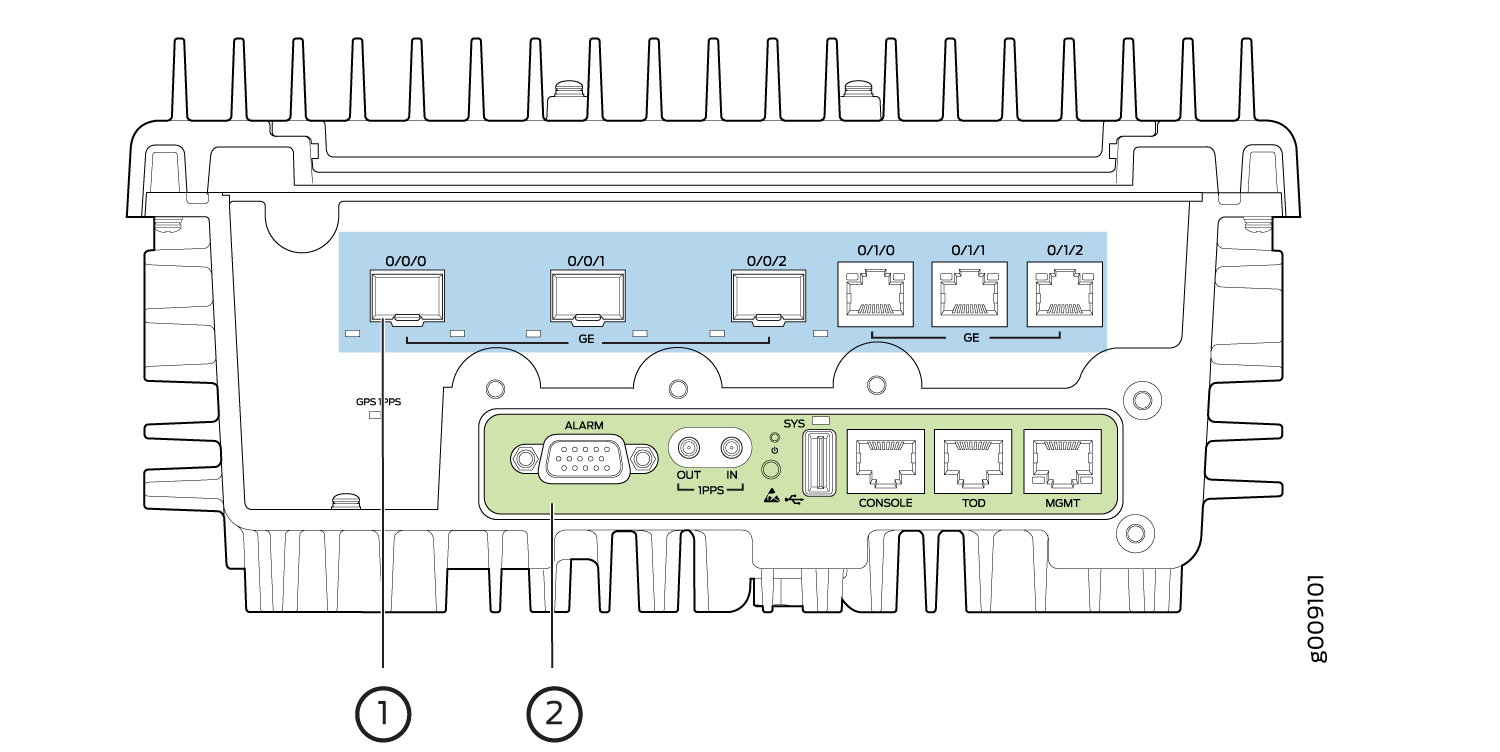

Figure 11: Front Panel of the ACX500 Outdoor Router with PoE—Management PortsFront Panel of the ACX500 Outdoor Router with PoE—Management Ports
  1

Alarm contact port

  6

System status LED (SYS)

  2

External clocking ports

  7

Console port (CONSOLE)

  3

Recovery switch

  8

Time of day (TOD) RJ-45 port

  4

ESD point

  9

Management Ethernet port (MGMT)

  5

USB port



Figure 12 shows the ports that are available under the interface port cover.

Figure 12: Front Panel of the ACX500 Outdoor Router with PoE—Interface PortsFront Panel of the ACX500 Outdoor Router with PoE—Interface Ports
  1

GPS LED

  3

Gigabit Ethernet RJ-45 ports (with PoE+ support) and LEDs

  2

Gigabit Ethernet SFP ports and LEDs



Alarm Contact Port on ACX500 Routers

The ACX500 router has four external alarm contacts (also known as potential free contacts) for connecting the router to external alarm devices. The port labeled ALARM uses a 15-pin D-type connector. The external alarm contact has 15 pins that accept a single core wire from external alarm devices. A DE15 alarm cable is required to connect the ACX500 router to external alarm devices. Use the gauge wire appropriate for the external device that you are connecting.

Whenever a system condition triggers an alarm, the alarm relay contacts are activated, which in turn activates the external alarm devices. The alarm setting is open or closed.

You can connect and configure two output alarms and four input alarms. Two additional output alarms are reserved and are used to indicate major and minor system alarms. Each output and input alarm has two contacts for connecting the router to external alarm devices. Contact 1 of each alarm can be configured as Normally Open [NO] or Normally Closed [NC] through the CLI. Contact 2 of each alarm functions as a reference [REF] or negative potential terminal for Contact 1 of the corresponding alarm and provides a current path for external alarm devices. Table 1 describes the functions of the alarm contacts.

Table 1: Alarm Relay Contact Functions

Contact Name

Contact Name

Function

Contact 1

Normally Open (NO)

Current is not flowing through Contact 1 and Contact 2 [REF] when operating normally. When the current flows, the closed alarm is generated.

Normally Closed (NC)

Current is flowing through Contact 1 and Contact 2 [REF] when operating normally. When the current stops flowing, the open alarm is generated.

Contact 2

Reference (REF)

Provides the current path for the external alarm-reporting device and functions as a reference or negative potential terminal for Contact 1.

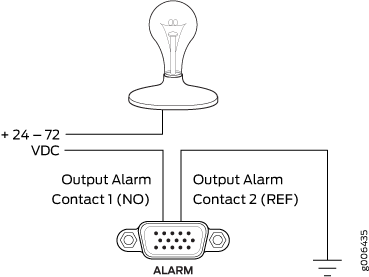

Figure 13 shows an example of a wiring diagram for a simple output alarm-reporting device. In this case the device is a light bulb that illuminates when the device encounters a condition that activates the red alarm LED and relay contacts. The alarm relay contacts can also be used to activate other devices such as bells or buzzers.

Figure 13: Sample Output Alarm-Reporting DeviceSample Output Alarm-Reporting Device

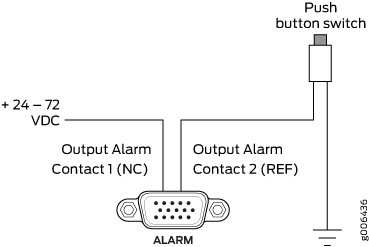

Figure 14 shows an example of a wiring diagram for a simple input alarm-reporting device. In this case the push button switch is an alarm sensor that triggers an input alarm when a door-open condition occurs.

Figure 14: Sample Input Alarm-Reporting DeviceSample Input Alarm-Reporting Device

LEDs on ACX500 Routers

System LED on the Front Panel

One bicolor LED labeled SYS indicates the status of the router. Table 2 describes the system LED in more detail.

Table 2: System LED on the Front Panel

Label

Color

State

Description

SYS

Green

Blinking

The router is transitioning online.

On steadily

The router is functioning normally.

Red

Blinking

The router has reported a yellow alarm.

On steadily

The router has reported a red alarm.

Gigabit Ethernet SFP and RJ-45 Port LEDs

Each Gigabit Ethernet SFP and RJ-45 port on the front panel of the router has one pair of port LEDs. Table 3 describes the LEDs in more detail.

Table 3: Ethernet Port LEDs

Name

Location

Color

State

Description

Activity

Left

Green

Blinking

The port is receiving data.

Off

The port is not receiving data.

Link

Right

Yellow

On

The link is online.

Off

No link.

Management Port LEDs on the Front Panel

The RJ-45 port labeled MGMT has a pair of LEDs that display the status of the port. Table 4 describes the LEDs in more detail.

Table 4: Management LEDs

Name

Location

Color

State

Description

Activity

Left

Green

Blinking

The port is active and receiving data.

Off

The port is not receiving data.

Link

Right

Yellow

On

The link is online.

Off

No link.

GPS 1 PPS LED on the Front Panel

One green LED labeled GPS 1PPS indicates the status of the pulse per second (PPS) signal received from the GPS receiver. Table 5 describes the LED in more detail.

Table 5: GPS 1 PPS LED on the Front Panel

Label

Color

State

Description

GPS 1PPS

Green

Off

PPS signal not received from GPS receiver.

Blinking

PPS signal received from GPS receiver.

Clocking Ports on ACX500 Routers

The clocking ports distribute a synchronized clock signal throughout the router by locking onto a clock signal originating from an internal clock source or by connecting to an external clock source.

The reference clock inputs can be Ethernet recovered clocks, IEEE 1588v2 recovered clocks, or xDSL NTU-R timing clocks. Externally available reference clocks are 1 pulse per second (PPS). The one SubMiniature B (SMB, 1 PPS output) connectors on the front panel of the router connect to external clock signal sources. The clocking ports provide the synchronized output clocks from any one of the above reference inputs based on the clock’s priority.

Internal clock sources within the ACX500 routers include:

  • 1 PPS SMB connectors (one output)

  • Time of day (TOD) RJ-45 port (supports RS-422)

  • Synchronous Ethernet support on RJ-45 and SFP ports as timing input or output

  • Packet timing (IEEE 1588v2) includes:

    • Timing input when configured as ordinary clock (OC) or boundary clock (BC)

    • Timing output when configured as BC
