Configurar la multiconexión de EVPN de la estructura de campus

Siga estos pasos para fusionar las capas de núcleo y distribución en un solo conmutador mediante la configuración de la multiconexión de EVPN.

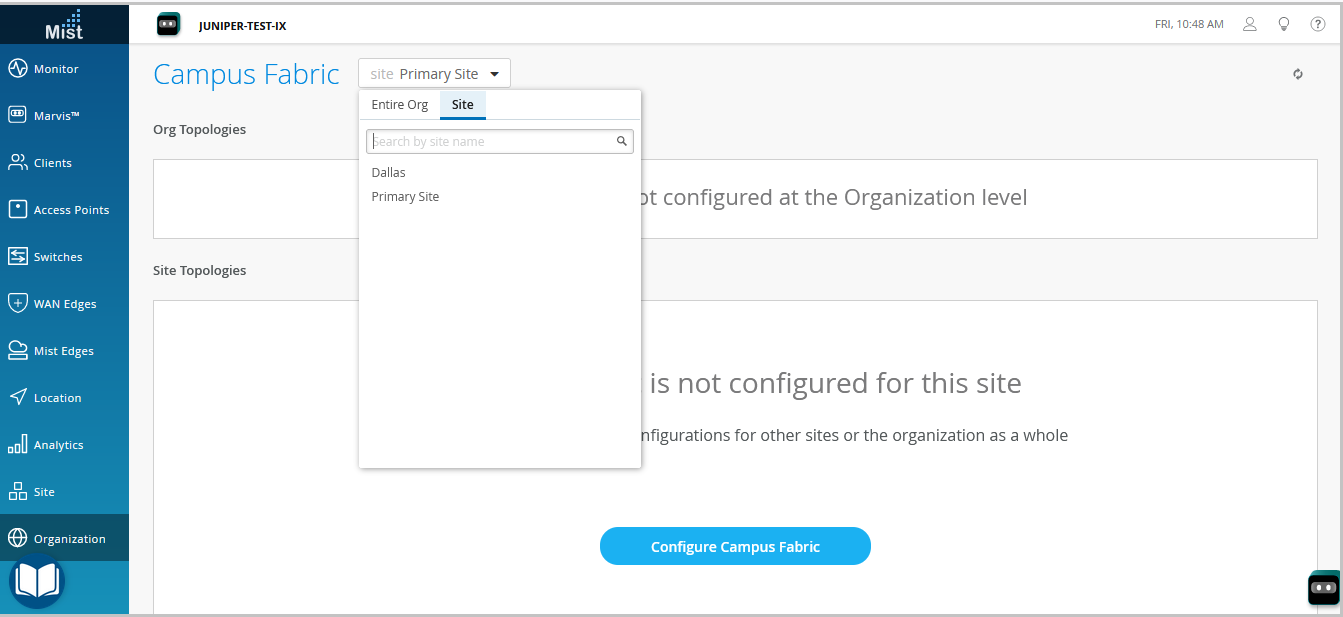

1. En el menú de navegación de la izquierda, seleccione Organización > estructura de campus.
2. En la lista desplegable del sitio, junto al encabezado de la página, seleccione el sitio en el que desea crear la estructura de campus.

3. Haga clic en la opción que sea relevante. Haga clic:

   • el botón Configurar estructura de campus (se muestra si el sitio no tiene una configuración de estructura de campus asociada).

   • el botón Crear estructura de campus (se muestra si el sitio ya tiene al menos una configuración de estructura de campus asociada).

   Se muestra la pestaña Topología .

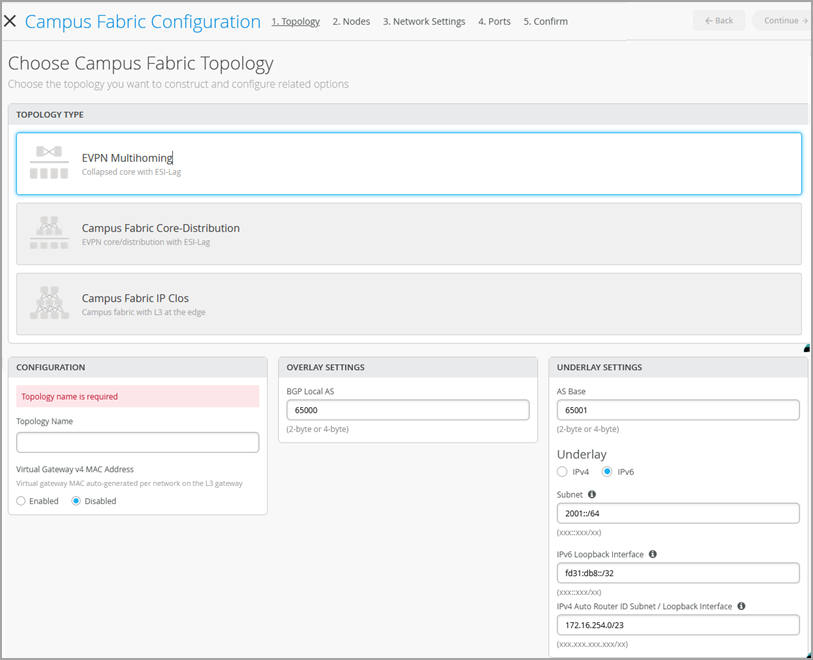

4. Seleccione el tipo de topología Multiconexión EVPN.

5. Configure el resto de las opciones en la pestaña Topología , como se describe a continuación:
   Nota:

   Le recomendamos que use la configuración predeterminada en esta pantalla, a menos que entre en conflicto con alguna red conectada a la estructura del campus. Los vínculos punto a punto entre cada capa utilizan direccionamiento /31 para conservar direcciones.

   1. En la sección CONFIGURACIÓN , configure lo siguiente:

      • Nombre de topología: introduzca un nombre para la topología.

      • Dirección MAC de Virtual Gateway v4: habilite esta opción para admitir redireccionamientos del portal de invitados en la WLAN. , Mist proporcionará una dirección MAC única a cada puerta de enlace virtual de capa 3 (L3) (por red). Deshabilitado de forma predeterminada.

   2. (Si elige no utilizar la configuración predeterminada) En la sección CONFIGURACIÓN DE SUPERPOSICIÓN , escriba lo siguiente:

      • AS local de BGP: representa el punto de partida de los números de AS de BGP privados que Mist asigna a cada dispositivo automáticamente. Puede usar cualquier intervalo de números de AS de BGP privado que se adapte a su implementación. Mist aprovisiona la política de enrutamiento para que solo se intercambien las direcciones IP de circuito cerrado en la capa subyacente de la estructura.

   3. (Si elige no utilizar la configuración predeterminada) En la sección CONFIGURACIÓN DE LA CAPA SUBYACENTE , configure lo siguiente:

      • Base de AS: el número base de AS. El valor predeterminado es 65001.

      • Capa subyacente: seleccione una versión de protocolo de Internet para la capa subyacente. Las opciones son IPv4 e IPv6.

      • Subred: el rango de direcciones IP que Mist utiliza para los vínculos punto a punto entre dispositivos. Puede usar un rango que se adapte a su despliegue. Mist divide esta subred en direccionamiento de subred /31 por vínculo. Puede modificar este número para adaptarlo a la escala de implementación específica. Por ejemplo, una red /24 proporcionaría hasta 128 subredes /31 punto a punto.

      • Interfaz de circuito cerrado IPv6: especifique una subred de interfaz de circuito cerrado IPv6, que se utiliza para configurar automáticamente la interfaz de circuito cerrado IPv6 en cada dispositivo de la estructura.

      • Interfaz de subred/circuito cerrado de ID de enrutador automático: Mist utiliza esta subred para asignar automáticamente un ID de enrutador a cada dispositivo de la estructura (incluidos los dispositivos de acceso, independientemente de si están configurados con EVPN o no). Los ID de enrutador son interfaces de circuito cerrado (lo0.0) que se utilizan para el emparejamiento de superposición entre dispositivos. Para topologías nuevas, este campo rellena automáticamente un valor de subred predeterminado (172.16.254.0/23), que puede modificar. Cuando edita una topología existente, este campo no rellena ningún valor predeterminado. Un ID de enrutador se utiliza como identificador cuando se implementan protocolos de enrutamiento como BGP. Después de agregar el conmutador a la capa de núcleo colapsado, haga clic en el icono del conmutador para ver el ID del enrutador asociado.

        En el caso de las implementaciones IPv4, tiene la opción de deshabilitar la asignación automática de ID de enrutador y configurar los ID de enrutador manualmente. Para ello, deje este campo en blanco y, a continuación, configure manualmente los ID de enrutador desde la pestaña Nodos .

        En el caso de las implementaciones IPv4, también puede sobrescribir el ID de enrutador asignado automáticamente configurando manualmente una interfaz circuito cerrado en el campo ID de enrutador del mosaico Enrutamiento de la página de configuración del conmutador (Conmutadores > Nombre del conmutador). Sin embargo, si posteriormente modifica la configuración de la estructura del campus, Mist vuelve a realizar la asignación automática del ID del enrutador, sustituyendo la interfaz de circuito cerrado configurada manualmente.

6. Haga clic en Continuar para ir a la pestaña Nodos , donde puede seleccionar los dispositivos que forman parte del despliegue de la estructura del campus.

7. Agregue conmutadores a la capa de núcleo colapsado y a la capa de acceso.

   Le recomendamos que valide la presencia de cada dispositivo en el inventario de conmutadores antes de crear la estructura de campus.

   Para agregar conmutadores:

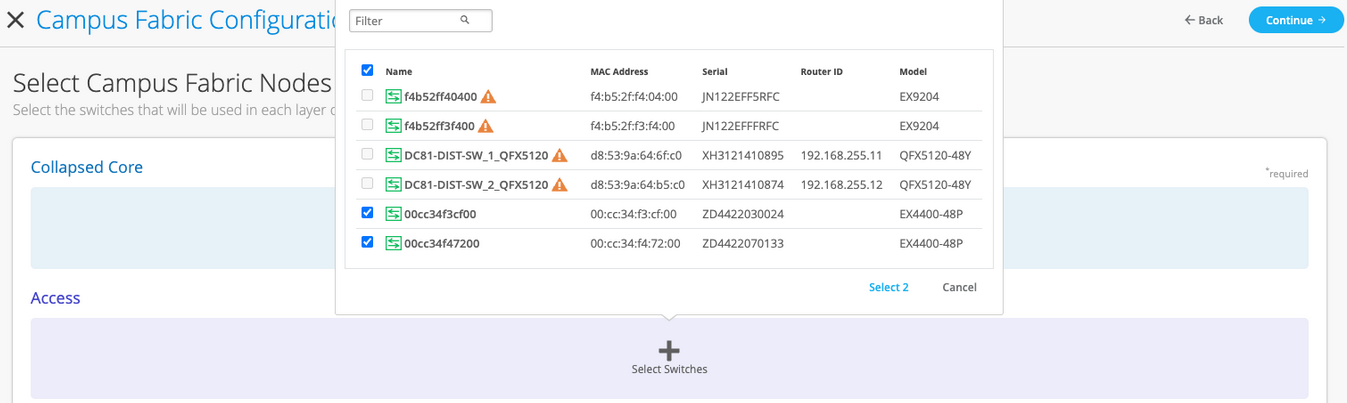

   1. Haga clic en Seleccionar conmutadores.
   2. Elija los conmutadores que desea agregar a la estructura del campus.
   3. Haga clic en Seleccionar.
   Nota:

   Si deja en blanco el campo Subred de ID de enrutador automático o interfaz de circuito cerrado en la pestaña Topología , debe configurar los ID de enrutador para los conmutadores manualmente. Para ello, seleccione un conmutador que haya agregado a la estructura y configure el ID del enrutador en el panel que aparece a la derecha. La asignación manual del ID de enrutador solo se admite para implementaciones IPv4.

8. Después de seleccionar los conmutadores, haga clic en Continuar para ir a la pestaña Configuración de red , donde puede configurar las redes.

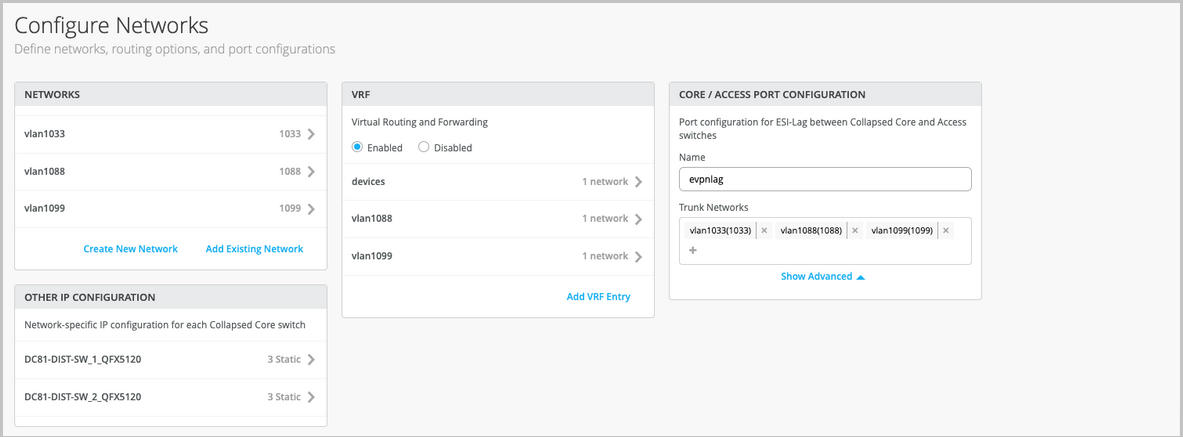

9. Configure los ajustes de red como se describe a continuación:
   1. En el mosaico REDES , agregue redes o VLAN a la configuración. Puede crear una red nueva o importar la red desde la plantilla de conmutador definida en la página Plantillas de conmutador > organización .

      Para agregar una VLAN, haga clic en Crear nueva red y configure las VLAN. La configuración incluye un nombre, un ID de VLAN y una subred. Puede especificar direcciones IPv4 o IPv6 para la subred.

      Para importar VLAN desde la plantilla:

      1. Haga clic en Agregar red existente.

      2. Seleccione una plantilla de conmutador en la lista desplegable Plantilla para ver las VLAN disponibles en esa plantilla.

      3. Seleccione la VLAN requerida en la lista que se muestra y haga clic en la marca ✓.

      Las VLAN se asignan a identificadores de red virtual (VNI). Opcionalmente, puede asignar VLAN a instancias de enrutamiento y reenvío virtual (VRF) para separar lógicamente el tráfico.

   2. Revise la configuración en el mosaico OTRA CONFIGURACIÓN IP . En esta sección, se rellena la configuración automáticamente después de especificar las redes en la sección REDES.
   3. Opcionalmente, configure instancias VRF. Recomendamos usar VRF cuando se apliquen políticas de tipo 5 (prefijo IP) en una arquitectura de estructura de campus basada en segmentos. De forma predeterminada, Mist coloca todas las VLAN en el VRF predeterminado. La opción VRF le permite agrupar VLAN comunes en el mismo VRF o VRF separados, según los requisitos de aislamiento de tráfico. Todas las VLAN de cada VRF tienen conectividad completa entre sí y con otros recursos de red externos. Un caso de uso común es el aislamiento del tráfico inalámbrico invitado de la mayoría de los dominios empresariales, excepto la conectividad a Internet. De forma predeterminada, la estructura de campus proporciona un aislamiento completo entre VRF, lo que obliga a las comunicaciones entre VRF a atravesar un firewall. Si necesita comunicación entre VRF, debe incluir rutas adicionales al VRF. La ruta adicional podría ser una ruta predeterminada que indique a la estructura del campus que use un enrutador externo. También podría ser un firewall para más capacidades de inspección de seguridad o enrutamiento.

      Para crear un VRF:

      1. En el mosaico VRF, haga clic en Agregar instancia VRF y especifique la configuración. La configuración incluye un nombre para el VRF y las redes que se asociarán con el VRF.

      2. Para agregar rutas adicionales, haga clic en el vínculo Agregar rutas adicionales en la página Nueva instancia VRF y especifique la ruta. Puede especificar direcciones IPv4 o IPv6.

   4. En el mosaico CONFIGURACIÓN DE NÚCLEO/PUERTO DE ACCESO , complete la configuración de puerto para ESI-LAG entre el núcleo colapsado y los conmutadores de acceso. La configuración incluye un nombre y otros elementos de configuración de puerto. De forma predeterminada, esta configuración incluye las redes agregadas en el mosaico REDES de la misma página. Si desea eliminar o modificar la configuración, haga clic en Mostrar avanzado y configure las opciones. Utilice las sugerencias que aparecen en pantalla para configurar las opciones del perfil de puerto.
   5. En el mosaico RELÉ DHCP, configure las opciones del relé DHCP. Tiene las siguientes opciones:

      • Habilitado: configura el relé DHCP en todos los dispositivos habilitados para IRB en la estructura del campus. Esta opción le permite habilitar la retransmisión DHCP en las redes que seleccionó. La red se rellenará dentro del mosaico de relé DHCP siempre que aparezca en la pestaña Redes de la misma página.

      • Deshabilitado: desactive el relé DHCP en los dispositivos de la estructura del campus. Cuando se selecciona esta opción, el relé DHCP se deshabilita en todos los dispositivos habilitados para IRB. Debe seleccionar esta opción con cuidado, ya que esto eliminará el relé DHCP definido localmente en la página Detalles del conmutador.

      • Ninguno: esta opción se selecciona automáticamente cuando la topología de la estructura de campus tiene una combinación de dispositivos en términos de la configuración del relé DHCP; es decir, algunos dispositivos tienen habilitado el relé DHCP, otros lo tienen deshabilitado y otros no lo tienen definido. Esta opción estará visible para todas las topologías de estructura de campus que tengan DHCP Relay definido localmente en conmutadores individuales.

      Si desea quitar todas las redes de retransmisión DHCP definidas localmente, seleccione Habilitado y, luego, elija Eliminar todas las redes DHCP existentes a nivel de dispositivo. Puede simplificar el despliegue de DHCP Relay centralizando cualquier cambio de configuración en el flujo de trabajo de la estructura de campus.

      Si habilita el relé DHCP en una configuración de estructura de campus, se habilita en todos los dispositivos definidos por IRB en la estructura y se deshabilita en el resto de los dispositivos. Por ejemplo, en las topologías de multiconexión de EVPN, el relé DHCP se habilita en dispositivos de núcleo colapsado y se deshabilita en el resto.

10. Haga clic en Continuar para ir a la pestaña Puertos , donde puede configurar los puertos y crear una conexión entre los conmutadores de núcleo, distribución y capa de acceso.

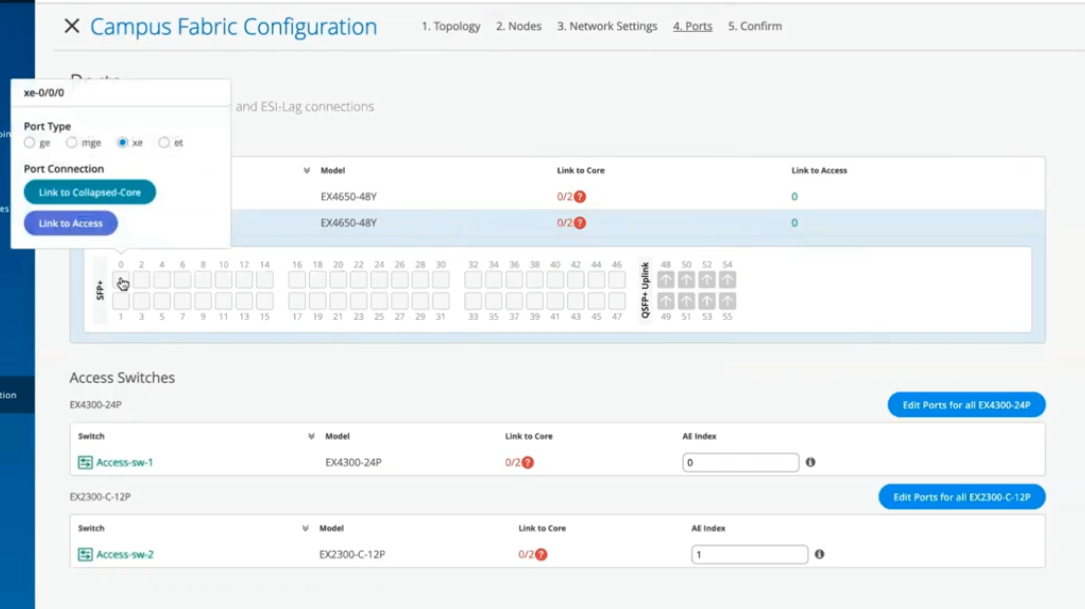

11. Configure los puertos de conmutación en la capa de núcleo colapsado de la siguiente manera:
    1. Seleccione un conmutador en la sección Núcleo colapsado para abrir el panel del puerto del conmutador.
    2. En el panel puerto del conmutador, seleccione el puerto que desee configurar.
    3. Especifique un tipo de puerto (por ejemplo, ge o xe).
    4. Seleccione:

       • Vínculo al núcleo colapsado para conectar el puerto a un conmutador central.

         En la capa de núcleo colapsado, puede conectar cada conmutador a todos los demás para formar una topología de malla completa. Una topología de malla completa proporciona una estructura de campus de multihoming EVPN con mayor resistencia, lo que garantiza una funcionalidad de red continua incluso si un dispositivo falla.

       • Vínculo de acceso para conectar el puerto a un conmutador de acceso.

    5. Seleccione el conmutador principal o de acceso (según la selección del paso anterior) en el que debe terminar el vínculo. Debe configurar todos los puertos que deben formar parte de la estructura del campus.

    Para configurar los puertos de conmutación en la capa de acceso:
    1. Seleccione un conmutador en la sección Acceso para abrir el panel del puerto del conmutador.
    2. En el panel puerto del conmutador, seleccione el puerto que desee configurar.
    3. Especifique un tipo de puerto (por ejemplo, ge o xe).
       En caso de que la capa de acceso utilice un chasis virtual (VC), puede configurar los puertos en las pestañas Principal y Copia de seguridad.

    Para los conmutadores de acceso, seleccione solo las interfaces que se deben usar para interconectarse con el conmutador de distribución. El sistema agrupa todas las interfaces en un único paquete de Ethernet mediante la opción de índice AE. Puede especificar un valor de índice AE para los dispositivos de acceso.

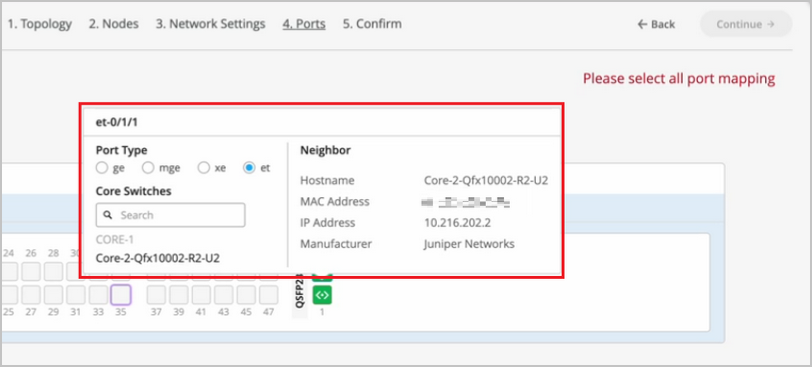

    Si desea ver la información de configuración y estado de un puerto específico, coloque el cursor sobre el cuadro numerado que representa ese puerto en la interfaz de usuario del panel de puertos.


12. Haga clic en Continuar para ir a la pestaña Confirmación .
13. Haga clic en cada icono de conmutador para ver y verificar la configuración.
14. Después de verificar la configuración, haga clic en Aplicar cambios > Confirmar.
    Este paso guarda la configuración de la estructura del campus en la nube de Mist y la aplica a los conmutadores. Si los conmutadores están fuera de línea, se les aplicará la configuración la próxima vez que se conecten. Un conmutador puede tardar hasta 10 minutos en completar la configuración.
15. Haga clic en Cerrar configuración de estructura de campus.

    Después de que Mist compile la estructura del campus o mientras construye la estructura, puede descargar la tabla de conexión. La tabla de conexiones representa el diseño físico de la estructura del campus. Puede utilizar esta tabla para validar todas las interconexiones de conmutadores para los dispositivos que participan en la construcción de la estructura del campus físico. Haga clic en Tabla de conexión para descargarla (formato .csv).

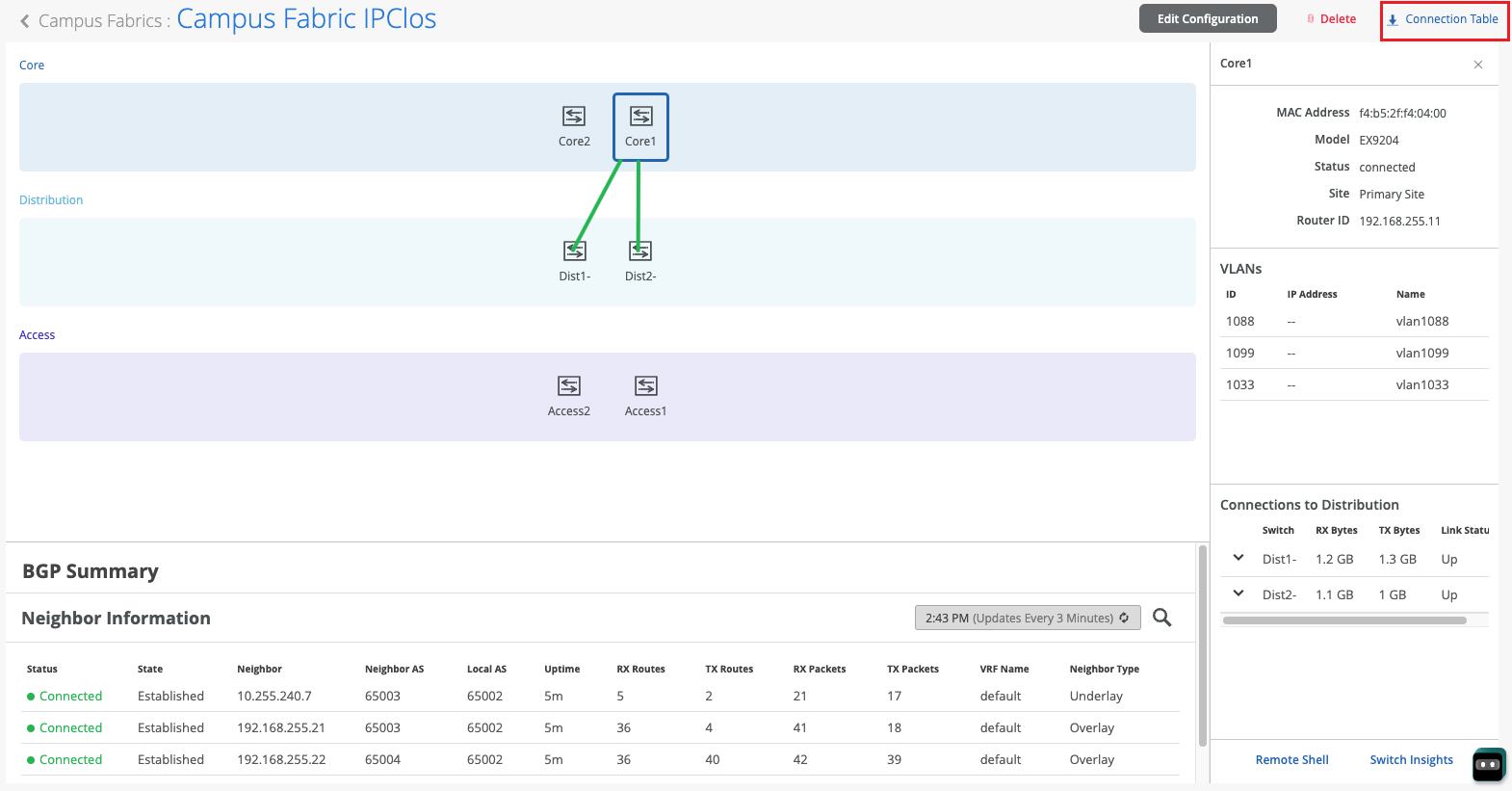

16. Verifique la configuración de la estructura del campus. Para verificarlo, siga los pasos que se indican en la sección Verificación del flujo de trabajo de multiconexión de EVPN de la estructura de campus.
