예: 복잡한 정규식을 사용한 라우팅 정책 테스트
이 예에서는 명령을 사용하여 라우팅 정책을 테스트하여 정책이 프로덕션 환경에 적용하기 전에 예상한 결과를 생성하는지 확인하는 방법을 보여줍니다.test policy
정규식, 특히 복잡한 정규식은 제대로 표현하기가 까다로울 수 있습니다. 이 예제에서는 명령을 사용하여 정규식이 의도한 효과를 갖는지 확인하는 방법을 보여줍니다.test policy
요구 사항
이 예제를 구성하기 전에 디바이스 초기화 이외의 특별한 구성은 필요하지 않습니다.
개요
이 예는 외부 BGP(EBGP) 연결이 있는 두 라우팅 디바이스를 보여줍니다. 디바이스 R2는 BGP 세션을 사용하여 고객 경로를 디바이스 R1로 보냅니다. 이러한 정적 경로에는 여러 커뮤니티 값이 연결되어 있습니다.
user@R2> show route match-prefix 172.16.* detail inet.0: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden) 172.16.1.0/24 (1 entry, 1 announced) *Static Preference: 5 Next hop type: Reject Address: 0x8fd0dc4 Next-hop reference count: 8 State: <Active Int Ext> Local AS: 64511 Age: 21:32:13 Validation State: unverified Task: RT Announcement bits (1): 0-KRT AS path: I Communities: 64510:1 64510:10 64510:11 64510:100 64510:111 172.16.2.0/24 (1 entry, 1 announced) *Static Preference: 5 Next hop type: Reject Address: 0x8fd0dc4 Next-hop reference count: 8 State: <Active Int Ext> Local AS: 64511 Age: 21:32:13 Validation State: unverified Task: RT Announcement bits (1): 0-KRT AS path: I Communities: 64510:2 64510:20 64510:22 64510:200 64510:222 172.16.3.0/24 (1 entry, 1 announced) *Static Preference: 5 Next hop type: Reject Address: 0x8fd0dc4 Next-hop reference count: 8 State: <Active Int Ext> Local AS: 64511 Age: 21:32:13 Validation State: unverified Task: RT Announcement bits (1): 0-KRT AS path: I Communities: 64510:3 64510:30 64510:33 64510:300 64510:333 172.16.4.0/24 (1 entry, 1 announced) *Static Preference: 5 Next hop type: Reject Address: 0x8fd0dc4 Next-hop reference count: 8 State: <Active Int Ext> Local AS: 64511 Age: 21:32:13 Validation State: unverified Task: RT Announcement bits (1): 0-KRT AS path: I Communities: 64510:4 64510:40 64510:44 64510:400 64510:444
복잡한 정규식을 테스트하기 위해 디바이스 R2에는 경로를 찾는 정책이 있습니다.test-regex
정책은 다음과 같이 구성됩니다.
policy-statement test-regex { term find-routes { from community complex-regex; then accept; } term reject-the-rest { then reject; } } community complex-regex members "^64510:[13].*$";
이 정규식은 1 또는 3으로 시작하는 커뮤니티 값과 일치합니다.
토폴로지

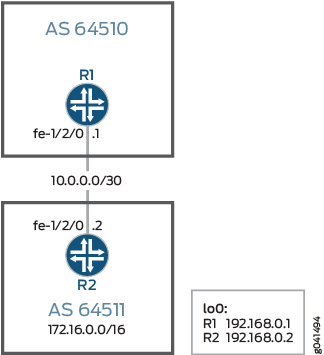

그림 1은 샘플 네트워크를 표시합니다.
CLI 빠른 구성은 그림 1 내 모든 디바이스의 구성을 보여줍니다.
섹션 #configuration271__policy-test-regex-st은 디바이스 R2의 단계를 설명합니다.
구성
CLI 빠른 구성
이 예를 빠르게 구성하려면, 아래 명령을 복사하여 텍스트 파일로 붙여 넣은 다음 모든 라인브레이크를 제거하고, 네트워크 구성을 일치하는 데 필요한 세부 사항을 바꾸고 [edit]
계층 수준에서 명령을 CLI로 복사해 붙여 넣습니다.
디바이스 R1
set interfaces fe-1/2/0 unit 0 family inet address 10.0.0.1/30 set interfaces lo0 unit 0 family inet address 192.168.0.1/32 set protocols bgp group ext type external set protocols bgp group ext peer-as 64511 set protocols bgp group ext neighbor 10.0.0.2 set routing-options router-id 192.168.0.1 set routing-options autonomous-system 64510
디바이스 R2
set interfaces fe-1/2/0 unit 0 family inet address 10.0.0.2/30 set interfaces lo0 unit 0 family inet address 192.168.0.2/32 set protocols bgp group ext type external set protocols bgp group ext peer-as 64510 set protocols bgp group ext neighbor 10.0.0.1 set policy-options policy-statement send-static term 1 from protocol static set policy-options policy-statement send-static term 1 then accept set policy-options policy-statement send-static term 2 then reject set policy-options policy-statement test-regex term find-routes from community complex-regex set policy-options policy-statement test-regex term find-routes then accept set policy-options policy-statement test-regex term reject-the-rest then reject set policy-options community complex-regex members "^64510:[13].*$" set routing-options static route 172.16.1.0/24 reject set routing-options static route 172.16.1.0/24 community 64510:1 set routing-options static route 172.16.1.0/24 community 64510:10 set routing-options static route 172.16.1.0/24 community 64510:11 set routing-options static route 172.16.1.0/24 community 64510:100 set routing-options static route 172.16.1.0/24 community 64510:111 set routing-options static route 172.16.2.0/24 reject set routing-options static route 172.16.2.0/24 community 64510:2 set routing-options static route 172.16.2.0/24 community 64510:20 set routing-options static route 172.16.2.0/24 community 64510:22 set routing-options static route 172.16.2.0/24 community 64510:200 set routing-options static route 172.16.2.0/24 community 64510:222 set routing-options static route 172.16.3.0/24 reject set routing-options static route 172.16.3.0/24 community 64510:3 set routing-options static route 172.16.3.0/24 community 64510:30 set routing-options static route 172.16.3.0/24 community 64510:33 set routing-options static route 172.16.3.0/24 community 64510:300 set routing-options static route 172.16.3.0/24 community 64510:333 set routing-options static route 172.16.4.0/24 reject set routing-options static route 172.16.4.0/24 community 64510:4 set routing-options static route 172.16.4.0/24 community 64510:40 set routing-options static route 172.16.4.0/24 community 64510:44 set routing-options static route 172.16.4.0/24 community 64510:400 set routing-options static route 172.16.4.0/24 community 64510:444 set routing-options router-id 192.168.0.2 set routing-options autonomous-system 64511
절차
단계별 절차
다음 예는 구성 계층에서 다양한 수준의 탐색이 필요합니다. CLI 탐색에 관한 정보는 CLI 사용자 가이드에서 구성 모드에서 CLI 편집기 사용을 참조하십시오.
디바이스 R2 구성:
인터페이스를 구성합니다.
[edit interfaces] user@R2# set fe-1/2/0 unit 0 family inet address 10.0.0.2/30 user@R2# set lo0 unit 0 family inet address 192.168.0.2/32
BGP를 구성합니다.
디바이스 R2와의 BGP 피어링 세션에 가져오기 정책을 적용합니다.
[edit protocols bgp group ext] user@R2# set type external user@R2# set peer-as 64510 user@R2# set neighbor 10.0.0.1
정적 경로를 전송하는 라우팅 정책을 구성합니다.
[edit policy-options policy-statement send-static] user@R2# set term 1 from protocol static user@R2# set term 1 then accept user@R2# set term 2 then reject
정규 표현식을 테스트하는 라우팅 정책을 구성합니다.
[edit policy-options policy-statement test-regex] user@R2# set term find-routes from community complex-regex user@R2# set term find-routes then accept user@R2# set term reject-the-rest then reject [edit policy-options community] user@R2# set complex-regex members "^64510:[13].*$"
정적 경로를 구성하고 커뮤니티 값을 연결합니다.
[edit routing-options static route 172.16.1.0/24] user@R2# set reject user@R2# set community [ 64510:1 64510:10 64510:11 64510:100 64510:111 ] [edit routing-options static route 172.16.2.0/24] user@R2# set reject user@R2# set community [ 64510:2 64510:20 64510:22 64510:200 64510:222 ] [edit routing-options static route 172.16.3.0/24] user@R2# set reject user@R2# set community [ 64510:3 64510:30 64510:33 64510:300 64510:333 ] [edit routing-options static route 172.16.4.0/24] user@R2# set reject user@R2# set community [ 64510:4 64510:40 64510:44 64510:400 64510:444 ]
AS(Autonomous System) 번호와 라우터 ID를 구성합니다.
이는 디바이스 R2의 라우팅 테이블에 영향을 미치며, 디바이스 R1 및 디바이스 R3에는 영향을 미치지 않습니다.
[edit routing-options ] user@R2# set router-id 192.168.0.2 user@R2# set autonomous-system 64511
결과
구성 모드에서 show interfaces
, show protocols
, show policy-options
및 show routing-options
명령을 입력하여 구성을 확인합니다. 출력 결과가 의도한 구성대로 표시되지 않으면 이 예의 지침을 반복하여 구성을 수정하십시오.
user@R2# show interfaces fe-1/2/0 { unit 0 { family inet { address 10.0.0.2/30; } } } lo0 { unit 0 { family inet { address 192.168.0.2/32; } } }
user@R2# show protocols bgp { group ext { type external; peer-as 64510; neighbor 10.0.0.1; } }
user@R2# show policy-options policy-statement send-static { term 1 { from protocol static; then accept; } term 2 { then reject; } } policy-statement test-regex { term find-routes { from community complex-regex; then accept; } term reject-the-rest { then reject; } } community complex-regex members "^64510:[13].*$";
user@R2# show routing-options static { route 172.16.1.0/24 { reject; community [ 64510:1 64510:10 64510:11 64510:100 64510:111 ]; } route 172.16.2.0/24 { reject; community [ 64510:2 64510:20 64510:22 64510:200 64510:222 ]; } route 172.16.3.0/24 { reject; community [ 64510:3 64510:30 64510:33 64510:300 64510:333 ]; } route 172.16.4.0/24 { reject; community [ 64510:4 64510:40 64510:44 64510:400 64510:444 ]; } } router-id 192.168.0.2; autonomous-system 64511;
디바이스 구성을 마쳤으면 구성 모드에서 commit
을 입력합니다.
검증
구성이 올바르게 작동하고 있는지 확인합니다.
어떤 커뮤니티가 정규식과 일치하는지 테스트합니다
목적
명령을 사용하여 정규식과 해당 정책을 테스트할 수 있습니다 .test policypolicy-name
작업
디바이스 R2에서 명령을 실행합니다.
test policy test-regex 0/0
user@R2> test policy test-regex 0/0 inet.0: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 172.16.1.0/24 *[Static/5] 1d 00:32:50 Reject 172.16.3.0/24 *[Static/5] 1d 00:32:50 Reject Policy test-regex: 2 prefix accepted, 5 prefix rejected
디바이스 R2에서 숫자 2의 인스턴스를 포함하는 커뮤니티 값과 일치하도록 정규식을 변경합니다.
[edit policy-options community complex-regex] user@R2# delete members "^64510:[13].*$" user@R2# set members "^65020:2+$" user@R2# commit
디바이스 R2에서 명령을 다시 실행합니다 .
test policy test-regex 0/0
user@R2> test policy test-regex 0/0 inet.0: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 172.16.2.0/24 *[Static/5] 1d 00:31:36 Reject Policy test-regex: 1 prefix accepted, 6 prefix rejected
의미
172.16.1.0 /24 및 172.16.3.0/24 경로에는 ^64510:[13].*$ 식과 일치하는 커뮤니티가 연결되어 있습니다. 172.16.2.0/24 경로에는 ^65020:2+$ 식과 일치하는 커뮤니티가 있습니다.
