AP45に外部アンテナを取り付ける

AP45Eモデルには、6ピンと4ピンの2つのプラガブルアンテナポートがあります。

アンテナを取り付けるには:

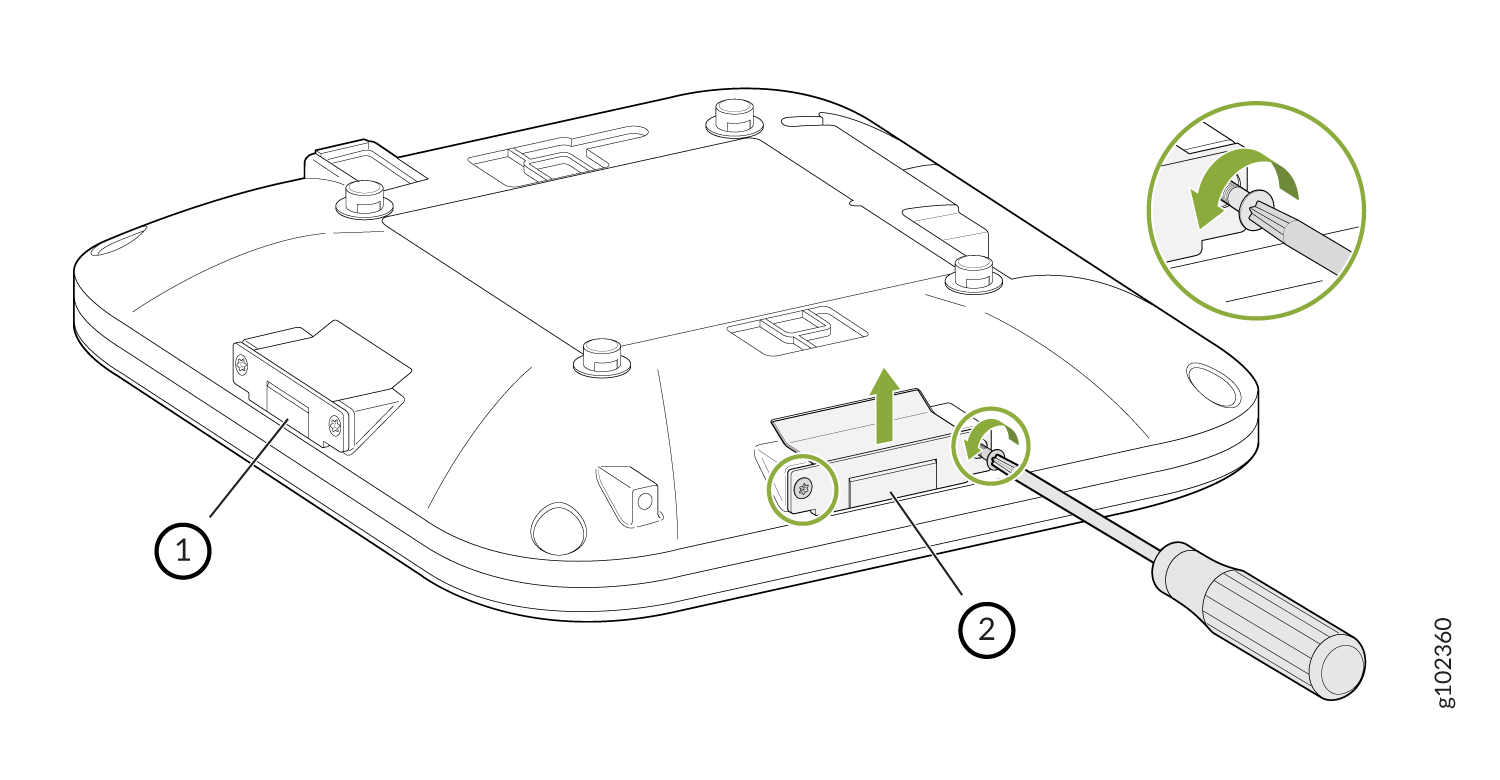

  1. T8セキュリティトルクスビットを使用して、アンテナポートカバーをAPに固定しているネジを外します。カバーを取り外します。
    Diagram illustrating how to adjust a component under a device using a screwdriver. Arrows show screw loosening direction.

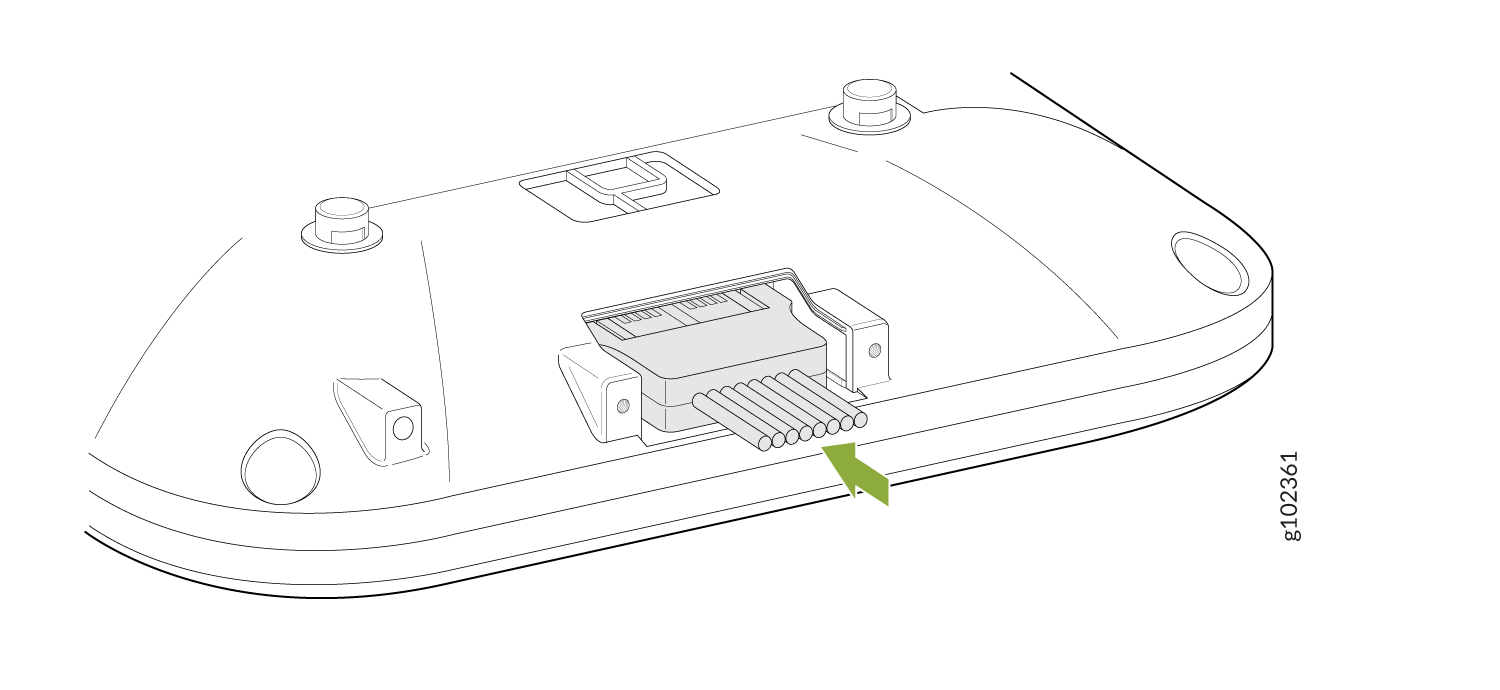

  2. アンテナを接続します。
    Connector assembly with green arrow pointing to wires or pins, suggesting it is part of an electronic system.

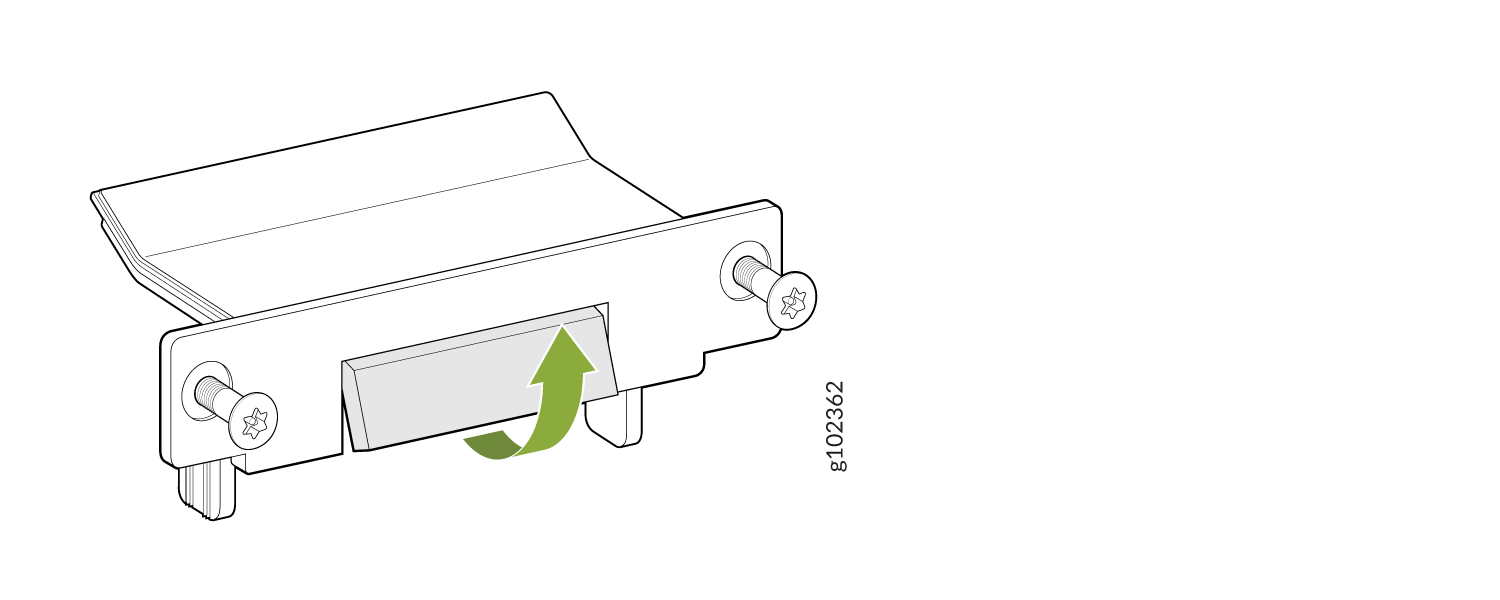

  3. アンテナポートカバーのブレークオフタブを曲げます。
    Mechanical bracket with screws on both sides and a central piece adjusting upward, indicated by a green arrow.

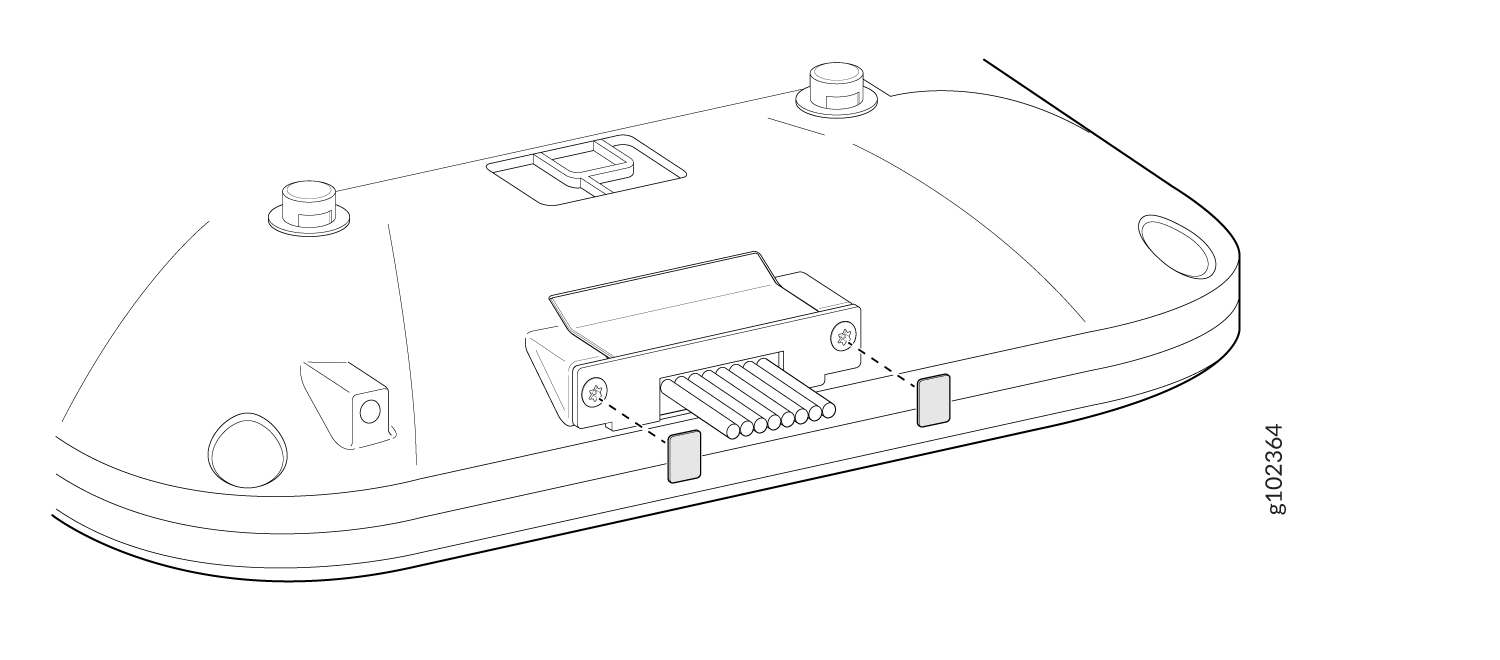

  4. ステップ1で取り外したネジを使用して、アンテナポートカバーをAPに取り付けます。T8 セキュリティ トルクス ビットを使用してネジを締めます。
    Diagram showing cable installation to a base with screws and bracket; inset highlights screw tightening method.
  5. 付属の lexan ラベルをアンテナ ポート カバーのネジに取り付けます。
    Technical diagram showing the underside of a device with a connector and pins for data connections, alignment points, and securing screws.
