Configurer le VPN IPsec en mode FIPS
RÉSUMÉ Cette section fournit les commandes de configuration pour configurer IPsec en mode FIPS.

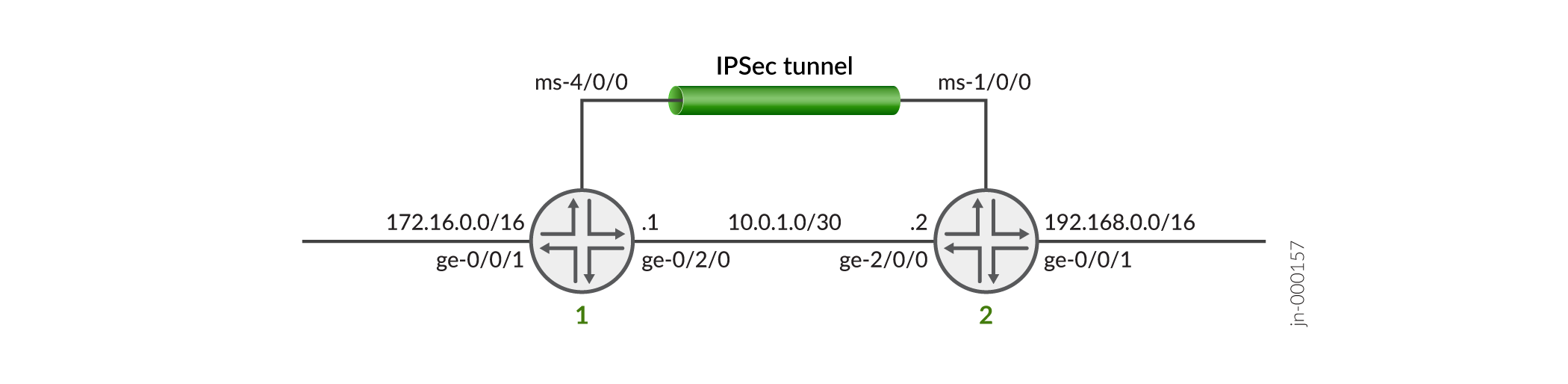

Le tunnel IPsec assure l’authentification des périphériques, la confidentialité et l’intégrité des informations qui transitent par un réseau public ou non approuvé. La figure 1 montre la topologie du tunnel VPN IPsec.
Configurer le service VPN IPsec sur le routeur 1
Dans cette section, vous allez configurer le routeur 1 exécutant Junos OS pour le VPN IPsec.
Configurer le service VPN IPsec sur le routeur 2
Dans cette section, vous allez configurer le routeur 2 exécutant Junos OS pour le VPN IPsec.
Vérification
Vérifiez que la configuration fonctionne correctement.
But
Vérifiez que le tunnel VPN IPsec est créé.
Action
crypto-officer@hostname:fips> show services ipsec-vpn ike security-associations detail
IKE peer 10.0.1.2 Role: Initiator, State: Matured Initiator cookie: 5d73349e49090ae8, Responder cookie: 40f88e192c6538e1 Exchange type: IKEv2, Authentication method: Pre-shared-keys Local: 10.0.1.1, Remote: 10.0.1.2 Lifetime: Expires in 3578 seconds Algorithms: Authentication : hmac-sha256-128 Encryption : aes256-cbc Pseudo random function: hmac-sha256 Diffie-Hellman group : 20 Traffic statistics: Input bytes : 496 Output bytes : 496 Input packets: 2 Output packets: 2 Flags: IKE SA created IPSec security associations: 2 created, 0 deleted
crypto-officer@hostname:fips> show services ipsec-vpn ipsec security-associations detail
Service set: ss1, IKE Routing-instance: default Rule: rule1, Term: term1, Tunnel index: 1 Local gateway: 10.0.1.1, Remote gateway: 10.0.1.2 IPSec inside interface: ms-4/0/0.1, Tunnel MTU: 1500 UDP encapsulate: Disabled, UDP Destination port: 0 Local identity: ipv4_subnet(any:0,[0..7]=172.16.0.0/16) Remote identity: ipv4_subnet(any:0,[0..7]=192.168.0.0/16) NATT Detection: Not Detected, NATT keepalive interval: 0 Direction: inbound, SPI: 3546616983, AUX-SPI: 0 Mode: tunnel, Type: dynamic, State: Installed Protocol: ESP, Authentication: hmac-sha-256-128, Encryption: aes-cbc (256 bits) Soft lifetime: Expires in 27960 seconds Hard lifetime: Expires in 28766 seconds Anti-replay service: Enabled, Replay window size: 4096 Copy ToS: Enabled Copy TTL: Disabled, TTL value: 64 Direction: outbound, SPI: 4136721180, AUX-SPI: 0 Mode: tunnel, Type: dynamic, State: Installed Protocol: ESP, Authentication: hmac-sha-256-128, Encryption: aes-cbc (256 bits) Soft lifetime: Expires in 27960 seconds Hard lifetime: Expires in 28766 seconds Anti-replay service: Enabled, Replay window size: 4096 Copy ToS: Enabled Copy TTL: Disabled, TTL value: 64
